Name: Суич Cudy GS1008PT, 8 порта, 1000Mbps, 8x 10/100/1000 Mbps PoE+ - 0.00 лв. (≈ 0.00 EUR)
Brand: Cudy
SKU: NTLHCUDYGS1008PT
Availability: OutOfStock

Описание Характеристики Ревюта / Въпроси

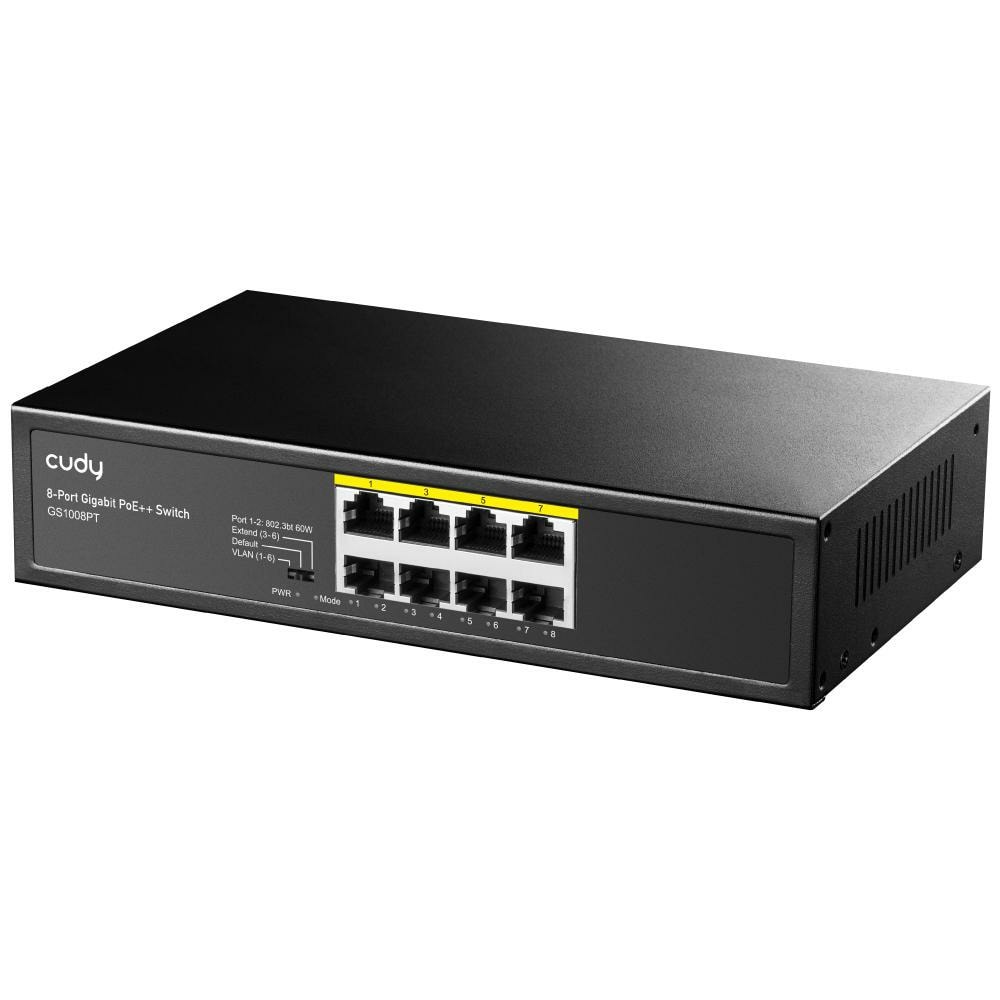

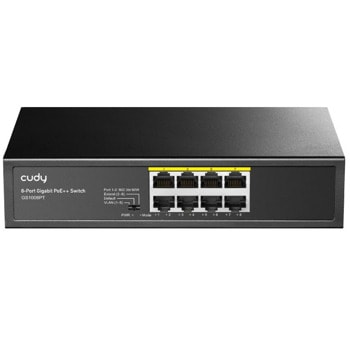

Cudy GS1008PT

● 120 watts PoE power supply, port #1 maximum 60 watts
● 8 10/100/1000M PoE+/PoE+ ports

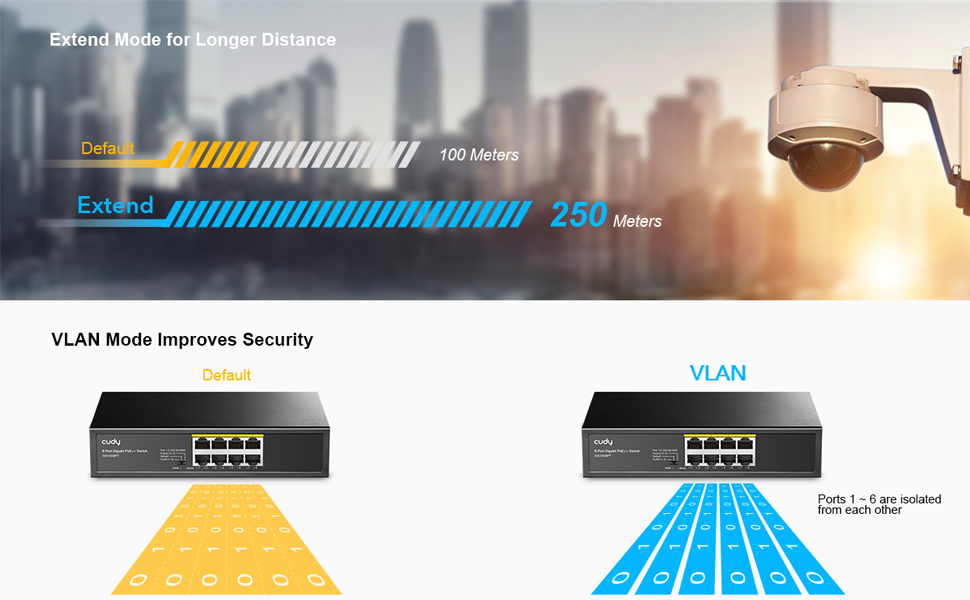

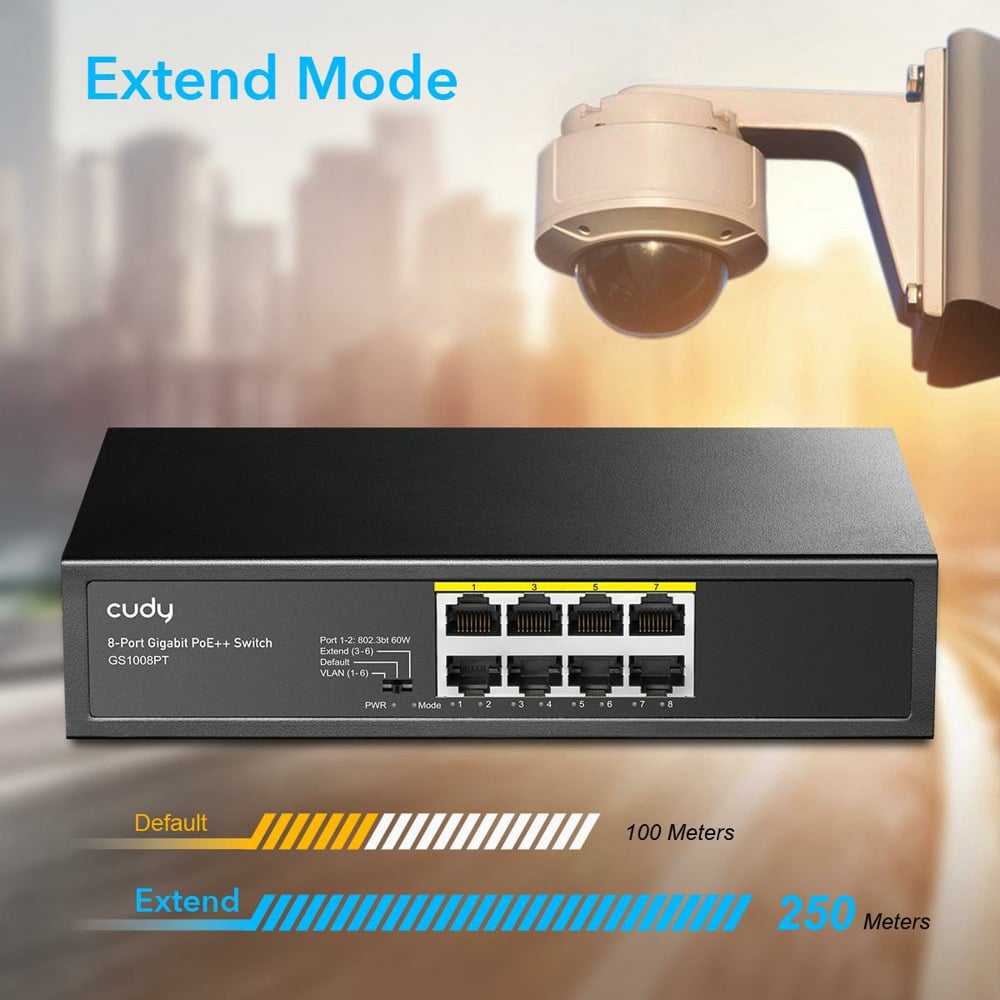

● Extend mode support remote PoE feeding up to 250m
● VLAN mode isolate each PoE Ports for security
● Watchdog reactivates the abnormalPD by resuming POE power

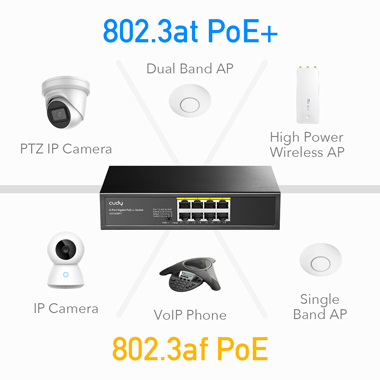

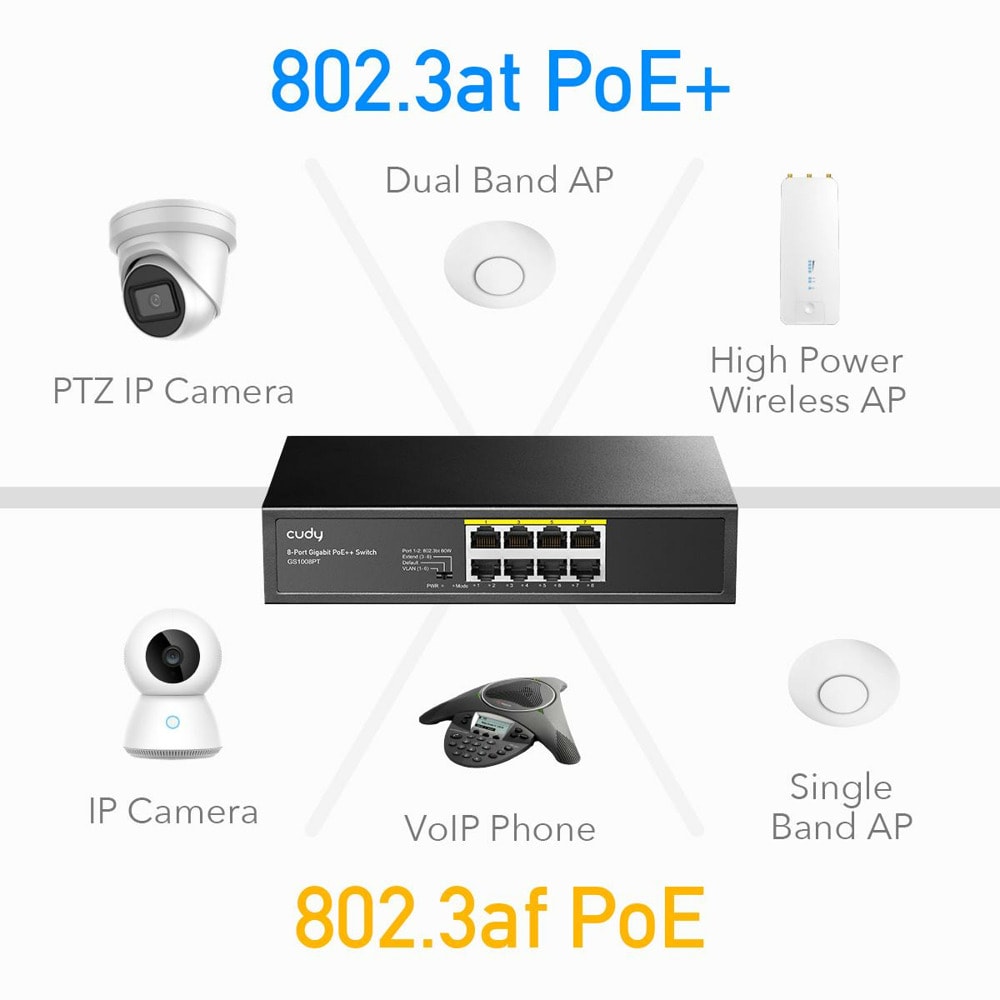

● IEEE 802.3at / IEEE 802.3af standard compliant
● Plug&play, simple setup with no configuration needed

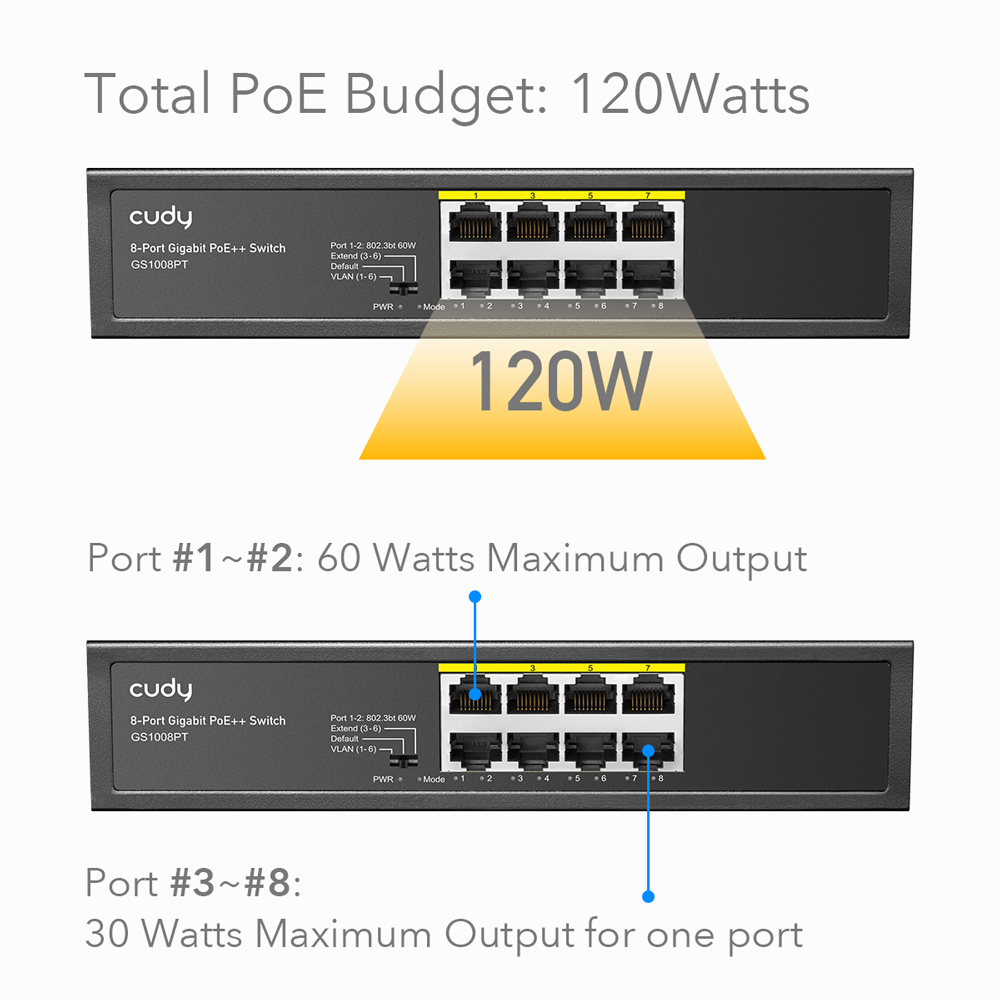

120 W Power budget & 60 W Maximum One Port The total PoE power supported by the PoE port is 120 W, and the maximum for port #1~#2 is 60 W. Non-standard PoE devices or normal PoE switches are not burned. Meets IEEE802.3af / at standard.
Rack Mount & Wall Mount & Desktop ● Provide a variety of installation methods for easy deployment in any environment ● Support Wall mount installation ● Support Desktop installation

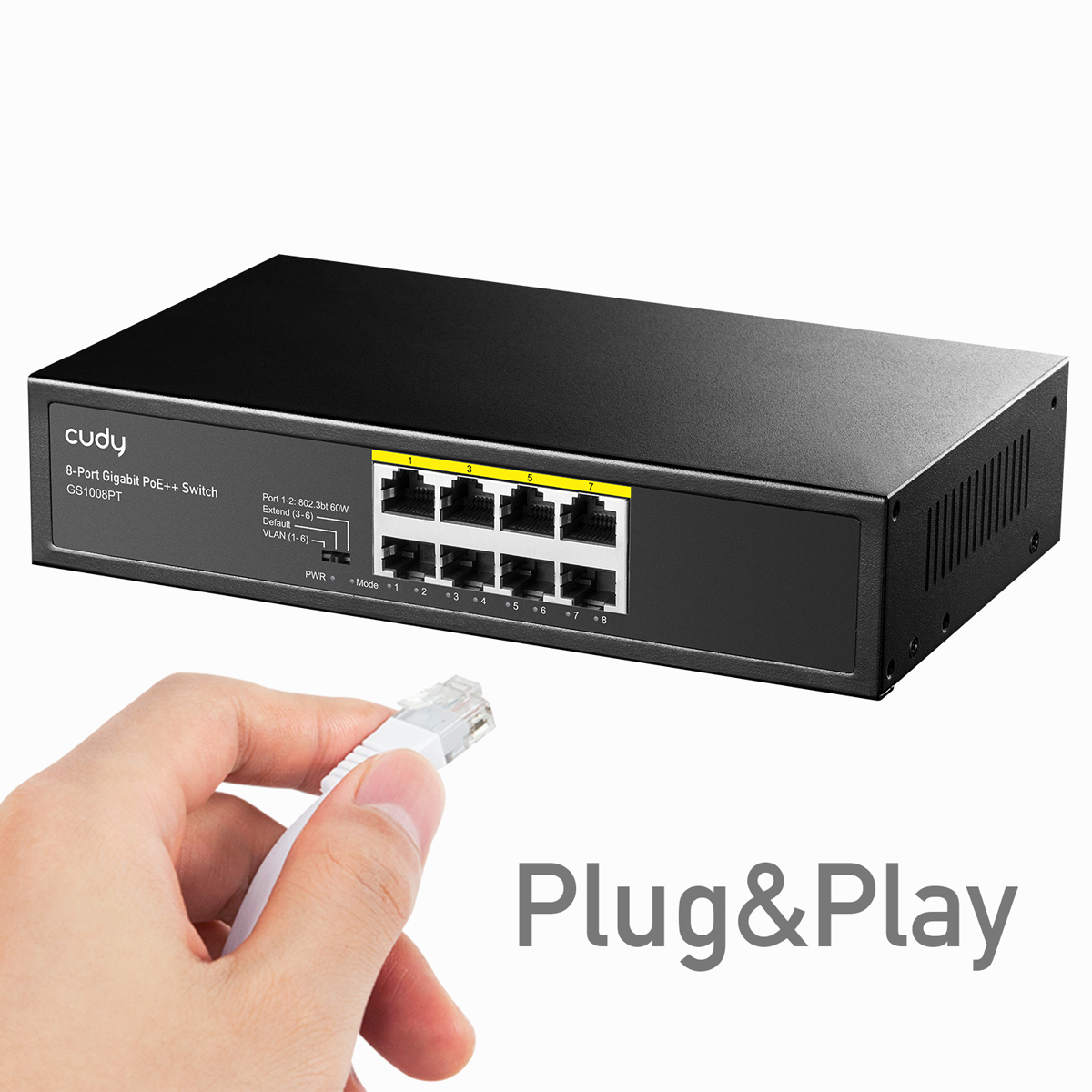

Plug&Play, Fanless design Plug and Play, Easy of use.Fanless design for silent operation.Made of high-quality metal case, sturdy and durable with long service life, provide better heat dissipation, suitable for most environment. Pin assignment, Mode A: 1/2(+),3/6(-)

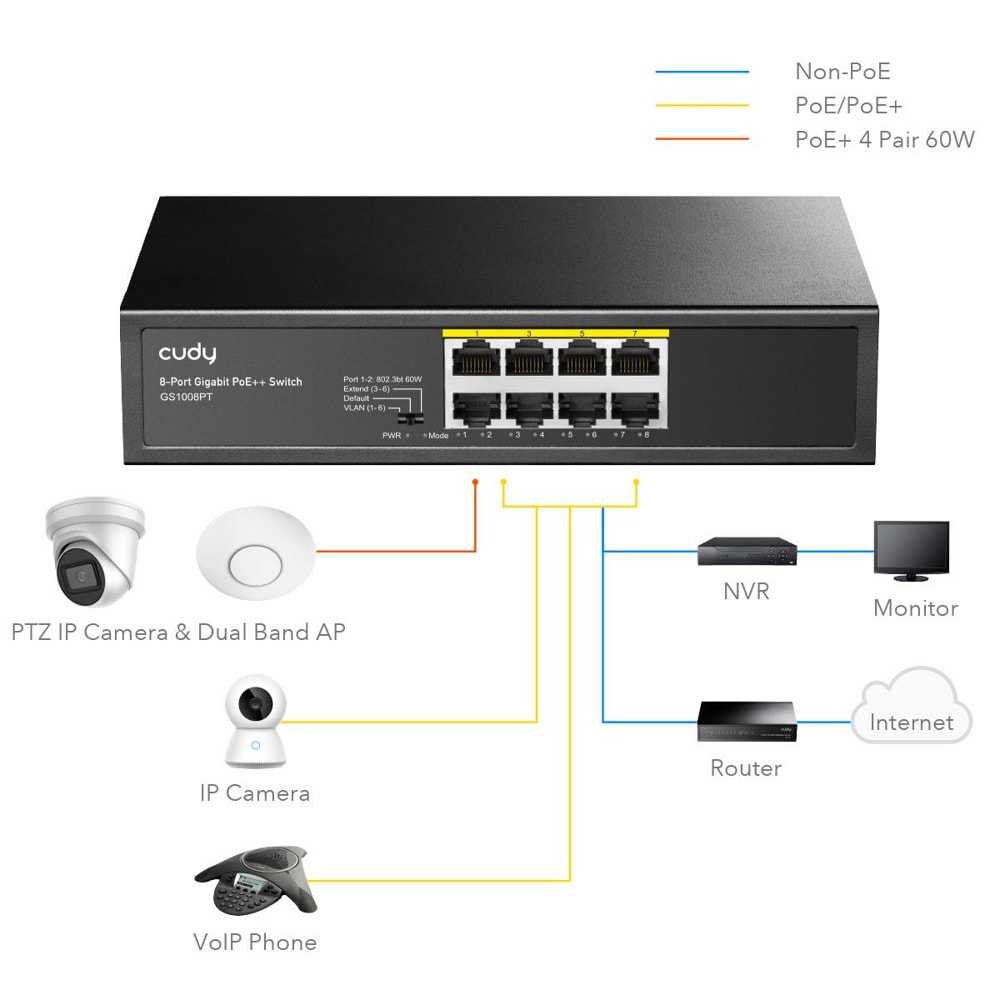

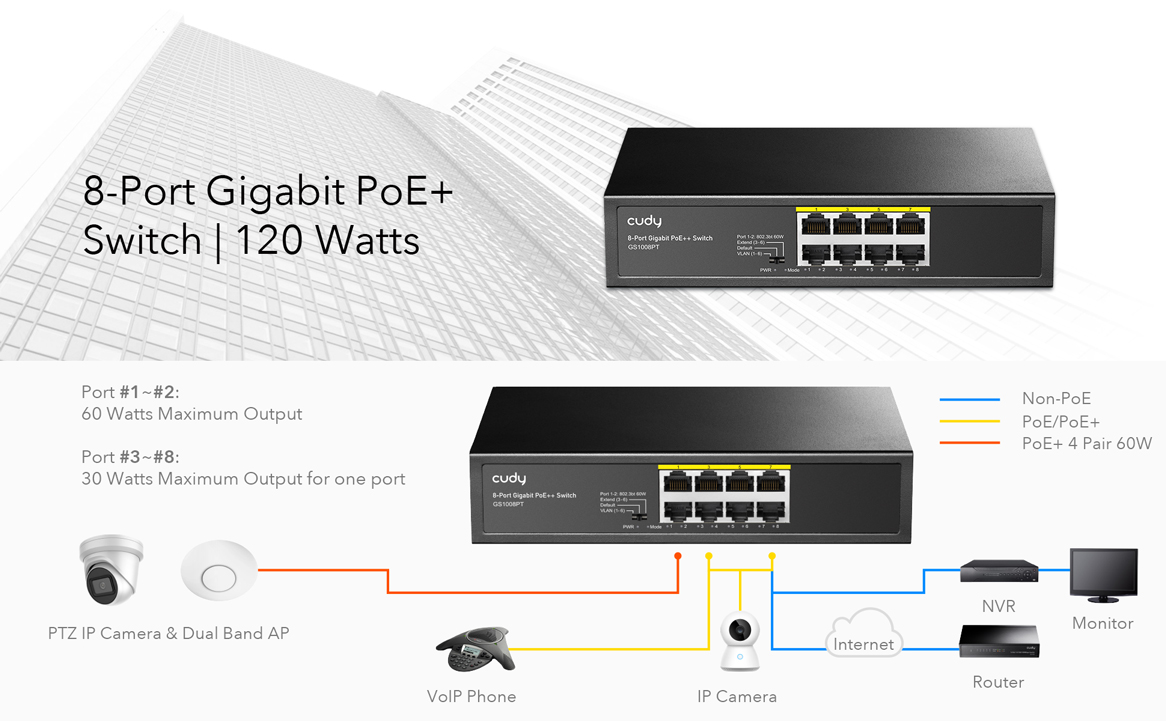

Surveillance Works with IP Cameras for home and office, small business
VoIP Conference Call Works with VoIP phones for business conference
Wi-Fi Coverage Works with WiFi APs for office and business

Specifications

Power	Input: AC 100-240V, 50/60Hz
Ethernet	8 *10/100/1000M PoE Port
Switching Capacity	16Gbps
Throughput	11.9Mpps
Packet Buffer	1.5Mb
MAC Address	2K
Jumbo Frame	9216bytes
Transfer Mode	Store and forward
MTBF	100000 hour
Network protocol	IEEE802.3 (10Base-T) IEEE802.3u (100Base-TX) IEEE802.3ab (1000Base-TX) IEEE802.3x (Flow control)
PoE Protocol	IEEE802.3af （15.4W） IEEE802.3at （30W） IEEE802.3at （4 Pair 60W）
Network Medium	10Base-T : Cat3、4、5 or above UTP(≤100m) 100Base-TX : Cat5 or above UTP(≤100m) 1000Base-TX : Cat5 or aboveUTP(≤100m)
Working Environment	Working Temperature：-20~50°C Storage Temperature：-40~85°C Working Humidity ：10%~90%，non-condensing Storage Temperature：5%~90%，non-condensing Working Height：Maximum10,000 feet Storage heigh：Maximum 10,000 feet
LED Indicators	PWR（power supply），Mode（DIP），1-8 Green（Link&Data）
PWR	Lighting：Powered Un-Light：No Power
Mode	Lighting：VLAN Un-Light：Default Flashing：Extend
1-8 Green	Lighting：Connecting Flashing：Data Transmit Un-Light：Disconnect
DIP Switch	VLAN：Port Isolation, 1-6 port is isolated each other, but all can communicate with uplink port 7/8, AI enable Default: Normal mode, all port can communicate with each other, The port AI mode is closed. Extend：Extend Mode, 3-6 port support 250 meters transmission on 10Mbps/s ,AI enable
Product Dimension	200mm118mm44mm
Package Dimension	245mm190mm60mm
N.W	0.6kg
G.W	0.9kg
Packing Info	Carton MEAS：505320402mm Packing Qty：20 units Packing Weight：19KG
Package List	Input Voltage ：AC 100-240 V

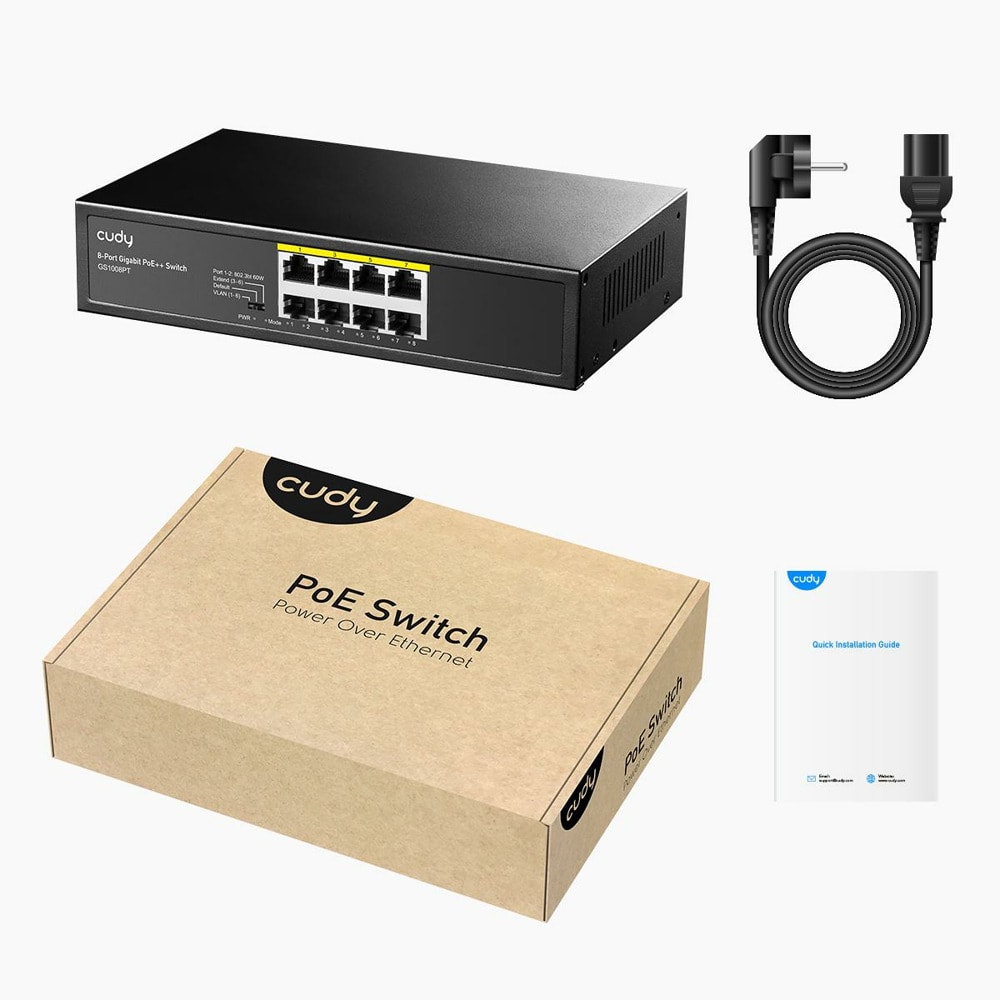

Package List	Switch 1 pcs, Power cord 1 pcs, User manual 1 pc, Certification 1 pc,
