Суич Ruijie RG-ES209MG-P, 2500 Mbps, 9 порта, 8x 10/100/1000/2500Mbps RJ45 (PoE+), 1x SFP+

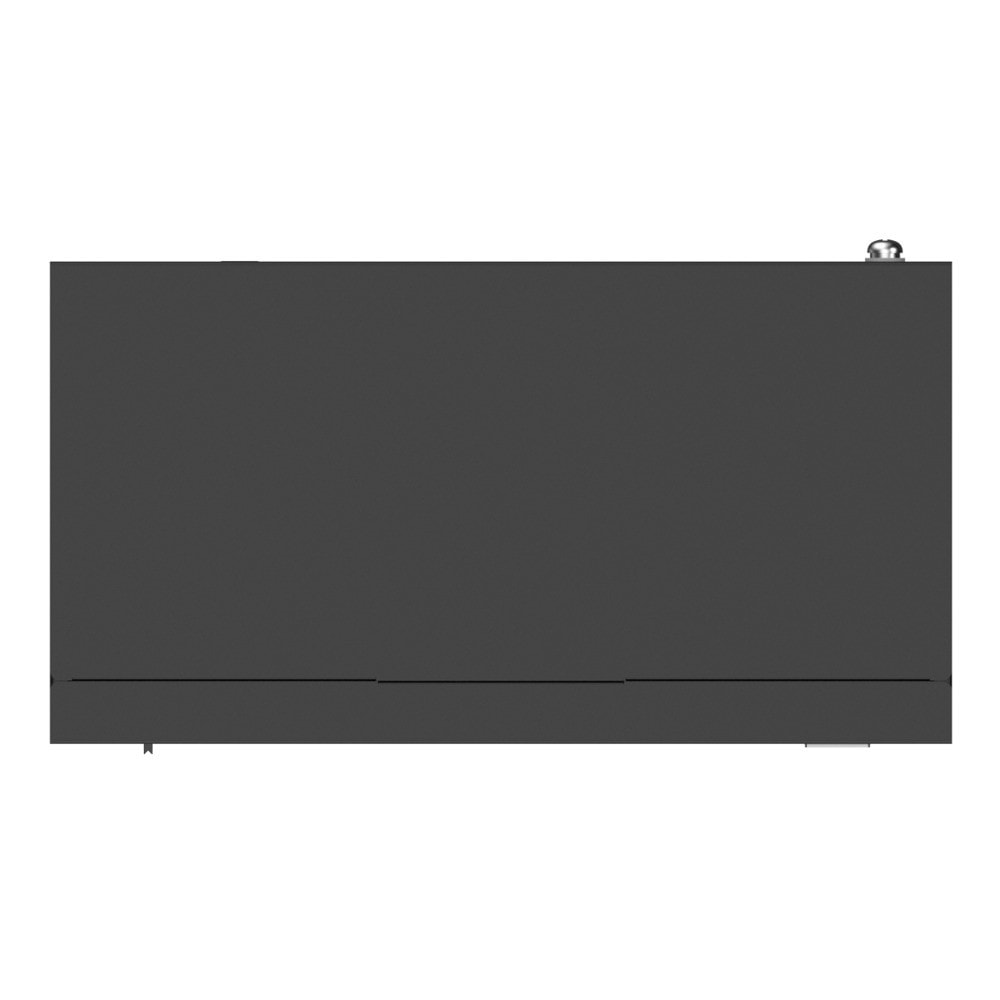

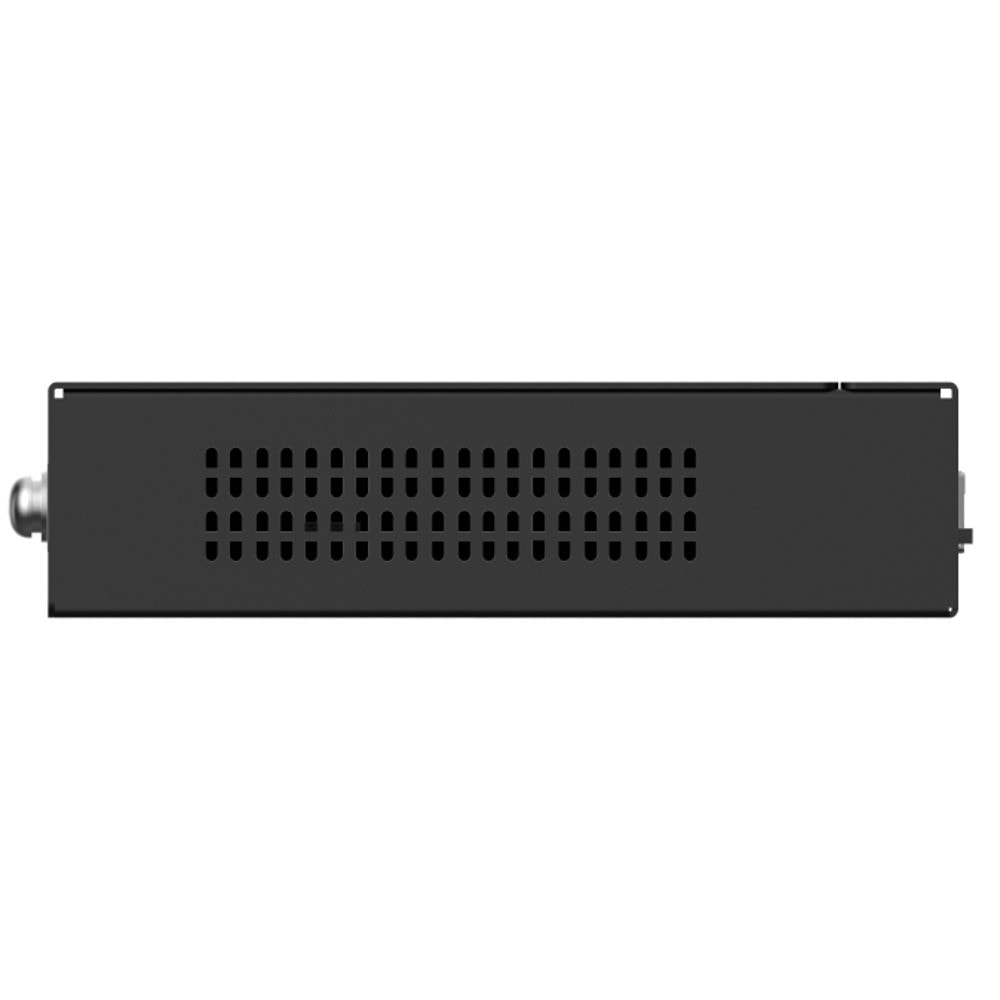

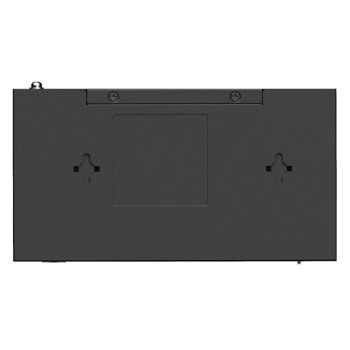

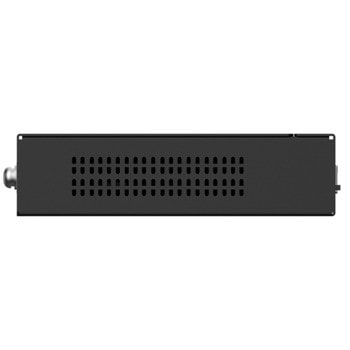

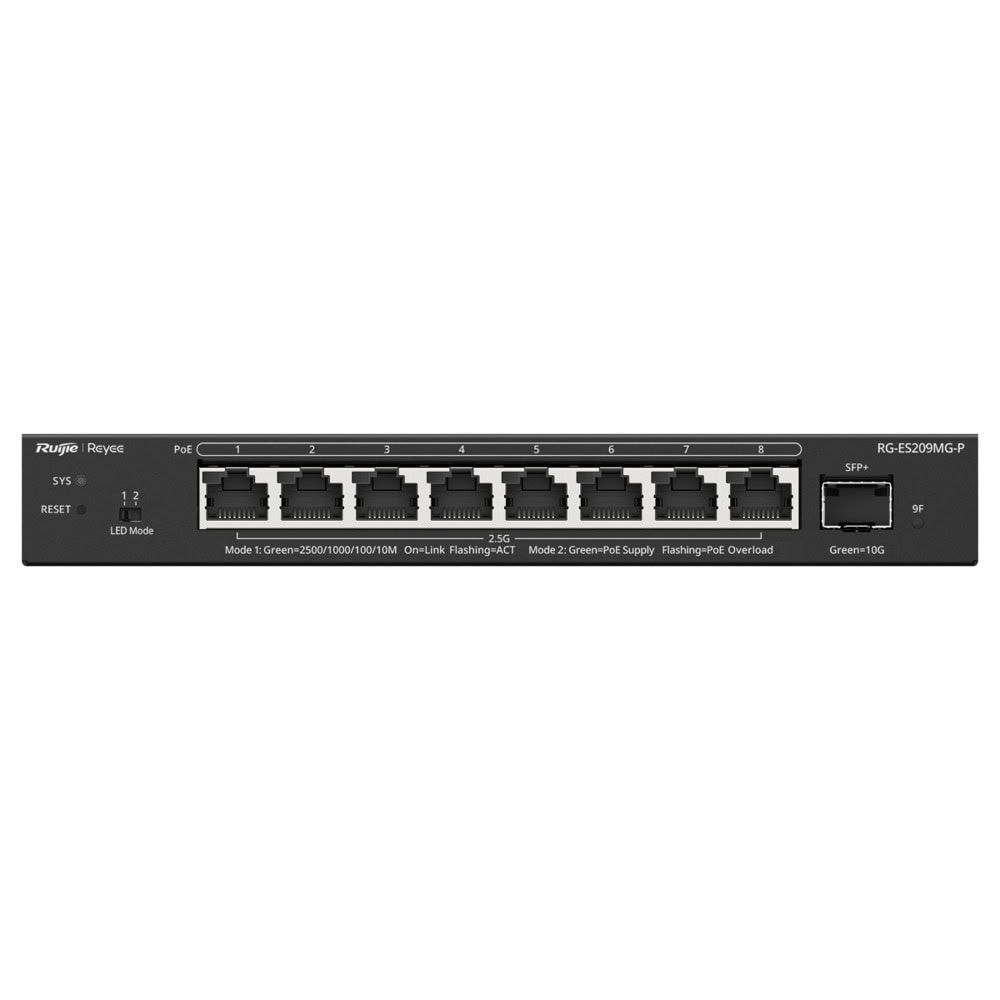

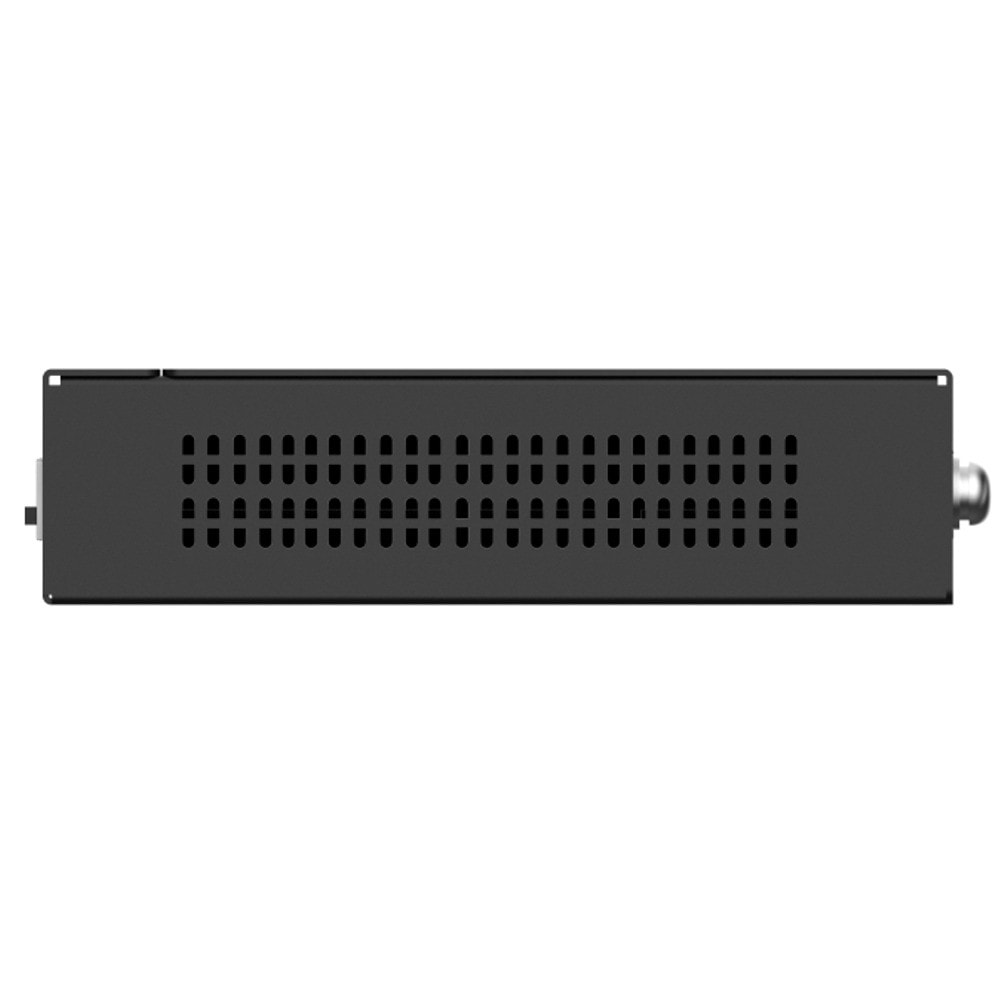

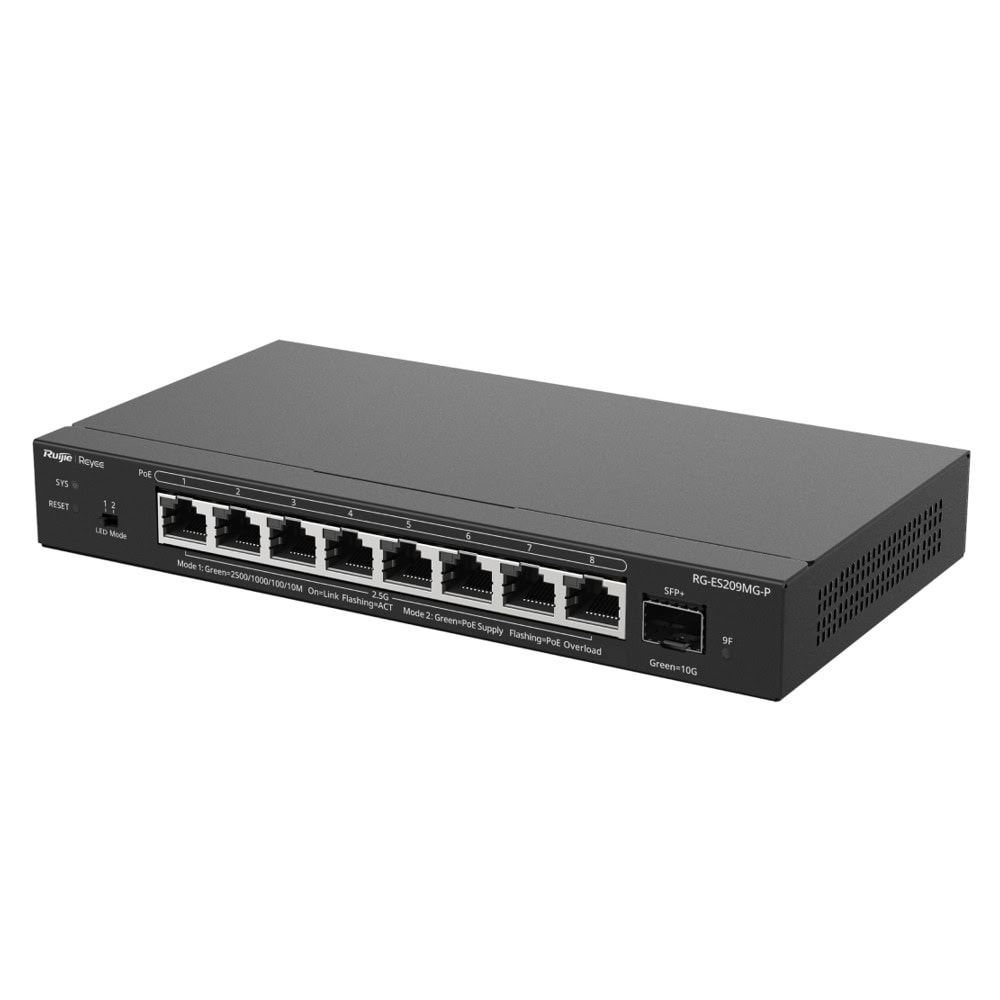

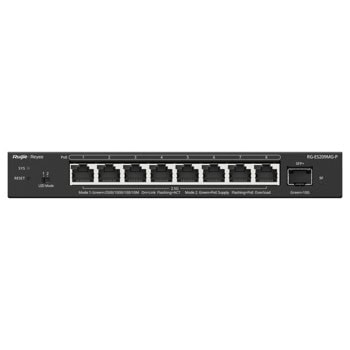

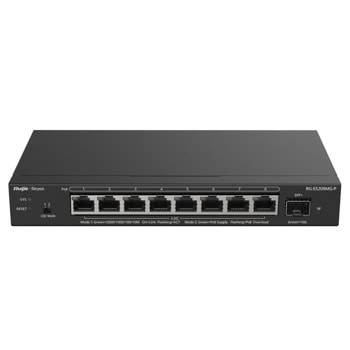

Ruijie RG-ES209MG-P

Highlight Features

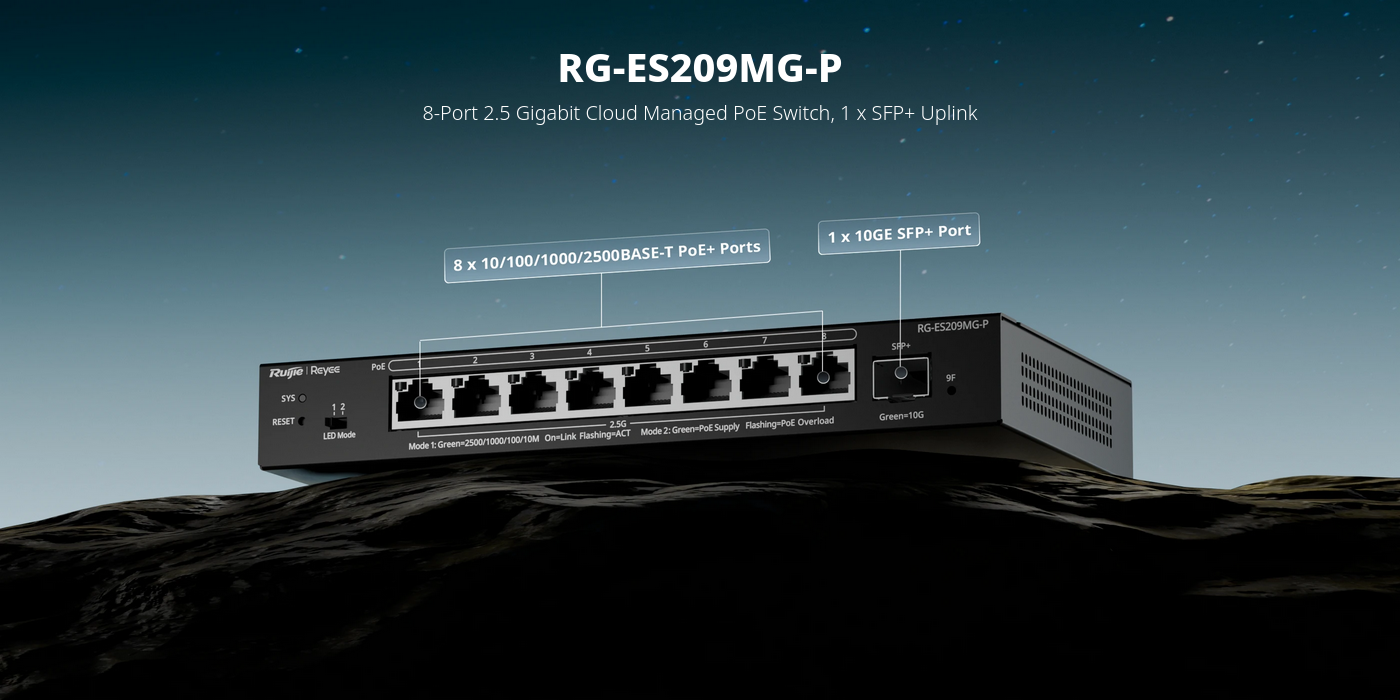

• 8 x 2.5G ports and 1 x 10GE SFP+ port for higher network performance
• 8 x PoE Out ports supporting IEEE 802.3 af/at standards, 130 W PoE budget
• Aggregation of up to 4 ports, unlocking higher network speed
• Cost-effective smart cloud managed switches
• Lifetime free cloud management on Ruijie Cloud anytime, anywhere

Hardware Specifications

Port Specifications

Total number of RJ45 ports

• 8

Total number of optical ports

• 1

Number of 10GE SFP+ ports

• 1

Number of 10/100/1000/2500BASE-T ports

• 8

Power Supply and Consumption

Number of PoE Out ports

• 8

Number of PoE/PoE+ Out ports

• 8

PoE budget

• 130 W

PoE power pins

• 1–2 (+), 3–6 (-)

System Specifications

Forwarding rate

• 45 Mpps

Switching capacity

• 60 Gbps (bit/s)

Environment and Reliability

Operating temperature

• 0°C to 40°C (32°F to 104°F)

Software Specifications

Basic Configurations

PoE watchdog

• Yes

Security

Port isolation

• Yes
