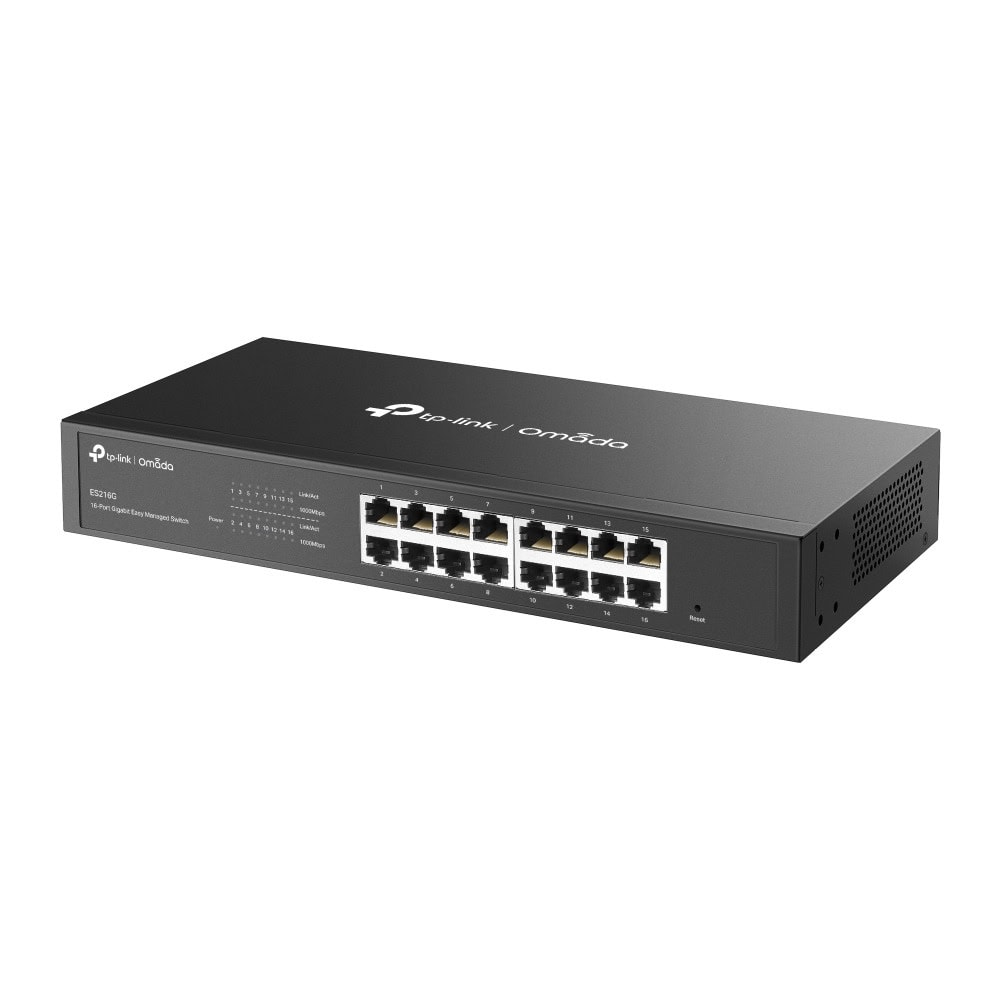

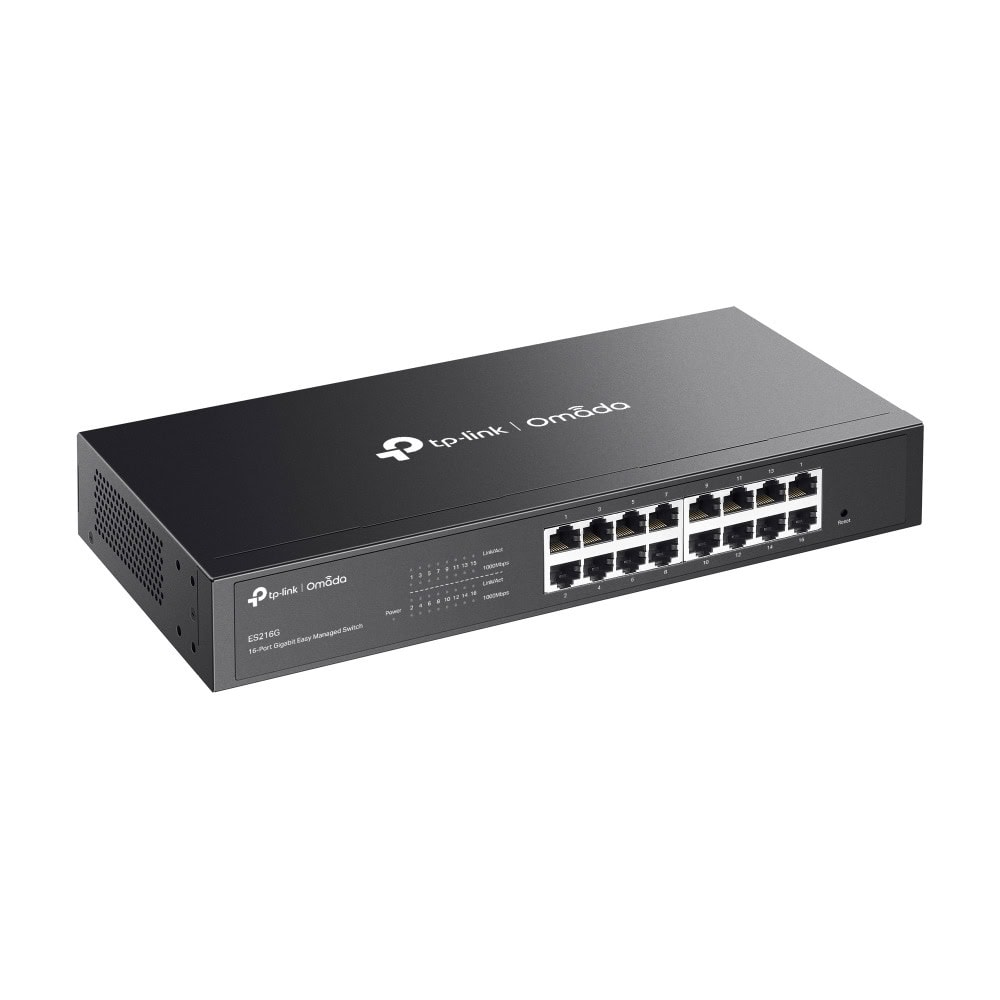

ES216G
Omada 16-Port Gigabit Easy Managed Switch
- 16× 10/100/1000Mbps RJ45 ports
- Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
- Centralized Cloud Management via the web or the Omada app†

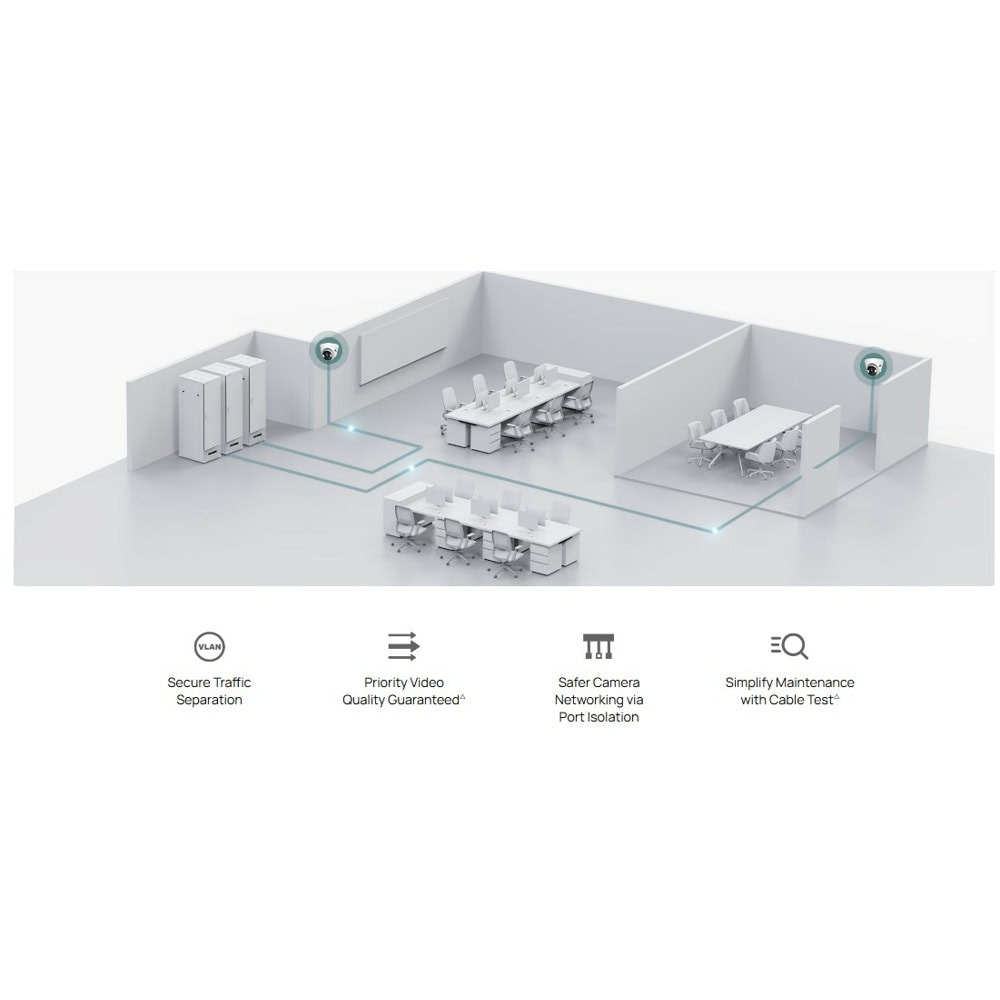

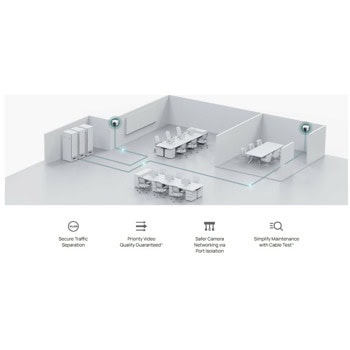

- VLAN, Port Isolation, Cable Test△, QoS△ for reliable surveillance networking
- Automatic Loop Prevention and IGMP Snooping
- Fanless design for silent operation

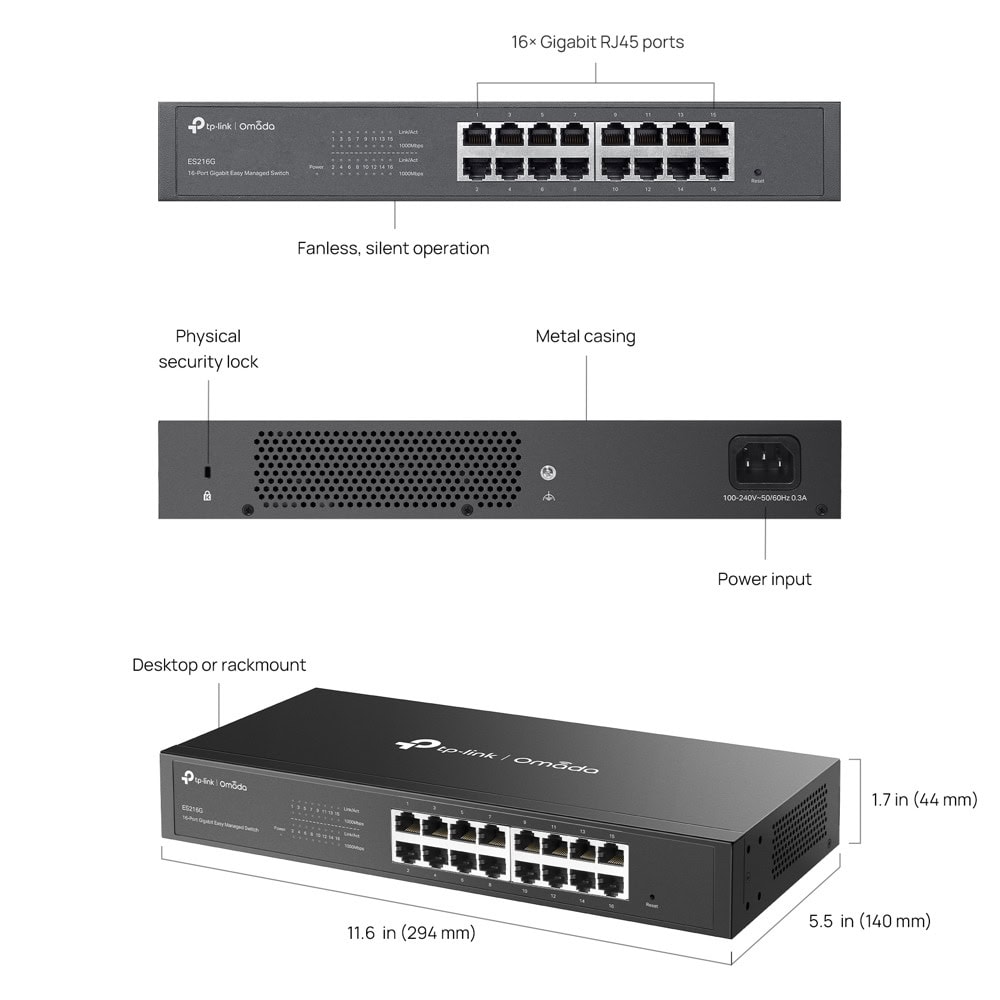

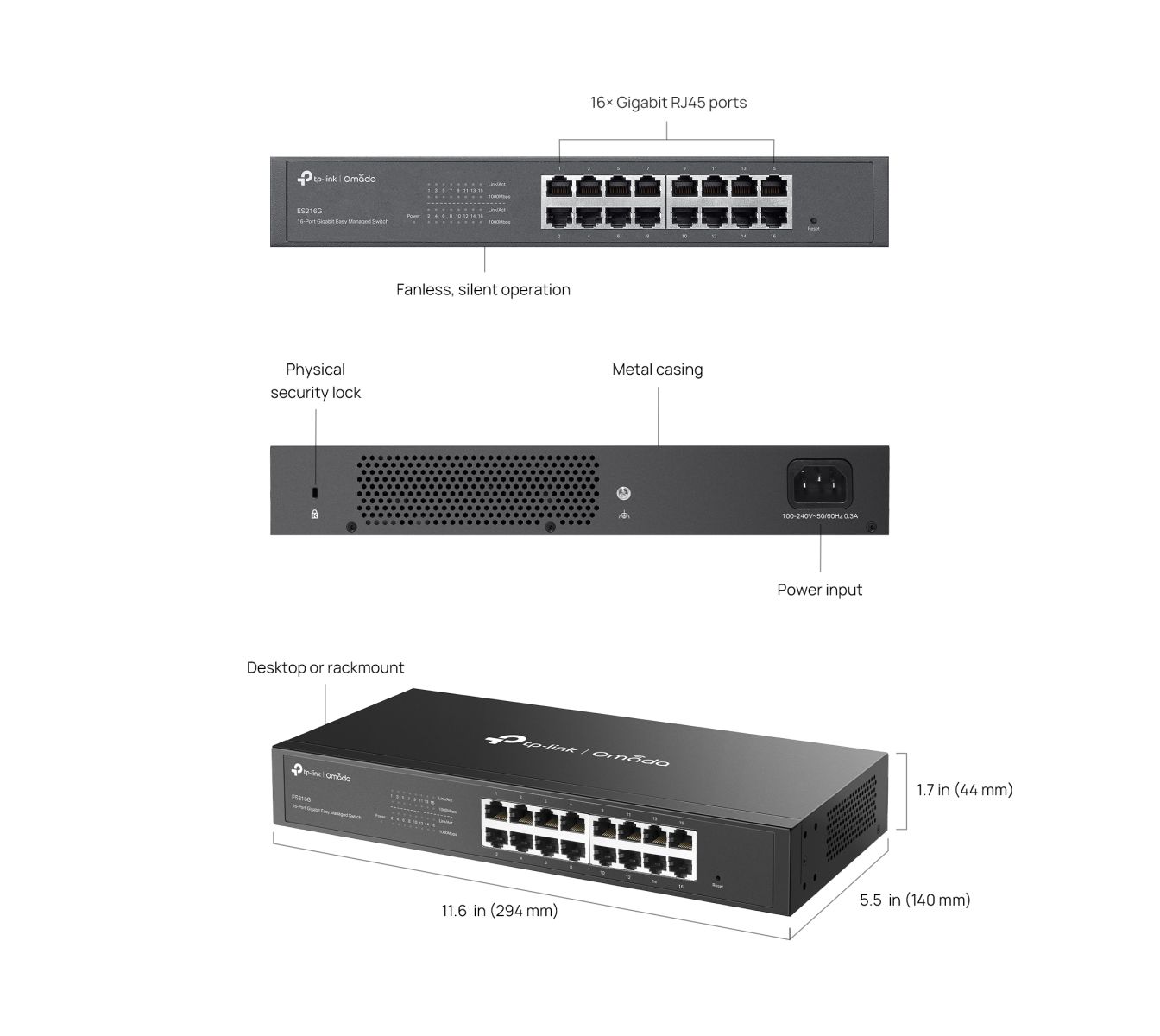

- Durable metal casing and desktop/rack mounting design


| Category | Feature | Specification |
|---|---|---|
| HARDWARE FEATURES | Interface | 16× 10/100/1000 Mbps RJ45 PortsAuto-Negotiation/Auto MDI/MDIX |
| Fan Quantity | Fanless | |

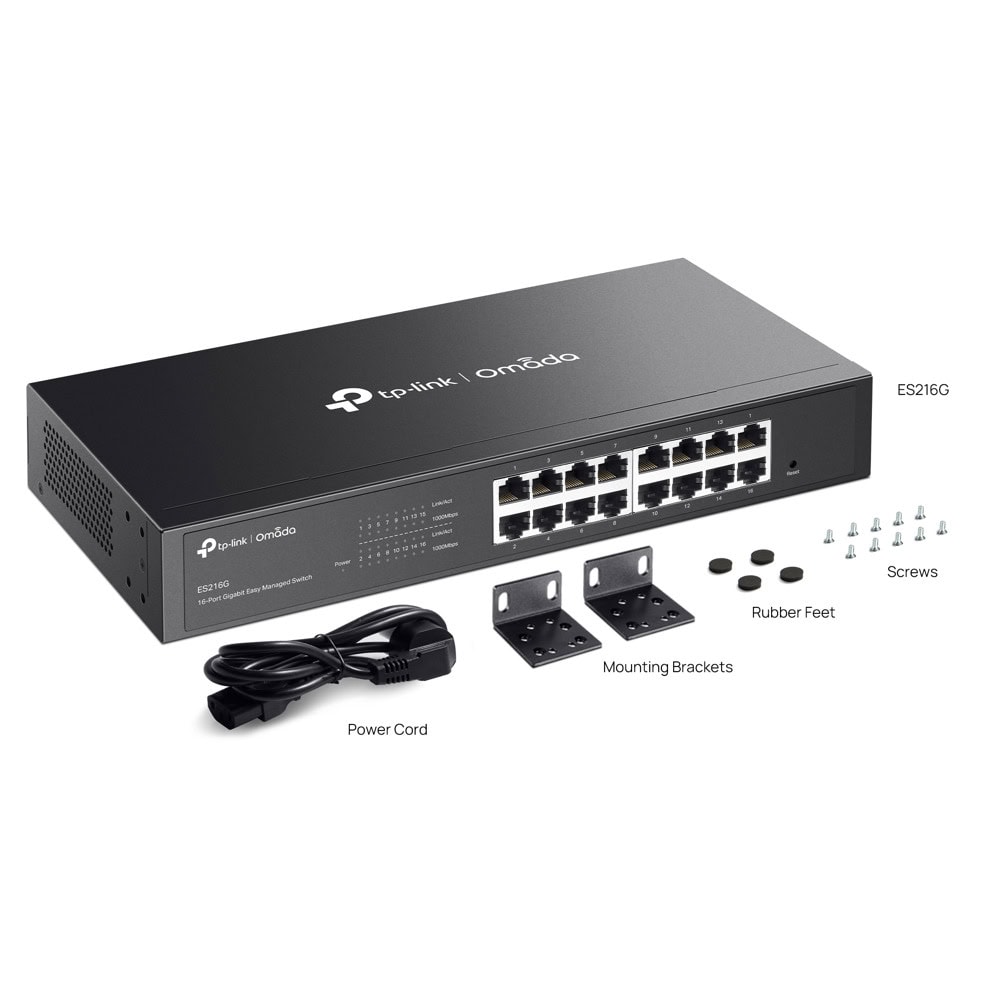

| Installation | DesktopRackmountable | |
| Physical Security Lock | Yes | |
| Power Supply | 100–240 V~ 50/60 Hz | |
| Dimensions (W × D × H) | 11.6 × 5.5 × 1.7 in (294 × 140 × 44 mm) | |
| Surge Protection | ±6kV | |
| PERFORMANCE | Switching Capacity | 32 Gbps |
| Packet Forwarding Rate | 23.8 Mpps | |
| MAC Address Table | 8K | |
| Packet Buffer Memory | 4 Mbit | |
| Jumbo Frame | 15 KB | |
| SOFTWARE FEATURES | Quality of Service | Port-based/802.1p/DSCP QoS8 Priority QueuesPriority Schedule Mode (WRR)Queue Weight ConfigBandwidth Control (Port-Based Rating Limit)Storm Control (kbps/pps modes; Broadcast/Multicast/Unknown-Unicast Control) |
| L2 Features | Static Link AggregationLoop Prevention / Loopback Detection802.3x Flow ControlPort Mirroring (One-to-One, Many-to-One, Ingress/Egress/Both)Port Statistics (Mirror Status, Traffic Statistics)802.1ab LLDP | |
| L2 Multicast | IGMP Snooping (v1/v2/v3)Fast Leave | |
| VLAN | MTU VLANPort-Based VLAN802.1Q Tag VLAN (Max 32 Groups, 4K VID) | |
| Transmission Method | Store-And-Forward | |
| MANAGEMENT FEATURES | Omada App | Yes (requires Omada Controller: Hardware, Cloud-Based, or Software) |

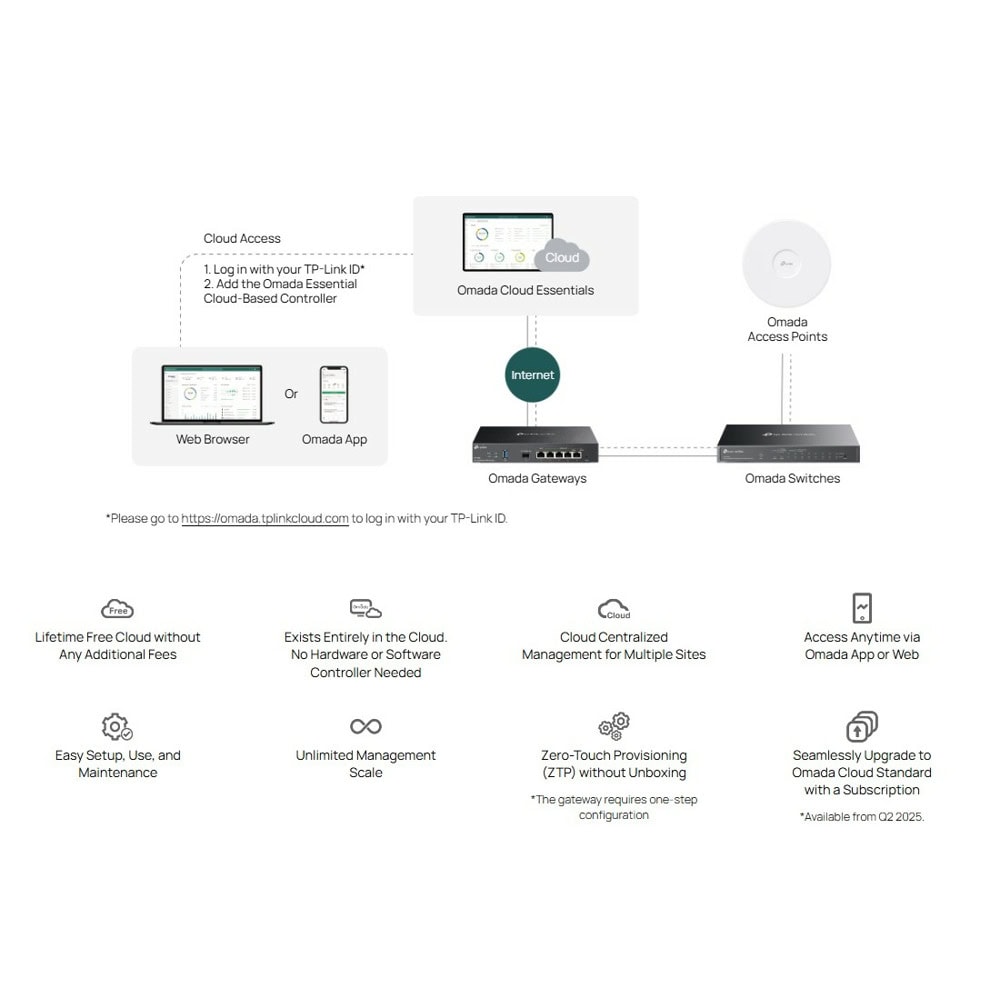

| Centralized Management | Omada Cloud-Based ControllerOmada Hardware ControllerOmada Software Controller | |
| Cloud Access | Yes (requires Omada Controller) | |
| Zero-Touch Provisioning | Yes (requires Omada Cloud-Based Controller) | |
| Management Features | Web-based GUIDHCP ClientCable DiagnosticsAutomatic Device Discovery†Batch Configuration†Batch Firmware Upgrading†Unified Configuration† |
Виж още Суич TP-Link
Виж всички продукти Суич в категорията
| Брой портове: | 16 |
|---|---|
| Максимална скорост: | 1 Gbit/s |
| Стандарт: | 802.3x |
| Управляем: | Да |
