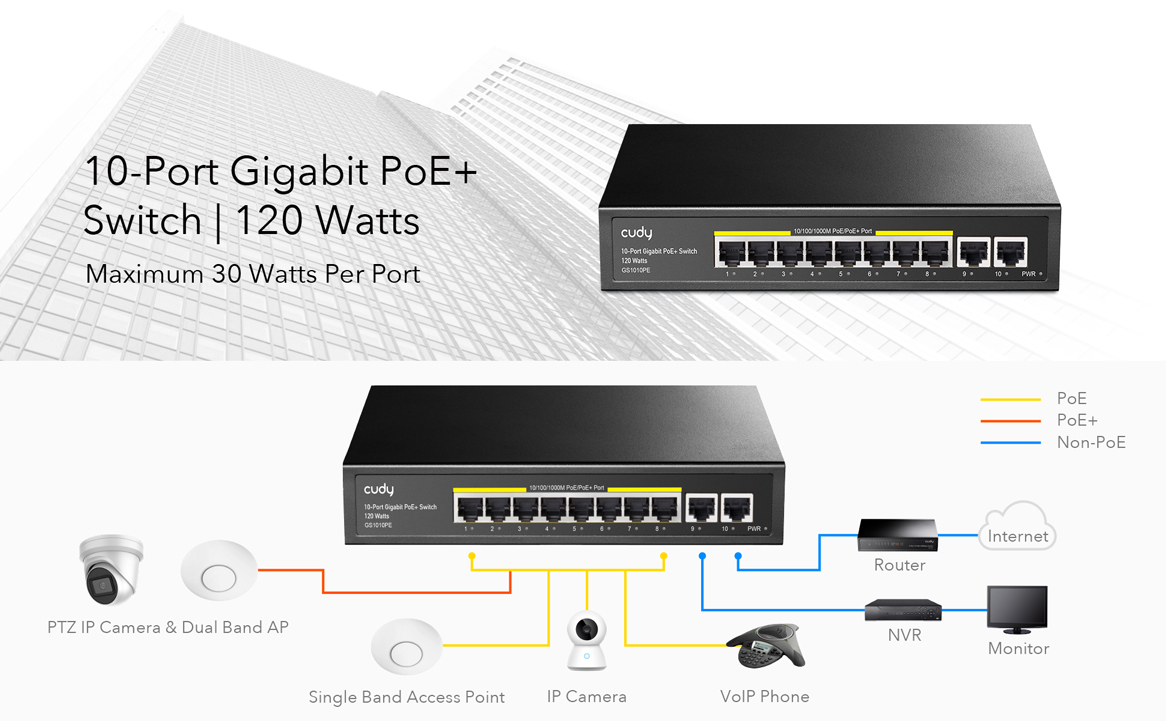

Cudy GS1010PE
● Up to 120 watts total PoE budget
● Up to 30 watts PoE power one port
● 8 x 10/100/1000Mbps PoE+ ports
● 2 x 10/100/1000Mbps uplink ports

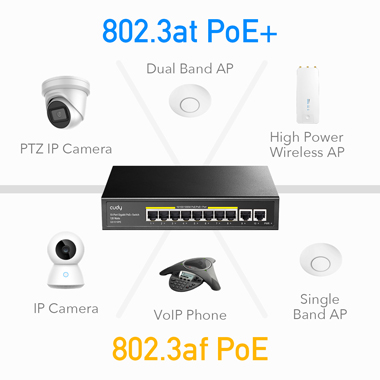

● Comply with IEEE802.3af/at standards
● IEEE 802.3x Flow control

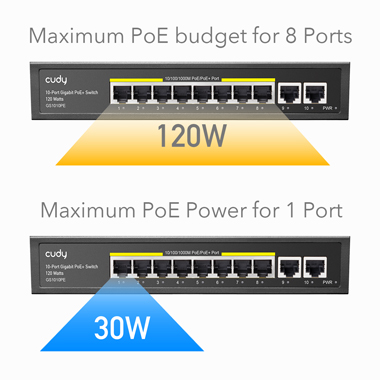

120W Power budget & 30W Maximum One Port Supports 120W total PoE power and up to 30W for one PoE port.Auto detect power device; will not burned non-standard PoE device or normal PoE switch. Complies with IEEE802.3af/at Standard | ![]() |
Rack Mount & Wall Mount & Desktop ● Provide a variety of installation methods for easy deployment in any environment ● Support Wall mount installation ● Support Desktop installation | ![]() |

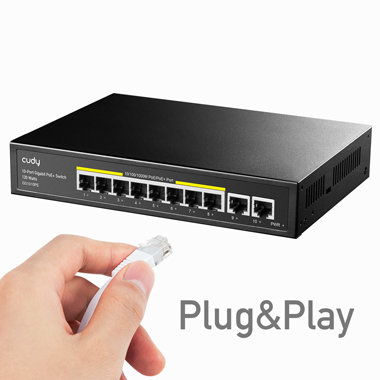

Plug&Play, Fanless design Plug and Play, Easy of use.Fanless design for silent operation.Made of high-quality metal case, sturdy and durable with long service life, provide better heat dissipation, suitable for most environment. Pin assignment, Mode A: 1/2(+),3/6(-) | ![]() |
Surveillance Works with IP Cameras for home and office, small business | ![]() |
VoIP Conference Call Works with VoIP phones for business conference | ![]() |
Wi-Fi Coverage Works with WiFi APs for office and business | ![]() |
Specifications:
| Model | GS1010PE |
| Network Protocol | IEEE802.3 / IEEE802.3u IEEE802.3x / IEEE802.3af/at |
| PoE standard | IEEE802.3af/at |
| POE port output | DC 48-55V |
| PoE port | 1-8 |
| AC Input Voltage | AC100~240V |
| Power supply | 120W |
| Power Pin | Power over spare pairs 1/2(+) , 3/6 (-) |
| PoE output-port | Max 30W |
| MAC Address | 2K MAC address table |
| Packet buffer | 2M bit |
| Transfer Mode | Store-and-forward |
| Bandwidth | 20Gbps |
| Fan | Fanless |
| Device Dimension | 222mm*163mm*40mm |
| Operating Temperature | -20°C ~ 50 °C |
| Storage Temperature | -40 °C ~ 80 °C |
| Operating Humidity | 10% ~ 90% non-condensing |
| Storage Humidity | 5% ~ 90% non-condensing |
