Name: Суич Cudy GS1016EPS2 1.0, 1000Mbps, 18 порта, 16x 10/100/1000Mbps RJ45 PoE, 2x SFP
Brand: Cudy
SKU: NTLHCUDYGS1016EPS2
Price: 218.40 EUR
Availability: InStock

Описание Характеристики Ревюта / Въпроси Вземи на изплащане

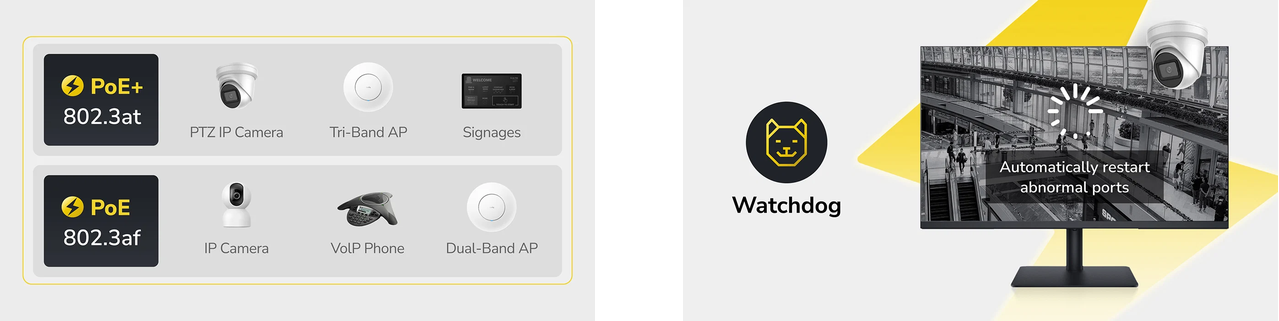

Reliable PoE for 24/7 Consistent Operation

IEEE 802.3at/af. Up to 30W Per Port.

Each PoE port delivers up to 30W of power, making it suitable for access points, IP cameras, digital signage, and most other PoE devices.

PoE Auto Recovery

Turn on the Watchdog function to monitor port activity. If a connected device freezes and stops transmitting data for 5 minutes, the Watchdog will automatically reboot the corresponding PoE port.

Secure and High-Performance Switching

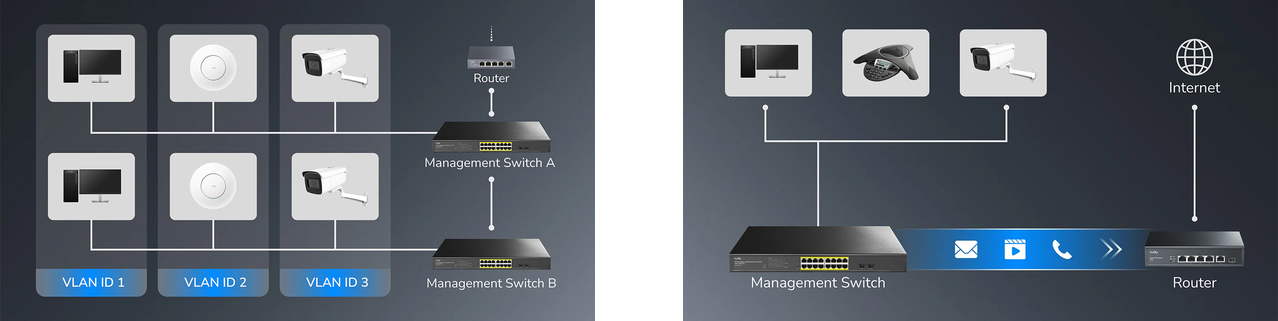

802.1Q/MTU/Port-Based/Voice VLAN

802.1Q VLANs allows creating secure and high-performance network segments across different managed switches. The other MTU/Port-Based VLAN enable simpler local VLAN configuration.

DSCP/802.1p/Port-Based QoS

DSCP/802.1p QoS identifies DSCP packets in the tranmission and prioritize those latency-sensitive data.

Essential Management Features

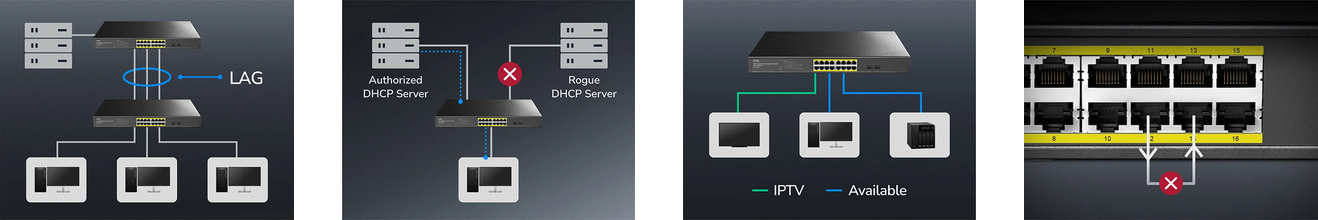

Link Aggregation

Allows creating multiple LAG groups and multiply the transmission speed of the backbone in your networks.

DHCP Snooping

Assign an authorized DHCP server to prevent downtime when other rogue DHCP server connects into the network.

IGMP Snooping

Identifies the multicast groups connected to the switch and sends data to the exact ports instead of broadcasting them.

Loop Prevention

Automatically detects network loops and blocks affected ports. Supports STP/RSTP to ensure stable performance in large redundant networks.

Exceptional Built-Quality for Stable Operation

Build Robust Systems with Outstanding EMC

Improves service reliability and reduces downtime caused by power surges and ESD.

ESD: Contact 6kV; Air 8kV
Surge: Power DM 2kV, CM 4kV; RJ45 CM 4kV

Shielded Ports. Solid Metal Casing.

Ensures stable operation with Ethernet ports shielded with nickel-plated cooper alloy and robust SPCC metal casing.

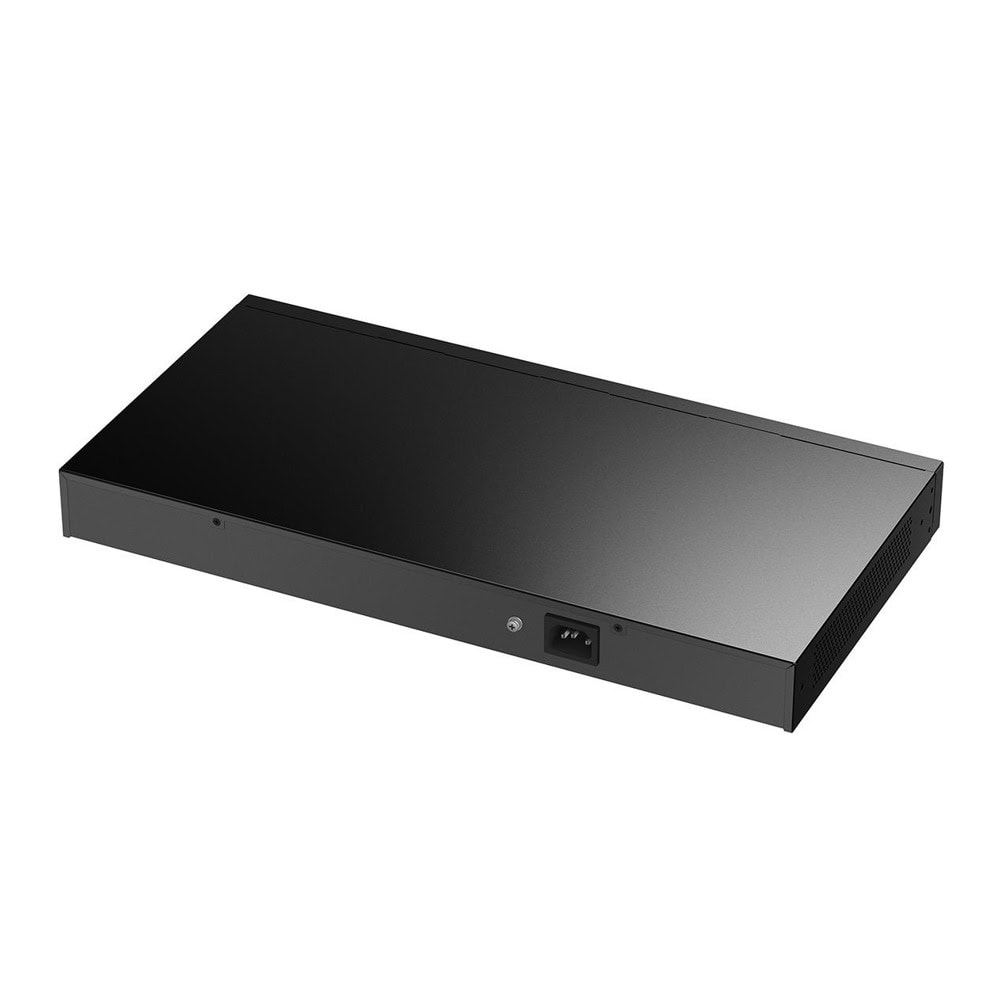

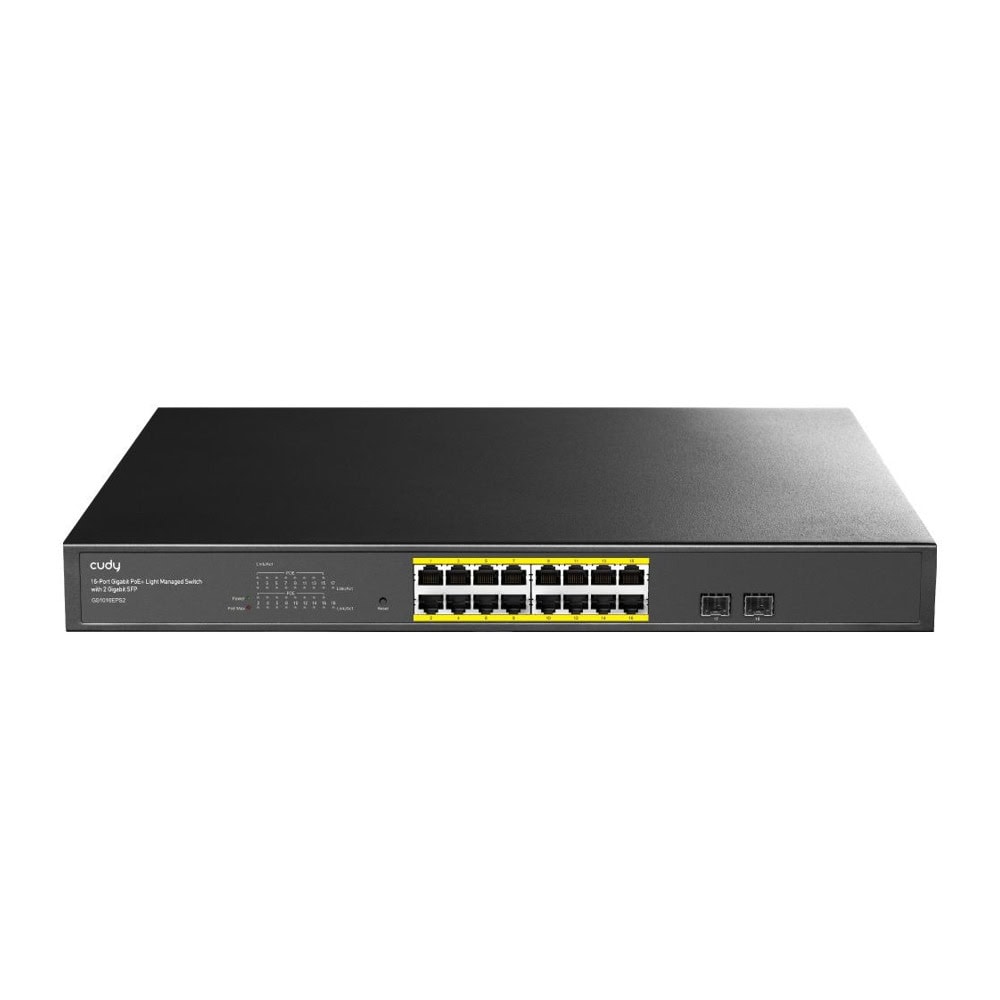

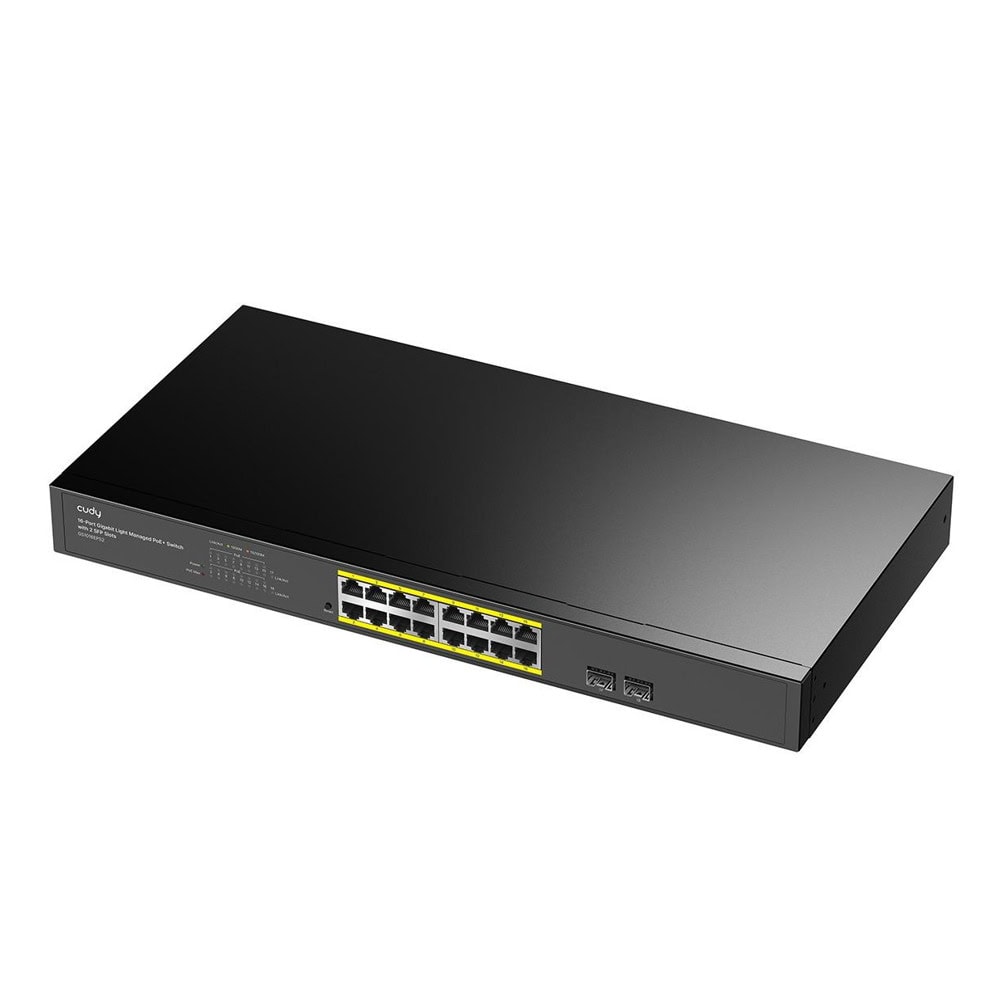

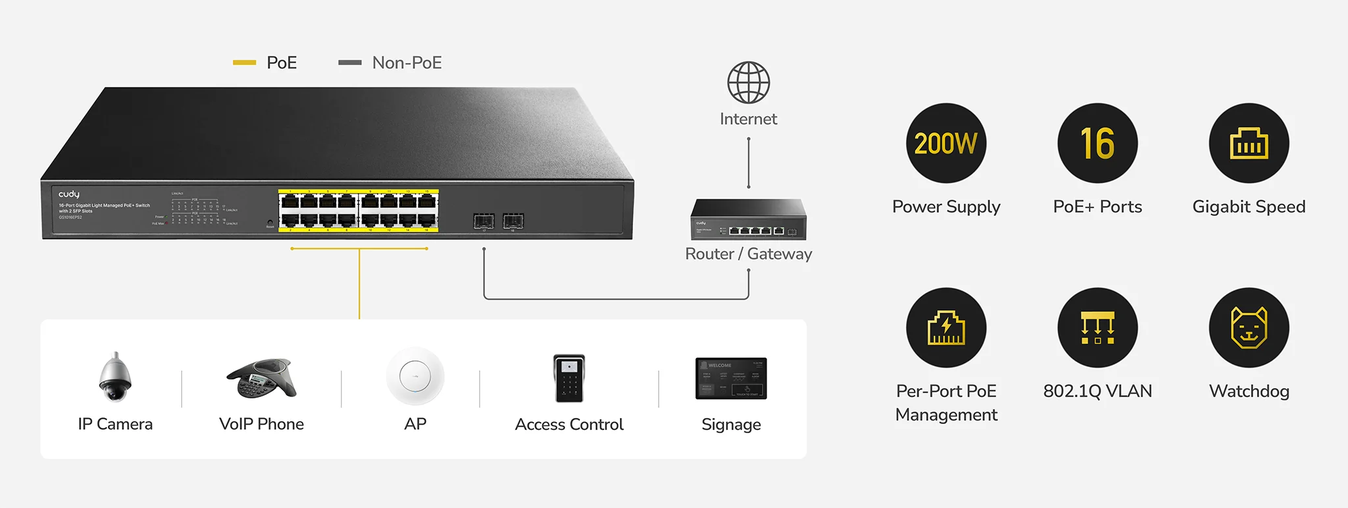

A rack-mounted 16-GbE, 2-SFP cloud PoE switch with a 200W power supply and essential L2 management features.

16× GbE with 802.3at/af Mode A PoE
2× 1.25G SFP
200W Power Supply
PoE Max Status LED
Per-Port PoE Management
VLAN (802.1Q/MTU/Port-Based)
QoS (802.1p/DSCP/Port-Based)
Port Mirror, Static Aggregation, etc
Loop Detection and Prevention
DHCP Snooping, IGMP Snooping
Cudy App, Cloud Control
Desktop, Rack-Mount
440×220×44 mm (17.32×8.66×1.73")

Specifications

Memory/Storage	Flash/ROM	16 MB (128 Mbit) NOR
Interfaces	1.25G SFP Slots	2
	Gigabit RJ45 Ports	16
	Gigabit RJ45 PoE Ports	#1~#16
	SFP DDM Monitoring
	Max Power on a Single PoE Port	30W
	PoE Port Notes	PoE ports support 802.3at/af standards.
	PoE Priority	Configurable. If no priority is configured, smaller-numbered ports have higher priority.
	Shielded RJ45 Port
	Extend Mode Ports	Configurable
	VLAN Mode Ports	Configurable
	LED	Power PoE Status of Each PoE Port Link/ACT of Each Ethernet Port PoE Max Status
	Physical Buttons	Reset Button
	Physical Buttons Note	The PoE Watchdog will attempt to reboot the plugged-in clients that have been inactive for 5 minutes. Customize the wait time in the web management to prevent damaging clients with online auto-upgrade feature.
Performance	Max Copper Speed and Distance	Cat. 3 or higher cable: 100 meters at 10 Mbps Cat. 5 or higher cable: 100 meters at 100 Mbps Cat. 5e or higher cable: 100 meters at Gigabit Cat. 5e or higher cable: 250 meters at 10 Mbps
	Copper Speed and Distance Note	250-meter transmission is available when the port speed is set at 10 Mbps in the software.
	Optical Spec and Distance	Depends on the Installed Optical Module
	MAC Address Table	8192
	VLANs	4096
	Max Switching Capacity	36 Gbps
	Max Forwarding Rate	26.78 Mpps
	Jumbo Frame	15 KB
	Packet Buffer	4 Mbit
Power	Power Input Type	AC Inlet
	Power Methods	AC
	Power Input	100-240V~ 50/60Hz
	Power Supply	200W
	Max Power Excluding PoE	14W
Switching	802.3 Protocols	802.3x Flow Control 802.3i 10BASE-T 802.3u 100BASE-TX 802.3ab 1000BASE-T 802.3z 1000BASE-X 802.3az Power Saving 802.3af PoE 802.3at PoE
	802.1 Protocols	802.1p: LAN Layer 2 QoS/CoS 802.1q: VLAN Bridge Operation 802.1ab: LLDP/LLDP-MED
	Port Management	Port On/Off Port Negotiation Speed Port Trunk (Static Aggregation) Port Mirror Data Rate Limit Jumbo Frame Settings Storm Control Traffic Monitor MAC Address Management EEE (802.3az)
	PoE Management	PoE Priority PoE Watchdog On/Off PoE Watchdog Period/Packet Threshhold PoE Consumed Power PoE Standard Delayed PoE Delivery Total PoE Power Limit PoE Power Limit
	Port Mirror Sessions	4
	Port Trunk Groups	4
	Max Port Num per Port Trunk Group	8
	L2 Features	IGMP Snooping Loop Prevention DHCP Snooping LLDP Config and Neighbors MTU VLAN Port-Based VLAN 802.1Q VLAN DSCP QoS 802.1p QoS Port-Based QoS
Reliability	Grounding Methods	Three-Prong Plug Grounding Point
	EMS	IEC/EN 61000-4-2, Level 3 ESD: Contact: 6kV; Air: 8kV IEC/EN 61000-4-5, Level 4 Surge: Power: DM 2kV, CM 4kV; RJ45: CM 6kV
	Environment	Operating Temperature: 0~40 ℃ (32~104 ℉) Storage Temperature: -40~70℃ (-40~158 ℉) Operating Humidity: 10~90% non-condensing Storage Humidity: 10~95% non-condensing

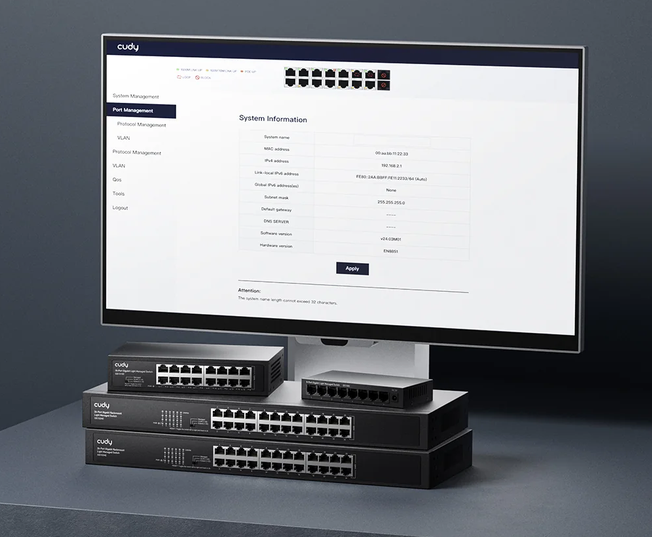

System	Control Methods	Config Web Page SNMP V1/V2 Cudy App
	Firmware Upgrade	Local Upgrade
	Reliability	Backup and Restore
	Diagnostic Tools	Cable Status/Length Diagnosis Ping
	Languages	English Bengali German Spanish French Portuguese Russian Arabic Indonesian Hindi Urdu Traditional Chinese Simplified Chinese
Mechanical	Dimension	440×220×44 mm 17.32×8.66×1.73 inches
	Product Weight	2753.8 g (97.14 oz.)
	Casing Material	Metal
	Installation	Desktop Rackmount via Brackets
