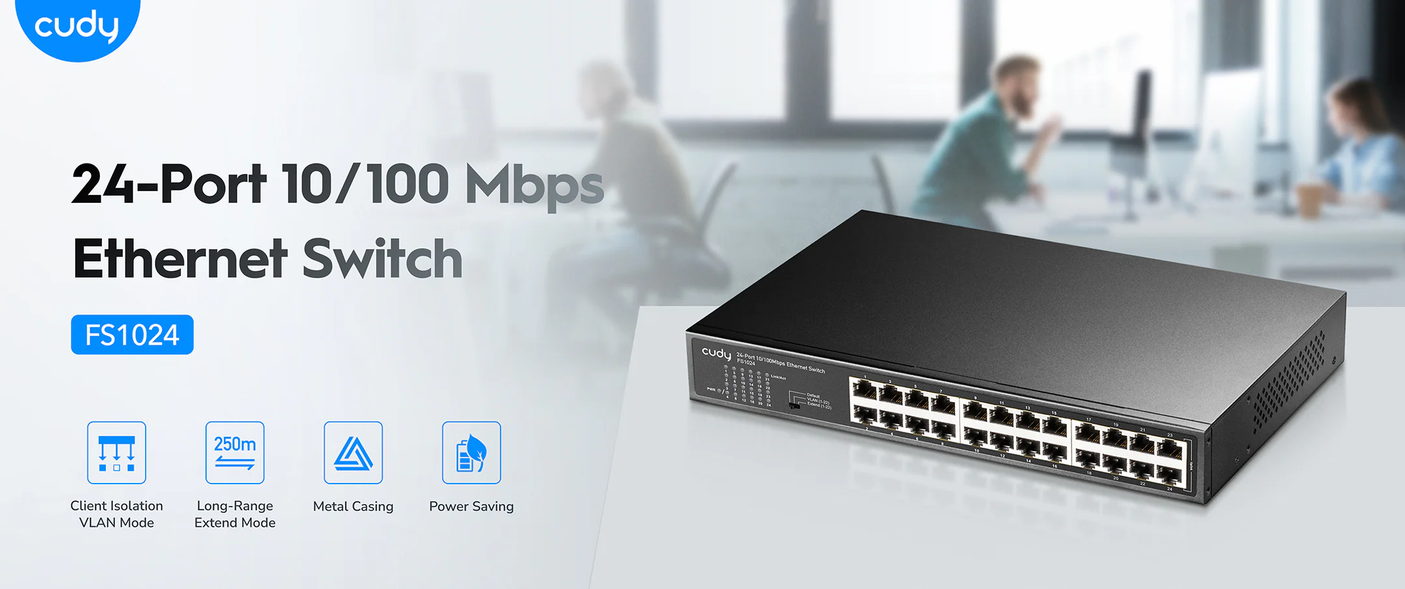

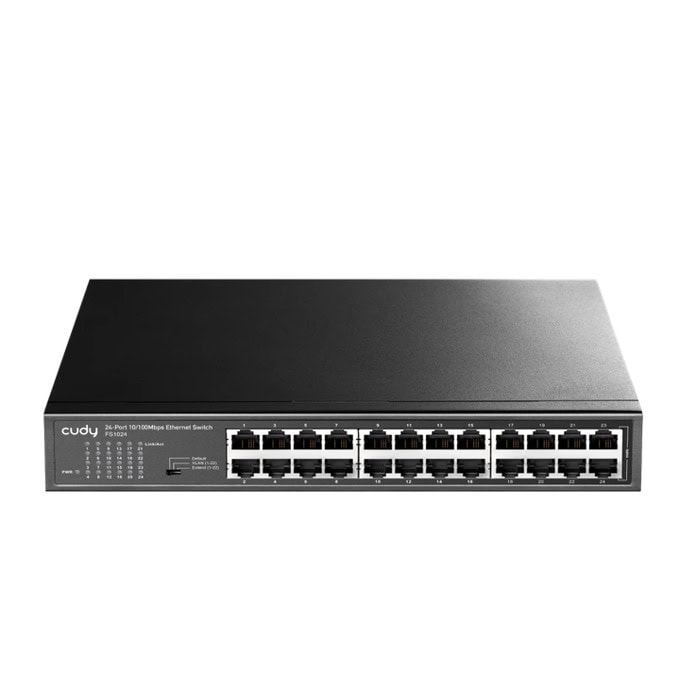

Name: Суич Cudy FS1024, 100Mbps, 24 порта, 24x 10/100Mbps RJ45
Brand: Cudy
SKU: NTLHCUDYFS1024
Price: 42.66 EUR
Availability: InStock

Описание Характеристики Ревюта / Въпроси Документация

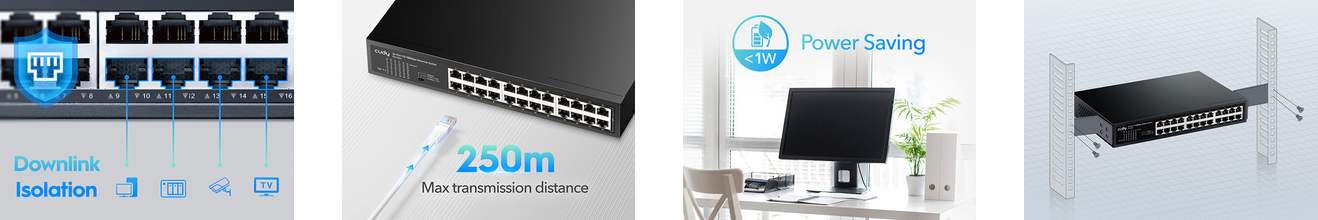

VLAN Mode

VLAN mode for port isolation to enhance network security. With VLAN mode, downlink ports 1-22 can only communicate with uplink ports.

Extend Mode

Prolong the transmission distance of ports 1-22 to a maximum of 250 meters and simplify installation.

Power Saving

Reduce power consumption when Ethernet ports are idle, saving the electricity expenses on networking facilities.

Rackmount

Standard 1U rackmount design with included mounting kits simplifies your deployment.

Specifications

Interfaces	10/100 Mbps RJ45 Ports	24
	Shielded RJ45 Port	Yes
	Extend Mode Ports	#1~#22
	VLAN Mode Ports	#1~#22
	LED	Power Link/ACT of Each Ethernet Port
	Physical Buttons	VLAN/Default/Extend DIP Switch
Performance	Max Copper Speed and Distance	Cat. 3 or higher cable: 100 meters at 10 Mbps Cat. 5 or higher cable: 100 meters at 100 Mbps Cat. 5e or higher cable: 250 meters at 10 Mbps
	Copper Speed and Distance Note	250-meter transmission is only available on the Extend Mode ports when the Extend Mode is activated.
	MAC Address Table	8192
	Max Switching Capacity	4.8 Gbps
	Max Forwarding Rate	3.57 Mpps
	Jumbo Frame	2 KB
	Packet Buffer	2 Mbit
Power	Power Input Type	AC Inlet
	Basic Power Saving	Yes
	Power Methods	AC
	Power Input	90-260V~ 50/60Hz
	Max Power Consumption	3.0W
	Idle Power Consumption	1.6W
Switching	802.3 Protocols	802.3i 10BASE-T 802.3u 100BASE-TX 802.3x Flow Control
Reliability	Grounding Methods	Three-Prong Plug Grounding Point
	EMS	IEC/EN 61000-4-2, Level 3 ESD: Contact: 6kV; Air: 8kV IEC/EN 61000-4-5, Level 4 Surge: Power: DM 2kV, CM 4kV; RJ45: CM 4kV
	Environment	Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉) Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉) Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 90% non-condensing
Mechanical	Dimension	270×182×44 mm 10.63×7.17×1.73 inches
	Product Weight	997.0 g (35.17 oz.)
	Casing Material	Metal
	Installation	Desktop Rackmount via Brackets
