Cudy FS1006P
● Complies with IEEE802.3af/at Standard
● Supports PoE power up to 32W for each PoE port
● Auto detect non PoE device and PoE device
● Power prioritization guarantee power supply of key nodes

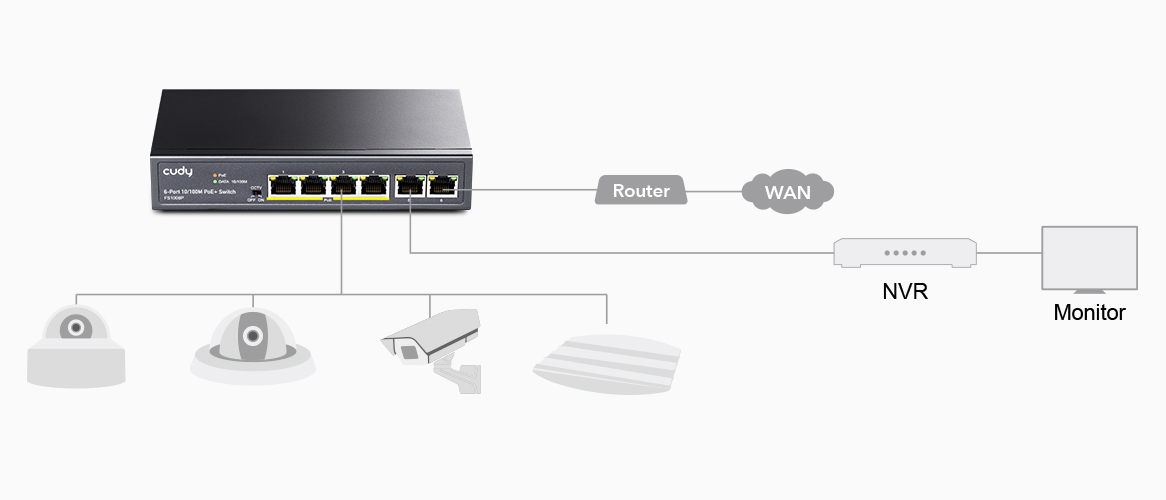

● CCTV/VLAN mode switch, remote power and data up to 250m
● Supports IEEE802.3 x full duplex / half duplex flow control
● Supports storage and forward for Data exchange

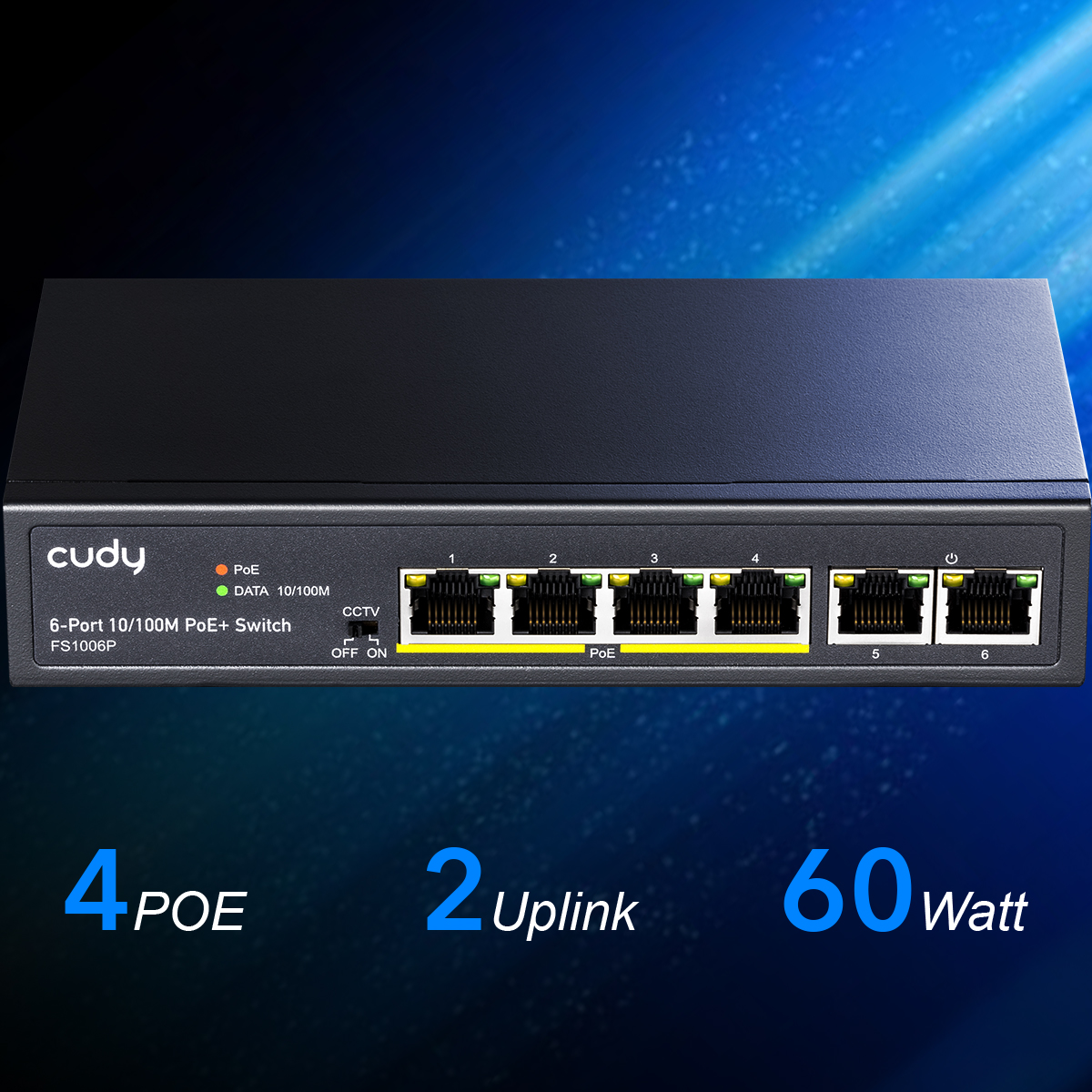

4-Port PoE + 2-Port Uplink ● 10/100 Mbps Ethernet Ports ● IEEE 802.3af/802.3at compliant ● 60W total PoE Power supply. ● Ideal for installations of 4 PoE/PoE+ devices ● Pin assignment: alternative 1/2 (+), 3/6 (-). |
![]() |

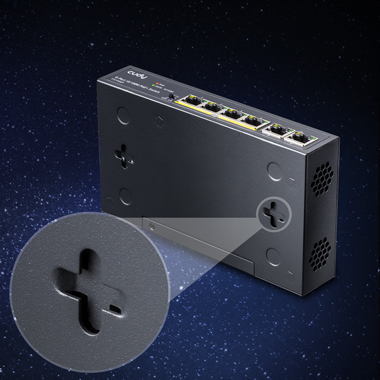

Rack Mount & Wall Mount & Desktop ● Provide a variety of installation methods for easy deployment in any environment ● Support Wall mount installation ● Support Desktop installation |
![]() |

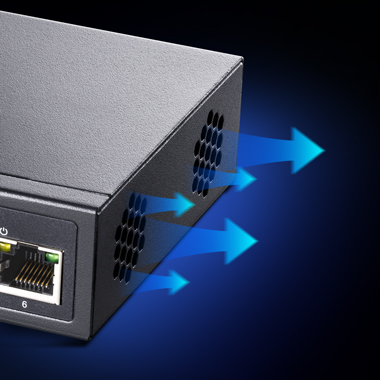

Heat Dissipation ● Made of high-quality metal case, sturdy and durable with long service life, provide better heat dissipation, suitable for most environment. ● Venting holes help to dissipate heat quickly and ensure stable product operation |
![]() |
Texas Instruments PoE chipset inside ● Texas Instruments TPS POE chipset and Realtek switch chipset ensure High performance and stable operation of the product. |
![]() |
Auto-sensing ● Port-Power-Prioritization technology ensure continuous power supply of key nodes. ● Auto-sensing technology delivers up to 32W to an 802.3at PoE+ device with backwards compatibility for 802.3af PoE (15.4W) devices |
![]() |
Lightning protection ● Electrostatic standard: contact 6KV, air 8KV ● MTBF > 50000 hour |
![]() |
Specifications:
Model | FS1006P |
PoE standard | IEEE802.3af/at |
Interface | 6*10/100Mbps RJ45 port |
key function | CCTV |
PoE port | 1-4 |
PoE Total | 60W |
Power supply | 65W |
RJ45 PoE power supply | Mode A Anode1/2 Cathode3/6 |
PoE output-port | Max 32W |
Indicator | PWR, LNK/ACT, PoE |
Network media | 10BASE-T: UTP category 3, 4, 5 cable(≤100m);100BASE-TX: UTP category 5, 5e cable(≤100m) |
MAC Address Table | 2K, Automatic study, automatic updates |
jumbo frame | 1528K Bytes |
Packet buffer | 768K bit |
Transfer Mode | Store-and-forward |
Packet forwarding rate | 0.89Mpps |
Bandwidth | 1.2Gbps |
Fan | Fanless |
Device Dimension | 168*93*32mm |
Machine weight | <1kg |
Input Voltage | AC 100-240V 50/60Hz |
Output Voltage | DC:55V/1.5A |
Operating Temperature | 0°C ~ 40 °C |
Storage Temperature | -40 °C ~ 70 °C |
Operating Humidity | 10% ~ 90% non-condensing |
Storage Humidity | 5% ~ 90% non-condensing |
Surge Protection | ±4KV |
Certification | CE, FCC Class A |
MTBF | >50000 hour |
Electrostatic standard | Contact 4KV, air 6KV |
