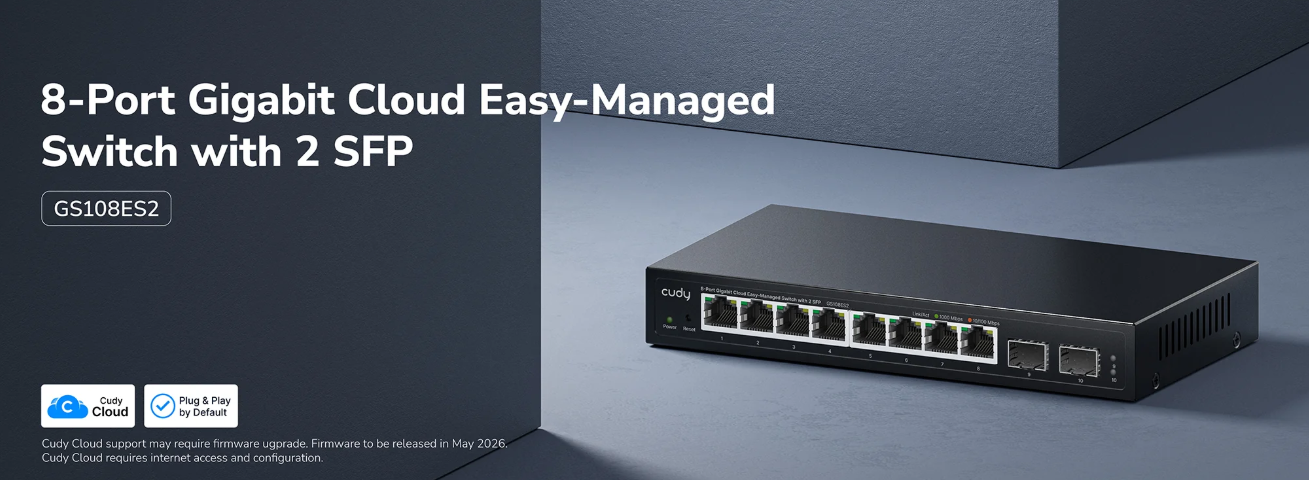

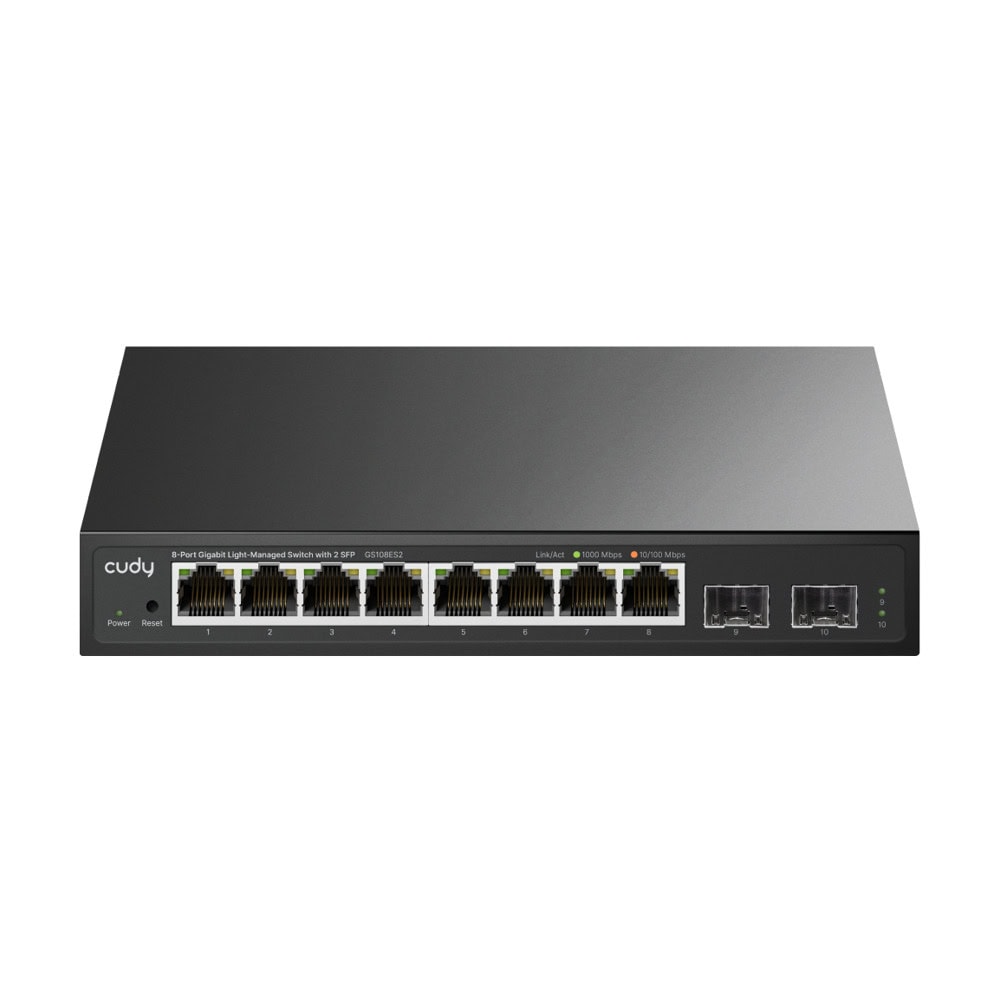

Name: Суич Cudy GS108ES2, 1000Mbps, 10 порта, 8x 10/100/1000Mbps RJ45, 2x SFP
Brand: Cudy
SKU: NTLHCUDYGS108ES2
Price: 37.90 EUR
Availability: InStock

Описание Характеристики Ревюта / Въпроси Документация

Super-Fast Gigabit

Eight 10/100/1000 Mbps Ethernet ports enable instant transferring of data. Two SFP allows long-distance connections.

Quiet Fanless Cooling

Metal casing enables effcient cooling, delivering stable performance.

Wall Mounting

Provides two mounting holes on the bottom of the casing, catering to wall-mounting placement demand.

Extra Electrical Protection

Improves connection reliability with built-in lightning surge and ESD protection.

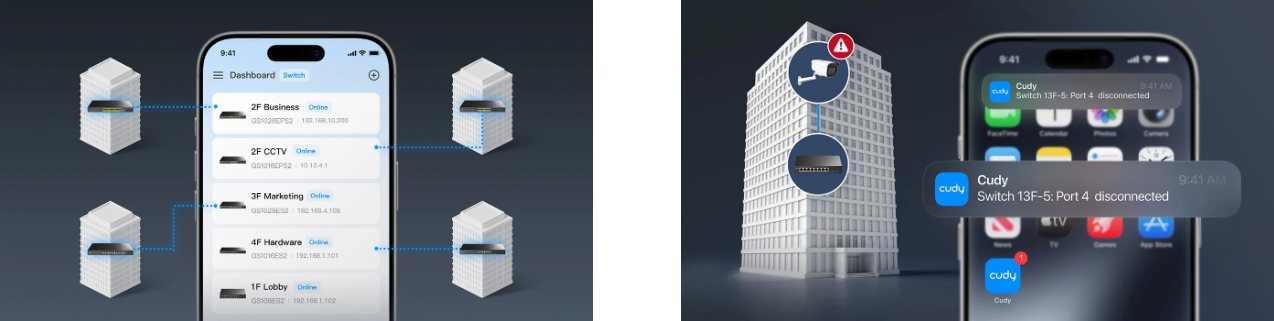

Cudy Cloud for Remote Management

Centralized Management

Monitor all your Cudy easy-managed cloud switches from a single, unified dashboard within the Cudy App, accessible from anywhere.

Monitor and Fix Issues Remotely

Tweak settings on your phone via Cudy Cloud. No need to go to the site anymore for a small task.

Secure and High-Performance Switching

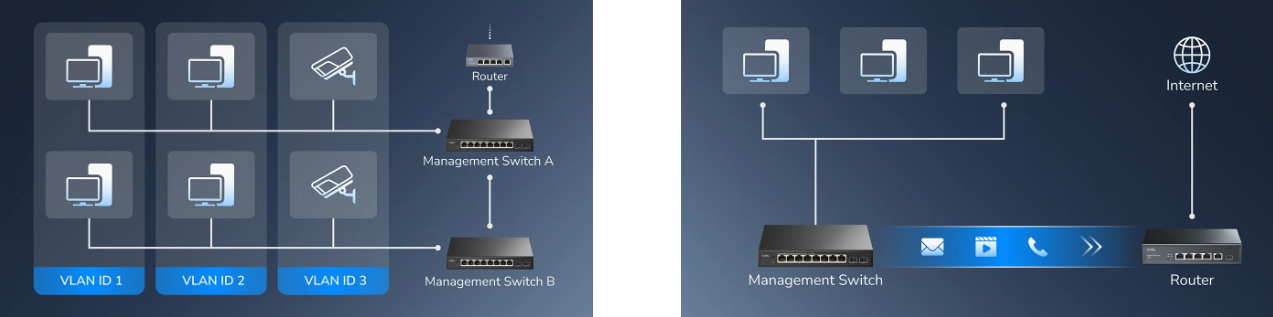

802.1Q/MTU/Port-Based VLAN

802.1Q VLANs allows creating secure and high-performance network segments across different managed switches. The other MTU/Port-Based VLAN enable simpler local VLAN configuration.

DSCP/802.1p/Port-Based QoS

DSCP/802.1p QoS identifies DSCP packets in the tranmission and prioritize those latency-sensitive data.

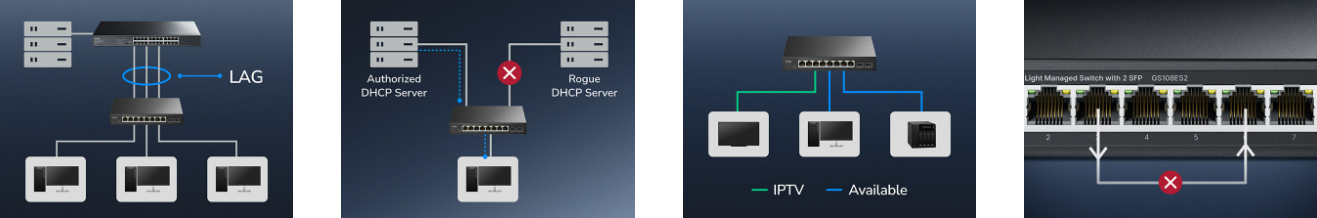

Link Aggregation

Allows creating multiple LAG groups and multiply the transmission speed of the backbone in your networks.

DHCP Snooping

Assign an authorized DHCP server to prevent downtime when other rogue DHCP server connects into the network.

Traffic Optimization

Identifies the multicast groups with IGMP Snooping and sends data to the exact ports instead of broadcasting them.

Loop Detection/Prevention

Automatically detects network loops, indicates affected ports with blinking LEDs, and blocks the loop.

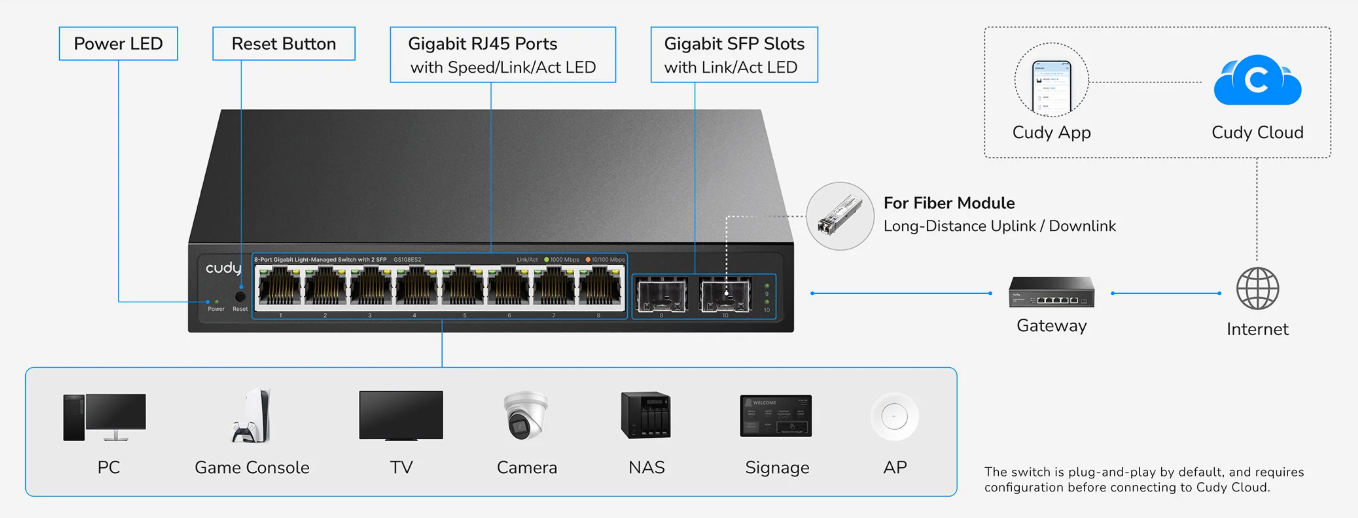

Features

8× GbE, 2× 1.25G SFP
Web Management, SNMP
VLAN (802.1Q/MTU/Port-Based)
QoS (802.1p/DSCP/Port-Based)
Port Mirror, Static Aggregation, etc
Loop Detection and Prevention
DHCP Snooping, IGMP Snooping
Desktop, Wall-Mount
190×100×28 mm (7.48×3.94×1.1")

Specifications

Memory/Storage	Flash/ROM	16 MB (128 Mbit) NOR
Interfaces	1.25G SFP Slots	2
	Gigabit RJ45 Ports	8
	SFP DDM Monitoring	Yes
	Shielded RJ45 Port	Yes
	Extend Mode Ports	Configurable
	VLAN Mode Ports	Configurable
Buttons and LEDs	LED	Power Link/ACT of Each Ethernet Port
	Physical Buttons	Reset Button
Performance	Max Copper Speed and Distance	Cat. 3 or higher cable: 100 meters at 10 Mbps Cat. 5 or higher cable: 100 meters at 100 Mbps Cat. 5e or higher cable: 100 meters at Gigabit Cat. 5e or higher cable: 250 meters at 10 Mbps Cat. 6 or higher cable: 150 meters at Gigabit
	Copper Speed and Distance Note	250-meter transmission is available when the port speed is set at 10 Mbps in the software.
	Optical Spec and Distance	Depends on the Installed Optical Module
	MAC Address Table	4096
	VLANs	4096
	Max Switching Capacity	21 Gbps
	Max Forwarding Rate	14.88 Mpps
	Jumbo Frame	15 KB
	Packet Buffer	1.5 Mbit
Power	Power Input Type	DC Jack
	Basic Power Saving	Yes
	Power Methods	DC
	Power Input	12V⎓1A
	Power Adapter in the Box	Input: 100-240V~, 50/60Hz Output: 12V⎓1A
	Max Power Consumption	4.5W
	Idle Power Consumption	0.9W
Switching	802.3 Protocols	802.3x Flow Control 802.3i 10BASE-T 802.3u 100BASE-TX 802.3ab 1000BASE-T 802.3z 1000BASE-X 802.3az Power Saving
	802.1 Protocols	802.1p: LAN Layer 2 QoS/CoS 802.1q: VLAN Bridge Operation 802.1ab: LLDP/LLDP-MED
	Ethernet	Full Duplex Half Duplex (CSMA/CD) Auto-Negotiation Auto MDI/MDIX
	Forwarding Method	Store-and-Forward
	Port Management	Port On/Off Port Negotiation Speed Port Security/MAC Constraint Port Trunk (Static Aggregation) Port Mirroring Data Rate Limit Jumbo Frame Settings Storm Control Traffic Monitor MAC Address Management EEE (802.3az)
	L2 Features	IGMP Snooping Loop Prevention Loop Detection DHCP Snooping LLDP Config and Neighbors MTU VLAN Port-Based VLAN 802.1Q VLAN DSCP QoS 802.1p QoS Port-Based QoS 8-Queue SP/WRR/WFQ Scheduling
	Port Trunk Details	Max 4 Ports per Group / Max 2 Groups
	Port Mirroring Sessions	2
Reliability	MTBF	>200,000 h
	Grounding Methods	Grounding Point
	EMS	IEC/EN 61000-4-2, Level 3 ESD: Contact: 6kV; Air: 8kV IEC/EN 61000-4-5, Level X Surge: Power: DM 2kV, CM 4kV; RJ45: CM 6kV
	Environment	Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉) Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉) Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 90% non-condensing
System	Control Methods	Config Web Page Cudy App (Coming Soon)
	Firmware Upgrade	Local Upgrade
	Reliability	Backup and Restore
	Diagnostic Tools	Ping
	Languages	English Bengali German Spanish French Portuguese Russian Arabic Indonesian Hindi Urdu Traditional Chinese Simplified Chinese
Mechanical	Dimension	190×100×28 mm 7.48×3.94×1.1 inches
	Product Weight	461.5 g (16.28 oz.)
	Casing Material	Metal
	Installation	Desktop Wall-mount
