Cudy FS1026PS1
Specifications:

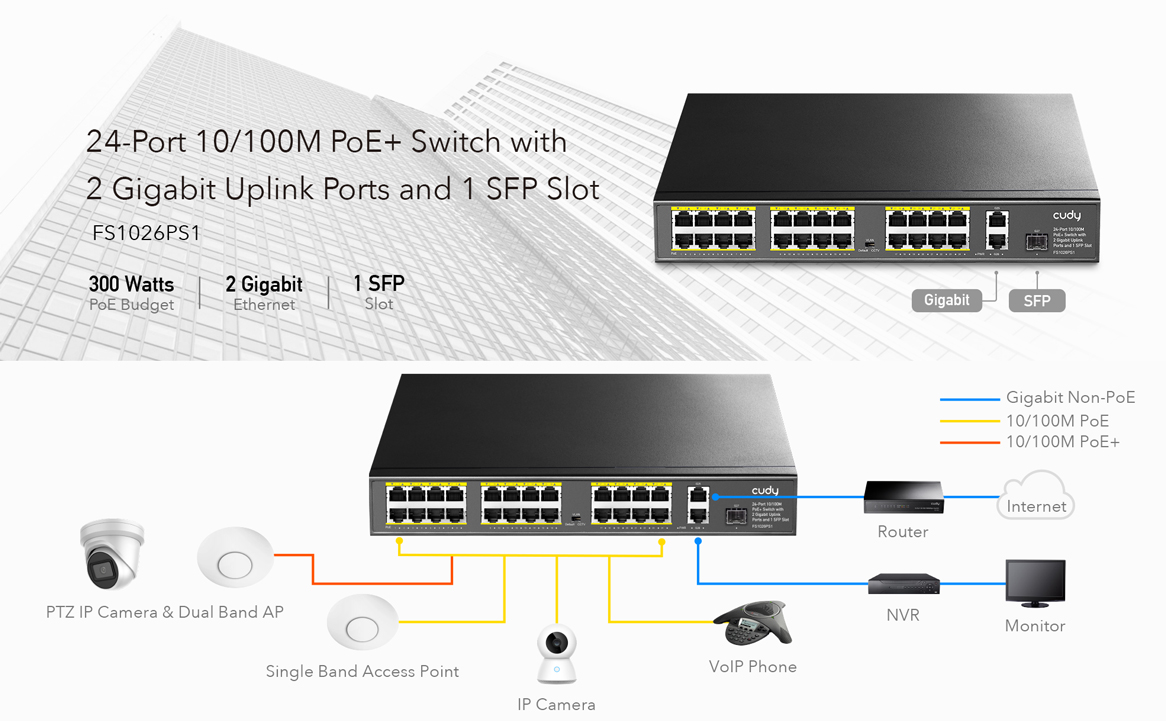

| Connector Type | 24-Port 10/100M PoE+ Switch with 2 Gigabit Uplink Ports and 1 SFP Slot | ||
| Network Protocols | IEEE802.3 IEEE802.3u IEEE802.3ab IEEE802.3x IEEE802.3z | ||
| PoE Parameters | PoE Standard: IEEE802.3af /IEEE802.3at | ||
Max each port: 15.4W ( IEEE 802.3af ) Max each port：30W ( IEEE 802.3at ) | |||
| PoE compatibility: IEEE 802.3af/at adaptive | |||
| PoE port output: DC48-55V | |||
| Power Pin : Power over spare pairs 1/2(+) , 3/6 (-) | |||
| Network Media | 10BASE-T: Cat 6 UTP(≤250 meter) 100BASE-TX: Cat5 or more UTP (≤100 meter) 1000BASE-TX: Cat5 or more UTP (≤100 meter) | ||
| Optical | MultiMode Fiber: 850nm, 1310nm, Transmission Distance: 550m/2Km Single-Mode Fiber: 1310nm, 1550nm, Transmission Distance: 20/40/60/80/100/120km | ||
| Performance Specification | Bandwidth: 10.8Gbps | ||
| MAC Address: 2K | |||
| Packet Buffer Memory: 1M | |||
| Packet Forwarding Rate: 8Mpps | |||
| Forwarding Mode: Store-And-Forward | |||
| Power Supply | Product Input Voltage: AC100-240V 50/60Hz Power Budget: 300W | ||
| Led indicator | PWR | Power supply indicator (Red) | Lighting：Powered Un-Light：No Power |

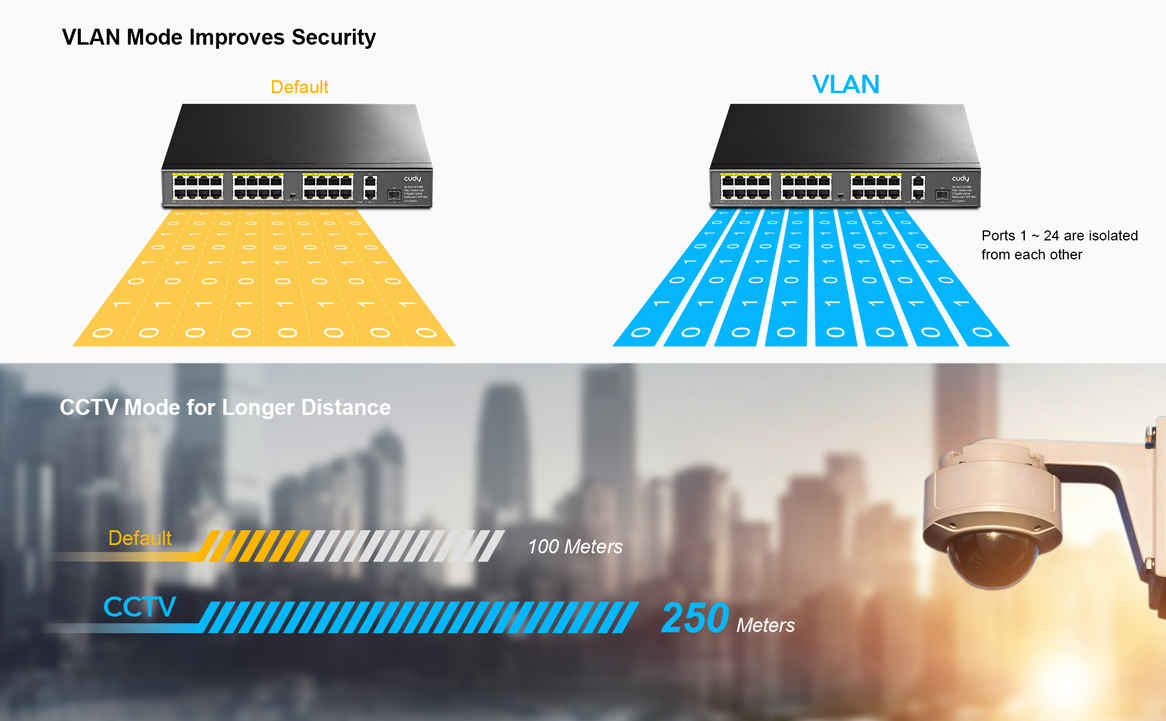

| Led indicator | SW | DIP indicator (Green) | OFF: Normal Vlan: Lighting Extend: Slow flash |
| 1-27 | RJ-45 ACT indicator (Green) | Lighting：Connecting Flashing：Data Transmit Un-Light：Disconnect | |
| Working Environment | Operating Temperature: -20℃ ~ 50℃; | ||
| Storage Temperature: -40℃ ~ 85℃; | |||
| Operating Humidity: Max 90%, non-condensing | |||
| Storage Humidity: Max 95%, non-condensing | |||
| Working Height: Max to 10,000 feet (3,000 meters） | |||
| Storage Height: Max to 10,000 feet (3,000 meters) | |||
| Physical Parameter | Product Dimension (L*W*H): 320mm*210mm*46mm | ||
| Package Dimension (L*W*H): 375mm*270mm*85mm | |||
| N.W: 1.9KG | |||
| G.W: 2.4KG | |||
| MTBF | 100,000 hours | ||
Виж още Суич Cudy
Виж всички продукти Суич в категорията
Технически характеристики
| Брой портове: | 26 |
|---|---|
| Максимална скорост: | 1 Gbit/s |
| Стандарт: | 802.3af |
| Управляем: | Не е указано |
