VLAN Mode VLAN mode for port isolation to enhance network security. With VLAN mode, downlink ports 1-14 can only communicate with uplink ports. | Extend Mode Prolong the transmission distance of ports 1-22 to a maximum of 250 meters and simplify installation. | Power Saving Reduce power consumption when Ethernet ports are idle, saving the electricity expenses on networking facilities. | Rackmount Standard 1U rackmount design with included mounting kits simplifies your deployment. |
Specifications
| Interfaces | 10/100 Mbps RJ45 Ports | 16 |
|---|---|---|
| Shielded RJ45 Port | ||
| Extend Mode Ports | #1~#14 | |
| VLAN Mode Ports | #1~#14 | |
| LED |
| |
| Physical Buttons | VLAN/Default/Extend DIP Switch | |
| Performance | Max Copper Speed and Distance |
|
| Copper Speed and Distance Note | 250-meter transmission is only available on the Extend Mode ports when the Extend Mode is activated. | |
| MAC Address Table | 8192 | |
| Max Switching Capacity | 3.2 Gbps | |
| Max Forwarding Rate | 2.38 Mpps | |
| Jumbo Frame | 2 KB | |
| Packet Buffer | 2 Mbit | |

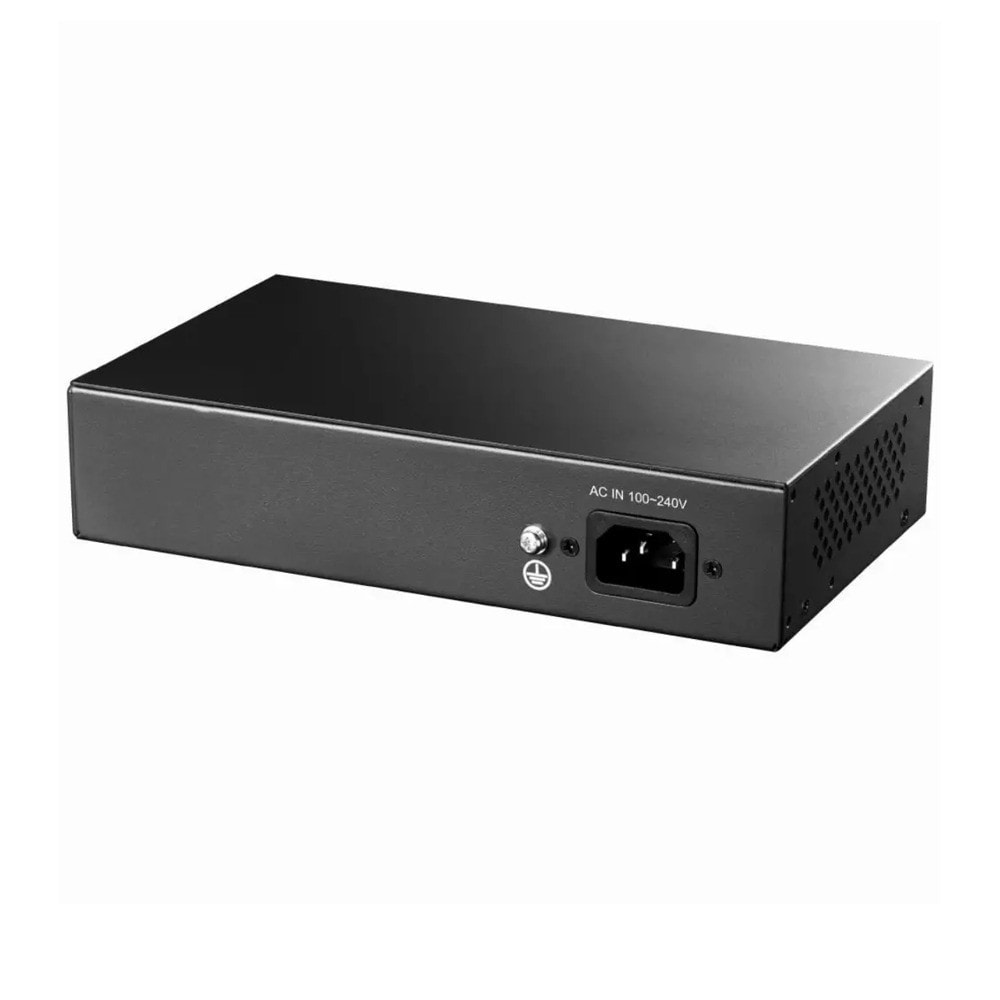

| Power | Power Input Type | AC Inlet |
| Basic Power Saving | ||
| Power Methods | AC | |
| Power Input | 90-260V~ 50/60Hz | |
| Max Power Consumption | 2.0W | |
| Idle Power Consumption | 0.8W | |
| Switching | 802.3 Protocols |
|
| Reliability | Grounding Methods |
|
| EMS | IEC/EN 61000-4-2, Level 3 ESD: Contact: 6kV; Air: 8kV IEC/EN 61000-4-5, Level 4 Surge: Power: DM 2kV, CM 4kV; RJ45: CM 4kV | |
| Environment | Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉) Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉) Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 90% non-condensing | |
| Mechanical | Dimension | 200×118×44 mm 7.87×4.65×1.73 inches |
| Product Weight | 600 g (21.16 oz.) | |
| Casing Material | Metal | |
| Installation |
|
