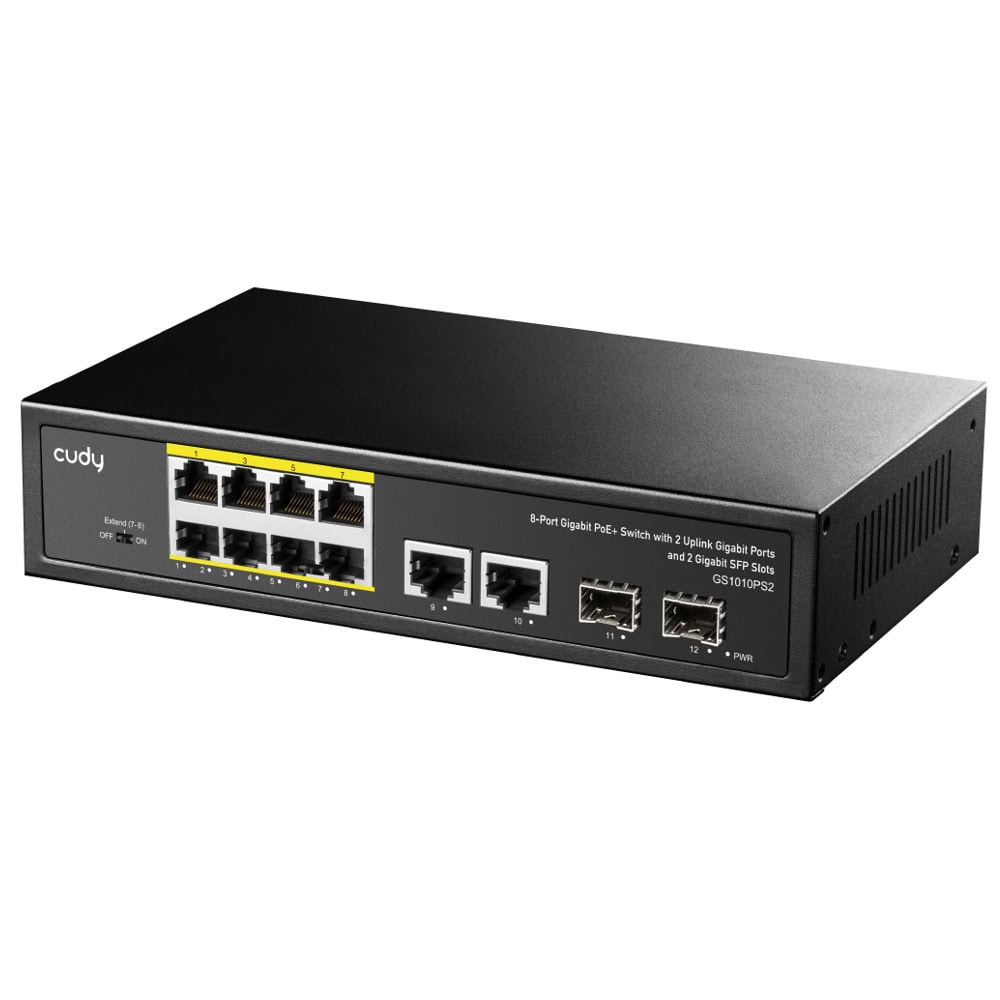

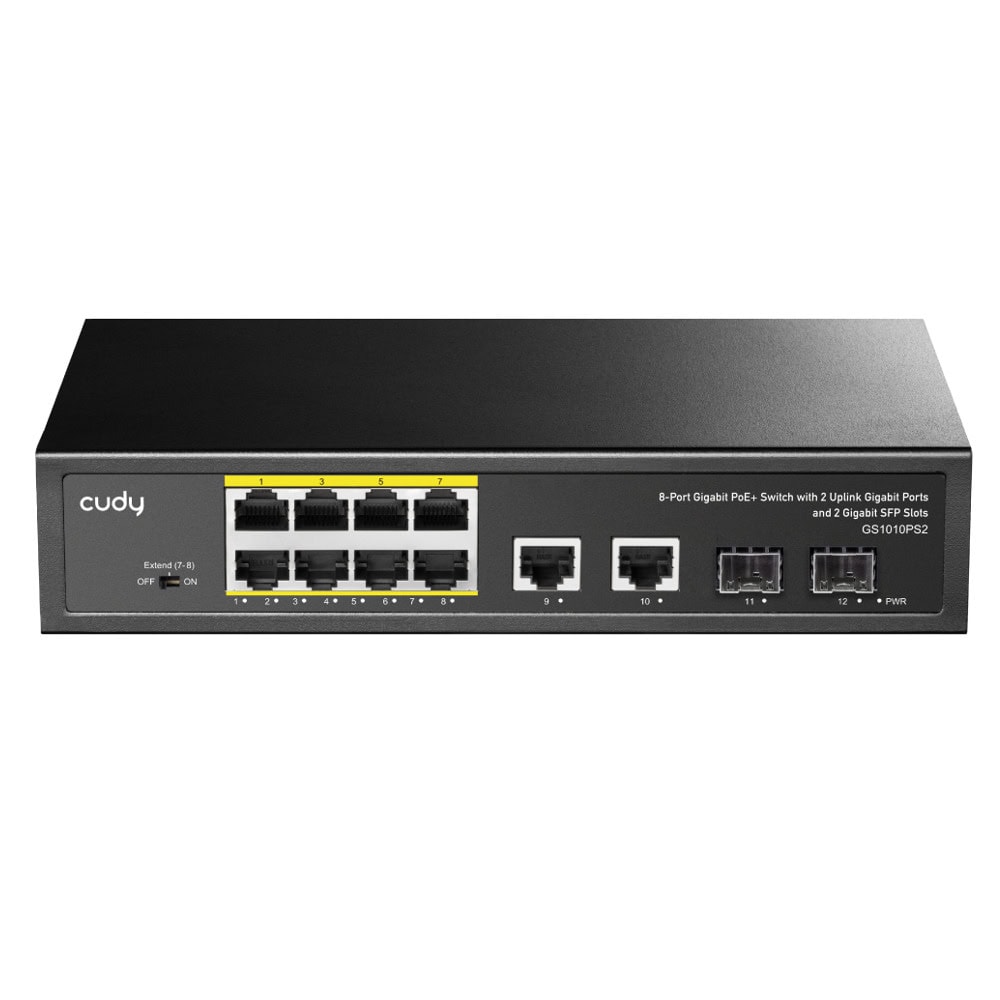

8-Port Gigabit PoE+ Switch with 2 GbE and 2 Gigabit SFP
A rack-mounted Gigabit PoE switch with a 120W power supply and a silent cooling system.
- 8× GbE with 802.3at/af Mode A PoE
- 2× Uplink GbE + 2× Uplink SFP
- 120W Power Supply
- Extend for 250 meters Transmission 1
- Watchdog under Extend Mode
- Desktop, Rack-Mount
- 220×161×44 mm (8.66×6.34×1.73″)
| Specification | Details |
|---|---|
| 1.25G SFP Slots | 2 |
| Gigabit RJ45 Ports | 10 |
| Gigabit RJ45 PoE Ports | #1~#8 |
| Max Power on a Single PoE Port | 30W |
| PoE Port Notes | The PoE ports comply with IEEE 802.3at/af standards. PoE priority ranks from #1~#8. |
| Extend Mode Ports | #7~#8 |
| LED | PowerLink/ACT of Each Ethernet Port |
| Physical Buttons | Default/Extend DIP switch |
| Physical Buttons Note | The PoE Watchdog is on under the Extend mode and will attempt to reboot the plugged-in but inactive client. |
| Max Copper Speed and Distance | Cat. 3 or higher cable: 100 meters at 10 MbpsCat. 5 or higher cable: 100 meters at 100 MbpsCat. 5e or higher cable: 100 meters at GigabitCat. 5e or higher cable: 250 meters at 10 Mbps |
| Copper Speed and Distance Note | 250-meter transmission is only available on the Extend Mode ports when the Extend Mode is activated. |
| Optical Spec and Distance | Depends on the Installed Optical Module |
| MAC Address Table | 2048 |
| Max Switching Capacity | 24 Gbps |
| Max Forwarding Rate | 17.856 Mpps |
| Jumbo Frame | 2 KB |
| Packet Buffer | 448 Kbit |

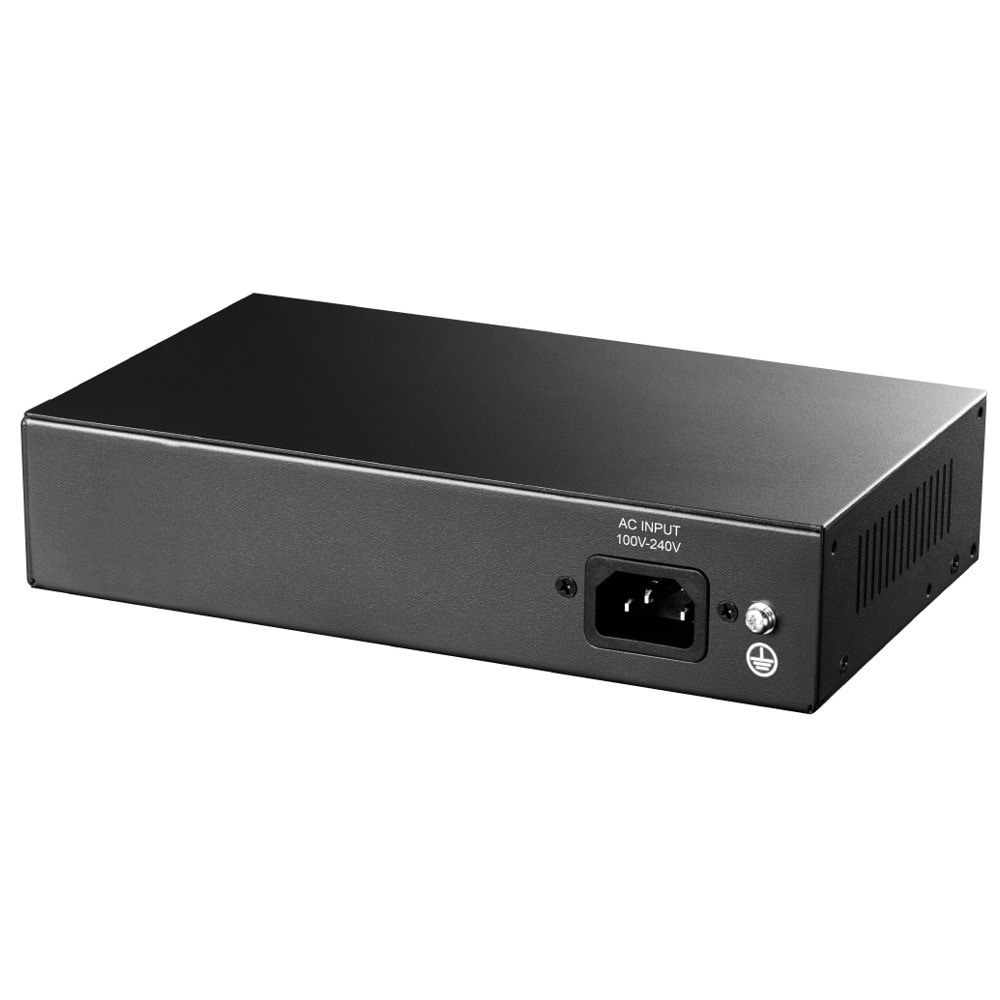

| Power Input Type | AC Inlet |
| Power Methods | AC |
| Power Input | 100-240V~ 50/60Hz |
| Power Supply | 120W |
| Max Power Excluding PoE | 10W |
| 802.3 Protocols | 802.3i 10BASE-T802.3u 100BASE-TX802.3ab 1000BASE-T802.3z 1000BASE-X802.3x Flow Control802.3af PoE802.3at PoE |
| Grounding Methods | Three-Prong Plug |
| EMS | IEC/EN 61000-4-2, Level 3 ESD: Contact: 6kV; Air: 8kVIEC/EN 61000-4-5, Level 4 Surge: Power: DM 2kV, CM 4kV; RJ45: CM 4kV |
| Environment | Operating Temperature: 0~40 ℃ (32~104 ℉)Storage Temperature: -40~70℃ (-40~158 ℉)Operating Humidity: 10~90% non-condensingStorage Humidity: 10~95% non-condensing |
| Dimension | 220×161×44 mm8.66×6.34×1.73 inches |
| Product Weight | 934 g (32.95 oz.) |
| Casing Material | Metal |
| Installation | DesktopRackmount via Brackets (Brackets not included in the box) |
| Retail Package Dimension | 315×215×85 mm12.4×8.46×3.35 inches |
| Retail Package Weight | EU: 1299 g (45.82 oz.) |
Виж още Суич Cudy
Виж всички продукти Суич в категорията
| Брой портове: | 10 |
|---|---|
| Максимална скорост: | 1 Gbit/s |
| Стандарт: | IEEE 802.3 at |
| Управляем: | Не |
