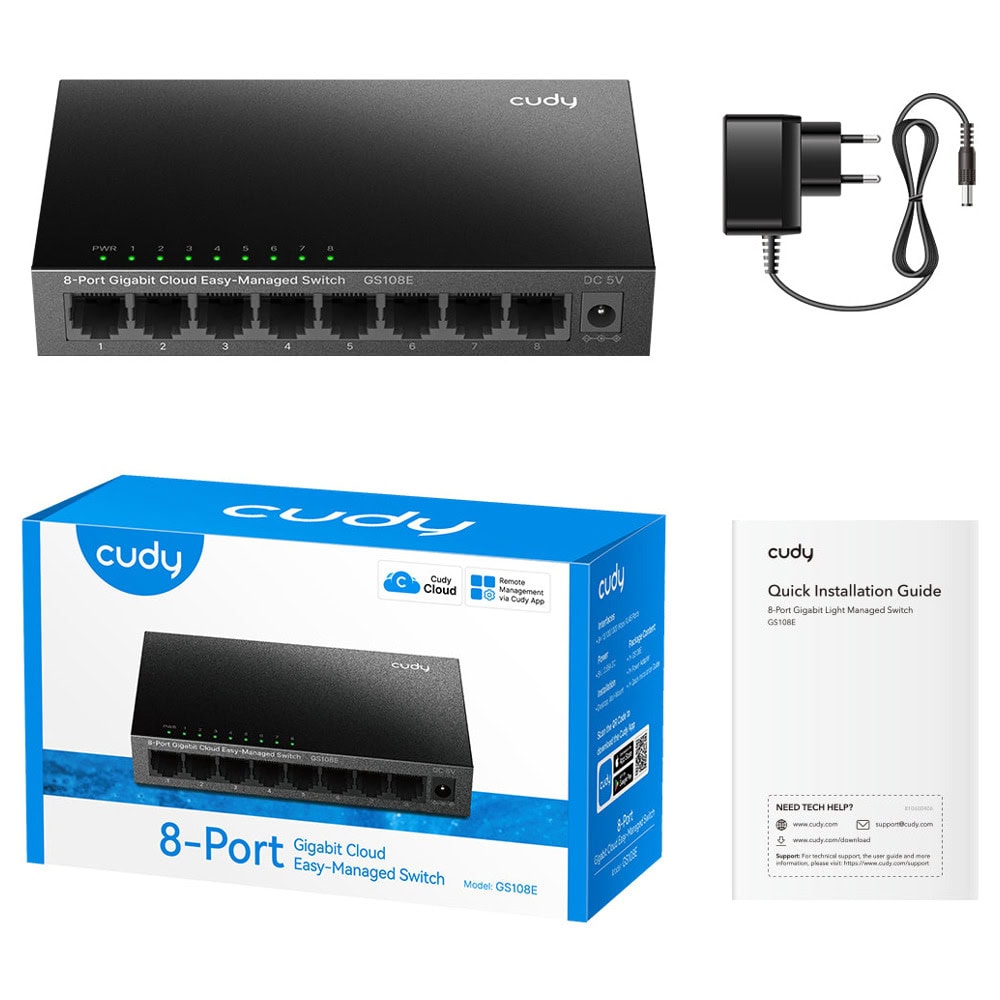

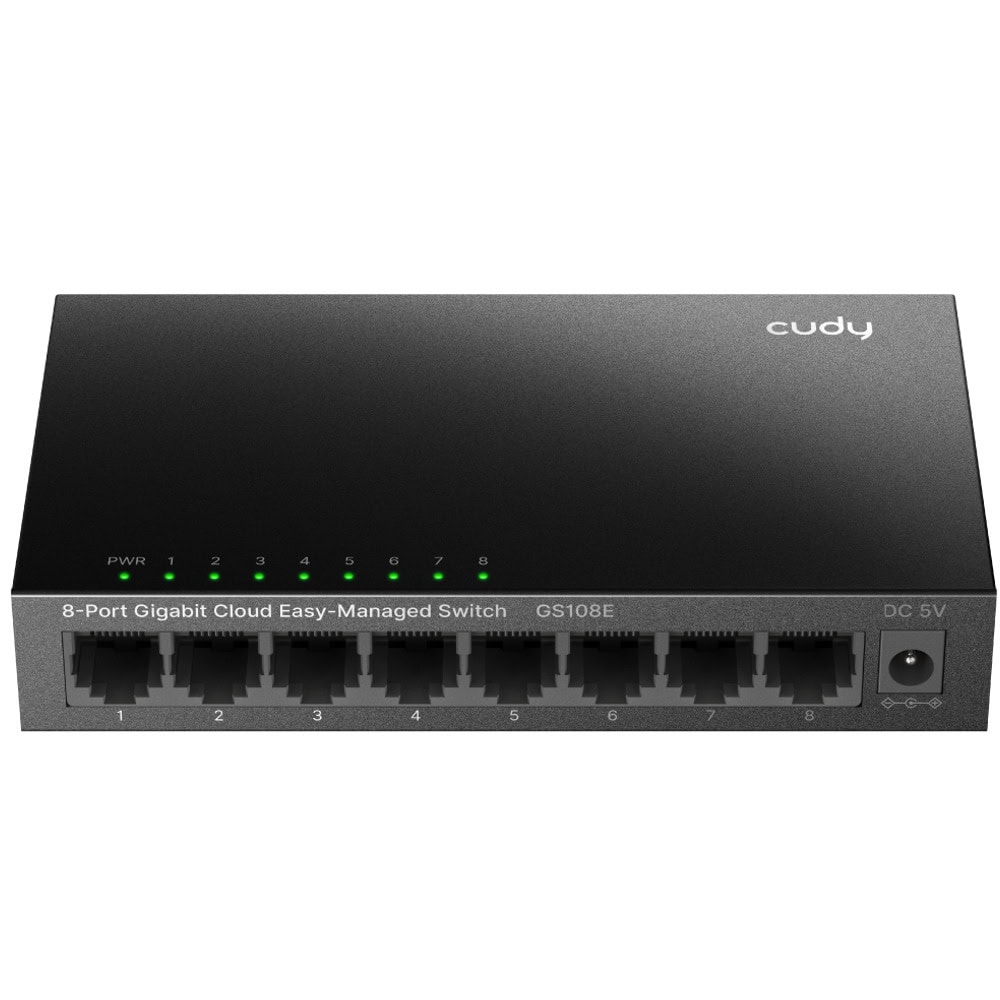

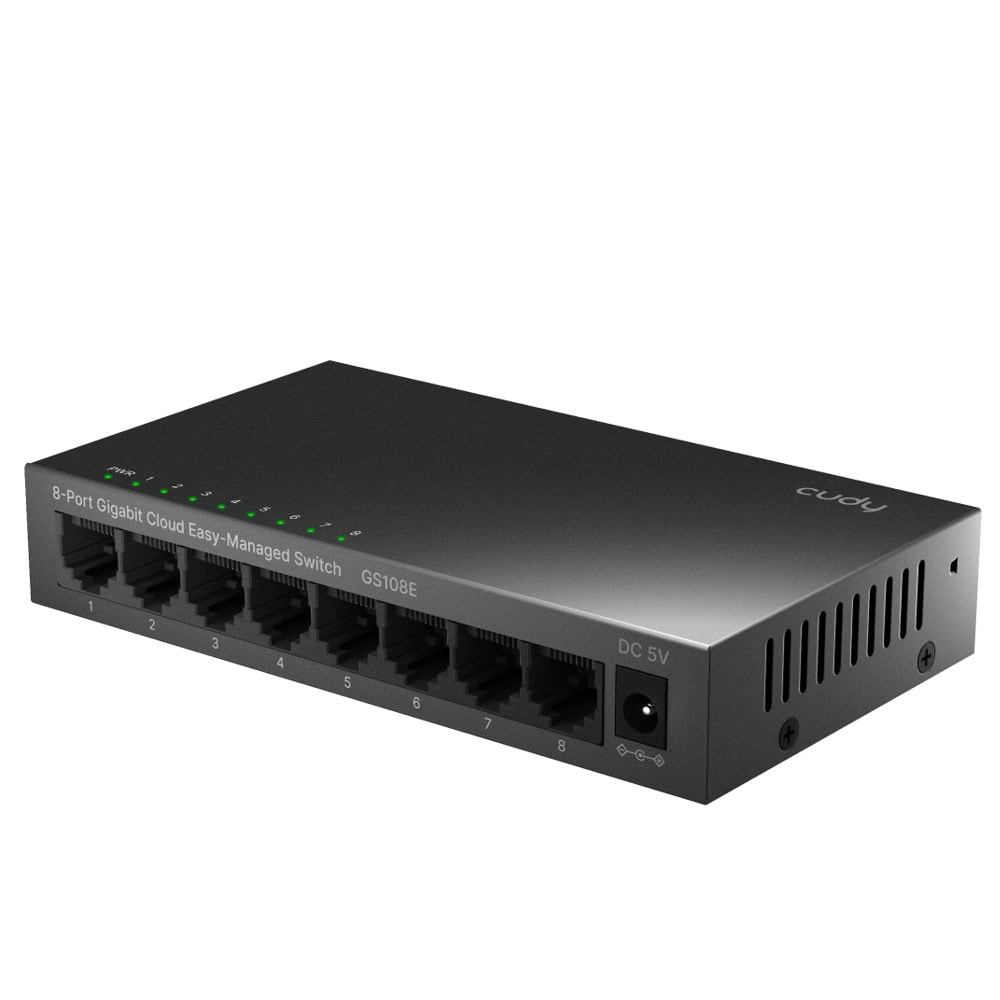

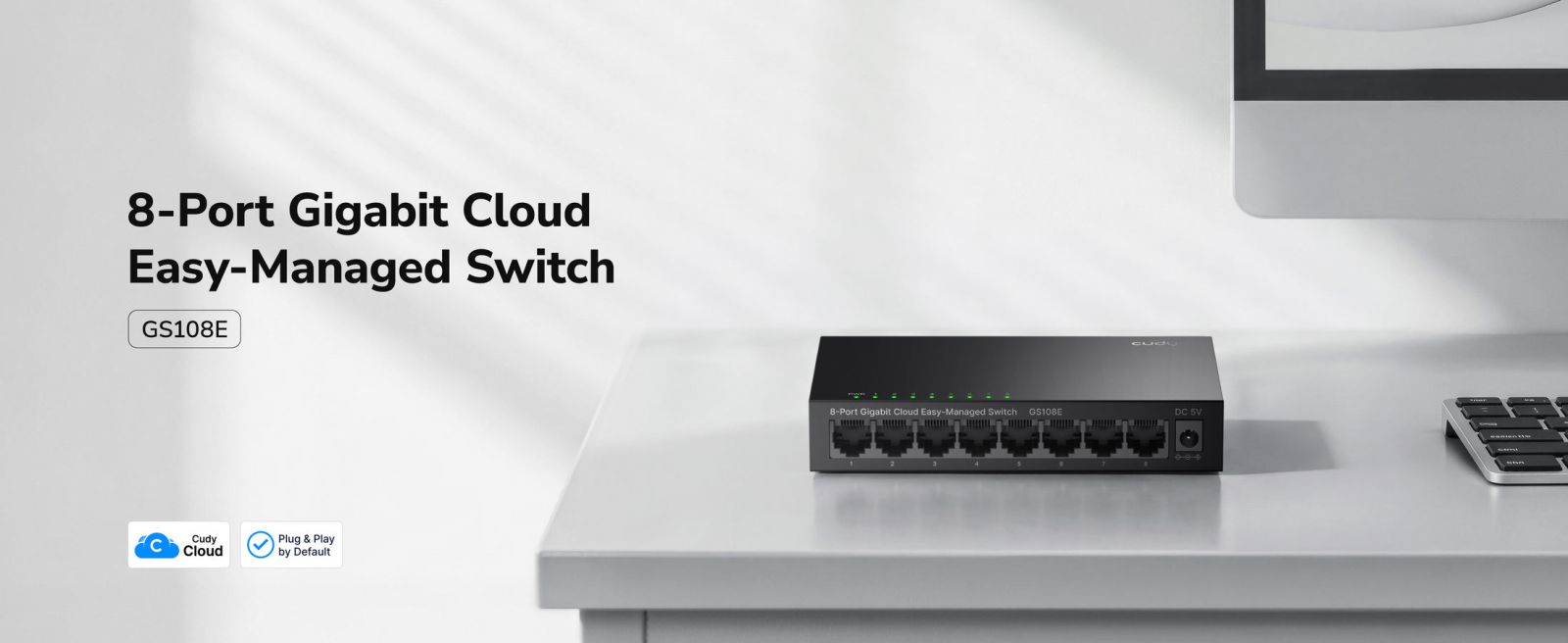

Name: Суич Cudy GS108E, 1000Mbps, 8 порта, 8x 10/100/1000Mbps RJ45
Brand: Cudy
SKU: NTLHCUDYGS108E
Price: 28.39 EUR
Availability: InStock

Описание Характеристики Ревюта / Въпроси

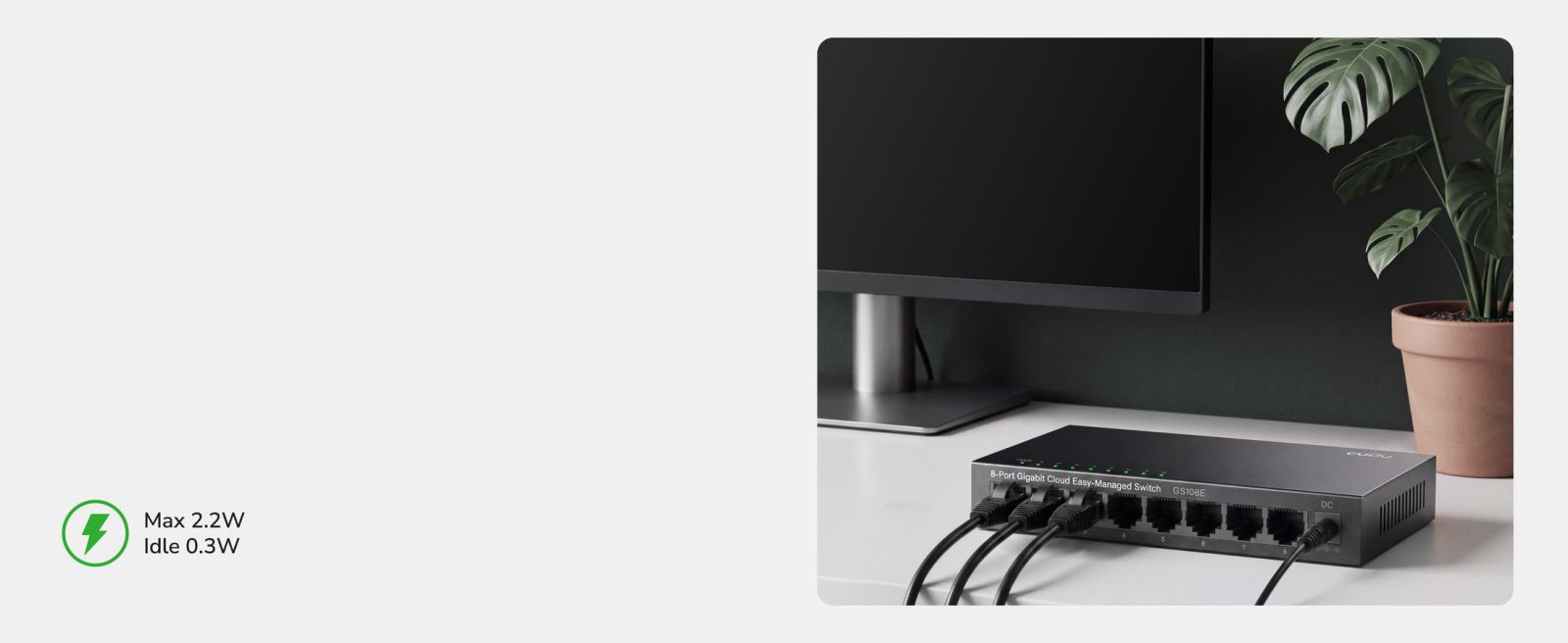

Power Efficient. Saves on Bills.

Unlike many 8-port smart switches that consume 5W or more, the GS108E consumes just 2.2W at most, cutting power consumption by more than half and significantly reducing the cost of running a 24/7 device.

For Home Users

Easy Gigabit Expansion

Effortlessly expand your Gigabit ports with plug-and-play convenience.

For Office Users

Advanced Networking Ready

Support essential L2 management features including tag VLAN, QoS, and port configuration for office network expansion.

Specification	Details
Flash/ROM	16 MB (128 Mbit) NOR
Gigabit RJ45 Ports	8
Extend Mode Ports	Configurable
VLAN Mode Ports	Configurable
LED	Power
LED	Link/ACT of Each Ethernet Port

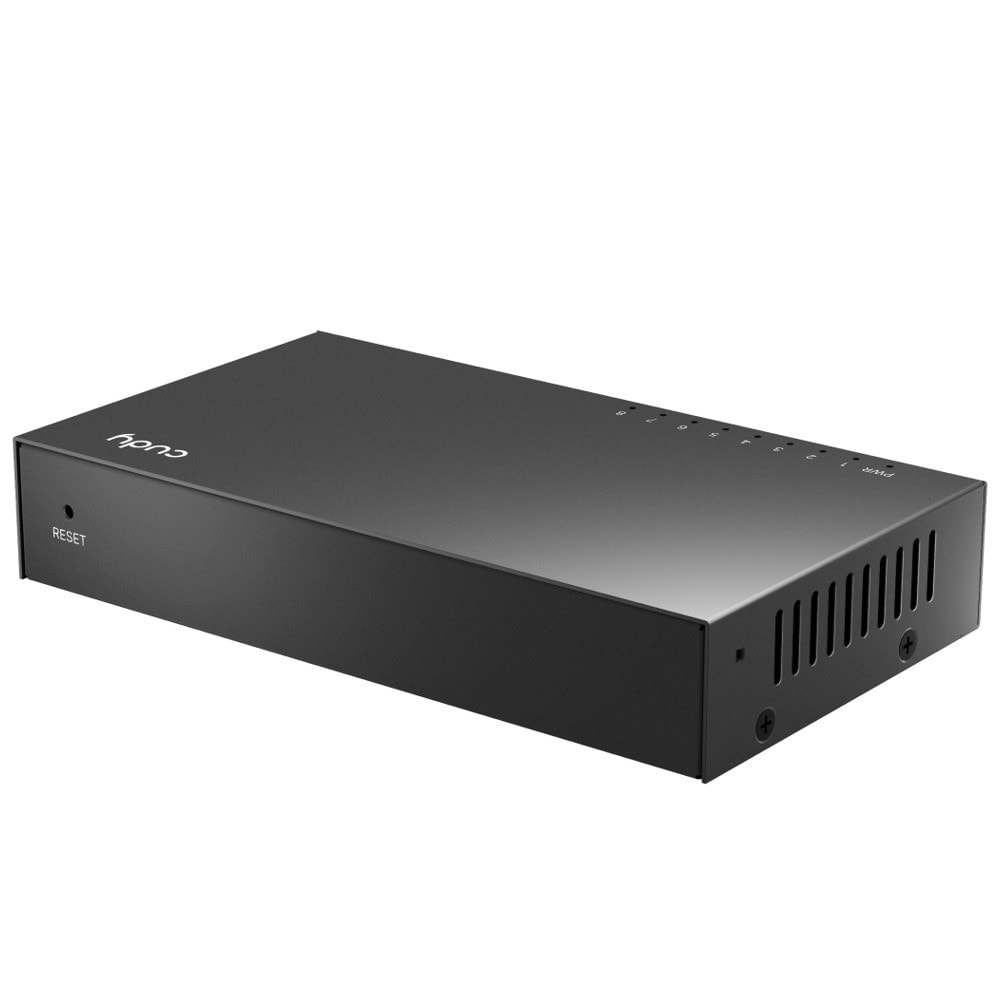

Physical Buttons	Reset Button
Max Copper Speed and Distance	Cat. 3 or higher cable: 100 meters at 10 Mbps
Max Copper Speed and Distance	Cat. 5 or higher cable: 100 meters at 100 Mbps
Max Copper Speed and Distance	Cat. 5e or higher cable: 100 meters at Gigabit
Max Copper Speed and Distance	Cat. 5e or higher cable: 250 meters at 10 Mbps
Max Copper Speed and Distance	Cat. 6 or higher cable: 150 meters at Gigabit
Copper Speed and Distance Note	250-meter transmission is available when the port speed is set at 10 Mbps in the software.
MAC Address Table	4096
VLANs	4096
Max Switching Capacity	16 Gbps
Max Forwarding Rate	11.904 Mpps
Jumbo Frame	15 KB
Packet Buffer	1.5 Mbit
Power Input Type	DC Jack
Power Methods	DC
Power Input	5V⎓0.55A
Power Adapter in the Box	Input: 100-240V~, 50/60Hz; Output: 5V⎓0.55A
Max Power Consumption	2.2W
Idle Power Consumption	0.3W
802.3 Protocols	802.3x Flow Control
802.3 Protocols	802.3i 10BASE-T
802.3 Protocols	802.3u 100BASE-TX
802.3 Protocols	802.3ab 1000BASE-T
802.3 Protocols	802.3az Power Saving
802.1 Protocols	802.1p: LAN Layer 2 QoS/CoS
802.1 Protocols	802.1q: VLAN Bridge Operation
802.1 Protocols	802.1ab: LLDP/LLDP-MED
Duplex Mode	Full Duplex
Duplex Mode	Half Duplex (CSMA/CD)
Auto-Negotiation / Auto MDI/MDIX	—
Forwarding Method	Store-and-Forward
Port Management	Port On/Off
Port Management	Port Negotiation Speed
Port Management	Port Trunk (Static Aggregation)
Port Management	Port Mirror
Port Management	Data Rate Limit
Port Management	Jumbo Frame Settings
Port Management	Storm Control
Port Management	Traffic Monitor
Port Management	MAC Address Management
Port Management	EEE (802.3az)
Port Mirror Sessions	4
Port Trunk Groups	4
Max Port Num per Port Trunk Group	7
L2 Features	IGMP Snooping
L2 Features	Loop Prevention
L2 Features	Loop Detection
L2 Features	DHCP Snooping
L2 Features	LLDP Config and Neighbors
L2 Features	MTU VLAN
L2 Features	Port-Based VLAN
L2 Features	802.1Q VLAN
L2 Features	DSCP QoS
L2 Features	802.1p QoS
L2 Features	Port-Based QoS
MTBF	200,000 h
