Name: PoE инжектор Ubiquiti U-POE-PLUS, 1000 Mbps, 1x LAN (RJ-45), 1x LAN PoE, 30W, бял
Brand: Ubiquiti
SKU: NTLAUBIQUITIUPOEPLUS
Price: 18.63 EUR
Availability: InStock

Описание Характеристики Ревюта / Въпроси

PoE+ Adapter (30W)

Category	Specification
Dimensions	93 x 62 x 35 mm (3.7 x 2.4 x 1.4")
Weight	156 g (5.5 oz)
Output Voltage	48V DC @ 0.65A
Rated Voltage	100–240V AC @ 50/60Hz
Input Current	0.75A Max.
Inrush Current	<100A peak at 26°C
Efficiency	87%
Switching Frequency	70 kHz Max.
Output Ripple	1% Max.
Line Regulation	≤ 3%
Load Regulation	≤ 5%
Gigabit LAN Port	Yes
2-pair Powering	Pins 4, 5 (+) and 7, 8 (-)

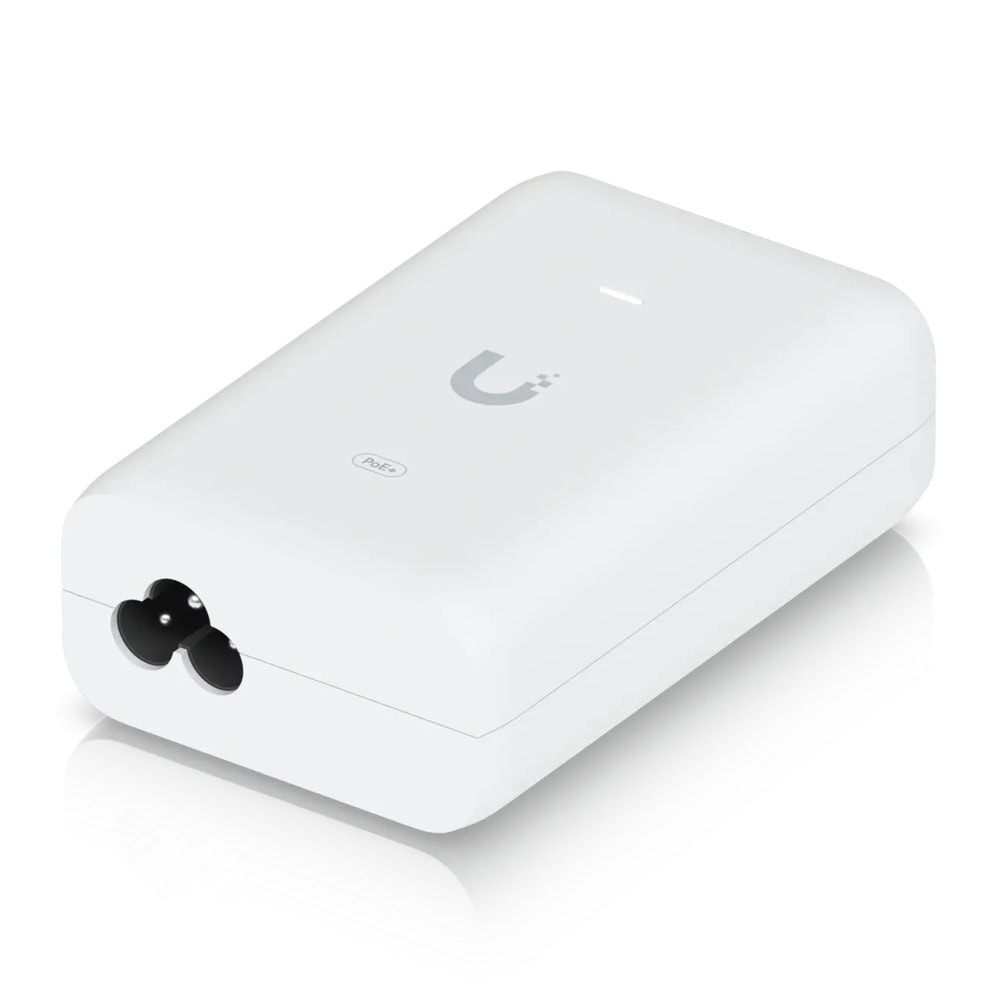

AC Connector	IEC-320 C6
Clamping Protection	11V Data, 60V Power

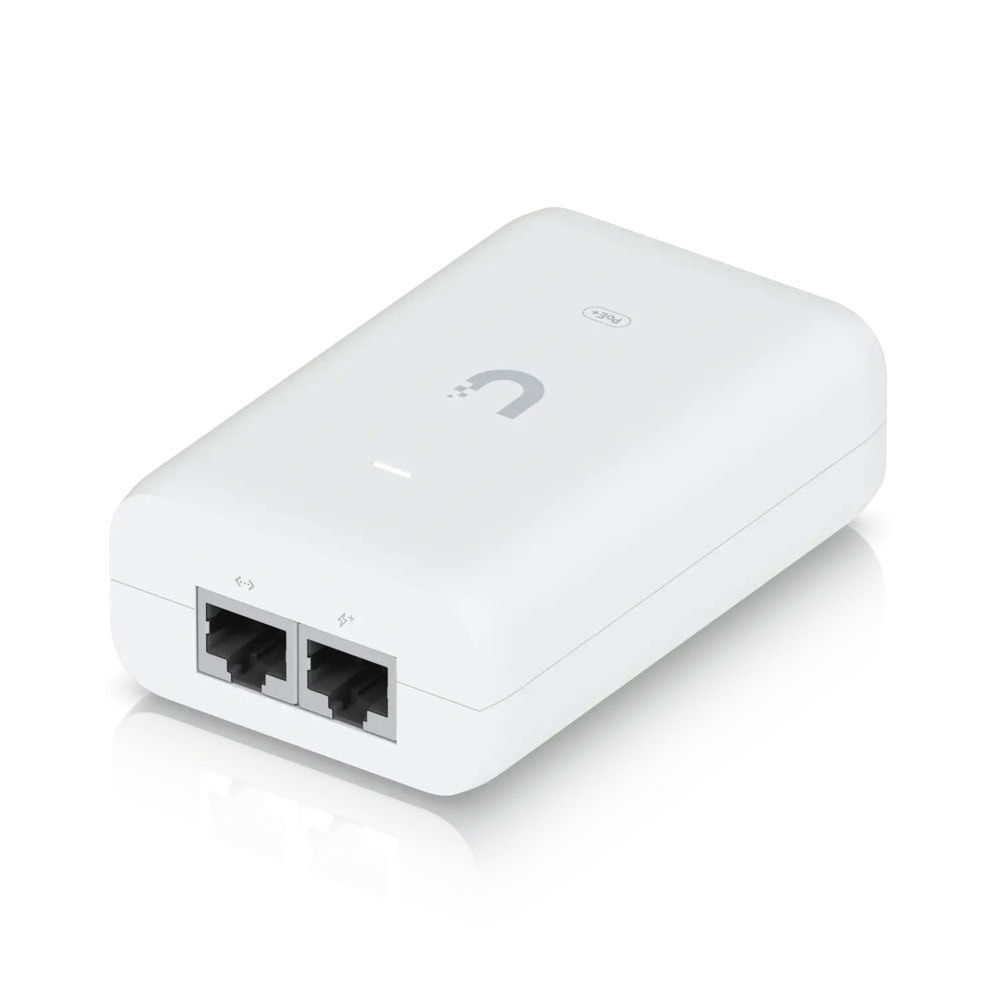

Data In / PoE	RJ45 Shielded Socket
Max. Surge Discharge	1500A (8/20 μs) power
Peak Pulse Current	36A (10/1000 μs) data
Response Time	<1 ns
Shunt Capacitance	<5 pF data
Surge Protection	Difference and Common Mode
Storage Temperature	-30 to 70°C (-22 to 158°F)
Ambient Operating Temp.	0 to 40°C (32 to 104°F)
