Name: Суич TP-Link Omada ES224G, 1000Mbps, 24 порта, 24x 10/100/1000Mbps RJ45
Brand: TP-Link
SKU: NTLHTPLINKES224G
Price: 115.69 EUR
Availability: InStock

Описание Характеристики Ревюта / Въпроси Документация Вземи на изплащане

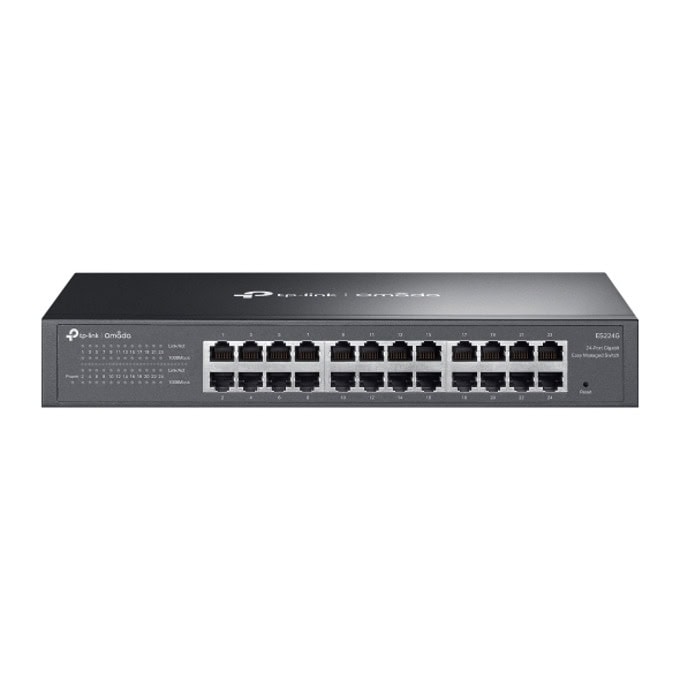

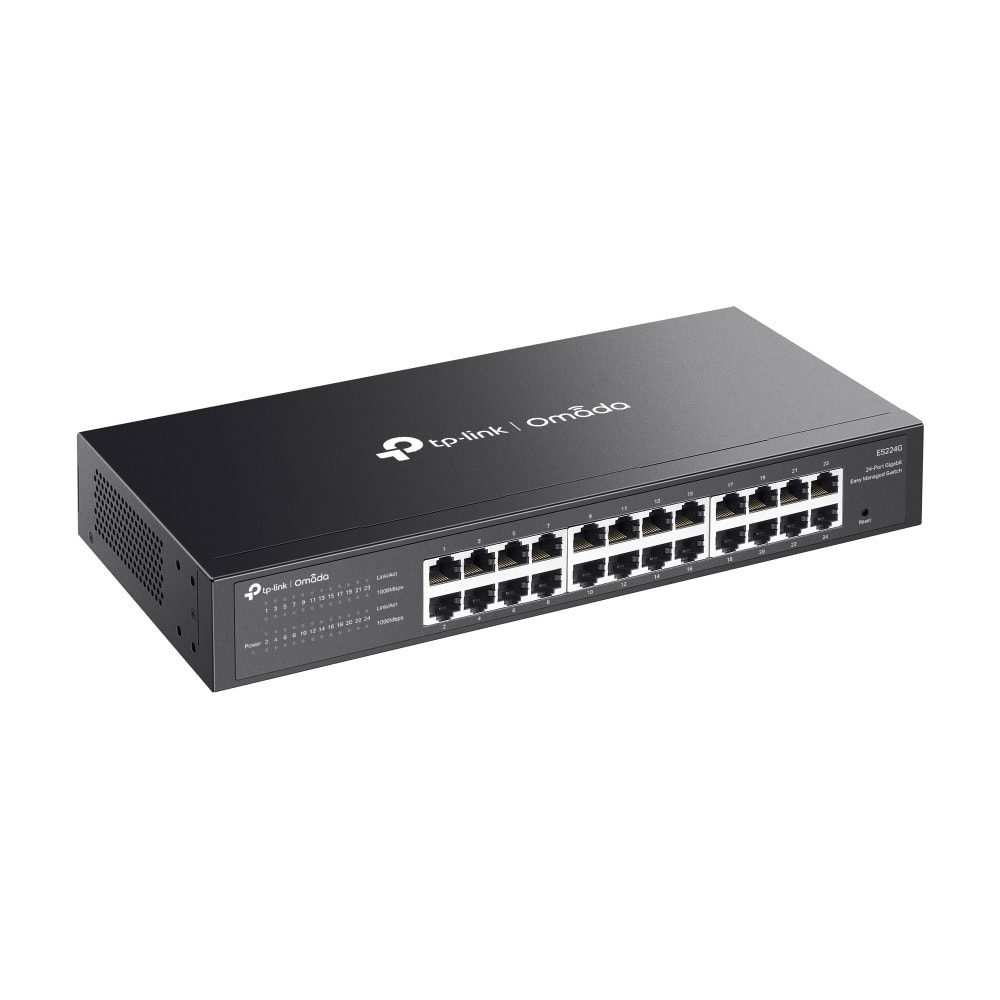

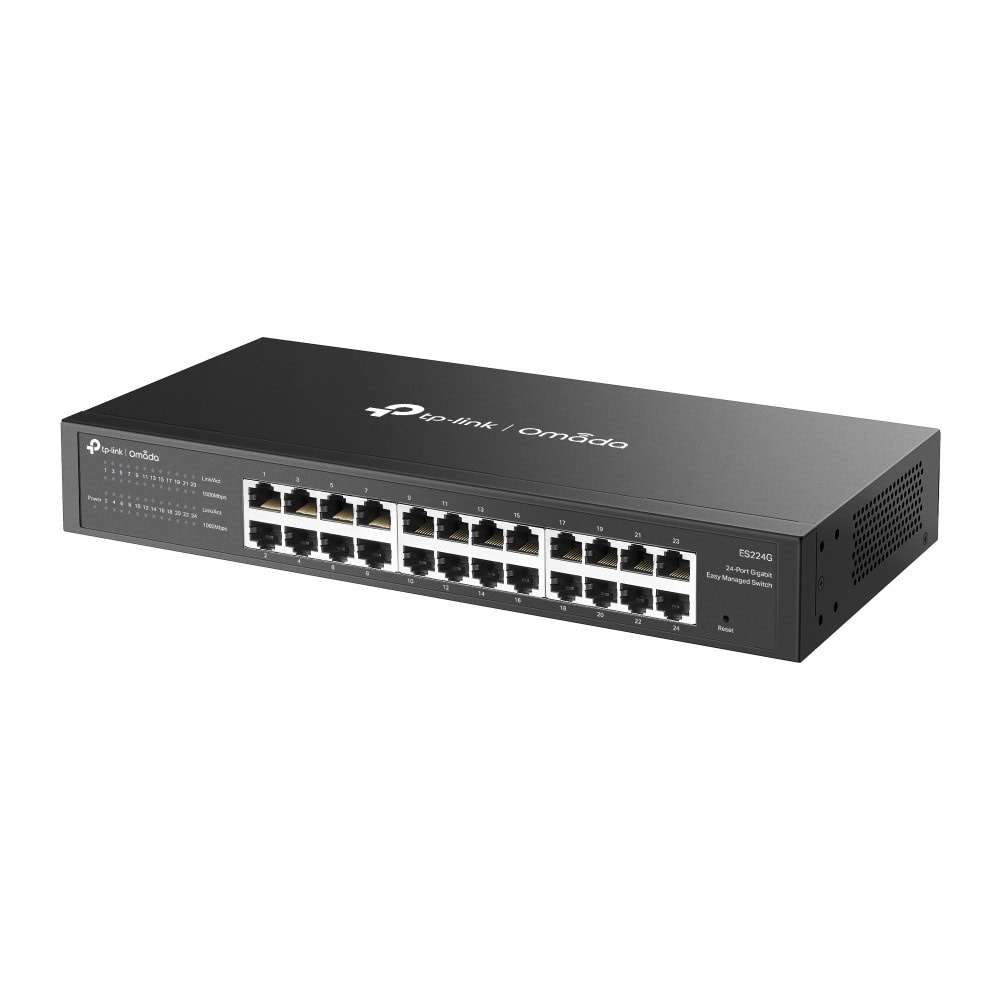

TP-Link Omada ES224G

24× 10/100/1000Mbps RJ45 ports
Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
Centralized Cloud Management via the web or the Omada app
VLAN, Port Isolation, Cable Test, QoS for reliable surveillance networking
Automatic Loop Prevention and IGMP Snooping
Fanless design for silent operation
Durable metal casing and desktop/rack mounting design

Category	Specification
HARDWARE FEATURES
Interface	• 24× 10/100/1000 Mbps RJ45 Ports• Auto-Negotiation/Auto MDI/MDIX
Fan Quantity	Fanless
Installation	• Desktop• Rackmountable
Physical Security Lock	√

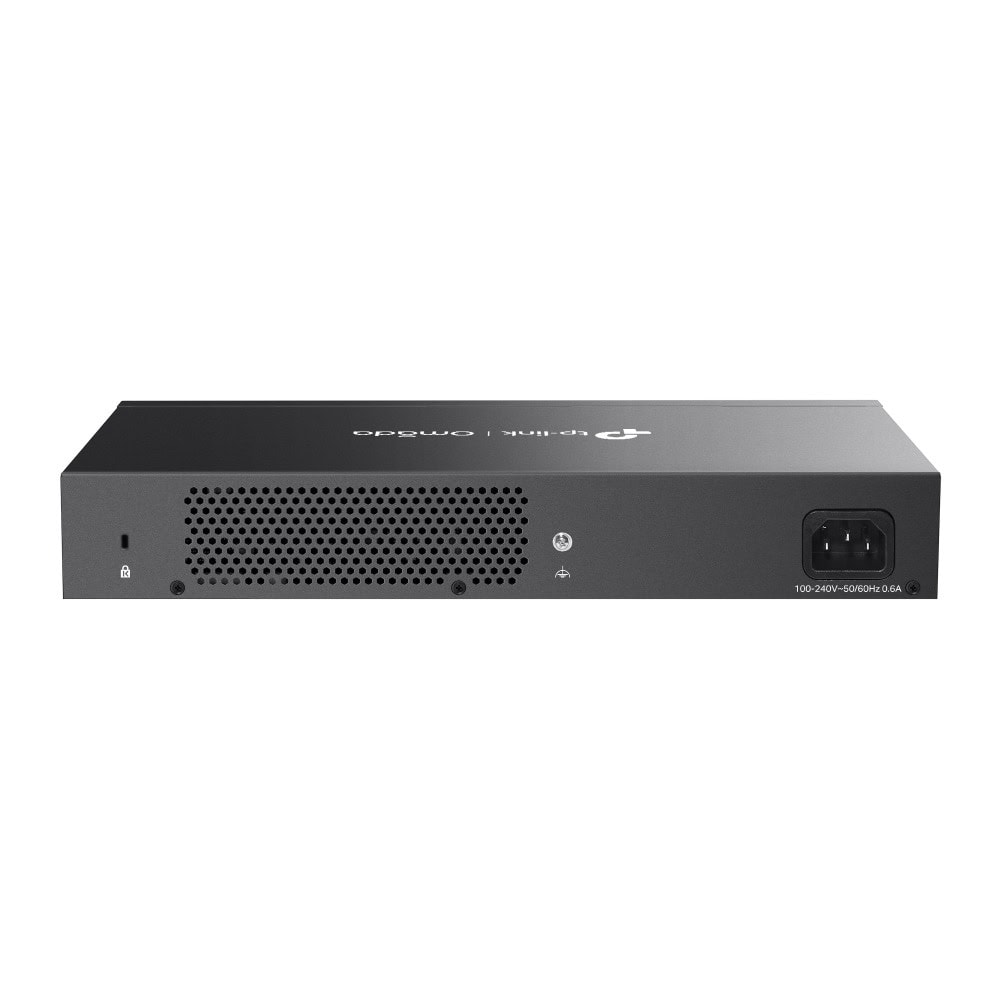

Power Supply	100–240 V~50/60 Hz
Dimensions (W × D × H)	11.6 × 5.5 × 1.7 in (294 × 140 × 44 mm)
Surge Protection	±6kV
PERFORMANCE
Switching Capacity	48 Gbps
Packet Forwarding Rate	35.7 Mpps
MAC Address Table	8K
Packet Buffer Memory	4 Mbit
Jumbo Frame	15 KB
Transmission Method	Store-and-Forward
SOFTWARE FEATURES
Quality of Service	• Port-based / 802.1p / DSCP QoS• 8 Priority Queues• Priority Schedule Mode: WRR (Weighted Round Robin)• Queue Weight Config• Bandwidth Control: Port-Based Rating Limit• Storm Control: Multiple Control Modes (kbps / pps), Broadcast / Multicast / Unknown-Unicast Control
L2 Features	• Static Link Aggregation• Loop Prevention / Loopback Detection• Flow Control: 802.3x• Mirroring: Port Mirroring (One-to-One, Many-to-One, Ingress/Egress/Both)• Port Statistics: Mirror Status, Traffic Stats• 802.1ab LLDP
L2 Multicast	• IGMP Snooping (v1/v2/v3)• Fast Leave
VLAN	• MTU VLAN• Port-Based VLAN• 802.1Q Tag VLAN (Max 32 VLAN Groups, 4K VID)
MANAGEMENT FEATURES
Omada App	Yes (Requires Omada Hardware Controller, Cloud-Based Controller, or Software Controller)
Centralized Management	• Omada Cloud-Based Controller• Omada Hardware Controller• Omada Software Controller
Cloud Access	Yes (Requires Omada Hardware/Cloud-Based/Software Controller)
Zero-Touch Provisioning	Yes (Requires Omada Cloud-Based Controller)
Other Management Tools	• Web-based GUI• DHCP Client• Cable Diagnostics• Automatic Device Discovery†• Batch Configuration†• Batch Firmware Upgrading†• Unified Configuration†
