суич cudy gs1018ps2 3.0
Икона нов продукт
суич cudy gs1018ps2 3.0empty image 1empty image 2empty image 3

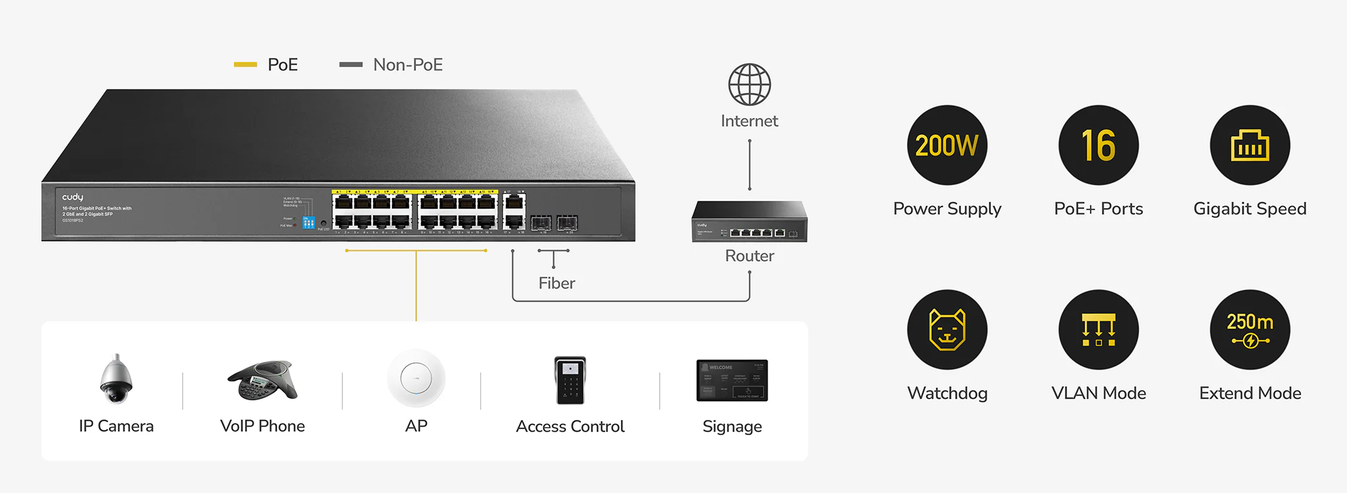

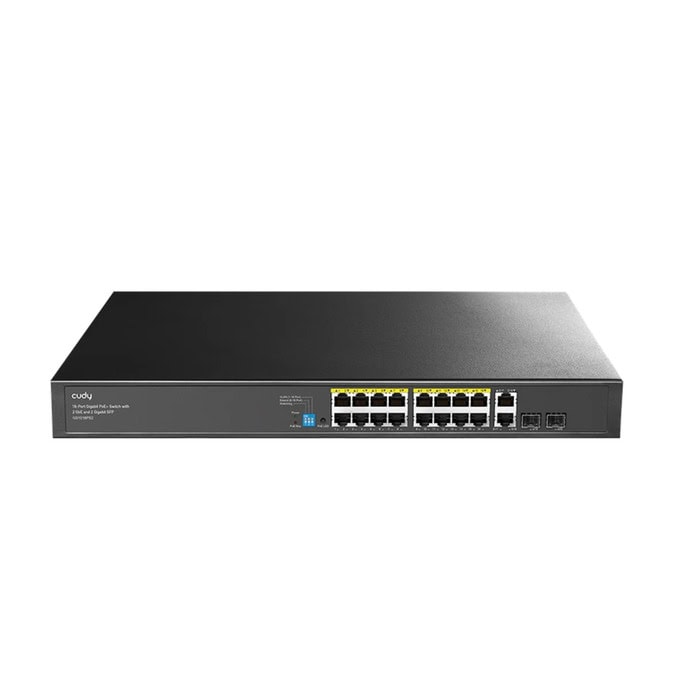

Суич Cudy GS1018PS2 3.0, 1000Mbps, 20 порта, 16x 10/100/1000Mbps PoE, 2x SFP, 2x Fiber

id 311576 Код: NTLHCUDYGS1018PS230

131.41 €

Печат

Изпрати на приятел

ОписаниеХарактеристикиРевюта / ВъпросиДокументацияВземи на изплащане

Cudy GS1018PS2 3.0





Reliable PoE for 24/7 Consistent Operation

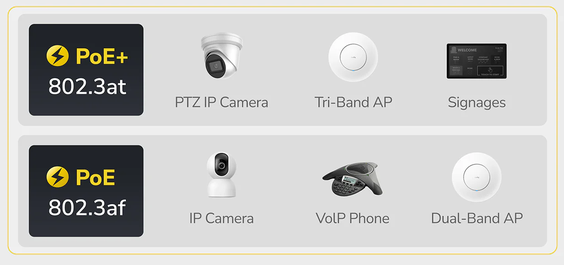

IEEE 802.3at/af. Up to 30W Per Port.

Each PoE port delivers up to 30W of power, making it suitable for access points, IP cameras, digital signage, and most other PoE devices.

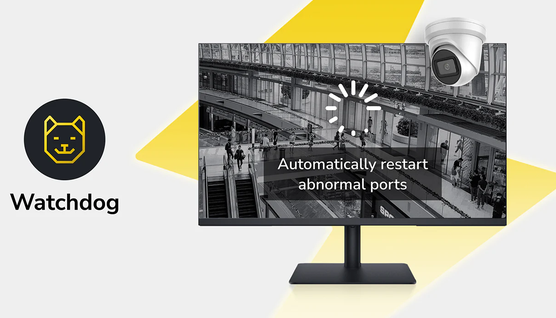

PoE Auto Recovery

Turn on the Watchdog function to monitor port activity. If a connected device freezes and stops transmitting data for 5 minutes, the Watchdog will automatically reboot the corresponding PoE port.



Streamlined PoE Management Loved by Installers



Built-In Modes for Practical Use Cases

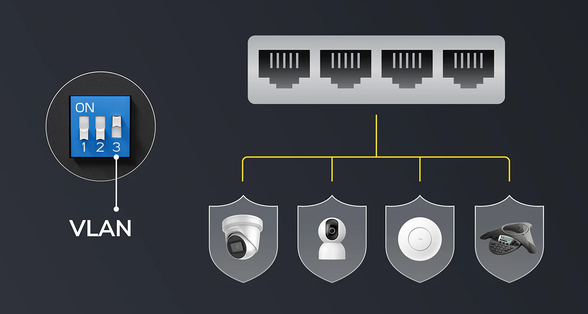

VLAN Isolates Downlink Ports for Improved Safety

Turn on the VLAN mode to prevent client-side hacking, preventing sensitive data from leaking. The downlink clients will only be able to communicate with the uplink devices.

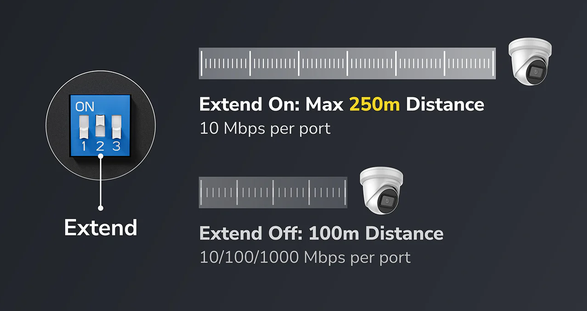

Extend for 250 m Transmission

For long-distance networking, enable the Extend mode to connect clients up to 250 meters away by limiting the port speed to 10 Mbps.



Exceptional Built-Quality for Stable Operation

Build Robust Systems with Outstanding EMC

Improves service reliability and reduces downtime caused by power surges and ESD.

ESD: Contact 6kV; Air 8kV
Surge: Power DM 2kV, CM 4kV; RJ45 CM 4kV

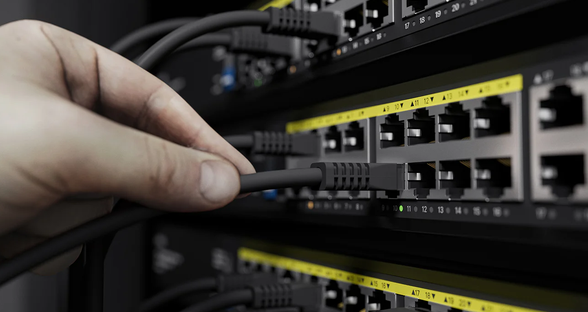

Shielded Ports. Solid Metal Casing.

Ensures stable operation with Ethernet ports shielded with nickel-plated cooper alloy and robust SPCC metal casing.

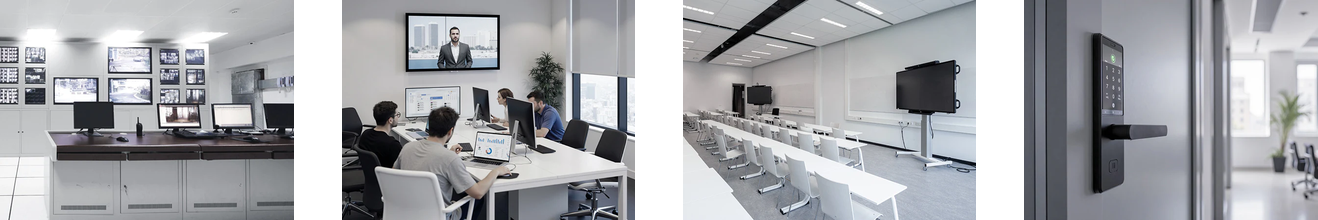

Versatile Scenarios

Surveillance

Office Networking

Campuses Wi-Fi

Accesses and Signages



Specifications



Interfaces1.25G SFP Slots2
 Gigabit RJ45 Ports18
 Gigabit RJ45 PoE Ports#1~#16
 Max Power on a Single PoE Port30W
 PoE Port NotesThe PoE ports comply with IEEE 802.3at/af standards.

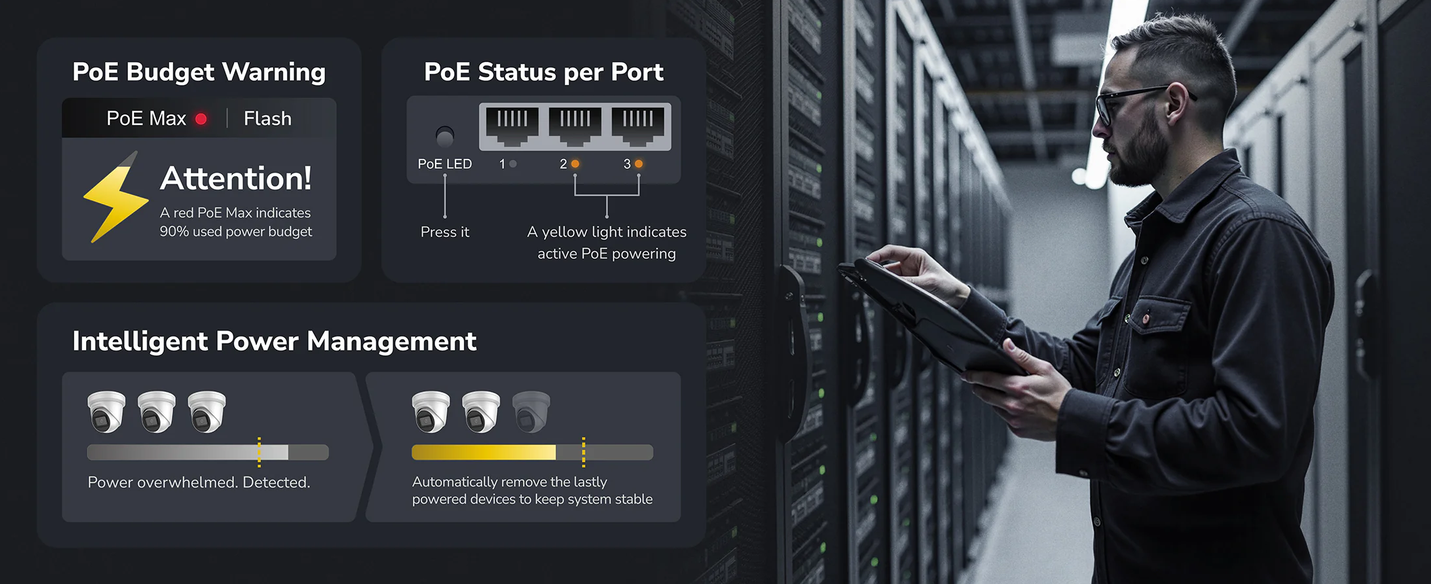

 PoE PriorityIntelligent Power Management:
Automatically disconnect the lastly powered device when power exceeds budget.
 Shielded RJ45 PortYes
 Extend Mode Ports#9~#16
 VLAN Mode Ports#1~#16
 LED
  • Power
  • PoE Status of Each PoE Port
  • Link/ACT of Each Ethernet Port
  • PoE Max Status
 Physical Buttons
  • Extend On/Off
  • VLAN On/Off
  • PoE Watchdog On/Off
  • PoE LED Toggle
 Physical Buttons NoteThe PoE Watchdog will attempt to reboot the plugged-in clients that have been inactive for 5 minutes. Do not turn it on for clients with online auto-upgrade feature.
PerformanceMax Copper Speed and Distance
  • Cat. 3 or higher cable: 100 meters at 10 Mbps
  • Cat. 5 or higher cable: 100 meters at 100 Mbps
  • Cat. 5e or higher cable: 100 meters at Gigabit
  • Cat. 5e or higher cable: 250 meters at 10 Mbps
 Copper Speed and Distance Note250-meter transmission is only available on the Extend Mode ports when the Extend Mode is activated.
 Optical Spec and DistanceDepends on the Installed Optical Module
 MAC Address Table2048
 Max Switching Capacity40 Gbps
 Max Forwarding Rate29.76 Mpps
 Jumbo Frame15 KB
 Packet Buffer3 Mbit
PowerPower Input TypeAC Inlet
 Power MethodsAC
 Power Input100-240V~ 50/60Hz
 Power Supply200W
 Max Power Excluding PoE18W
Switching802.3 Protocols
  • 802.3i 10BASE-T
  • 802.3u 100BASE-TX
  • 802.3ab 1000BASE-T
  • 802.3z 1000BASE-X
  • 802.3x Flow Control
  • 802.3af PoE
  • 802.3at PoE
 PoE ManagementIntelligent Power Management
ReliabilityGrounding MethodsThree-Prong Plug
 EMSIEC/EN 61000-4-2, Level 3 ESD: Contact: 6kV; Air: 8kV
IEC/EN 61000-4-5, Level 4 Surge: Power: DM 2kV, CM 4kV; RJ45: CM 4kV
 EnvironmentOperating Temperature: 0~40 ℃ (32~104 ℉)
Storage Temperature: -40~70℃ (-40~158 ℉)
Operating Humidity: 10~90% non-condensing
Storage Humidity: 10~95% non-condensing
MechanicalDimension440×180×44 mm
17.32×7.09×1.73 inches
 Product Weight2257.1 g (79.62 oz.)
 Casing MaterialMetal
 Installation
  • Desktop
  • Rackmount via Brackets




    Виж още Суич Cudy
    Виж всички продукти Суич в категорията
    Документация
    Технически характеристики
    Брой портове:  18
    Максимална скорост:  1 Gbit/s
    Стандарт:  802.3af
    Управляем:  Не е указано
