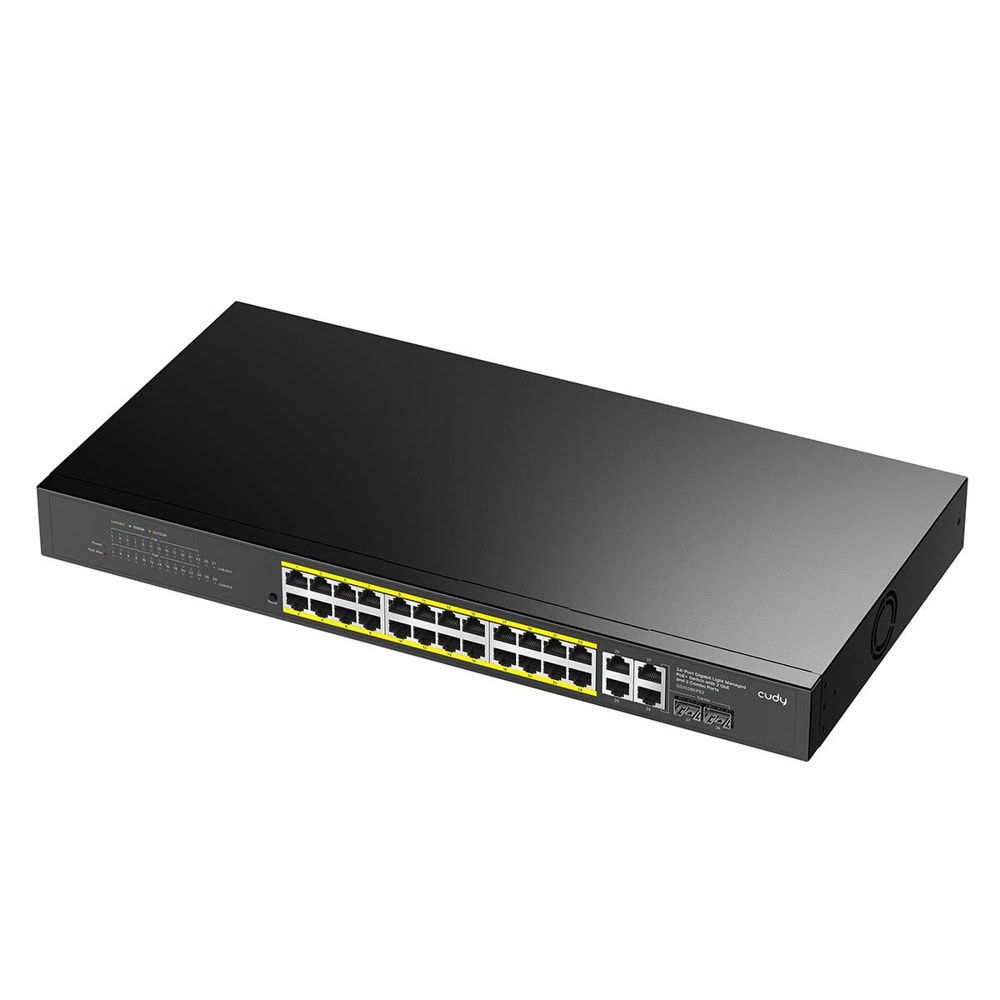

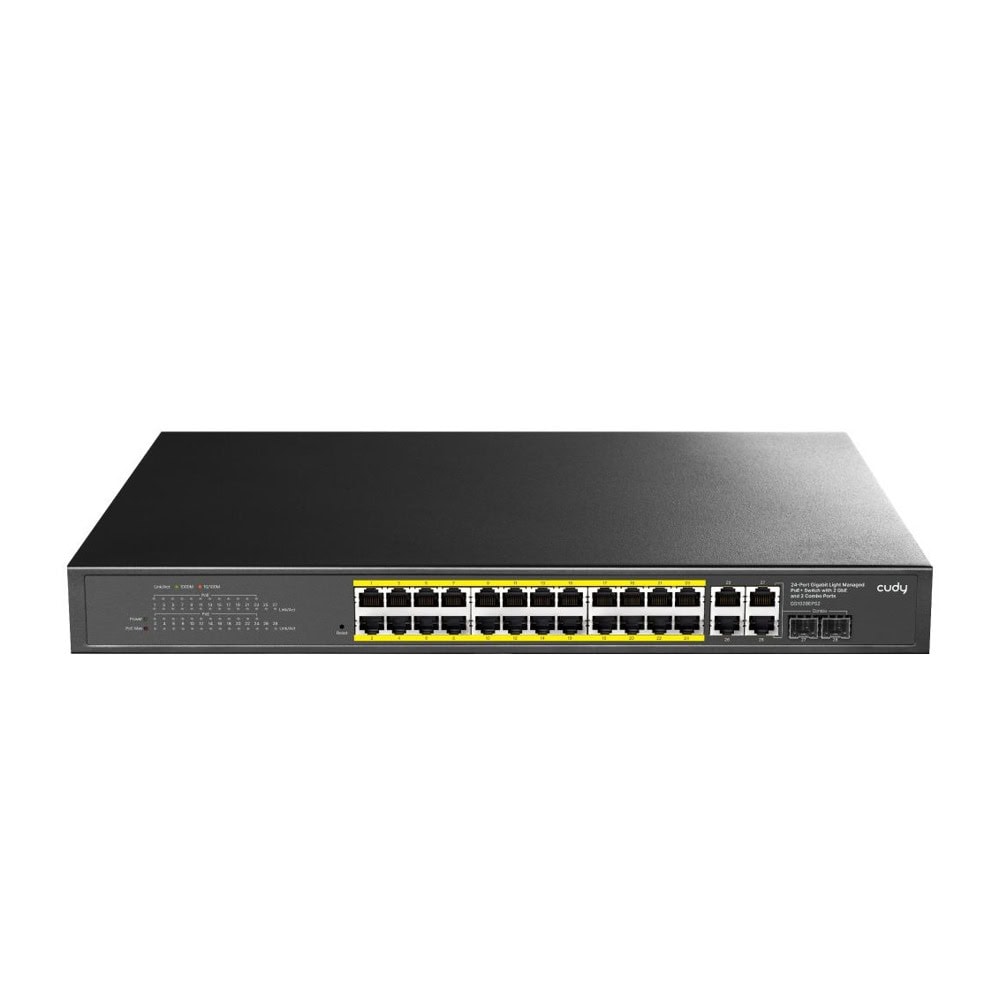

Name: Суич Cudy GS1028EPS2 1.0, 1000Mbps, 28 порта, 24x 10/100/1000Mbps RJ45 PoE, 2x Uplink, 2x Uplink Combo
Brand: Cudy
SKU: NTLHCUDYGS1028EPS2
Price: 265.91 EUR
Availability: InStock

Описание Характеристики Ревюта / Въпроси Вземи на изплащане

Reliable PoE for 24/7 Consistent Operation

Secure and High-Performance Switching

Essential Management Features

Exceptional Built-Quality for Stable Operation

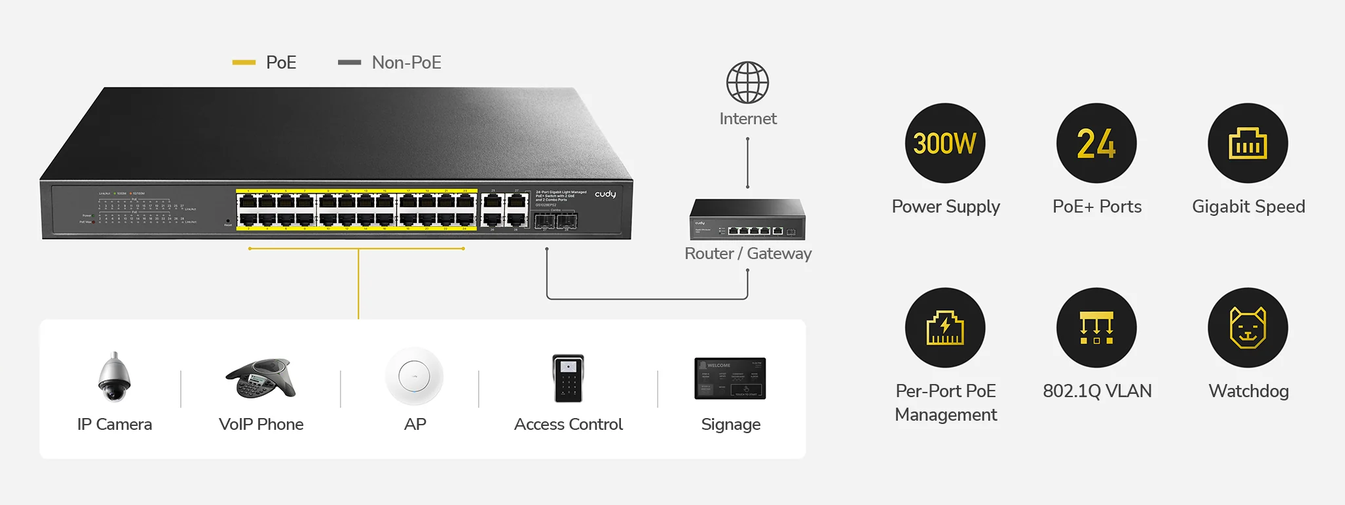

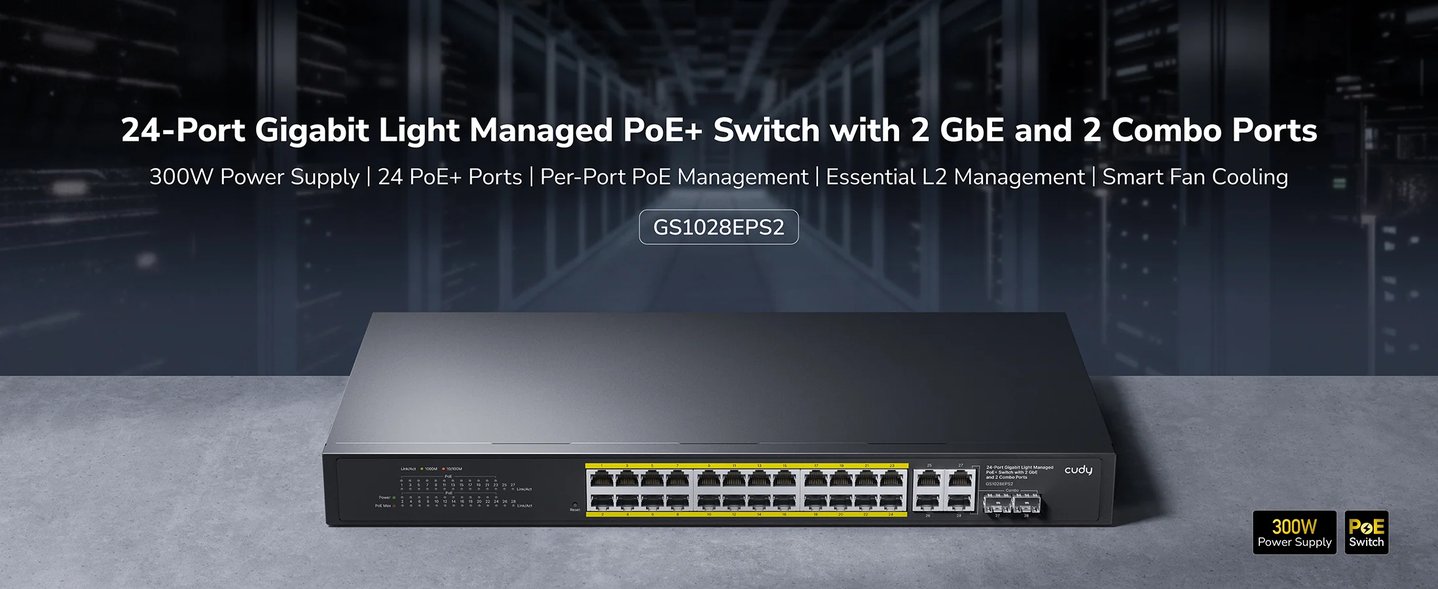

A rack-mounted cloud managed PoE switch with a 300W power supply and essential L2 management features.

24× GbE with 802.3at/af PoE
2× Uplink GbE + 2× Uplink Combo
300W Power Supply
Per-Port PoE Management
VLAN, QoS, Port Trunk, etc
DHCP Snooping, IGMP Snooping
Loop Detection and Prevention
Smart Fan Cooling
Cudy App, Cloud Control
Desktop, Rack-Mount
440×220×44 mm (17.32×8.66×1.73")

Specifications

Memory/Storage	Flash/ROM	16 MB (128 Mbit) NOR
Interfaces	Gigabit RJ45/SFP Combo Ports	2
	Gigabit RJ45 Ports	26
	Gigabit RJ45 PoE Ports	#1~#24
	SFP DDM Monitoring	Yes
	Max Power on a Single PoE Port	30W

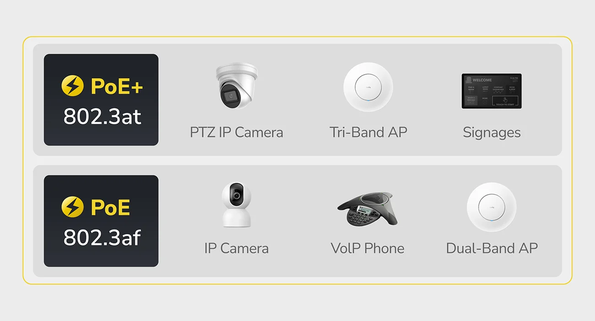

	PoE Port Notes	PoE ports support 802.3at/af standards.
	PoE Priority	Configurable. If no priority is configured, smaller-numbered ports have higher priority.
	Shielded RJ45 Port	Yes
	Extend Mode Ports	Configurable

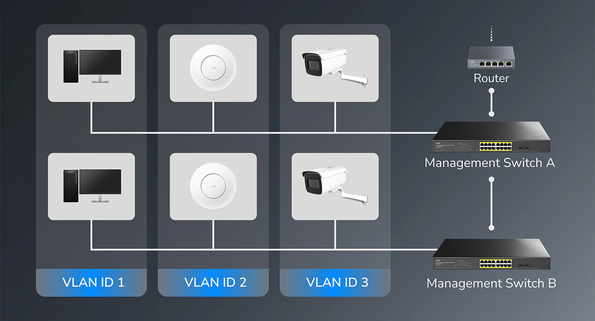

	VLAN Mode Ports	Configurable
	LED	Power PoE Status of Each PoE Port Link/ACT of Each Ethernet Port PoE Max Status
	Physical Buttons	Reset Button
Performance	Max Copper Speed and Distance	Cat. 3 or higher cable: 100 meters at 10 Mbps Cat. 5 or higher cable: 100 meters at 100 Mbps Cat. 5e or higher cable: 100 meters at Gigabit Cat. 5e or higher cable: 250 meters at 10 Mbps
	Copper Speed and Distance Note	250-meter transmission is available when the port speed is set at 10 Mbps in the software.
	Optical Spec and Distance	Depends on the Installed Optical Module
	MAC Address Table	8192
	VLANs	4096
	Max Switching Capacity	56 Gbps
	Max Forwarding Rate	41.664 Mpps
	Jumbo Frame	15 KB
	Packet Buffer	4 Mbit

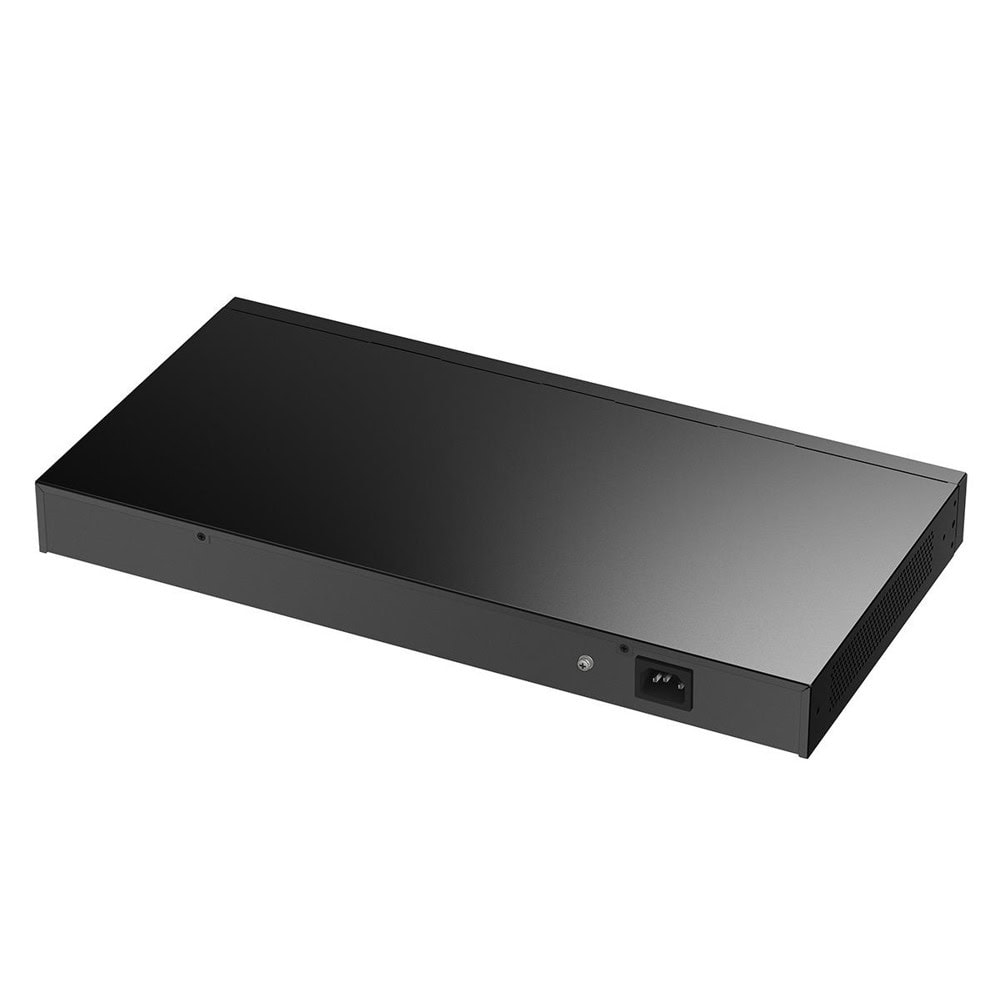

Power	Power Input Type	AC Inlet
	Power Methods	AC
	Power Input	100-240V~ 50/60Hz
	Power Supply	300W
	Max Power Excluding PoE	20W
Switching	802.3 Protocols	802.3x Flow Control 802.3i 10BASE-T 802.3u 100BASE-TX 802.3ab 1000BASE-T 802.3z 1000BASE-X 802.3az Power Saving 802.3af PoE 802.3at PoE
	802.1 Protocols	802.1p: LAN Layer 2 QoS/CoS 802.1q: VLAN Bridge Operation 802.1ab: LLDP/LLDP-MED
	Port Management	Port On/Off Port Negotiation Speed Port Trunk (Static Aggregation) Port Mirror Data Rate Limit Jumbo Frame Settings Storm Control Traffic Monitor MAC Address Management EEE (802.3az)
	PoE Management	PoE Priority PoE Watchdog On/Off PoE Watchdog Period/Packet Threshhold PoE Consumed Power PoE Standard Delayed PoE Delivery Total PoE Power Limit PoE Power Limit
	Port Mirror Sessions	4
	Port Trunk Groups	4
	Max Port Num per Port Trunk Group	8
	L2 Features	IGMP Snooping Loop Prevention DHCP Snooping LLDP Config and Neighbors MTU VLAN Port-Based VLAN 802.1Q VLAN DSCP QoS 802.1p QoS Port-Based QoS
Reliability	Fans	1
	Fan Note	Smart Cooling: The fan speed adjusts in real time based on power consumption.
	Grounding Methods	Three-Prong Plug
	EMS	IEC/EN 61000-4-2, Level 3 ESD: Contact: 6kV; Air: 8kV IEC/EN 61000-4-5, Level 4 Surge: Power: DM 2kV, CM 4kV; RJ45: CM 6kV
	Environment	Operating Temperature: 0~40 ℃ (32~104 ℉) Storage Temperature: -40~70℃ (-40~158 ℉) Operating Humidity: 10~90% non-condensing Storage Humidity: 10~95% non-condensing

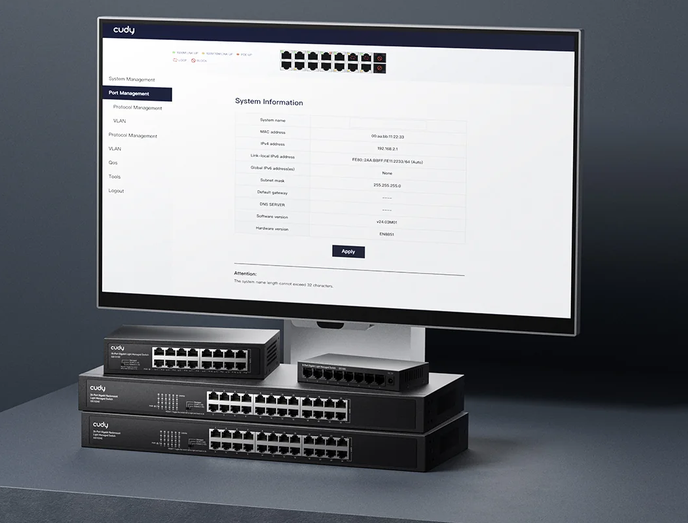

System	Control Methods	Config Web Page SNMP V1/V2 Cudy App
	Firmware Upgrade	Local Upgrade
	Reliability	Backup and Restore
	Diagnostic Tools	Cable Status/Length Diagnosis Ping
	Languages	English Bengali German Spanish French Portuguese Russian Arabic Indonesian Hindi Urdu Traditional Chinese Simplified Chinese
Mechanical	Dimension	440×220×44 mm 17.32×8.66×1.73 inches
	Product Weight	2941.2 g (103.75 oz.)
	Casing Material	Metal
	Installation	Desktop Rackmount via Brackets

Виж още Суич Cudy
Виж всички продукти Суич в категорията

Технически характеристики

Брой портове:	28
Максимална скорост:	1 Gbit/s
Стандарт:	IEEE 802.3 at
Управляем:	Да

Добави Ревю / Въпрос

Оцени продукта или задай въпрос?

0.00 от 0 ревюта

Добави ревю | Задай въпрос

5

0 ревюта
4

0 ревюта
3

0 ревюта
2

0 ревюта
1

0 ревюта

Вземи на изплащане

Link Aggregation Allows creating multiple LAG groups and multiply the transmission speed of the backbone in your networks.
DHCP Snooping Assign an authorized DHCP server to prevent downtime when other rogue DHCP server connects into the network.
IGMP Snooping Identifies the multicast groups connected to the switch and sends data to the exact ports instead of broadcasting them.
Loop Prevention Automatically detects network loops and blocks affected ports. Supports STP/RSTP to ensure stable performance in large redundant networks.
