Name: Суич Cudy GS105P, 1000Mbps, 5x порта, 4x 10/100/1000Mbps RJ45 PoE, 1x Uplink
Brand: Cudy
SKU: NTLHCUDYGS105P
Price: 26.22 EUR
Availability: InStock

Описание Характеристики Ревюта / Въпроси

Category	Specification	Details
Interfaces	Gigabit RJ45 Ports	5
	Gigabit RJ45 PoE Ports	#1~#4
	Max Power on Single PoE Port	30W
	PoE Port Notes	Complies with IEEE 802.3at/af standards
	Intelligent Power Management	Automatically disconnects lastly powered device when power exceeds budget
	Shielded RJ45 Port	True
	Extend Mode Ports	#1~#4
	VLAN Mode Ports	#1~#4
LED	Indicators	Power, PoE Status, Link/ACT, PoE Max Status
Power Input	DC Jack	—
Physical Buttons	DIP Switch	VLAN/Default/Extend, PoE Watchdog On/Off
Watchdog Note	—	Reboots inactive clients after 5 mins; avoid with auto-upgrade devices
Performance	Copper Speed & Distance	Cat3: 100m@10Mbps, Cat5: 100m@100Mbps, Cat5e: 100m@1Gbps, Cat5e: 250m@10Mbps (Extend mode)
	MAC Address Table	2048
	Max Switching Capacity	10 Gbps
	Max Forwarding Rate	7.44 Mpps
	Jumbo Frame	15 KB
	Packet Buffer	3 Mbit
Power	Methods	DC
	DC	54V⎓0.66A
	Power Supply	36W (Max excluding PoE: 4W)
Switching	802.3 Protocols	802.3i/802.3u/802.3ab/802.3x/802.3af/802.3at
	PoE Management	Intelligent Power Management
	L2 Features	IGMP Snooping, Loop Prevention/Detection
Reliability	Grounding	Three-Prong Plug
	EMS	IEC/EN 61000-4-2 & 61000-4-5 (Surge & ESD ratings)
	Environment	Operating: 0–40°C; Storage: -40–70°C; Humidity 10–95%
Mechanical	Dimensions	119×85×28 mm (4.69×3.35×1.1 in)
	Weight	253.6 g (8.95 oz)
	Casing	Metal
	Installation	Desktop, Wall-mount

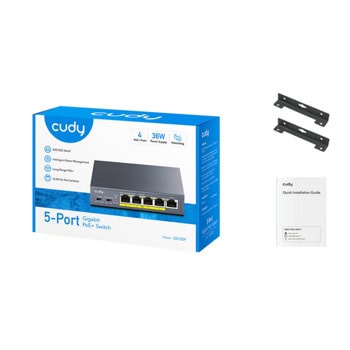

Package Content	Included	GS105P, Power Adapter, Power Cord, Installation Guide
Ordering Info	Retail Package	165×123×60 mm, 580 g
	Units per Carton	20
	Carton Weight	11.1 kg net / 11.6 kg gross
	Carton Dimensions	37.6×26.4×33.8 cm
