Name: Суич Cudy GS1028ES2, 1000Mbps, 26 порта, 24x 10/100/1000Mbps RJ45, 2x SFP
Brand: Cudy
SKU: NTLHCUDYGS1028ES2
Price: 113.90 EUR
Availability: InStock

Описание Характеристики Ревюта / Въпроси Документация

26-Port Gigabit Easy-Managed Switch with 2 Combo Ports

A 26-GbE switch with 2 Gigabit RJ45/SFP combo ports and management features.

26× GbE, 2× Combo Ports
Web Management, SNMP

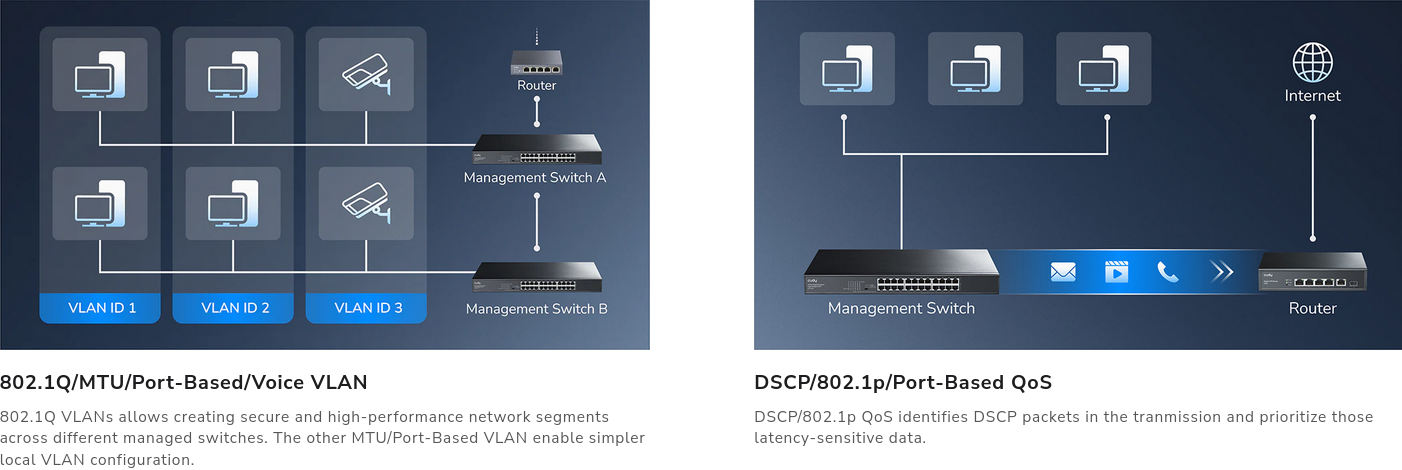

VLAN (802.1Q/MTU/Port-Based)
QoS (802.1p/DSCP/Port-Based)

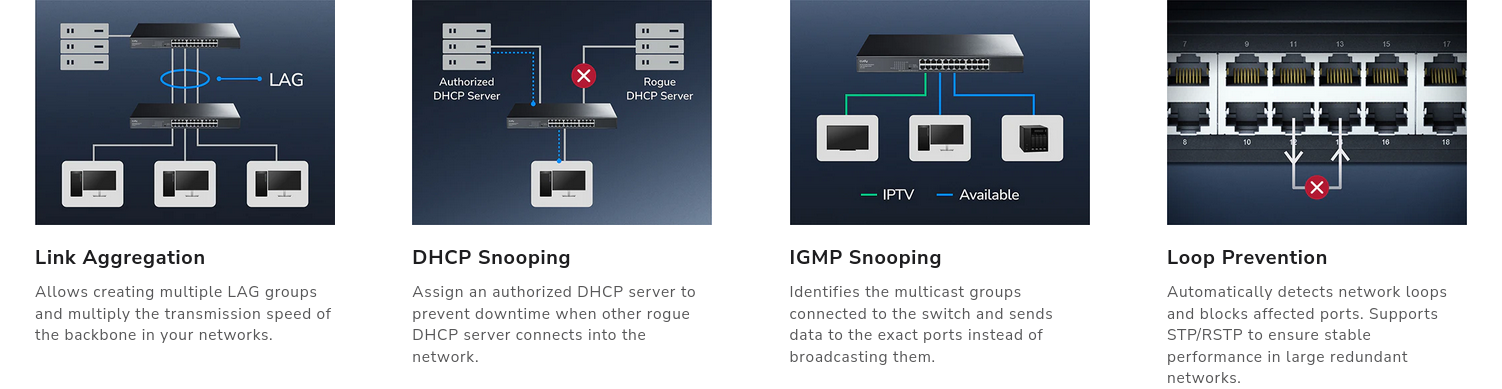

Port Mirror, Static Aggregation, etc
DHCP Snooping, IGMP Snooping
EEE (802.3az Power Saving)
440×180×44 mm (17.32×7.09×1.73'')

Secure and High-Performance Switching

Feature	Value
Flash/ROM	16 MB (128 Mbit) NOR
Gigabit RJ45/SFP Combo Ports	2
Gigabit RJ45 Ports	26
Shielded RJ45 Port	—
Extend Mode Ports	Configurable
VLAN Mode Ports	Configurable
LED	Power; Speed/Link/Act of Each Ethernet Port
Physical Buttons	Reset Button
Max Copper Speed and Distance	Cat. 3 or higher cable: 100 meters at 10 Mbps; Cat. 5 or higher cable: 100 meters at 100 Mbps; Cat. 5e or higher cable: 100 meters at Gigabit; Cat. 5e or higher cable: 250 meters at 10 Mbps
Copper Speed and Distance Note	250-meter transmission is available when the port speed is set at 10 Mbps in the software.
Optical Spec and Distance	Depends on the Installed Optical Module
MAC Address Table	8192
VLANs	4096
Max Switching Capacity	56 Gbps
Max Forwarding Rate	41.664 Mpps
Jumbo Frame	15 KB
Packet Buffer	4 Mbit
Power Input Type	AC Inlet
Basic Power Saving	—
Power Methods	AC
Power Input	100–240V~ 50/60Hz
Max Power Consumption	15W
Idle Power Consumption	10W
802.3 Protocols	802.3x Flow Control; 802.3i 10BASE-T; 802.3u 100BASE-TX; 802.3ab 1000BASE-T; 802.3z 1000BASE-X; 802.3az Power Saving
802.1 Protocols	802.1p: LAN Layer 2 QoS/CoS; 802.1q: VLAN Bridge Operation; 802.1ab: LLDP/LLDP-MED
Port Management	Port On/Off; Port Negotiation Speed; Port Trunk (Static Aggregation); Port Mirror; Data Rate Limit; Jumbo Frame Settings; Storm Control; Traffic Monitor; MAC Address Management; EEE (802.3az)
Port Mirror Sessions	4
Port Trunk Groups	4
Max Port Num per Port Trunk Group	8
L2 Features	IGMP Snooping; Loop Prevention; Loop Detection; DHCP Snooping; LLDP Config and Neighbors; MTU VLAN; Port-Based VLAN; 802.1Q VLAN; DSCP QoS; 802.1p QoS; Port-Based QoS
Grounding Methods	Three-Prong Plug; Grounding Point
EMS	IEC/EN 61000-4-2, Level 3 ESD: Contact: 6kV; Air: 8kV; IEC/EN 61000-4-5, Level X Surge: Power: DM 4kV, CM 4kV; RJ45: CM 6kV
Environment	Operating Temperature: 0~40 ℃ (32~104 ℉); Storage Temperature: -40~70 ℃ (-40~158 ℉); Operating Humidity: 10~90% non-condensing; Storage Humidity: 10~95% non-condensing
Control Methods	Config Web Page; SNMP V1/V2; Cudy App (Coming Soon)
Firmware Upgrade	Local Upgrade
Reliability	Backup and Restore
Diagnostic Tools	Cable Status/Length Diagnosis; Ping
Languages	English; Bengali; German; Spanish; French; Portuguese; Russian; Arabic; Indonesian; Hindi; Urdu; Traditional Chinese; Simplified Chinese
Dimension	440 × 180 × 44 mm (17.32 × 7.09 × 1.73 inches)
Product Weight	1842.5 g (64.99 oz.)
Casing Material	Metal
Installation	Desktop; Rackmount via Brackets
