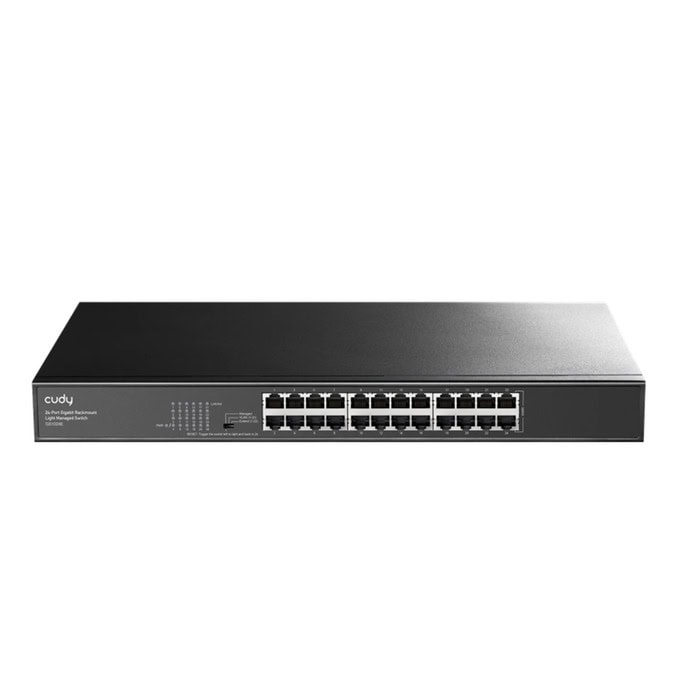

Name: Суич Cudy GS1024E 1.0, 1000Mbps, 24 порта, 24x 10/100/1000Mbps RJ45
Brand: Cudy
SKU: NTLHCUDYGS1024E
Price: 78.82 EUR
Availability: InStock

Описание Характеристики Ревюта / Въпроси Документация Вземи на изплащане

A software features introduction to Cudy Light-Managed Switches. The actual port number varies.

Secure and High-Performance Switching

802.1Q/MTU/Port-Based/Voice VLAN

802.1Q VLANs allows creating secure and high-performance network segments across different managed switches. The other MTU/Port-Based VLAN enable simpler local VLAN configuration.

DSCP/802.1p/Port-Based QoS

DSCP/802.1p QoS identifies DSCP packets in the tranmission and prioritize those latency-sensitive data.

Link Aggregation

Allows creating multiple LAG groups and multiply the transmission speed of the backbone in your networks.

DHCP Snooping

Assign an authorized DHCP server to prevent downtime when other rogue DHCP server connects into the network.

IGMP Snooping

Identifies the multicast groups connected to the switch and sends data to the exact ports instead of broadcasting them.

Loop Prevention

Automatically detects network loops and blocks affected ports. Supports STP/RSTP to ensure stable performance in large redundant networks.

Managed/VLAN/Extend Preset Modes

Basic VLAN Mode

Turn off management features and prevent downlink ports to communicate with each other, improving network security.

Extend Mode

Turn off management features and prolong the transmission to a maximum of 250 meters and simplify installation. These ports' speed will be capped at 10 Mbps.

Versatile Scenarios

Features

24× GbE
Web Management, SNMP
VLAN (802.1Q/MTU/Port-Based)
QoS (802.1p/DSCP/Port-Based)
Port Mirror, Static Aggregation, etc
Loop Detection and Prevention
DHCP Snooping, IGMP Snooping
Managed/VLAN/Extend Preset Modes
Desktop, Rack-Mount: 440×180×44 mm (17.32×7.09×1.73'')

Specifications

Memory/Storage	Flash/ROM	8 MB (64 Mbit ) NOR
Interfaces	Gigabit RJ45 Ports	24
	Shielded RJ45 Port
	Extend Mode Ports	#1~#22
	VLAN Mode Ports	#1~#22
	LED	Power Speed/Link/Act of Each Ethernet Port
	Physical Buttons	Managed/VLAN/Extend/Reset DIP Switch
Performance	Max Copper Speed and Distance	Cat. 3 or higher cable: 100 meters at 10 Mbps Cat. 5 or higher cable: 100 meters at 100 Mbps Cat. 5e or higher cable: 100 meters at Gigabit Cat. 5e or higher cable: 250 meters at 10 Mbps Cat. 6 or higher cable: 150 meters at Gigabit
	Copper Speed and Distance Note	250-meter transmission is available on the Extend Mode ports when the Extend Mode is activated. If Managed Mode is activated, 250-meter transmission is available when the port speed is set at 10 Mbps in the software.
	MAC Address Table	8192
	VLANs	4096
	Max Switching Capacity	48 Gbps
	Max Forwarding Rate	35.712 Mpps
	Jumbo Frame	15 KB
	Packet Buffer	4 Mbit
Power	Power Input Type	AC Inlet
	Basic Power Saving
	Power Methods	AC
	Power Input	90-260V~ 50/60Hz
	Max Power Consumption	11W
	Idle Power Consumption	6.8W
Switching	802.3 Protocols	802.3x Flow Control 802.3i 10BASE-T 802.3u 100BASE-TX 802.3ab 1000BASE-T 802.3az Power Saving
	802.1 Protocols	802.1d: STP 802.1w: RSTP 802.1p: LAN Layer 2 QoS/CoS 802.1q: VLAN Bridge Operation 802.1ab: LLDP/LLDP-MED
	Port Management	Port On/Off Port Negotiation Speed Port Trunk (Static Aggregation) Port Mirror Data Rate Limit Jumbo Frame Settings Storm Control Traffic Monitor MAC Address Management EEE (802.3az)
	Port Mirror Sessions	4
	Port Trunk Groups	4
	Max Port Num per Port Trunk Group	8
	L2 Features	IGMP Snooping Loop Prevention Loop Detection DHCP Snooping LLDP Config and Neighbors MTU VLAN Port-Based VLAN 802.1Q VLAN DSCP QoS 802.1p QoS Port-Based QoS
Reliability	Grounding Methods	Three-Prong Plug Grounding Point
	EMS	IEC/EN 61000-4-2, Level 3 ESD: Contact: 6kV; Air: 8kV IEC/EN 61000-4-5, Level 4 Surge: Power: DM 2kV, CM 4kV; RJ45: CM 4kV
	Environment	Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉) Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉) Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 90% non-condensing
System	Control Methods	Config Web Page SNMP V1/V2 Cudy App
	Firmware Upgrade	Local Upgrade
	Reliability	Backup and Restore
	Diagnostic Tools	Cable Status/Length Diagnosis Ping
	Languages	English Bengali German Spanish French Portuguese Russian Arabic Indonesian Hindi Urdu Traditional Chinese Simplified Chinese
Mechanical	Dimension	440×180×44 mm 17.32×7.09×1.73 inches
	Product Weight	1690 g (59.61 oz.)
	Casing Material	Metal
	Installation	Desktop Rackmount via Brackets
