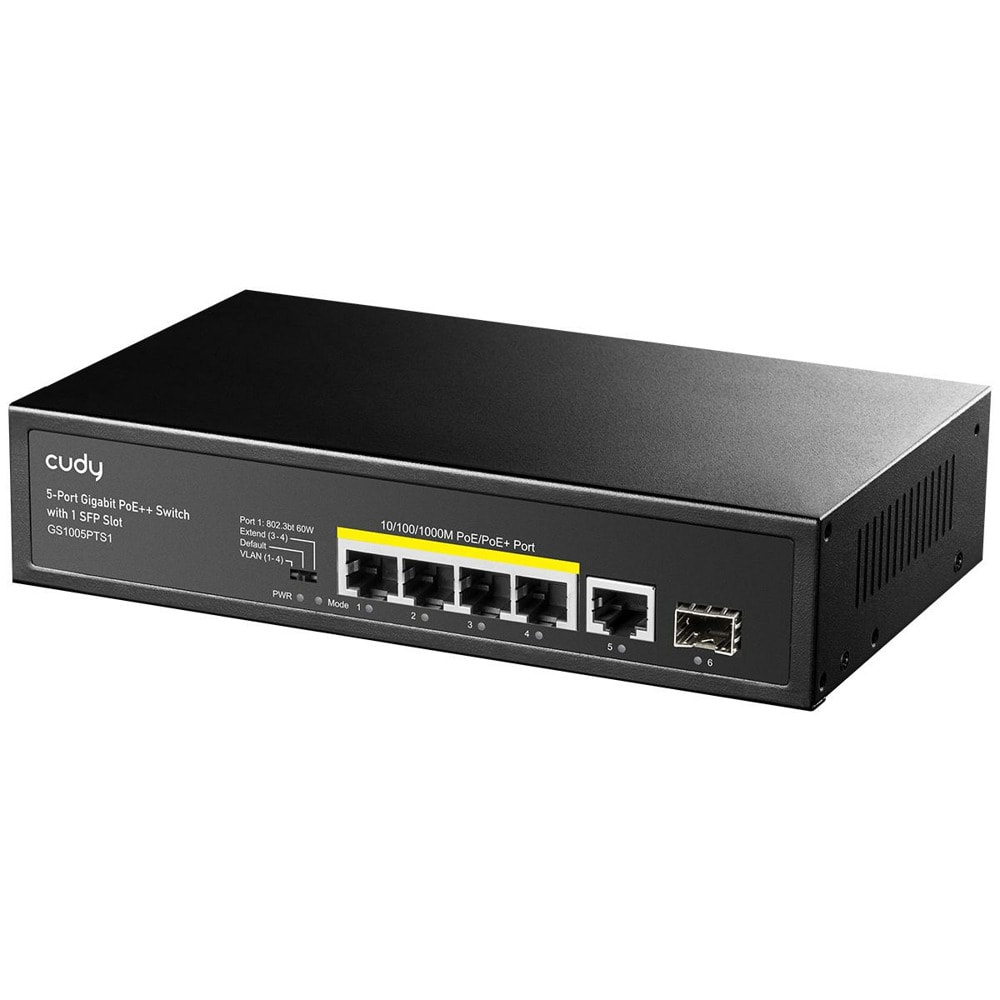

Cudy GS1005PTS1
Specifications
| Ethernet | 4*10/100/1000M PoE Port 1*1000M RJ45 Port 1* Gigabit SFP Uplink Port |
| Switching Capacity | 12Gbps |
| Throughput | 8.928Mpps |
| Packet Buffer | 1Mb |
| MAC Address | 2K |
| Jumbo Frame | 9216bytes |
| Transfer Mode | Store and forward |
| MTBF | 100000 hour |
| Network protocol | IEEE802.3 (10Base-T) IEEE802.3u (100Base-TX) IEEE802.3ab(1000Base-TX) IEEE802.3z(1000Base-FX) IEEE802.3x (Flow control) |

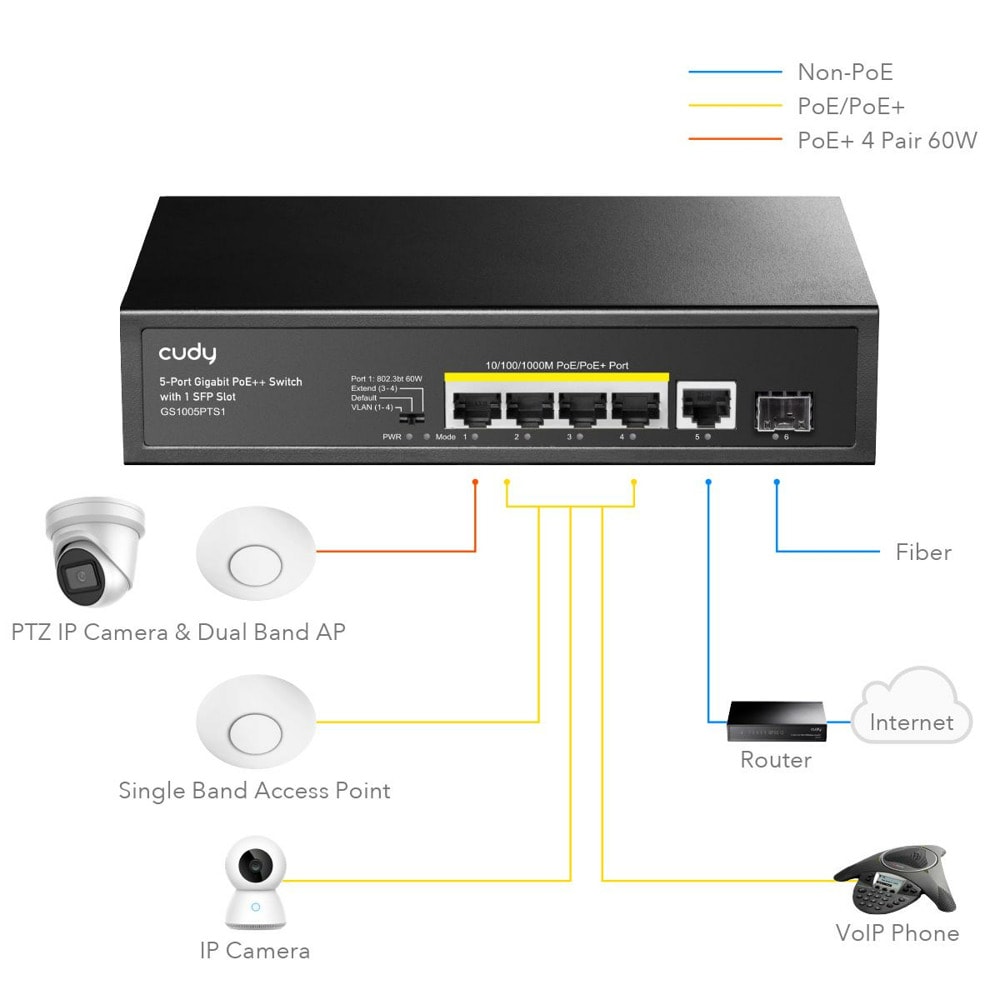

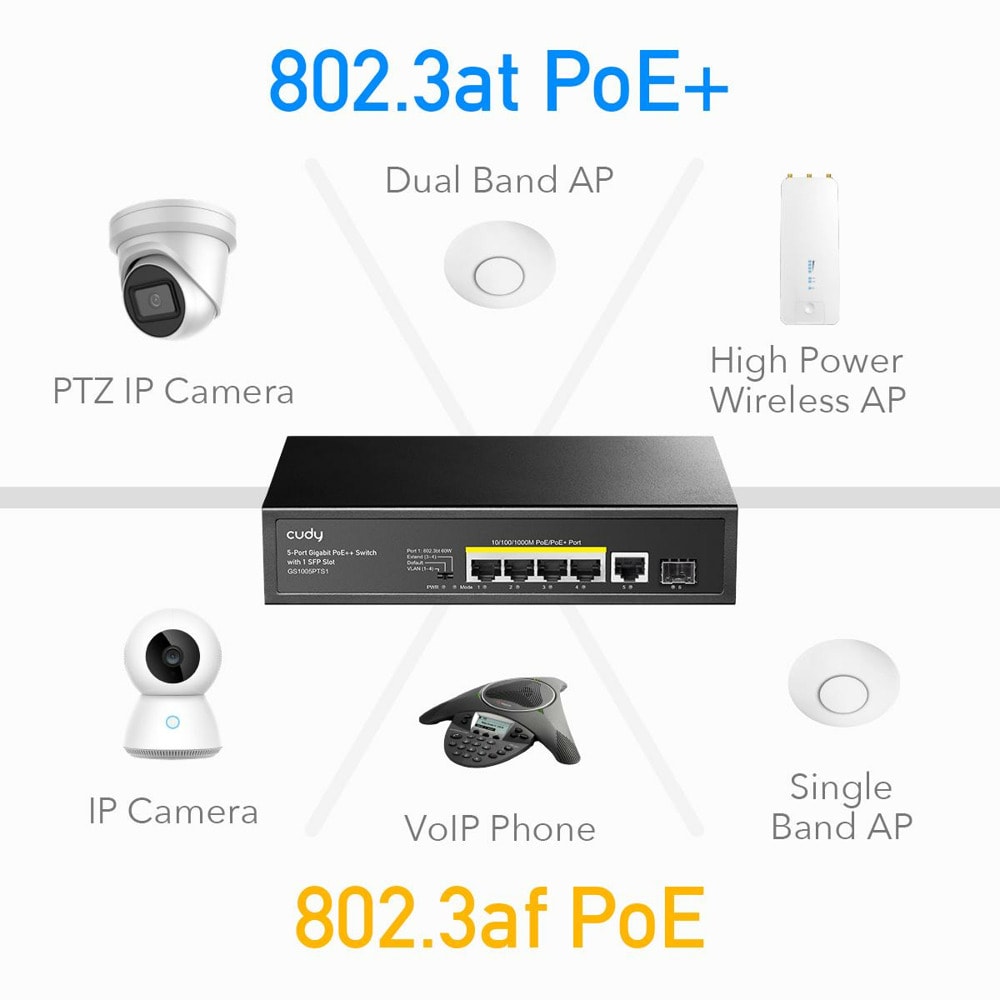

| PoE Protocol | IEEE802.3af （15.4W） IEEE802.3at （30W） IEEE802.3at （4 Pair 60W） |
| Network Medium | 10Base-T : Cat3、4、5 or above UTP(≤100m) 100Base-TX : Cat5 or above UTP(≤100m) 1000Base-TX : Cat5 or above UTP(≤100m) |
| Optical Media | Multimode fiber : 50/125, 62.5/125, 100/140μm Single mode fiber: 8/125, 8.7/125, 9/125, 10/125μm |
| Working Environment | Working Temperature：-20~50°C Storage Temperature：-40~85°C Working Humidity ：10%~90%，non-condensing Storage Temperature：5%~90%，non-condensing Working Height：Maximum10,000 feet Storage heigh：Maximum 10,000 feet |
| PWR（power supply） | Lighting：Powered Un-Light：No Power |
| Mode（DIP） | Lighting：VLAN Un-Light：Default Flashing：Extend |
| 1-6 Gree（Link&Data） | Lighting：Connecting Flashing：Data Transmit Un-Light：Disconnect |

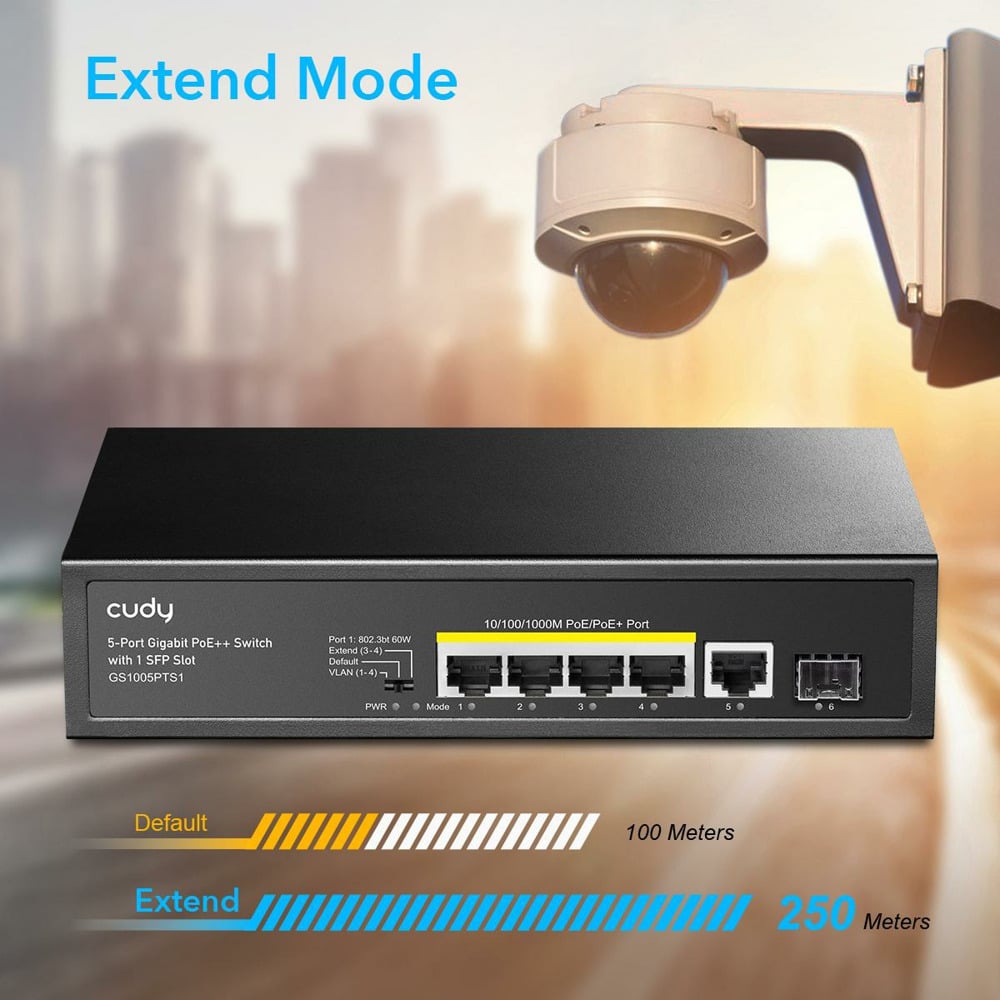

| DIP Switch | VLAN：Port isolation mode. In this mode, the PoE ports (1-4) of the switch cannot communicate with each other, and can only communicate with the UP-link port. Default: Normal mode, all port can communicate with each other, the transmission distance is within 100 meters Extend：Link extension mode, 3-4 ports PoE power supply and data transmission distance can be extended to 250 meters, the transmission rate becomes 10M |
| Product Dimension | 200*118*44mm |
| Package Dimension | 245*190*60mm |
| N.W | 0.6kg |
| G.W | 0.9kg |
| Packing Info | Carton MEAS：505*320*402mm Packing Qty：20units Packing Weight：19KG |
| Package List | Input Voltage ：AC 100-240 V
|

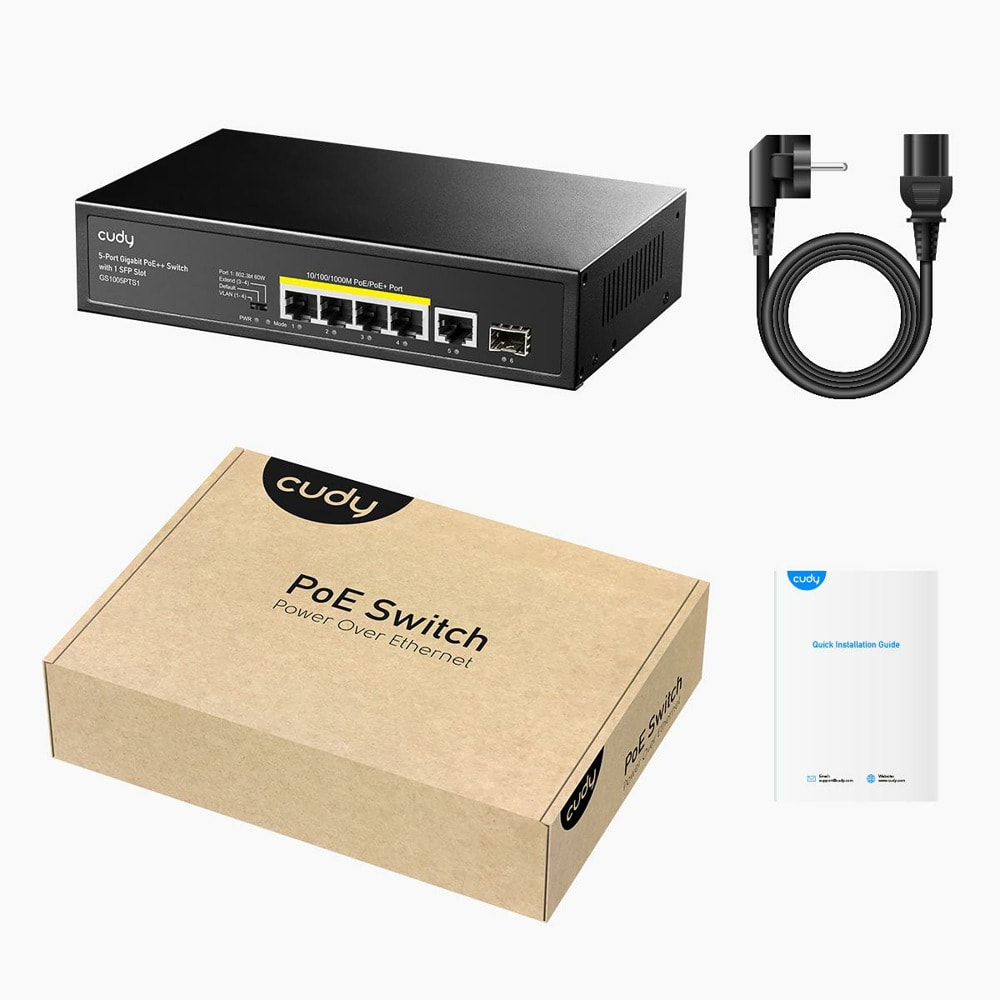

| Package List | Switch 1 pcs, Power cord 1 pcs, User manual 1 pc, Certification 1 pc, |
