Name: Суич Cudy GS1024, 24 порта, 1000Mbps, 24x 10/100/1000Mbps
Brand: Cudy
SKU: NTLHCUDYGS1024L
Availability: OutOfStock

Описание Характеристики Ревюта / Въпроси

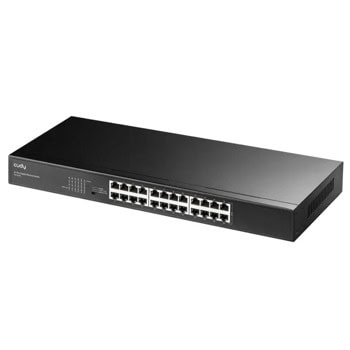

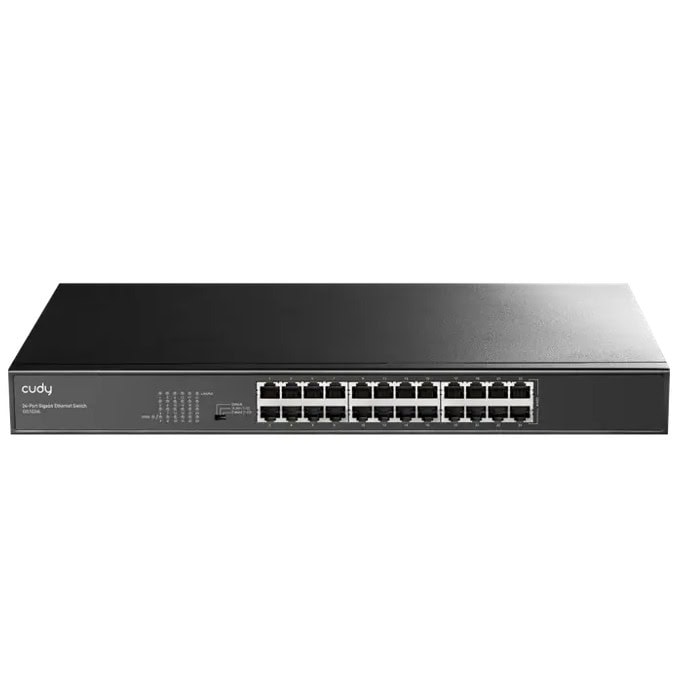

Cudy GS1024L

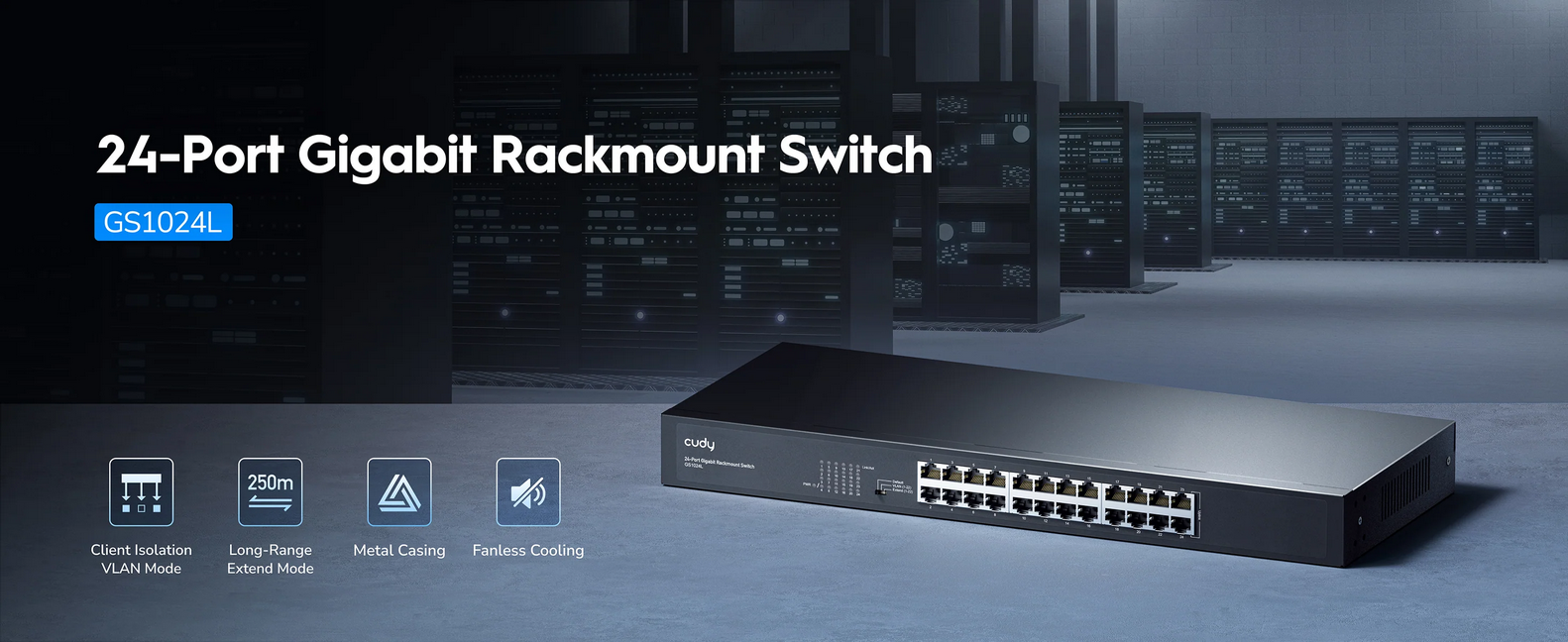

A 19-inch 24-GbE switch with VLAN/Extend functions and a fanless cooling system.

24× GbE
Default/VLAN/Extend Modes
Extend for 250 Meters Transmission
VLAN for Clients Isolation
Desktop, Rack-Mount

Model Version	GS1024L 1.0
Interfaces	Gigabit RJ45 Ports	24
	Shielded RJ45 Port	True
	Extend Mode Ports	#1~#22
	VLAN Mode Ports	#1~#22
	LED	Power Speed/Link/ACT of Each Ethernet Port
	Power Input	AC Inlet
	Physical Buttons	VLAN/Default/Extend DIP Switch
Performance	Copper Speed and Distance	Cat. 3 or higher cable: 100 meters at 10 Mbps Cat. 5 or higher cable: 100 meters at 100 Mbps Cat. 5e or higher cable: 100 meters at Gigabit Cat. 5e or higher cable: 250 meters at 10 Mbps
	Copper Speed and Distance Note	250-meter transmission is only available on the Extend Mode ports when the Extend Mode is activated.
	MAC Address Table	8192
	Max Switching Capacity	48 Gbps
	Max Forwarding Rate	35.712 Mpps
	Jumbo Frame	15 KB
	Packet Buffer	4 Mbit
Power	Basic Power Saving	True
	Power Methods	AC
	AC	90-260V~, 50/60Hz
	Max Power Consumption	11W
	Idle Power Consumption	6.8W
Switching	802.3 Protocols	802.3x Flow Control 802.3i 10BASE-T 802.3u 100BASE-TX 802.3ab 1000BASE-T
	802.1 Protocols	802.1p: LAN Layer 2 QoS/CoS
	L2 Features	IGMP Snooping Loop Prevention Loop Detection DSCP QoS 802.1p QoS
Reliability	Grounding Methods	Three-Prong Plug Grounding Point
	EMS	IEC/EN 61000-4-2, Level 3 ESD: Contact: 6kV; Air: 8kV IEC/EN 61000-4-5, Level 4 Surge: Power: DM 2kV, CM 4kV; RJ45: CM 4kV
	Environment	Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉) Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉) Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 90% non-condensing
Mechanical	Dimension	440×180×44 mm 17.32×7.09×1.73 inches
	Product Weight	EU / US: 1671 g (58.94 oz.) EU: 1650 g (58.2 oz.)
	Casing Material	Metal
	Installation	Desktop Rackmount via Brackets
Ordering Information	Retail Package Dimension	487×267×84 mm 19.17×10.51×3.31 inches
	Retail Package Weight	EU / US: 2380 g (83.95 oz.) EU: 2300 g (81.13 oz.)
