Рутер Ubiquiti Cloud Gateway Fiber (UCG-FIBER), 1x WAN 100/1000/2500/10000, 4x WAN 100/1000/2500, 2x WAN 100/1000/2500/10000 SFP+, 3GB RAM

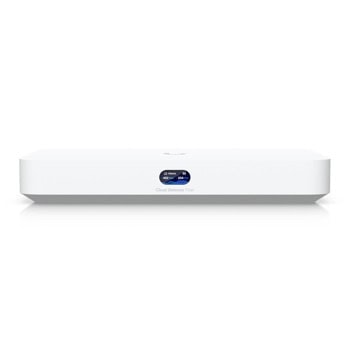

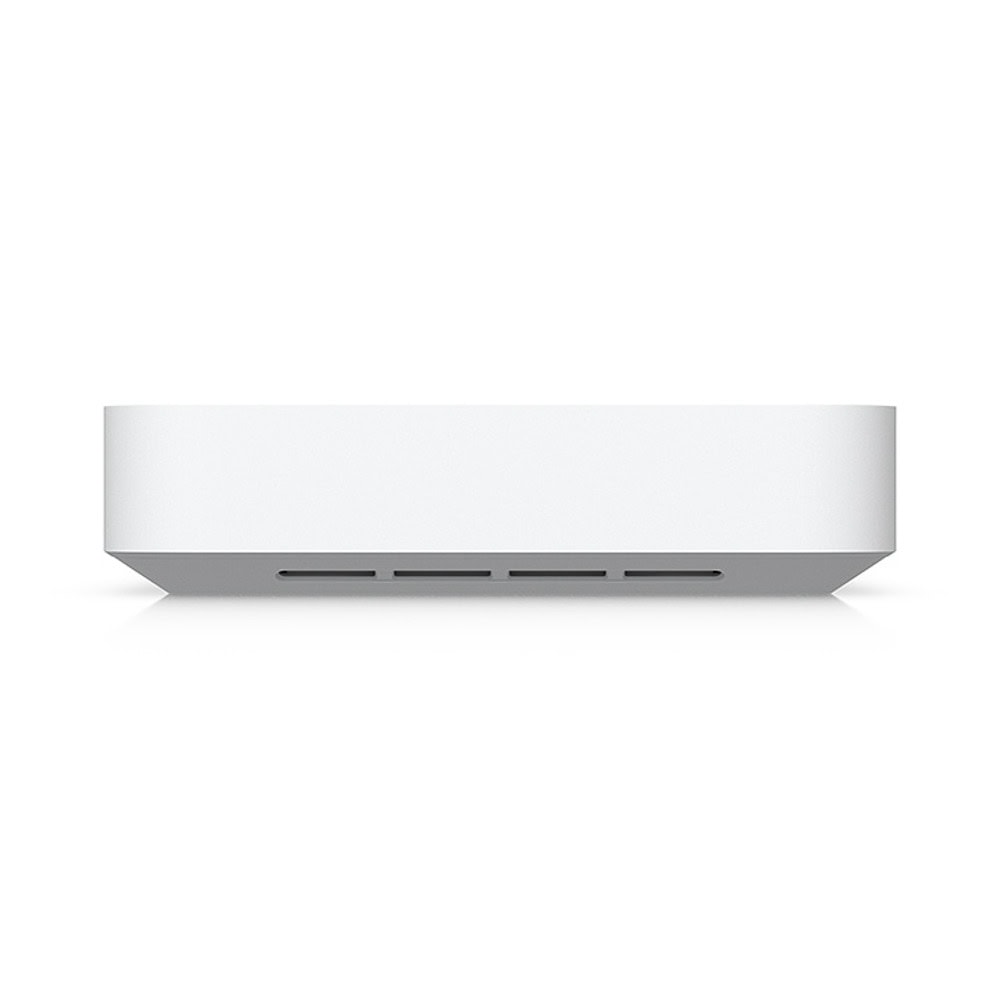

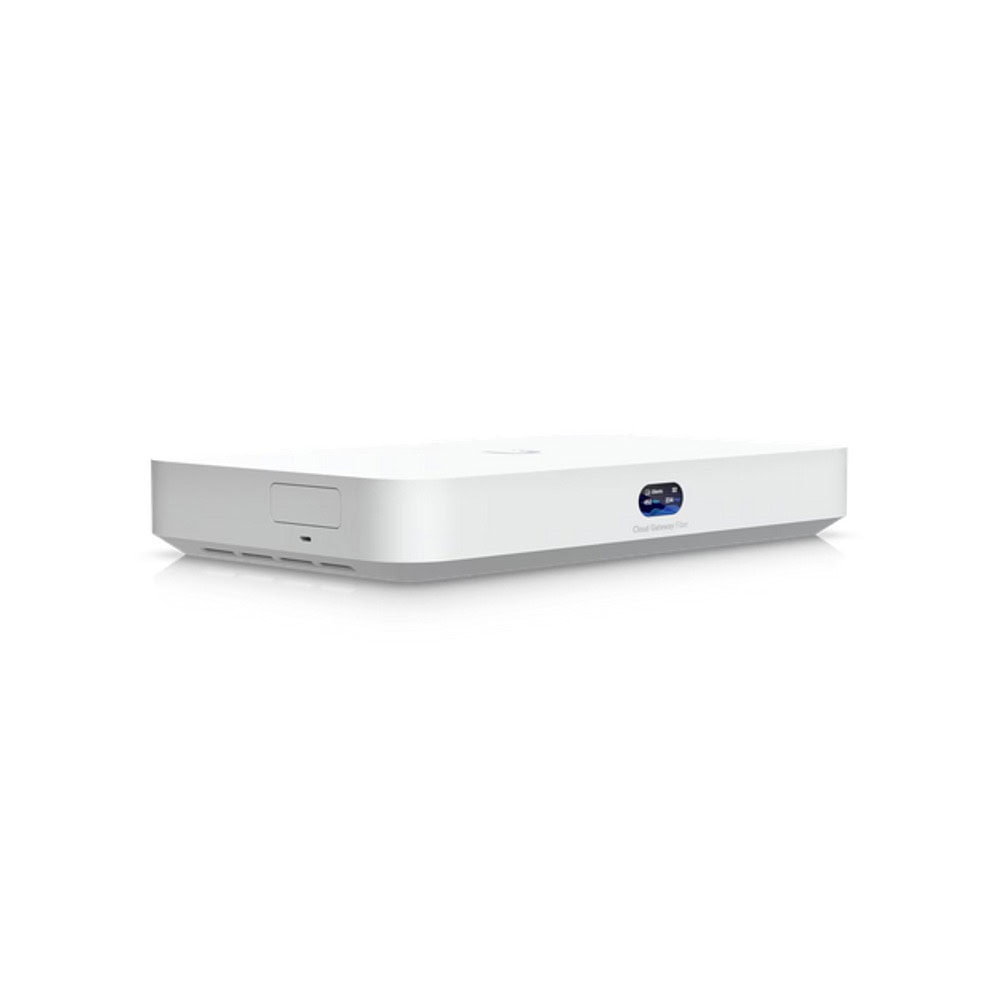

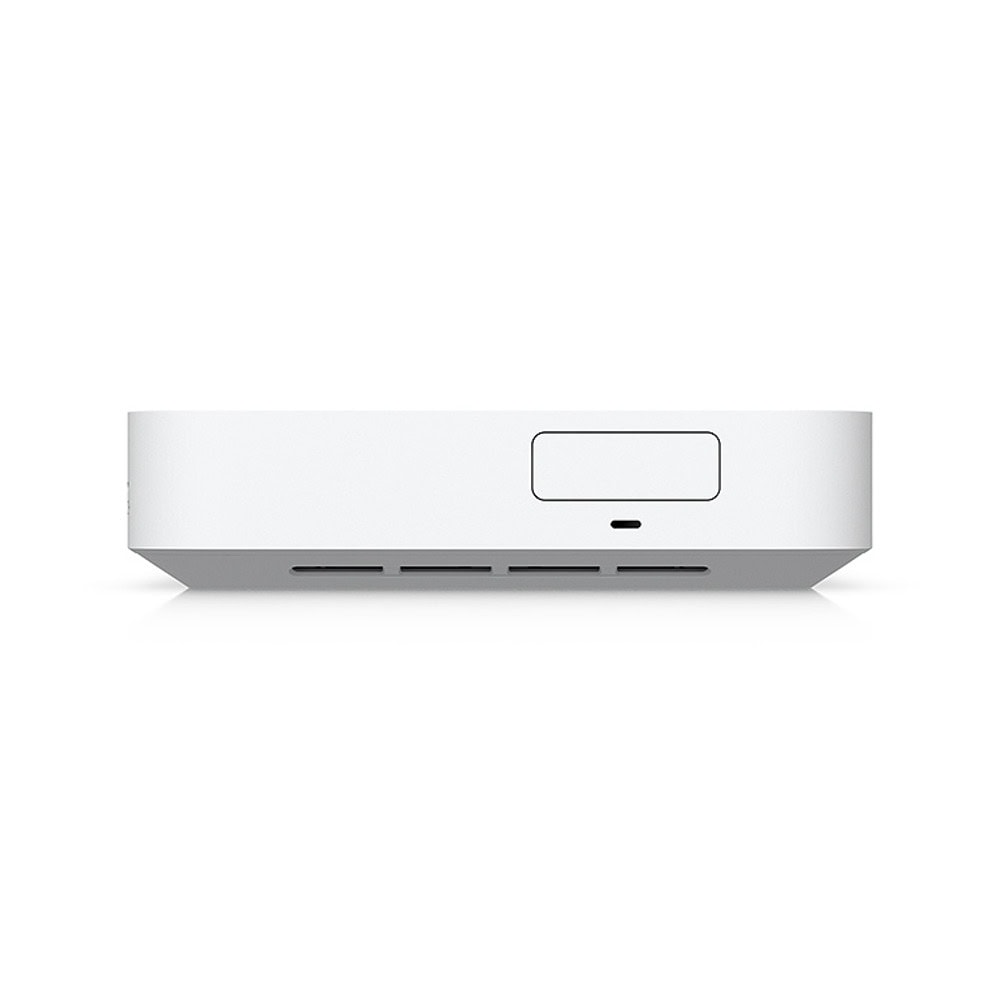

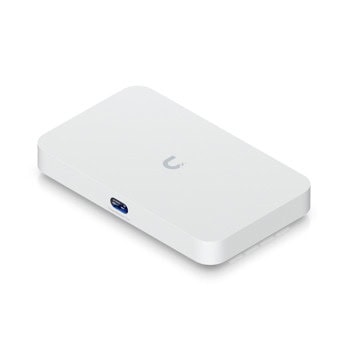

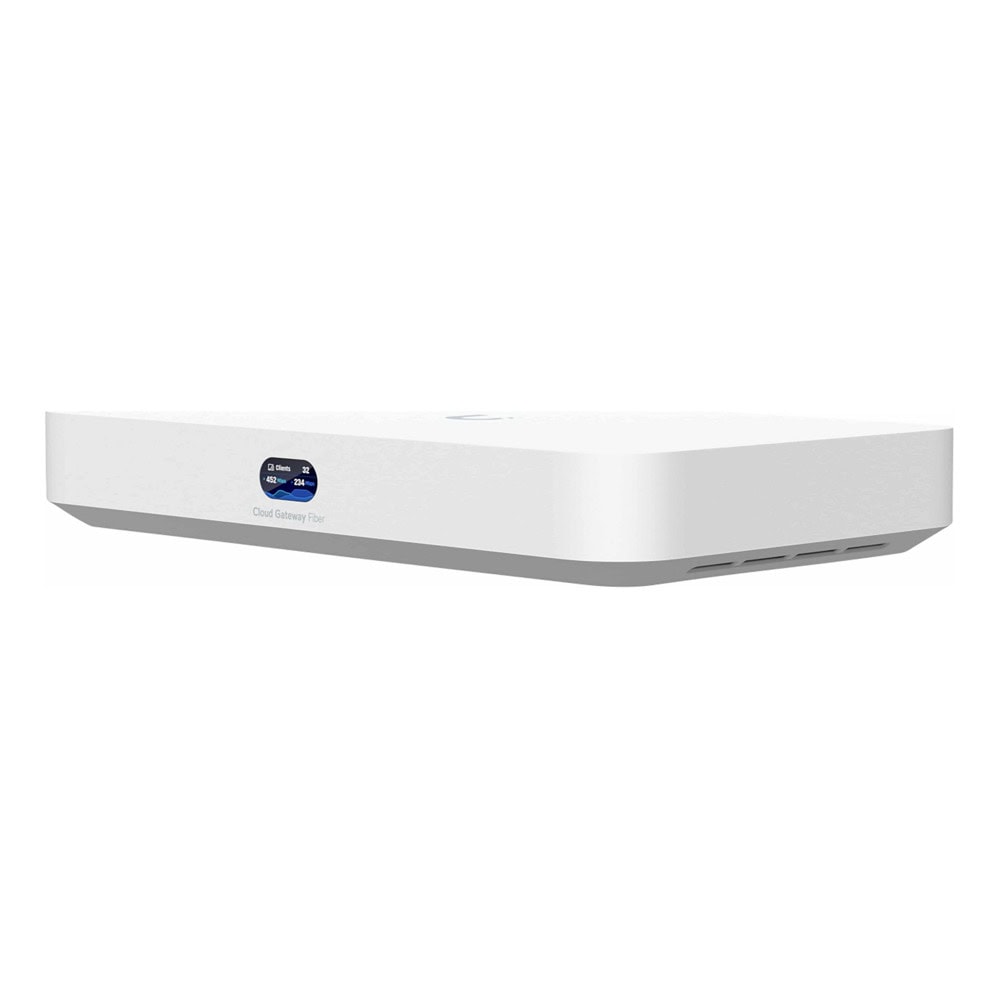

Ubiquiti Cloud Gateway Fiber

Enjoy Peace of Mind With

24-Hour Professional Support

Now available globally as an upgraded support tier.

Easy Access to Paid Support

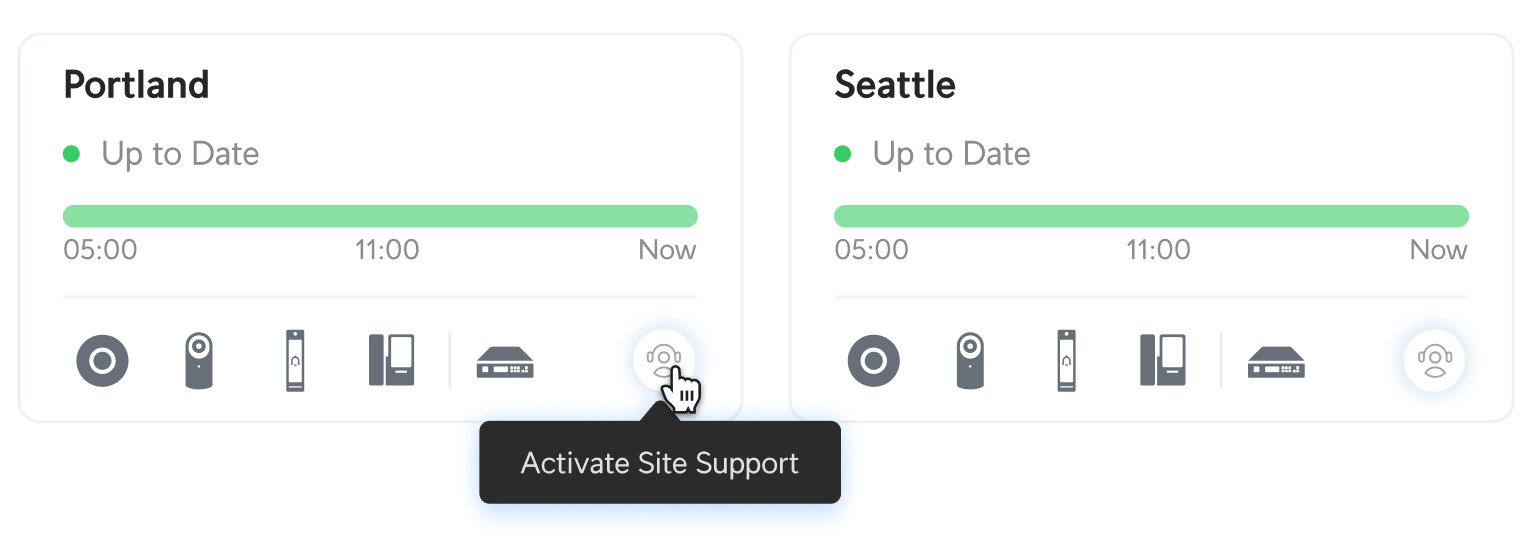

Getting started with Professional Support is straightforward. Simply visit the UniFi Site Manager.

Expertise at Your Fingertips

Our dedicated team of UniFi Engineers, stationed in the US and Europe, is highly trained and qualified to assist with any queries or issues you might encounter.

Continued Commitment to Free Support

UniFi remains committed to rethinking IT without license fees. Professional Site Support is optional. Our existing chat and 24/7 email support remain free of charge.

Three Global Offices Dedicated to Support

Specifications

Overview

Dimensions

212.8 x 127.6 x 30 mm (8.3 x 5 x 0.5 ")

UniFi Application Suite

Network

Yes

Protect

Yes

Access

Yes

Talk

Yes

Connect

Yes

Managed UniFi Devices

50+

Managed Cameras

(15) HD (8) 2K (5) 4K

Managed Access Hubs

50

Simultaneous Users Connected

500+

Max. WAN Port Count

6

Default WAN Ports

(1) 10G SFP+ (1) 10 GbE RJ45

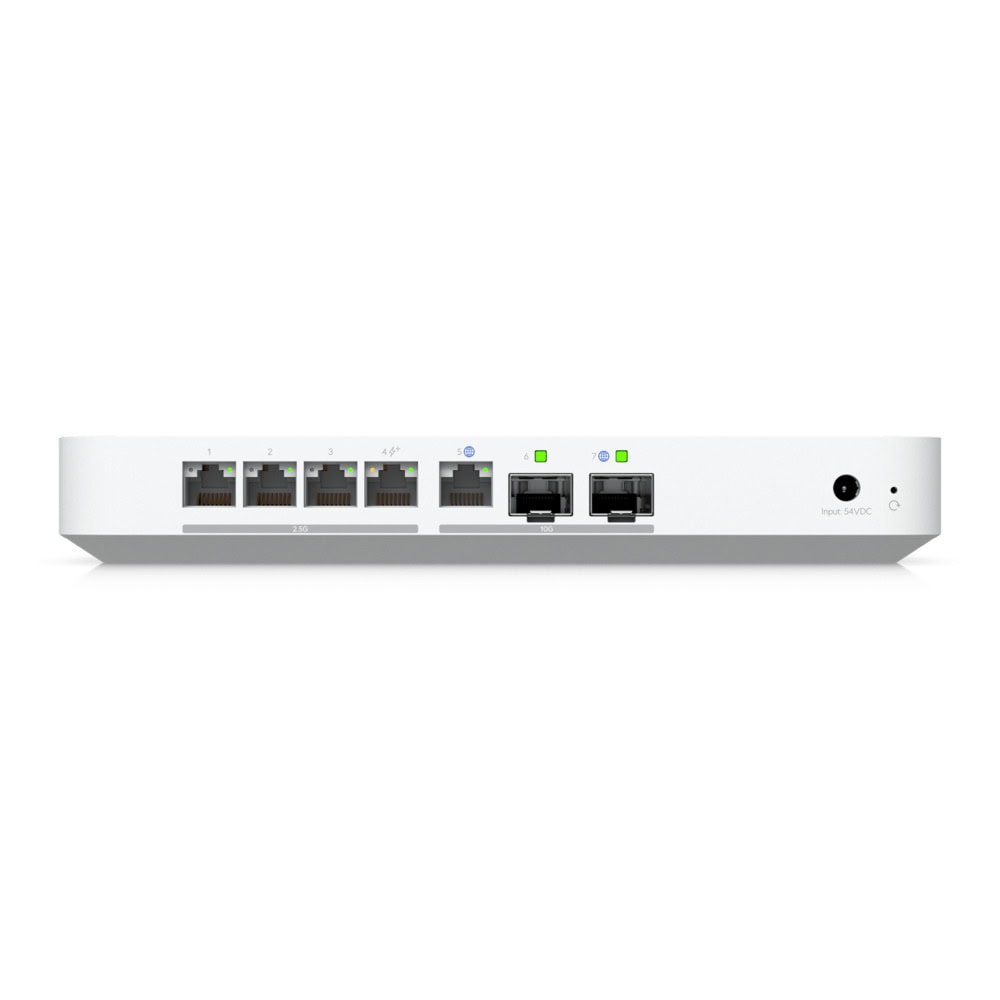

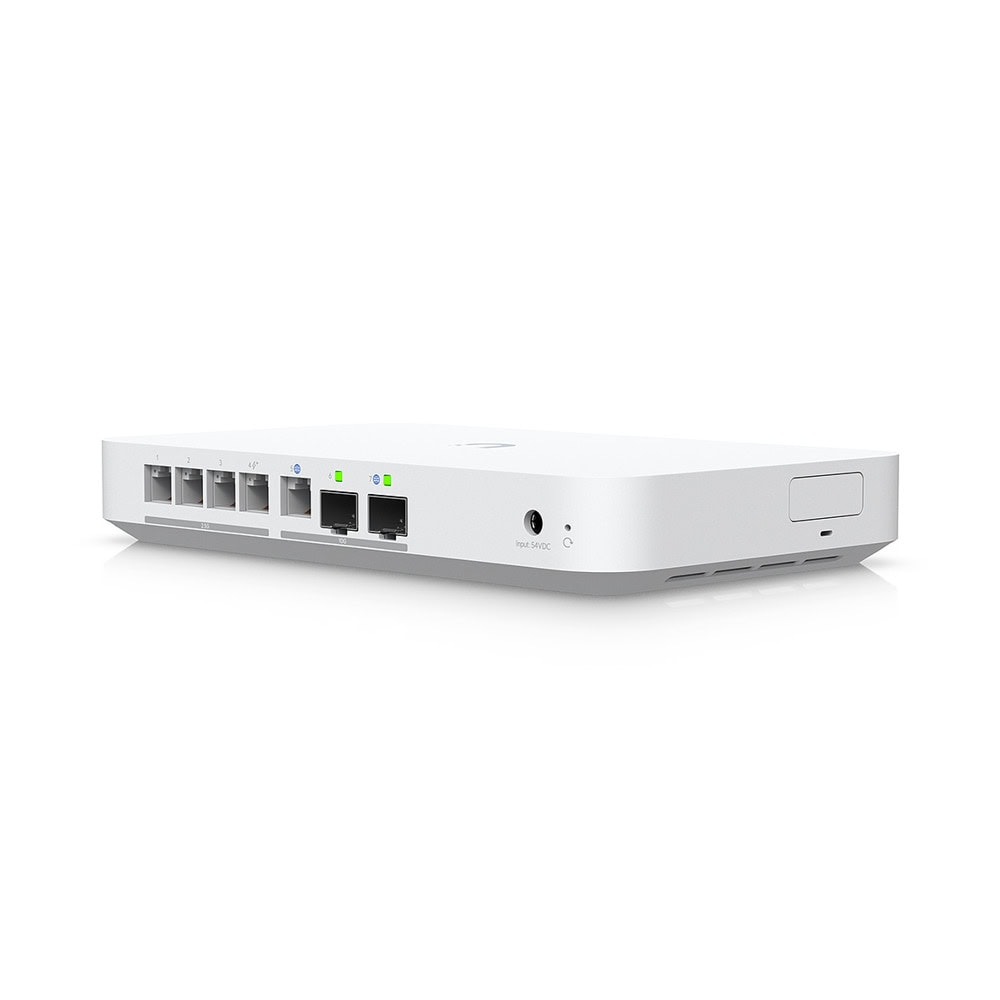

Port Layout

2.5 GbE RJ45

4 (2.5G/1G/100M/10M)

10 GbE RJ45

1 (10G/2.5G/1G)

10G SFP+

2 (10G/1G)

IDS/IPS Throughput

5 Gbps

Form Factor

Compact desktop

Security

Stateful Firewall

Yes

Application-Aware Layer 7 Firewall

Yes

DPI & Traffic Identification

Yes

Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps)

Yes

Content Filtering

Yes

Intrusion Prevention (IPS/IDS)

Yes

Ad Blocking

Yes

IDS/IPS Signatures

55,000+ with CyberSecure

VLAN/Subnet-based Traffic Segmentation

Yes

VPN & SD-WAN

License-Free SD-WAN

Yes

Site-to-Site VPN

Site Magic

Yes

IPsec

Yes

OpenVPN

Yes

VPN Server

Identity Endpoint One-Click VPN

Yes

Teleport Zero-Configuration VPN

Yes

WireGuard

Yes

OpenVPN

Yes

L2TP

Yes

VPN Client

OpenVPN

Yes

WireGuard

Yes

Networking

Multi-WAN Load Balancing

Yes

Dynamic Routing

OSPF

Yes

Advanced QoS

Yes

Multicast DNS (mDNS)

Yes

Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT)

Yes

Integrated RADIUS Server

Yes

RADIUS over TLS (RadSec)

Yes

Additional Internet Failover with UniFi LTE Backup

Yes

Internet Quality and Outage Reporting

Yes

MAC Address Table Size

4,000

Virtual Network Override

Yes

All Traffic Flows

Yes

Hardware

NVR Storage

Selectable NVMe SSD up to 2 TB

PoE Budget

30W

Voltage Range PoE Mode

50-57V

Max. Power Consumption

29.4W (Excluding PoE output)

Power Method

DC jack (54V DC/1.1A)

Power Supply

54V DC/1.1A (Adapter included)

Supported Voltage Range

100—240V AC

Heat Dissipation

100 BTU/hr (Excluding PoE Output)

Processor

Quad-core ARM Cortex-A73 at 2.2 GHz

System Memory

3 GB

Weight

Without SSD: 675 g (1.5 lb) With SSD: 734 g (1.6 lb)

Enclosure Material

Polycarbonate

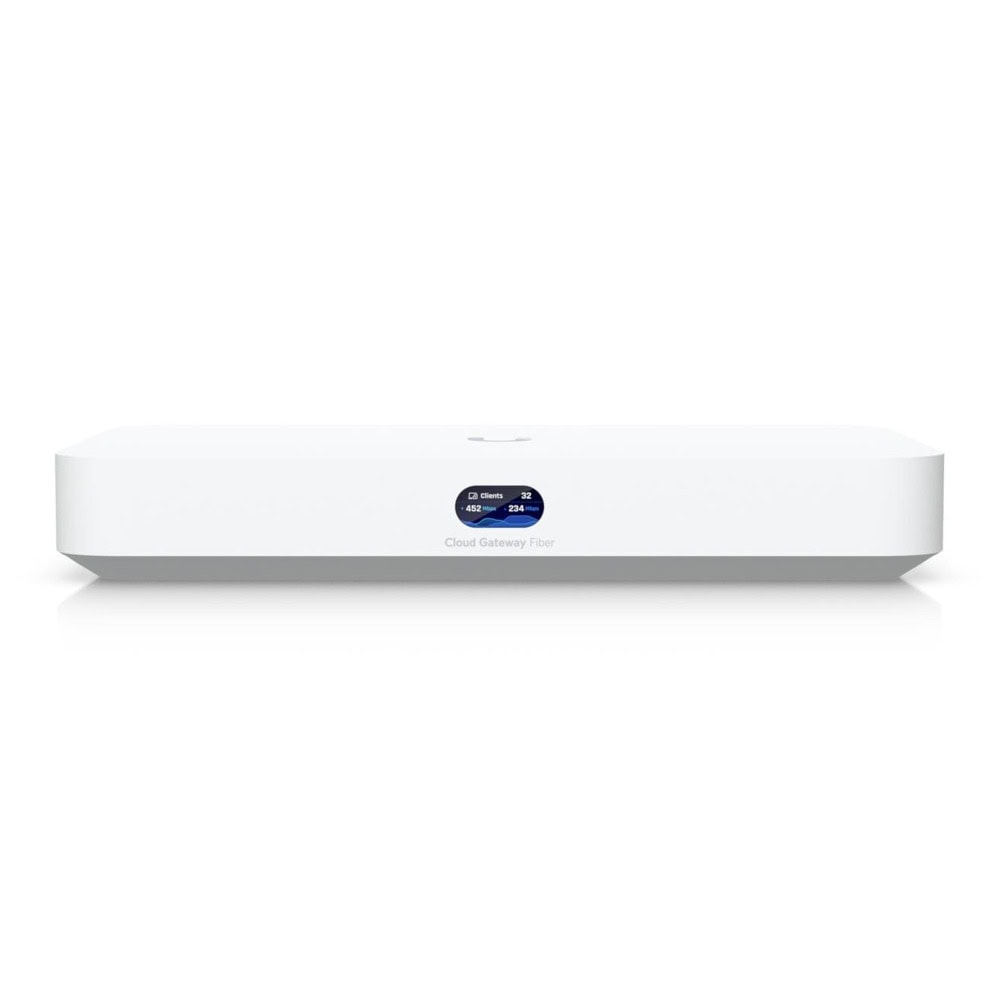

LCM Display

0.96" status display

Management

Ethernet, Bluetooth

LEDs

Ethernet

Yes

SFP+

Yes

Button

(1) Factory-reset

ESD/EMP Protection

Air: ± 8kV, contact: ± 4kV

Ambient Operating Temperature

0 to 40° C (32 to 104° F)

Ambient Operating Humidity

5 to 95% noncondensing

NDAA Compliant

Yes

Certifications

CE, FCC, IC, SRRC, Anatel: 04395-25-08356
