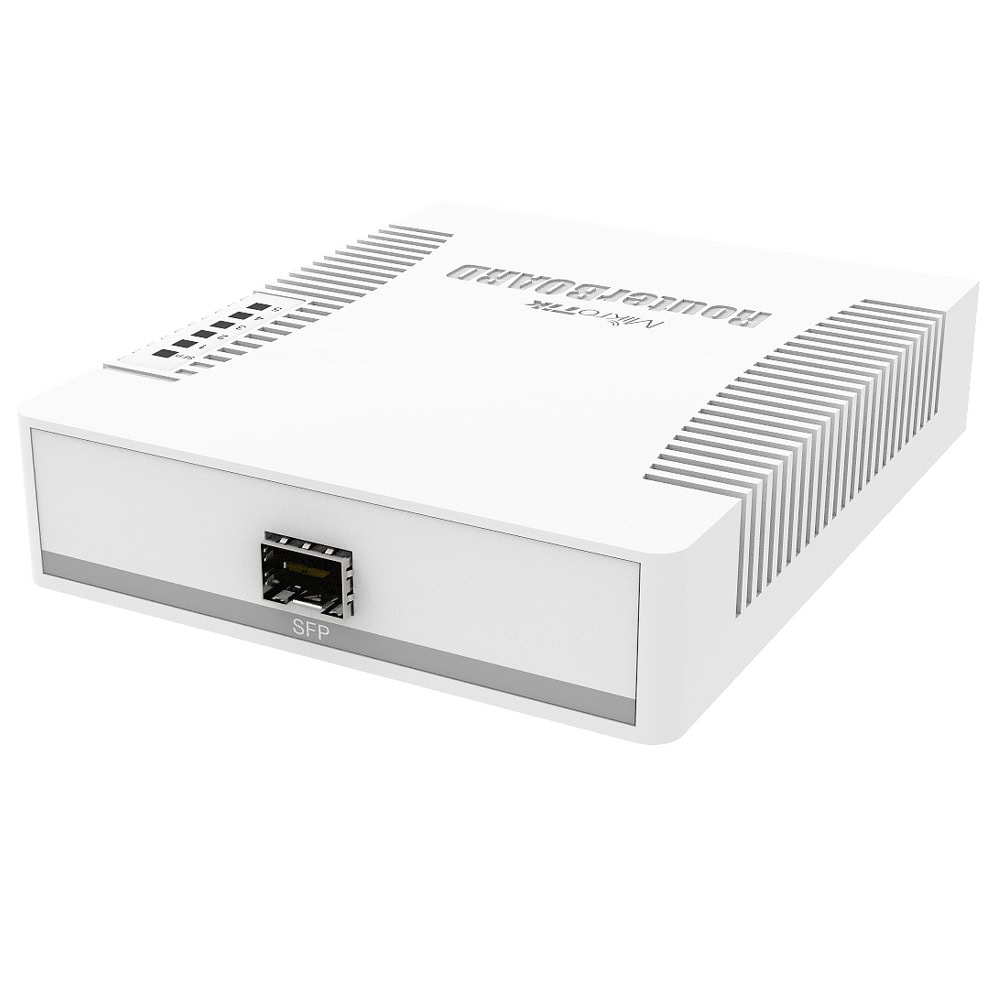

Суич Mikrotik RB260GS CSS106-5G-1S, 10/100/1000Mbps, 5x Ethernet порта

The RB260GS is a small SOHO switch. It has five Gigabit Ethernet ports and one SFP cage powered by an Atheros Switch Chip.

Tested and recommended to use with MikroTik SFP modules: S-85DLC05D, S-31DLC20D and S-35/53LC20D (not included)

It is powered by an operating system designed specifically for MikroTik Switch products - SwOS.

SwOS is configurable from your web browser. It gives you all the basic functionality for a managed switch, plus more: Allows to manage port-to-port forwarding, apply MAC filter, configure VLANs, mirror traffic, apply bandwidth limitation and even adjust some MAC and IP header fields.

Specifications

• Product code CSS106-5G-1S
• Switch chip model QCA8337
• Dimensions 113x139x28mm
• Operating System MikroTik SwOS
• Storage size 128 KB
• Storage type FLASH
• MTBF Approximately 100'000 hours at 25C
• Tested ambient temperature -20°C to 70°C

Powering

• Number of DC inputs 2 (DC jack, PoE-IN)
• DC jack input Voltage 11-30 V
• Max power consumption 5 W
• PoE in Passive PoE
• Cooling type Passive
• PoE in input Voltage 11-30 V

Ethernet

• 10/100/1000 Ethernet ports 5

Fiber

• SFP DDMI Yes
• SFP ports 1

Certification & Approvals

• Certification CE, EAC, ROHS
• IP IP20
