Name: Суич Cudy IG1008P, 1000Mbps, 8 порта, 8x 10/100/1000Mbps RJ-45 PoE
Brand: Cudy
SKU: NTLHCUDYIG1008P
Price: 77.24 EUR
Availability: InStock

Описание Характеристики Ревюта / Въпроси Вземи на изплащане

Cudy IG1008P

8-Port Gigabit Industrial PoE+ Switch

A 8-GbE industrial PoE switch for networking in harsh conditions such as manufacturing, transportation, maritime, oil & gas, and mining.

8× GbE, Shielded, ±6kV Surge Resistant
8× 802.3at/af Mode A PoE
IP40, -40~75°C (-40~167°F)
Dual-Power Redundancy, 44~57V Range
Polarity Reverse Protection
Short Circuit Protection
Broadcast Storm Prevention On/Off
Watchdog On/Off
Extend On/Off, VLAN On/Off

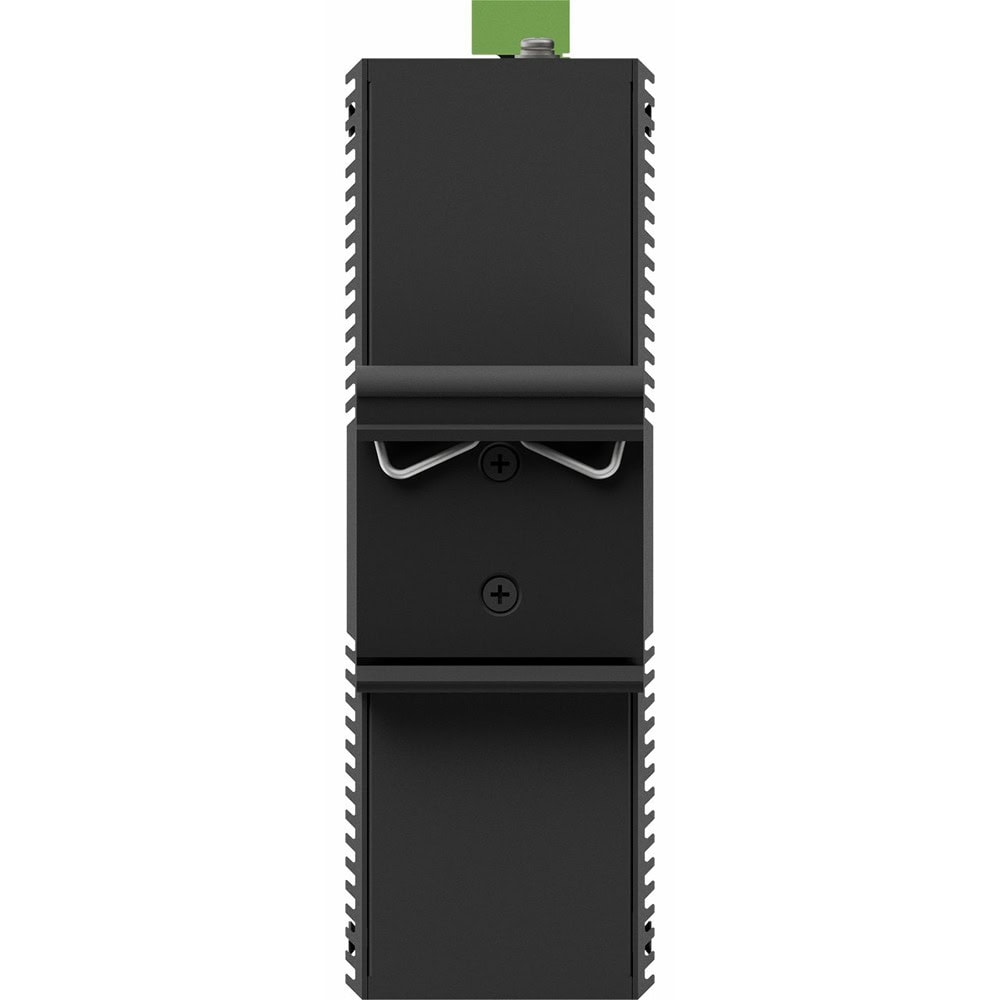

Integrated DIN-Rail Bracket

Model Version	IG1008P 2.0
Interfaces	Gigabit RJ45 Ports	8
	Gigabit RJ45 PoE Ports	#1~#8
	Max Power on a Single PoE Port	30W
	PoE Port Notes	The PoE ports comply with IEEE 802.3at/af standards.
	Shielded RJ45 Port	True
	Extend Mode Ports	#1~#4
	VLAN Mode Ports	#1~#7
	LED	Power 1 Power 2 Link/ACT of Each Ethernet Port PoE Status of Each PoE Port
	Power Input	4-Pin Terminal Block
	Physical Buttons	PoE Watchdog On/Off VLAN On/Off Extend On/Off Broadcast Storm Prevention On/Off
	Watchdog Note	The PoE Watchdog will attempt to reboot the plugged-in clients that have been inactive for 5 minutes. Do not turn it on for clients with online auto-upgrade feature.
Performance	Copper Speed and Distance	Cat. 3 or higher cable: 100 meters at 10 Mbps Cat. 5 or higher cable: 100 meters at 100 Mbps Cat. 5e or higher cable: 100 meters at Gigabit Cat. 5e or higher cable: 250 meters at 10 Mbps
	Copper Speed and Distance Note	250-meter transmission is only available on the Extend Mode ports when the Extend Mode is activated.
	MAC Address Table	4096
	Max Switching Capacity	16 Gbps
	Max Forwarding Rate	11.904 Mpps
	Jumbo Frame	9 KB
	Packet Buffer	1.5 Mbit
Power	Power Methods	DC
	Power Redundancy	Dual Inputs
	DC	44-57V⎓
	Max Power Consumption	240W
	Max Power Excluding PoE	2.75W
	Idle Power Consumption	2.2W
	Polarity Reverse Protection	True
	Short Circuit Protection	True
Switching	802.3 Protocols	802.3at PoE 802.3af PoE 802.3i 10BASE-T 802.3u 100BASE-TX 802.3ab 1000BASE-T 802.3x Flow Control
Reliability	Grounding Methods	Grounding Point
	Safety	IEC/EN 62368
	EMC	EN55032 Class A EN55035 Class A
	EMI	FCC 47 CFR Part 15B Class A
	EMS	IEC/EN 61000-4-2, Level 4 ESD: Contact: 8kV; Air: 15kV IEC/EN 61000-4-3, Level 4 RS: 80 MHz to 1 GHz: 30 V/m IEC/EN 61000-4-4, Level 4 EFT: Power: 2kV; RJ45: 4kV IEC/EN 61000-4-5, Level 4 Surge: Power: DM 2kV, CM 4kV; RJ45: CM 6kV IEC/EN 61000-4-6, Level 3 CS: 10V IEC/EN 61000-4-8, Level 5 PFMF IEC/EN 61000-4-9, Level 5 PMF IEC/EN 61000-4-10, Level 5 DOMF
	EMS Note	The levels listed in each EMS field are the highest level defined in the IEC/EN standard.
	Shock	IEC 60068-2-27
	Vibration	IEC 60068-2-6
	Free Fall	IEC 60068-2-32
	Environment	Operating Temperature: -40 ℃ ~ 75 ℃ (-40 ℉ ~167 ℉) Storage Temperature: -40 ℃ ~ 85 ℃ (-40 ℉ ~ 185 ℉) Operating Humidity: 5% ~ 95% non-condensing Storage Humidity: 5% ~ 95% non-condensing
Mechanical	Dimension	144×103×47.5 mm 5.67×4.06×1.87 inches
	Product Weight	537.5 g (18.96 oz.)
	Casing Material	Aluminum
	Ingress Protection	IP40
	Installation	DIN-Rail
Package Content	IG1008P Installation Guide
Ordering Information	Retail Package Dimension	207×154×75 mm 8.15×6.06×2.95 inches
	Retail Package Weight	702.0 g (24.76 oz.)
