Name: Суич Cudy GS1008P, 1000Mbps, 8 порта, 8x 10/100/1000Mbps RJ-45 (4x PoE)
Brand: Cudy
SKU: NTLHCUDYGS1008P
Price: 70.68 BGN
Availability: InStock

Описание Характеристики Ревюта / Въпроси

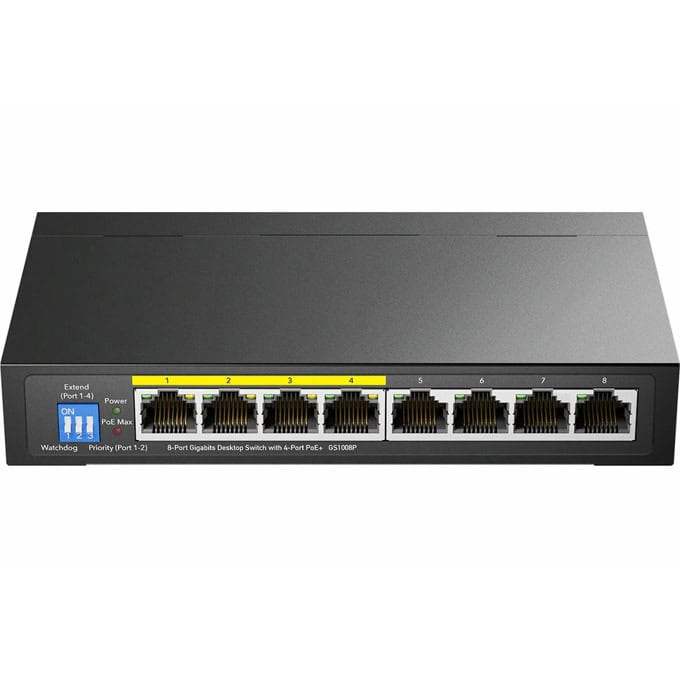

Cudy GS1008P

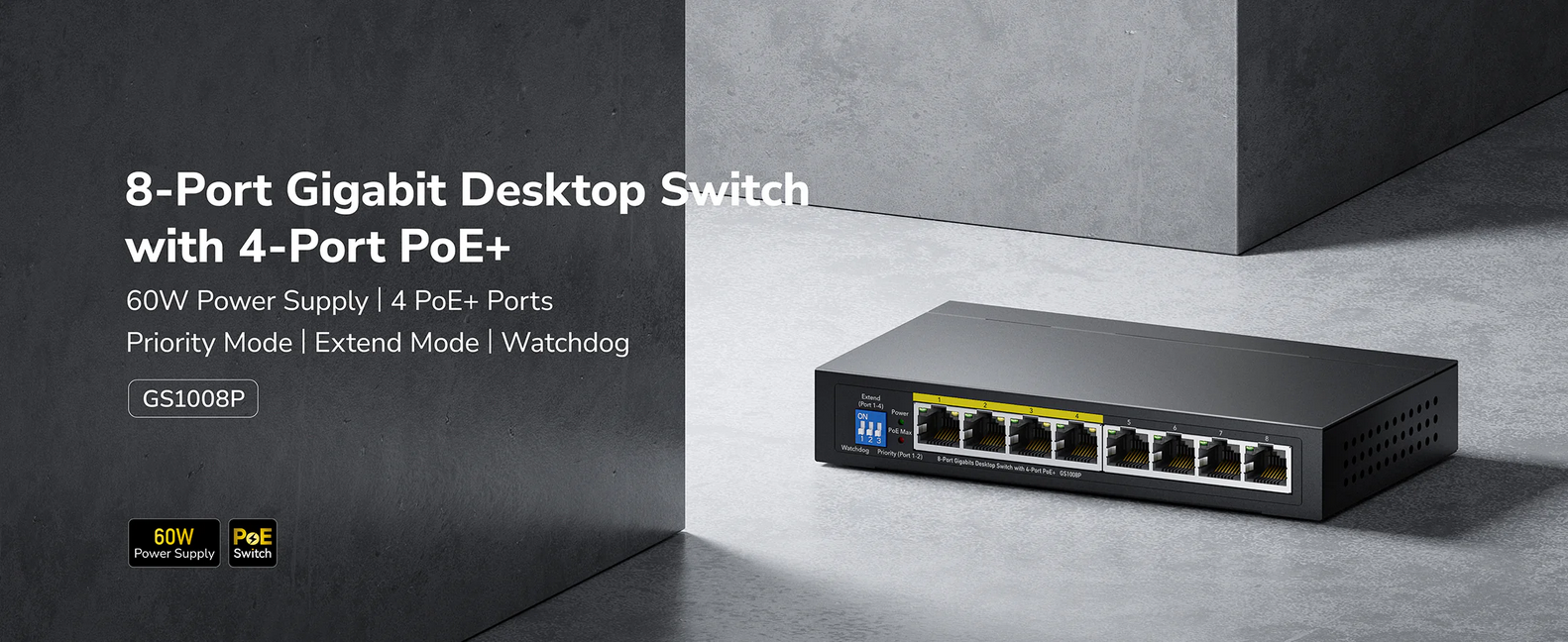

8-Port Gigabit Desktop Switch with 4-Port PoE+

GS1008P 1.0

A wall-mounted switch with a 60W power supply for PoE application and a silent cooling system, featuring priority mode, PoE extend mode, and watchdog function.

4× GbE with 802.3at/af Mode A PoE
4× GbE
60W Power Supply
Priority On/Off, Extend On/Off
Watchdog On/Off
PoE Max Status LED
Desktop, Wall-Mount
155×86×26 mm (6.1×3.39×1.02")

PoE Management Made Simple

Model Version	GS1008P 1.0
Interfaces	Gigabit RJ45 Ports	8
	Gigabit RJ45 PoE Ports	#1~#4
	Max Power on a Single PoE Port	30W
	PoE Port Notes	The PoE ports comply with IEEE 802.3at/af standards.
	PoE Priority	Intelligent Power Management: Automatically disconnect the lastly powered device when power exceeds budget.
	Shielded RJ45 Port	True
	Priority Mode Ports	#1~#2
	Extend Mode Ports	#1~#4
	LED	Power PoE Status of Each PoE Port Link/ACT of Each Ethernet Port PoE Max Status
	Power Input	DC Jack
	Physical Buttons	Priority On/Off Extend On/Off PoE Watchdog On/Off
	Watchdog Note	The PoE Watchdog will attempt to reboot the plugged-in clients that have been inactive for 5 minutes. Do not turn it on for clients with online auto-upgrade feature.
Performance	Copper Speed and Distance	Cat. 3 or higher cable: 100 meters at 10 Mbps Cat. 5 or higher cable: 100 meters at 100 Mbps Cat. 5e or higher cable: 100 meters at Gigabit Cat. 5e or higher cable: 250 meters at 10 Mbps
	Copper Speed and Distance Note	250-meter transmission is only available on the Extend Mode ports when the Extend Mode is activated.
	MAC Address Table	8192
	Max Switching Capacity	16 Gbps
	Max Forwarding Rate	11.904 Mpps
	Jumbo Frame	15 KB
	Packet Buffer	4 Mbit
Power	Power Methods	DC
	DC	54V⎓1.11A
	Power Adapter	Input: 100-240V~, 50/60Hz Output: 52V⎓1.11A
	Power Supply	60W
	Max Power Excluding PoE	5W
	Idle Power Consumption	1.5W
Switching	802.3 Protocols	802.3i 10BASE-T 802.3u 100BASE-TX 802.3ab 1000BASE-T 802.3x Flow Control 802.3af PoE 802.3at PoE
	802.1 Protocols	802.1p: LAN Layer 2 QoS/CoS
	L2 Features	IGMP Snooping Loop Prevention Loop Detection DSCP QoS 802.1p QoS
Reliability	EMS	IEC/EN 61000-4-2, Level 3 ESD: Contact: 6kV; Air: 8kV IEC/EN 61000-4-5, Level 4 Surge: Power: DM 2kV, CM 4kV; RJ45: CM 4kV
	Environment	Operating Temperature: 0~40 ℃ (32~104 ℉) Storage Temperature: -40~70℃ (-40~158 ℉) Operating Humidity: 10~90% non-condensing Storage Humidity: 10~95% non-condensing
Mechanical	Dimension	155×86×26 mm 6.1×3.39×1.02 inches
	Product Weight	309.0 g (10.9 oz.)
	Casing Material	Metal
	Installation	Desktop Wall-mount
