DeepCool DQ650-M-V2L
The DQ650-M-V2L fully modular 650W 80 PLUS Gold power supply features 100% Japanese capacitors and high quality switch MOSFETs. Built to deliver stable output capacity with high conversion efficiency, the DQ650-M-V2L offers better reliability for your PC system.

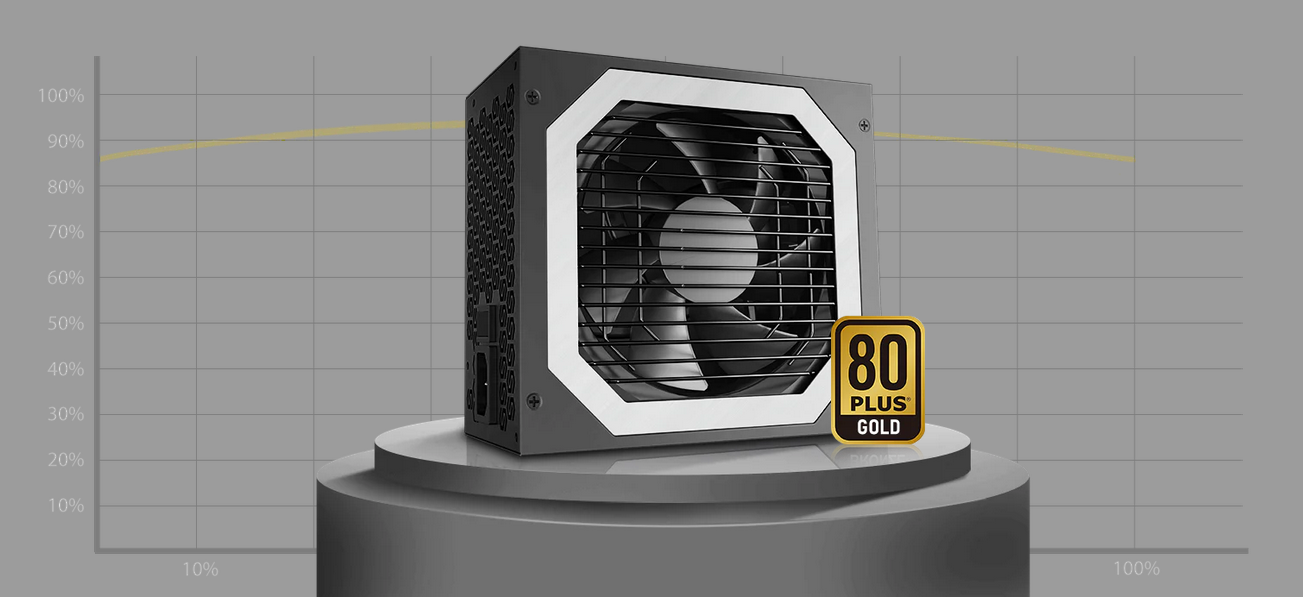

80 PLUS® Gold Certified
Get all the power you need with a maximum 90.4% efficiency to reduce excess energy consumption and waste heat.
Top-notch Design

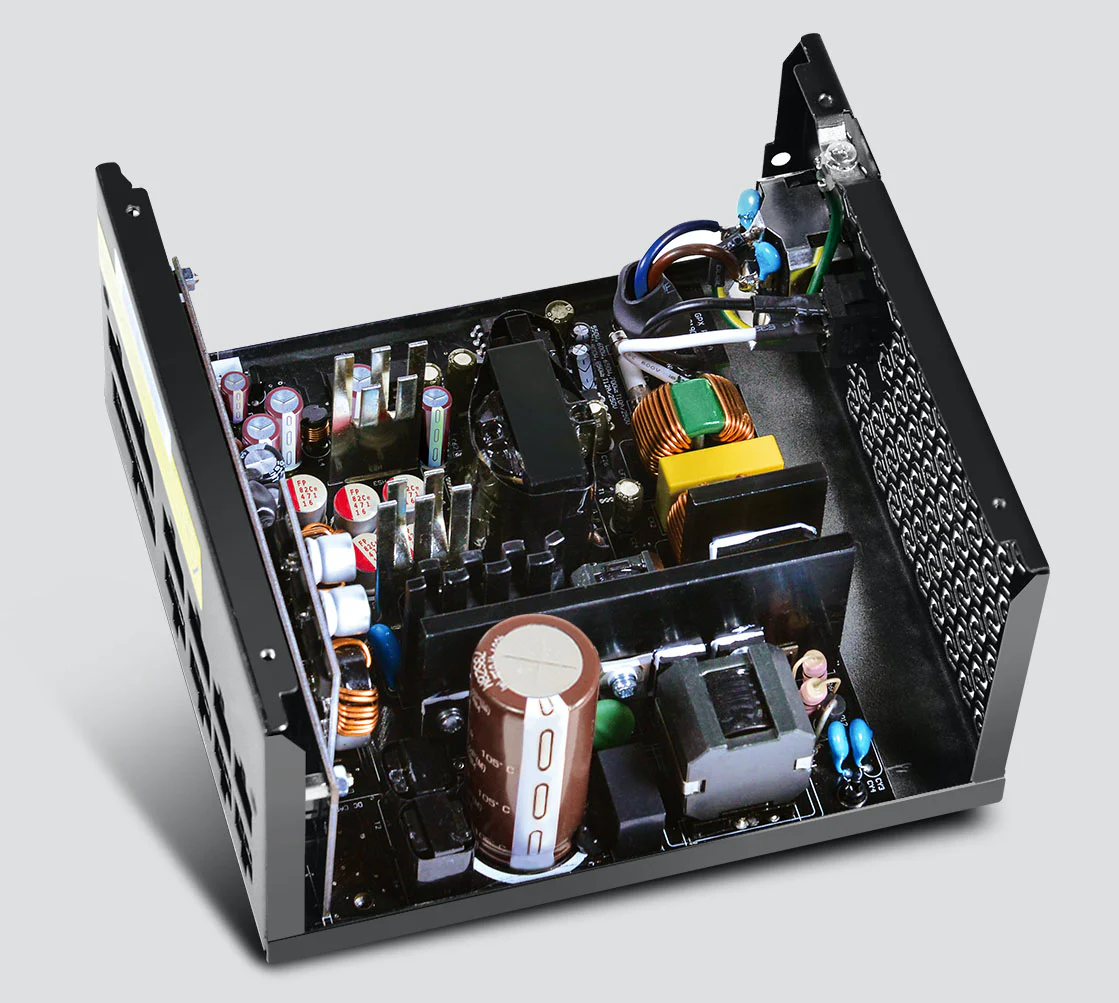

Featuring active Power Factor Correction (PFC), a full bridge LLC resonant converter and synchronous rectification DC-DC design, the DQ650-M-V2L delivers improved performance with lower power dissipation, increased quality, and better thermals to meet your needs.
Technical Spec:
| Type | ATX 12V V2.31 |
| Certifications | 80PLUS GOLD |
| Dimension | 150×160×86mm (W × L × H) |
| Output Capacity | 650W |
| Input Voltage | 100-240V |
| Input Current | 10.0A |
| Input Frequency Range | 47-63Hz |
| Fan Size | 120mm |
| PFC | Active |
| Power Good Signal | 100-500ms |
| Hold Up Time | >16ms (80% Loading) |
| Efficiency | >90% Under Typical Load (50% Loading) |
| Standby Efficiency | ErP Lot 3 2014 |
| Protection | OVP/UVP/OCP/SCP/OPP/OTP |
| Operation Temperature | 0-40°C |
JAR Computers може да предложи ремонт/смяна/монтаж в наш сервиз или при партньор.
Виж още Захранвания Настолни компютри DeepCool
Виж всички Захранвания Настолни компютри в категорията
| Изходна мощност: | 650 W |
|---|---|
| Модулен блок: | Да |
| Форм фактор: | ATX |
