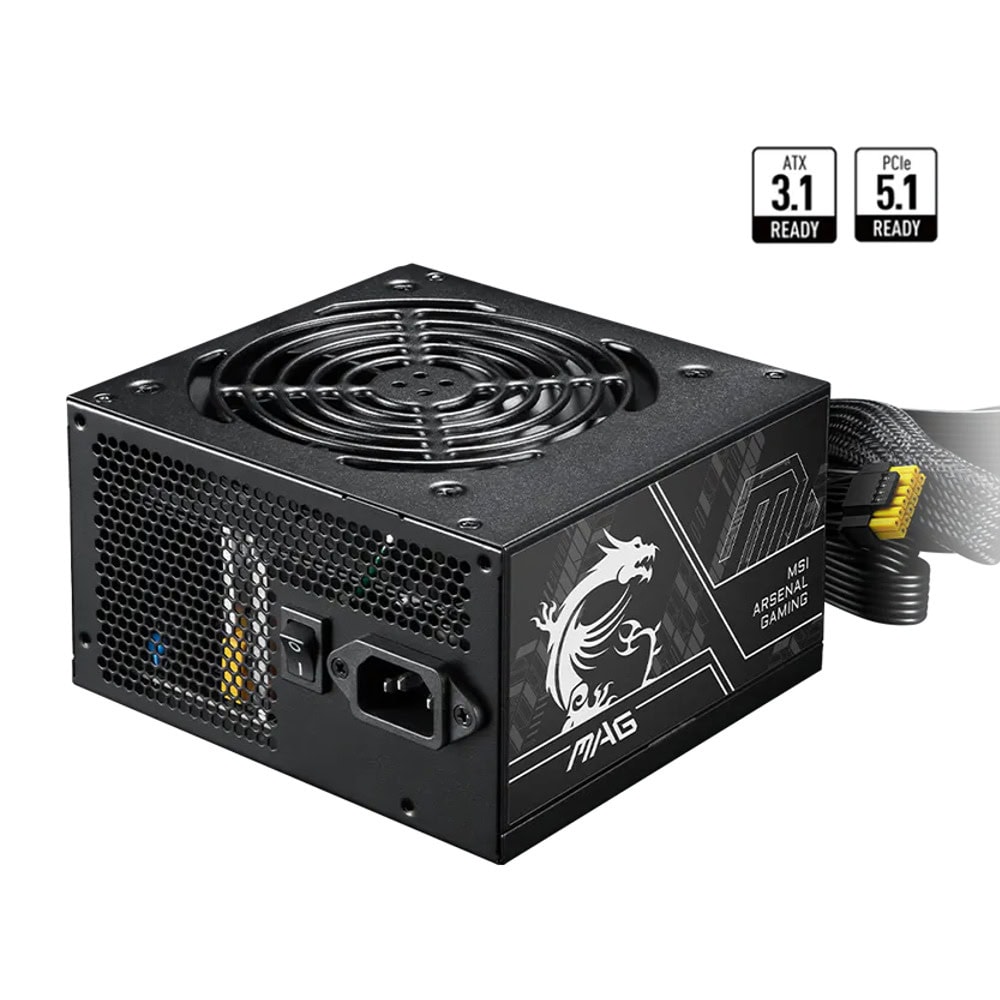

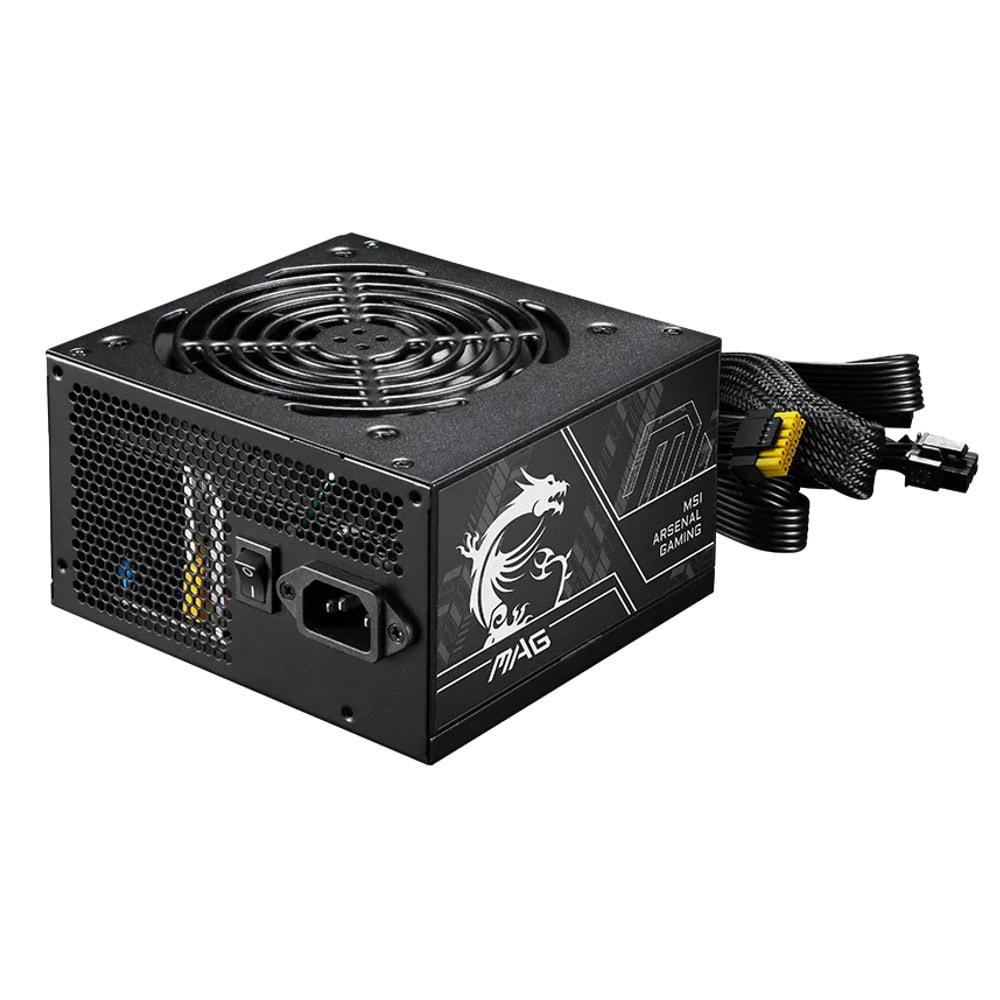

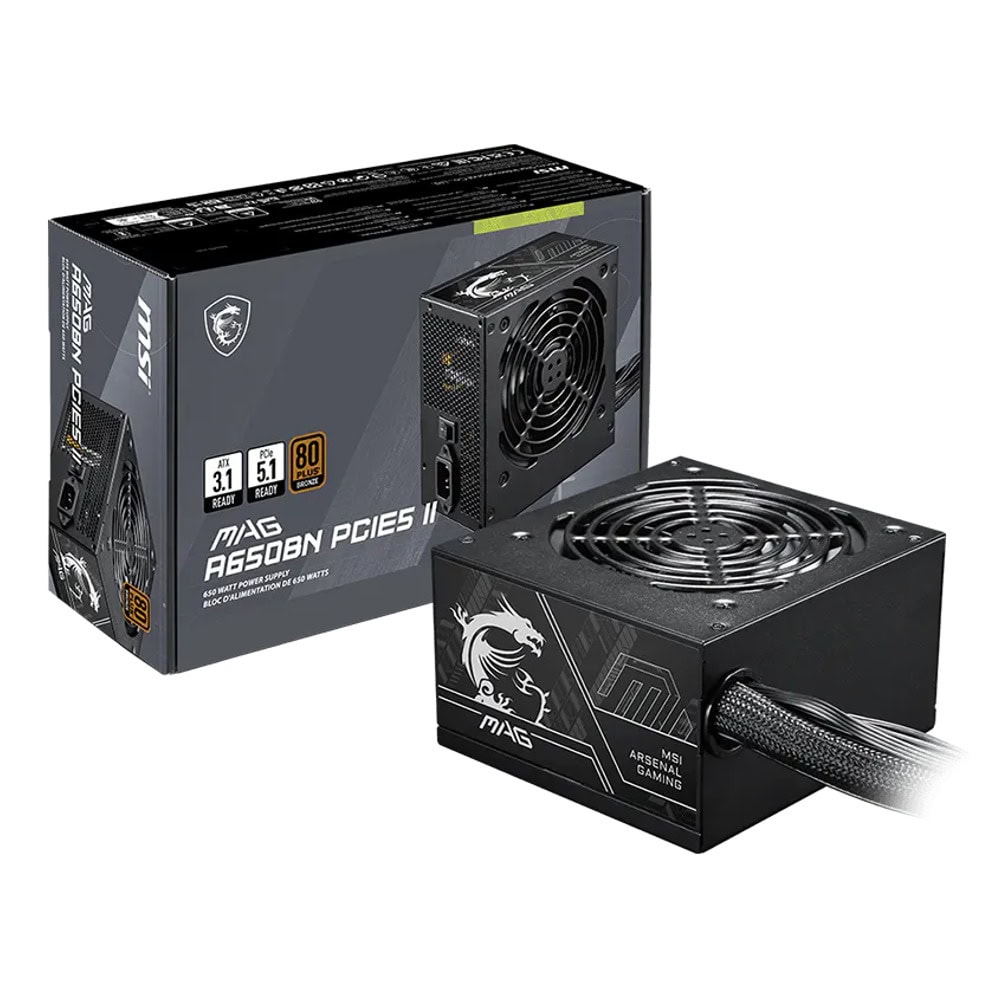

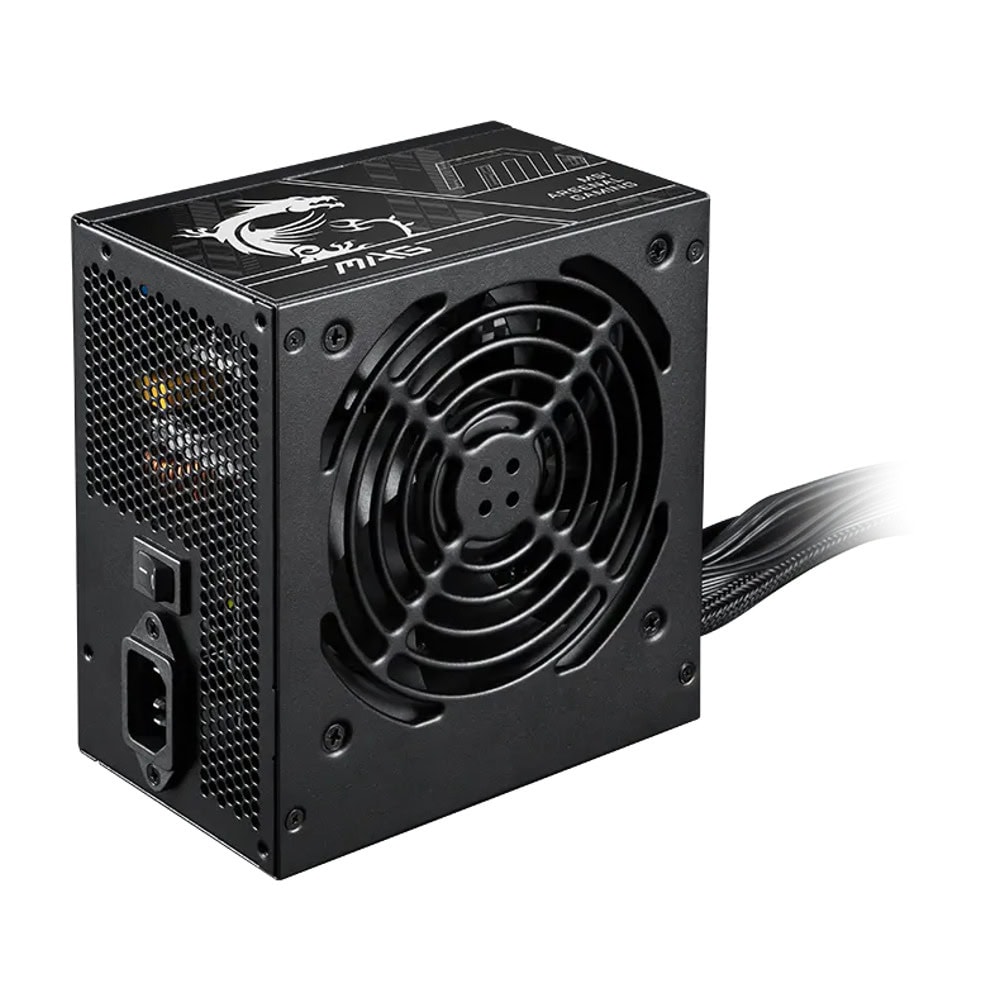

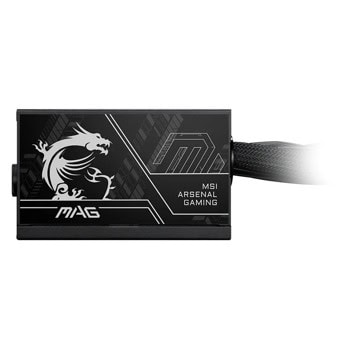

Захранване MSI MAG A650BN PCIE5 II, 650W, Active PFC, 80 Plus Bronze, 120mm вентилатор

ATX 3.1 READY:
It has an output port that is compliant with PCIe CEM 5.1 and Intel PSDG (Power Supply Design Guide)ATX 3.1, also this power supply can hold up to 2x total power excursion and 3x GPU power excursion.

PCIE CEM 5.1 ready:
This power supply features a native PCIe 12V-2x6 connector with a 300W power capacity, compliant with the PCIe CEM 5.1 standard, providing more stable and secure power delivery for graphics cards.


Specifications

Efficiency Rating
80 PLUS Bronze (up to 85%)

Modular
No

Fan Size
120 mm

Fan Bearing
Hydraulic Bearing

Dimensions (DxWxH)
140mm x 150mm x 86mm / 5.51 x 5.9 x 3.38 inches

PFC Type
Active PFC

Input Voltage Range
100-240V~

Power Watt
650W

Power Excursion
200%

Input Frequency Range
50-60Hz

Protection
OVP, OCP, SCP, OPP, UVP

ATX (24 pin)
1

EPS (8 pin)
1

EPS (4+4 pin)
1

PCI-E 5.1 (16 pin)
1 (300W)

PCI-E (6+2 pin)
2

SATA (15 pin)
3

PERIPHERAL (4 pin)
2
