Name: Захранване Corsair SF850, 850W, Active PFC, 80 Plus Platinum, 92mm вентилатор
Brand: Corsair
SKU: PWRPCCORSAIRCP9020256EU
Price: 178.99 EUR
Availability: InStock

Описание Характеристики Ревюта / Въпроси Вземи на изплащане

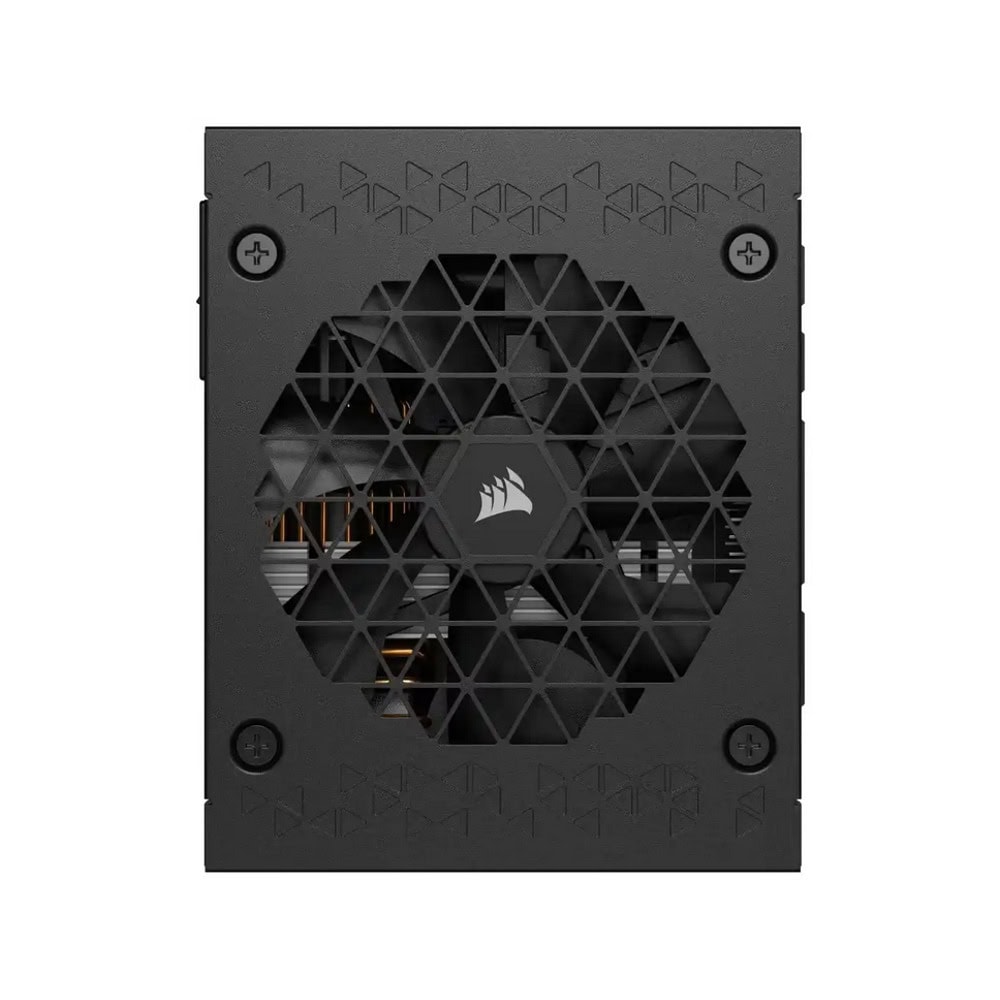

Corsair SF850

Outfit your next SFF PC with a CORSAIR SF Series 80 PLUS Platinum SFX Power Supply for compact, ATX 3.1 compliant, fully modular Platinum power.

Includes

80 PLUS Platinum rated efficiency
ATX 3.1 compliant, supporting PCIe 5.1

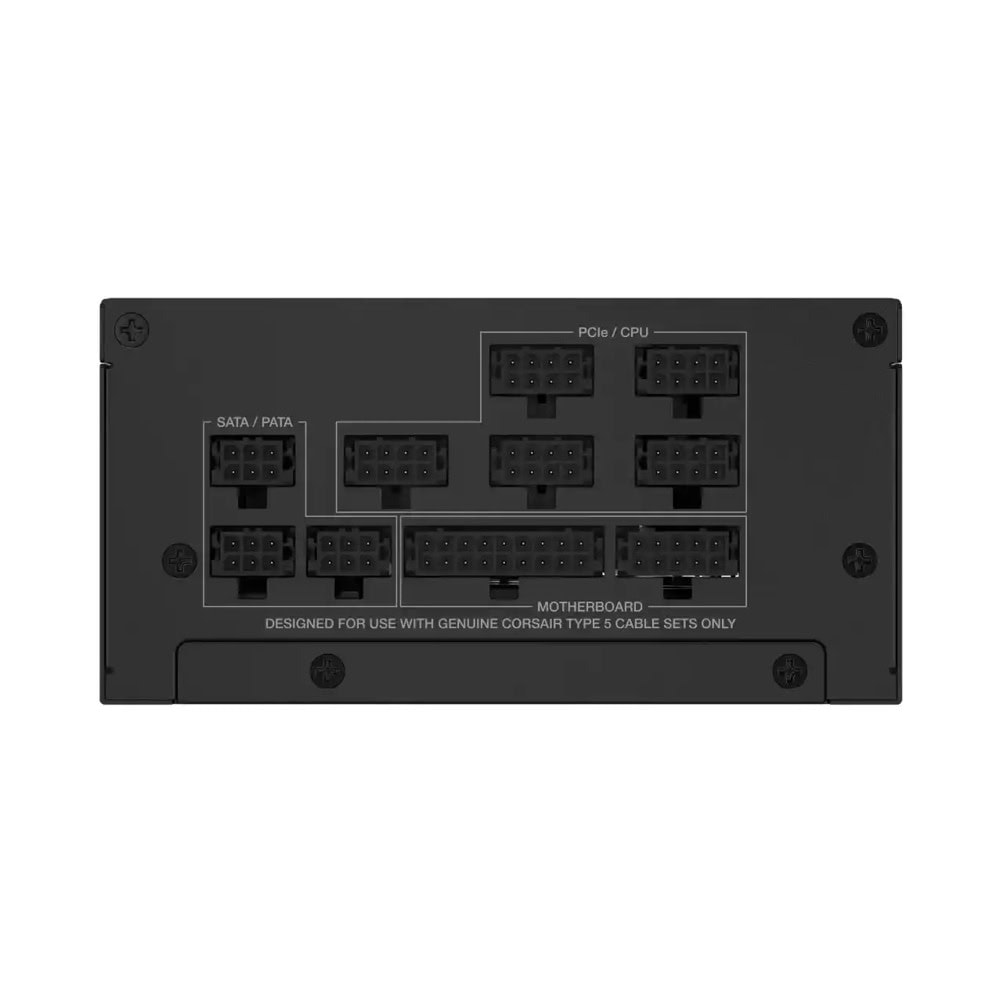

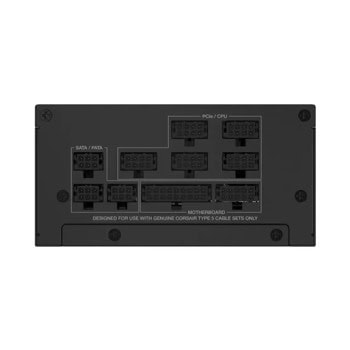

Fully modular, Type-5 Micro-Fit PSU connectors
92mm PWM cooling fan with Zero RPM mode

AC Input Rating
AC Input	100–240V
Input Current	10A-5A
Frequency	47~63Hz
	Max Load	Max Output
+3.3V	20A	130W
+5V	20A	130W
+12V	70.8A	850W
+5VSB	3A	15W
TOTAL POWER	850W

Cable listing

QTY	Cable	Connectors per cable	Total connectors	Connector spacing	Total length	Cable Type
1	Modular ATX Cable (24-pin)	1	1	-	300mm (± 10mm)	Individually Sleeved
2	EPS / ATX 12V 8-pin (4+4)	1	2	-	400mm (± 10mm)	Individually Sleeved
3	PCIe 8-pin (6+2)	1	3	-	400mm (± 10mm)	Individually Sleeved
1	12VHPWR (12+4) pin	1	1	-	400mm (± 10mm)	Individually Sleeved
1	SATA (4 Straight SATA)	4	4	100mm, 115mm, 115mm, 115mm	445mm (± 10mm)	Individually Sleeved
1	SATA (4 Right SATA)	4	4	100mm, 115mm, 115mm, 115mm	445mm (± 10mm)	Individually Sleeved
1	PATA (3 PATA)	3	3	100mm, 115mm, 115mm	330mm (± 10mm)	Individually Sleeved

JAR Computers може да предложи ремонт/смяна/монтаж в наш сервиз или при партньор.

Виж още Захранвания Настолни компютри Corsair
Виж всички Захранвания Настолни компютри в категорията

Технически характеристики

Изходна мощност:	850 W
Модулен блок:	Да
Форм фактор:	SFX

Добави Ревю / Въпрос

Оцени продукта или задай въпрос?

0.00 от 0 ревюта

Добави ревю | Задай въпрос

5

0 ревюта
4

0 ревюта
3

0 ревюта
2

0 ревюта
1

0 ревюта

Вземи на изплащане

50°C CONTINUOUS OPERATING TEMPERATURE Ensures reliable power for your SFF PC, even under high-stress conditions.

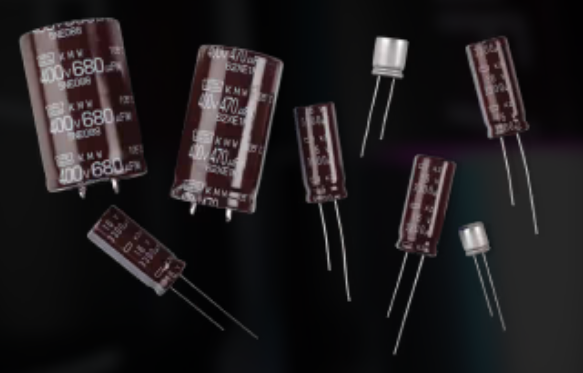

105°C-RATED CAPACITORS Built with 100% Industrial-grade, 105°C-rated Japanese electrolytic capacitors for unwavering power and reliability.

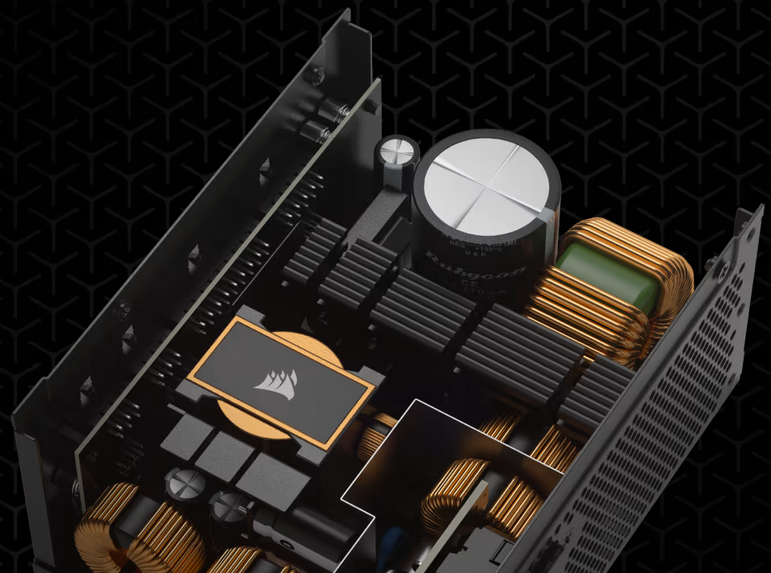

ATX 3.1 CERTIFIED The ATX 3.1 standard demands a high level of reliability and power efficiency. While many CORSAIR PSUs meet these requirements, SF Series PSUs are formally certified for ATX 3.1 compliance. PCIe 5.1 12V-2x6 GPU cable included for use with modern graphics cards such as the NVIDIA GeForce RTX 40 Series.

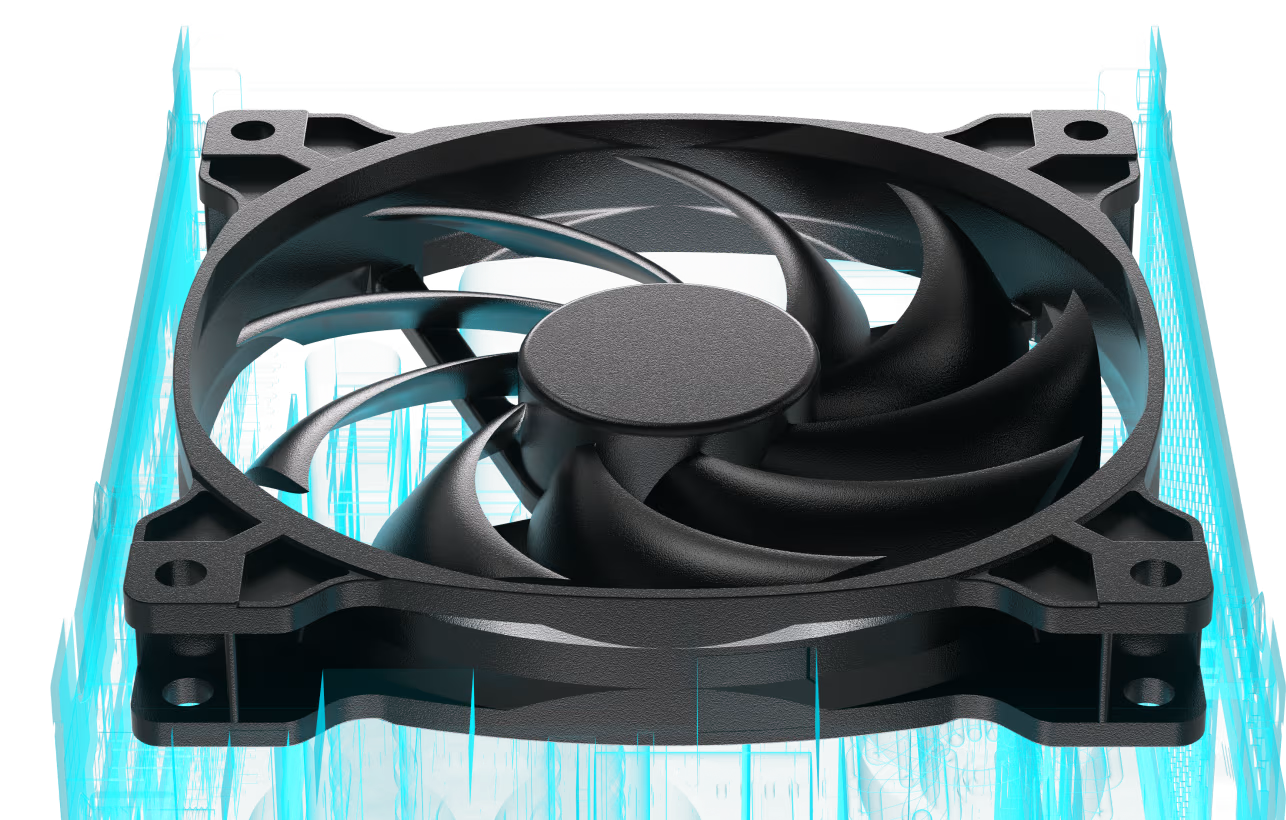

QUIET OPERATION WITH ZERO RPM MODE A fluid dynamic bearing cooling fan keeps noise to a minimum, with Zero RPM mode to eliminate fan noise completely at low to medium loads.
