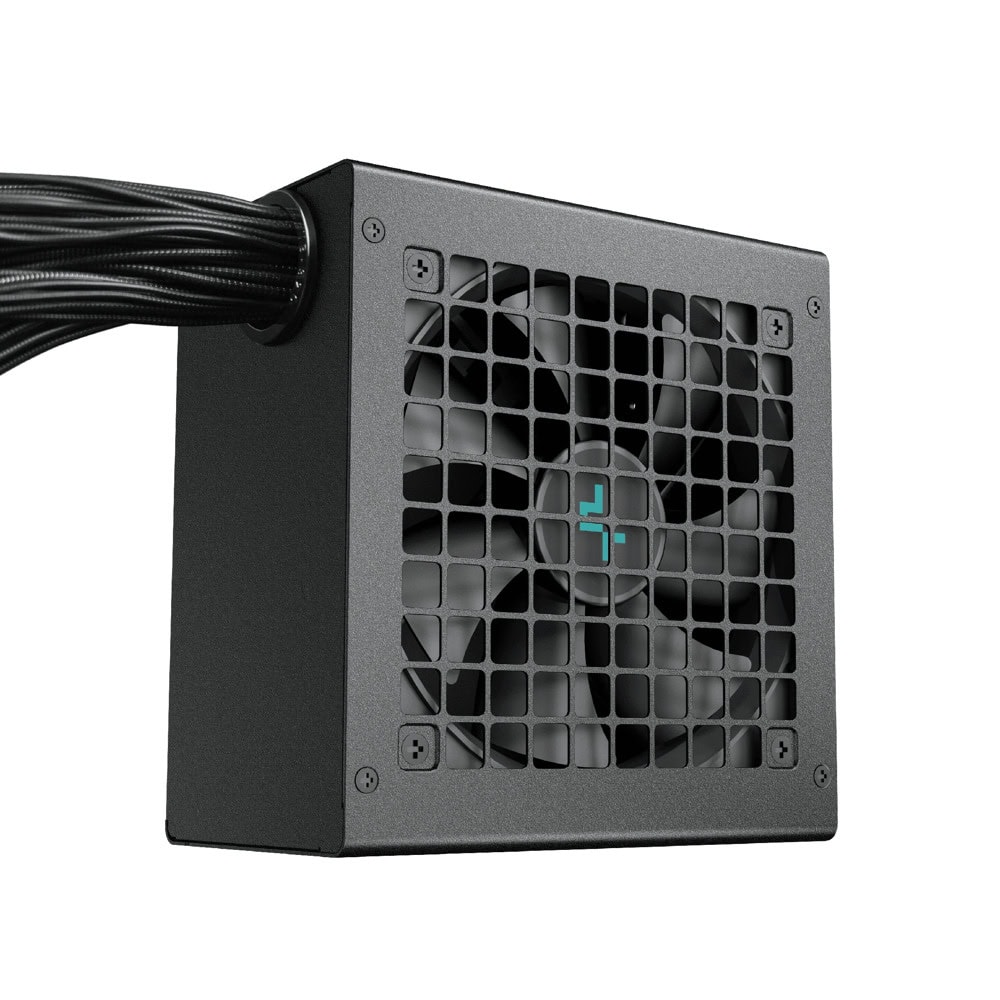

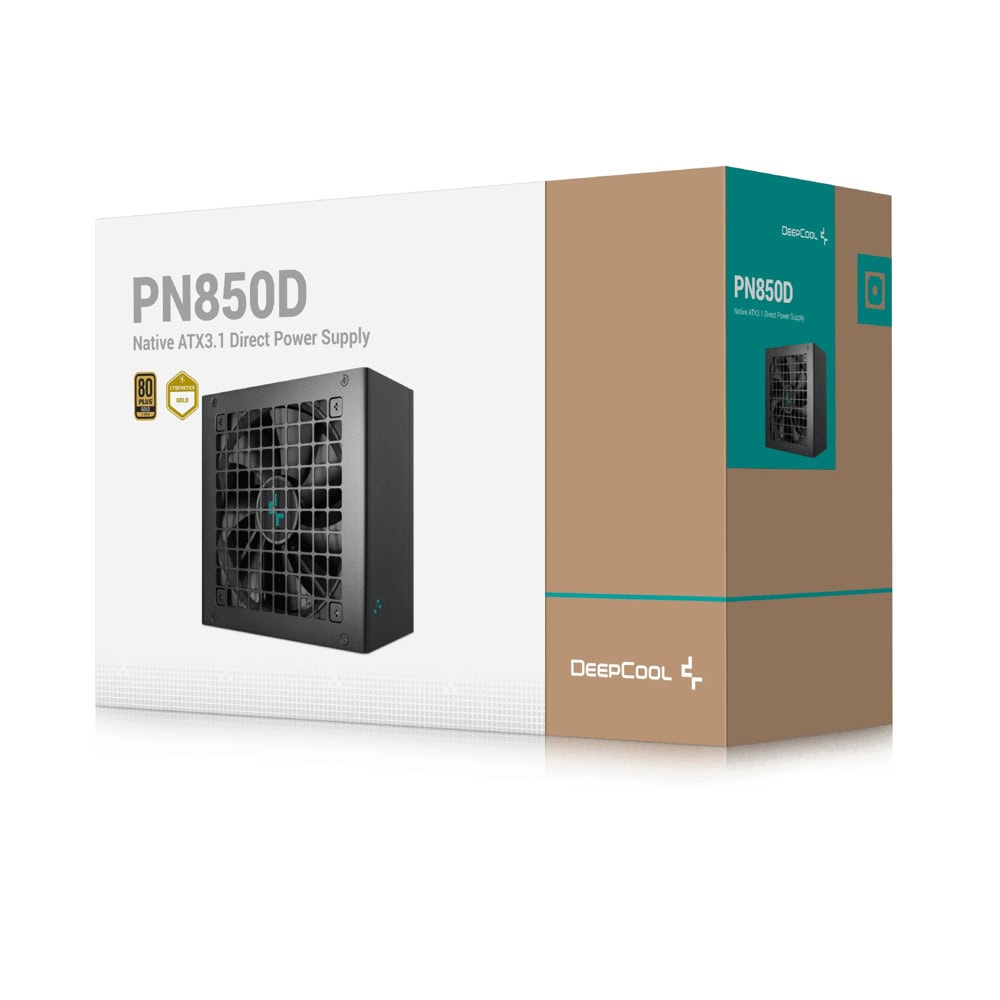

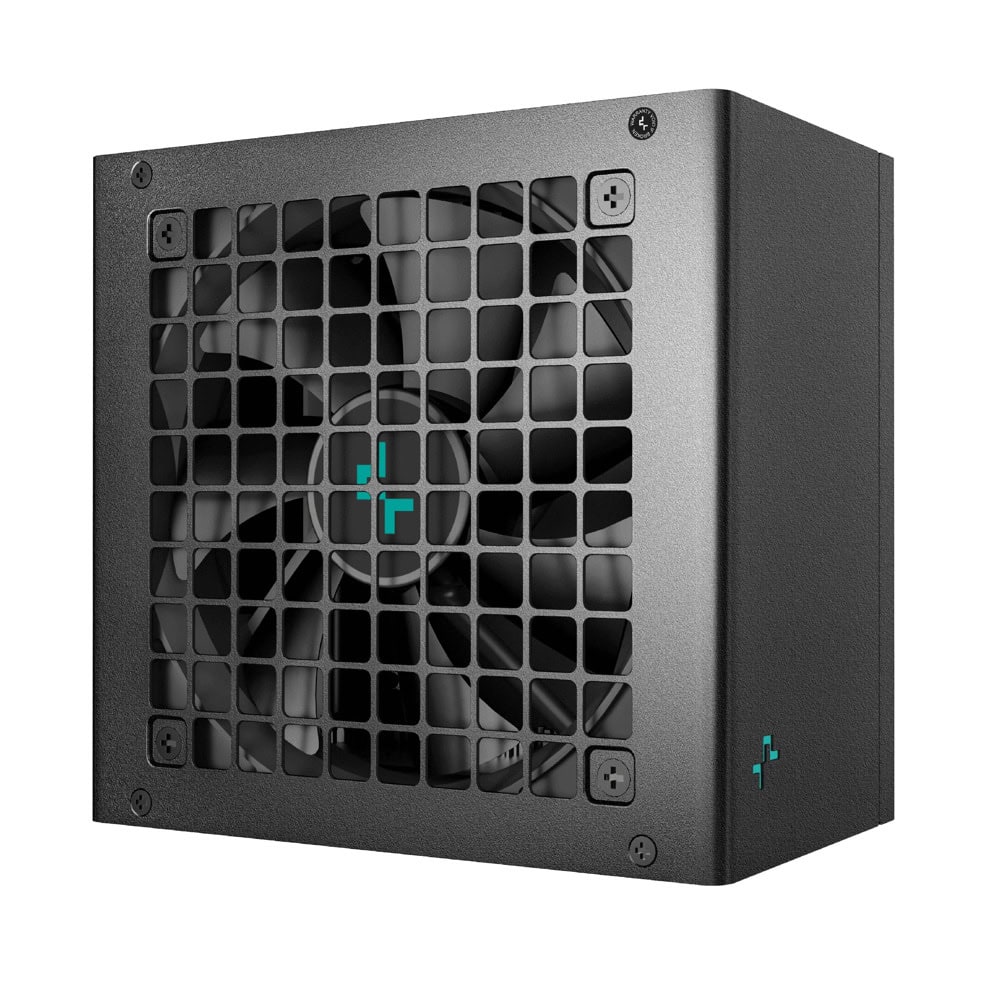

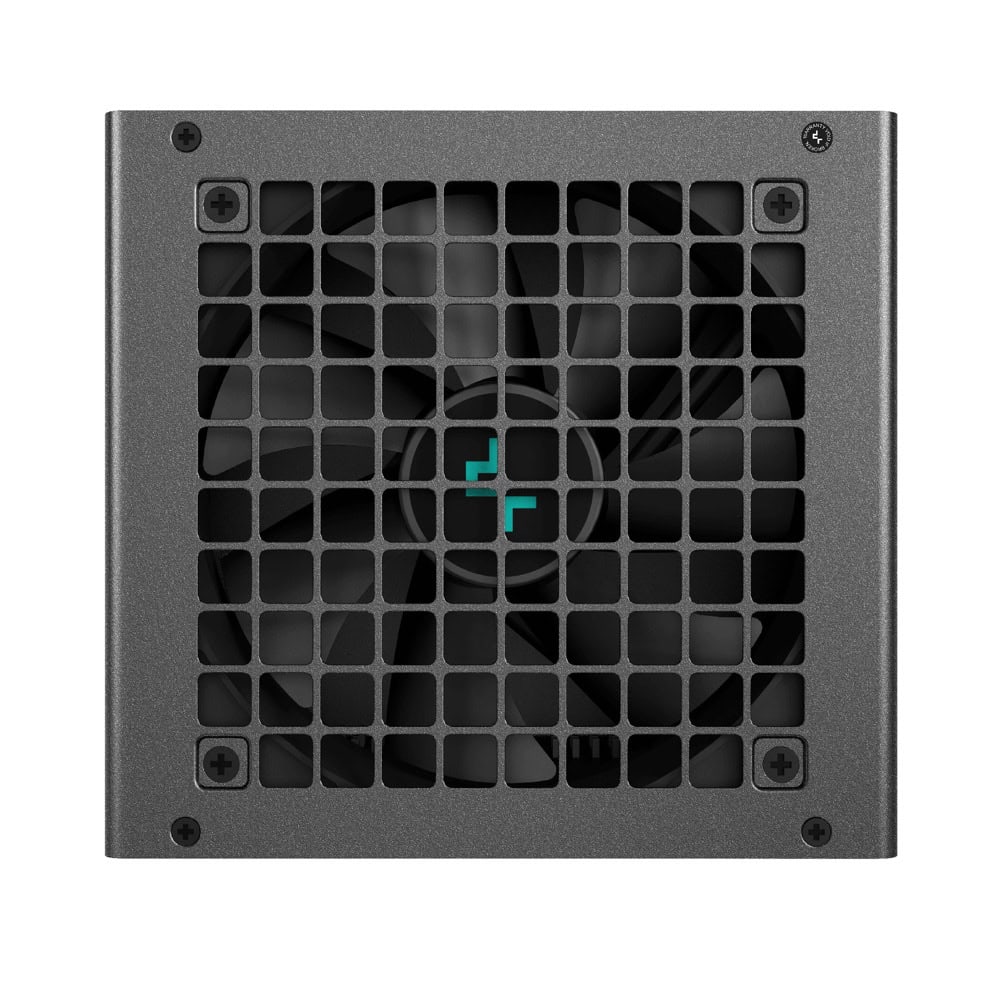

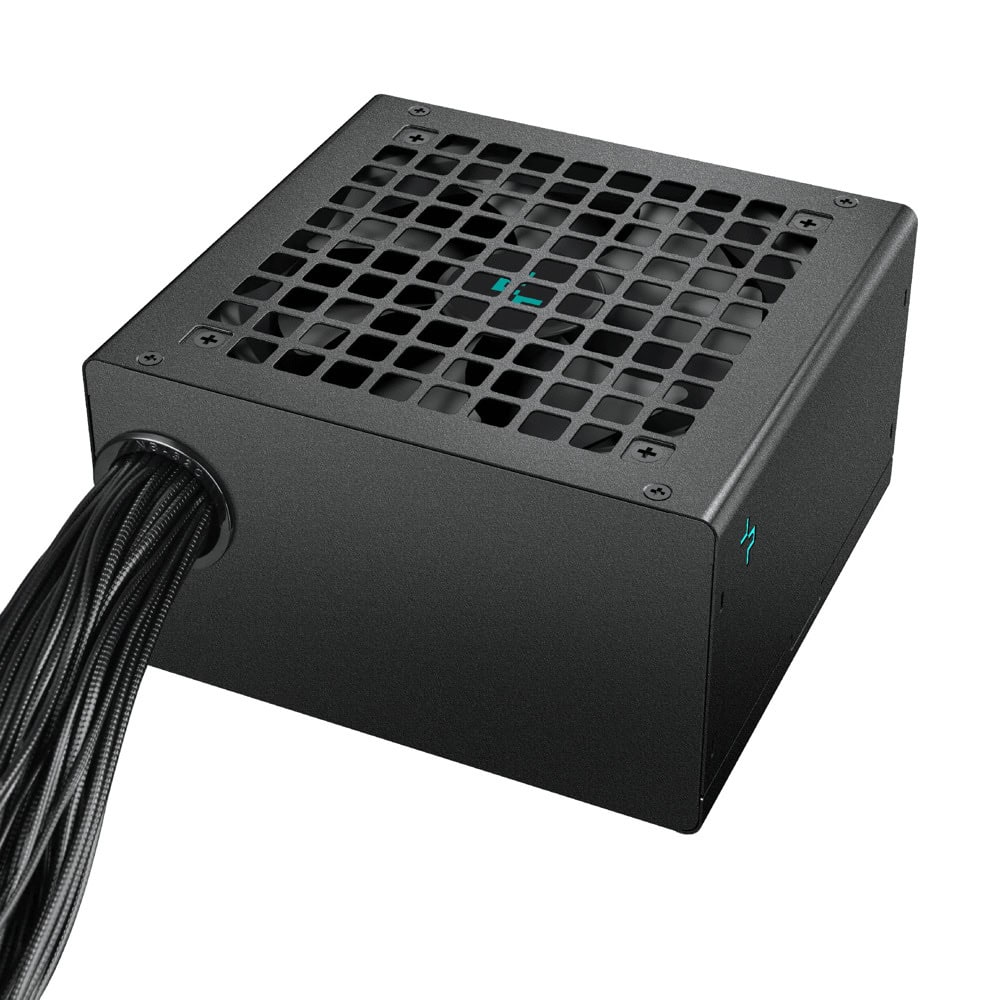

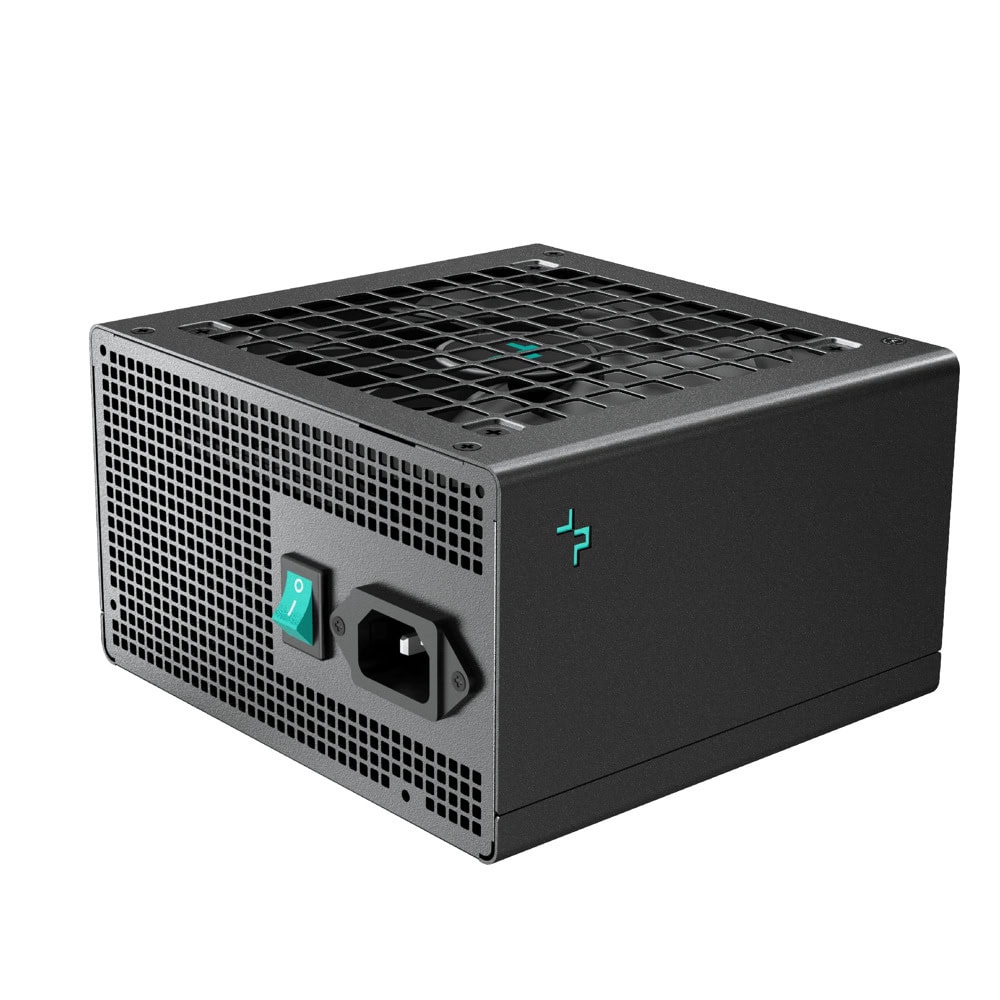

PN850D
The DeepCool PN850D is a new non-modular power supply that meets the latest Intel ATX 3.1 and PCIe 5.1 standards. With a dedicated 12V-2x6, 2 EPS, and 3 PCIe connectors, the PN850D provides stable power for a wide range of modern high-power components.
| Specification | Details |
|---|---|
| Type | ATX12V V3.1 |
| Product Dimensions | 150×140×86mm (W x L x H) |
| Efficiency Certification | 80Plus Gold |
| Fan Size | 120mm |
| Fan Bearing | HYB (Hydro Bearing) |
| Topology | Active PFC + Full Bridge SRC LLC + DC to DC |
| Capacitors | Chinese Electrolytic Capacitors |
| Power Good Signal | 100–150ms |
| Hold Up Time | ≥16ms (80% Load) |
| Efficiency | ≥90% Under Typical Load (50% Loading) |
| Protection | OPP / OVP / SCP / OTP / OCP / UVP / SIP / NLO |
| Operation Temperature | 0 – 40℃ |
| Regulatory | CE / FCC / CCC / TUV-RH / cTUVus / RCM / EAC |
| ErP Regulation | ErP 2014 |
| Environment Protection | WEEE / 中国 RoHS / Triman / P65 |
JAR Computers може да предложи ремонт/смяна/монтаж в наш сервиз или при партньор.
Виж още Захранвания Настолни компютри DeepCool
Виж всички Захранвания Настолни компютри в категорията
Технически характеристики
| Изходна мощност: | 850 W |
|---|---|
| Форм фактор: | ATX |
