Захранване DeepCool Gamer Storm, 850W, Active PFC, 80 Plus Gold, 120mm вентилатор

DeepCool Gamer Storm

ENGINEERED
FOR MODERN COMPONENTS

With the ability to provide twice the total system power, 2.5 times the 12V CEM peak power, and three times the rated power of the 12V-2x6 cable for 0.1 ms, random power spikes will never be an issue. The PQ850G will provide stable and consistent power for legacy and modern power-hungry PCs for the foreseeable future.

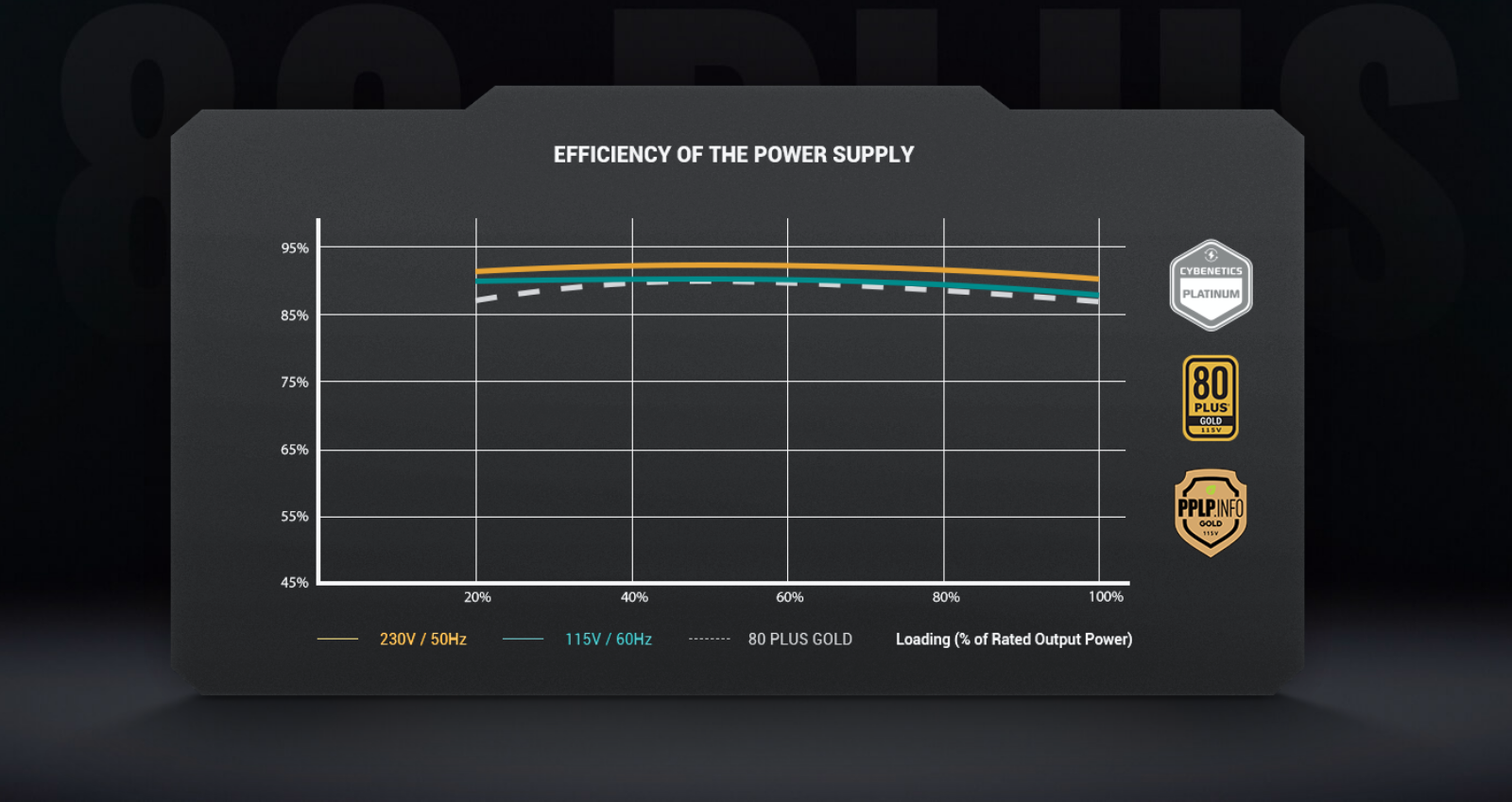

THE GOLD STANDARD

80 Plus Gold certified to meet a 92% high level of power efficiency under typical loads of 50%, while Cybenetics and PPLP also rates each PQ850G unit as Gold as well.

TRUST-WORTHY STABILITY

Through the use of a premium full Japanese electrolytic capacitors, active PFC, half-bridge LLC, and a DC-to-DC topology, the PQ850G can keep the hold-up time to ≥ 16 ms under a 100% full load—a higher standard than required to meet ATX3.1 compliance.

PCI-E 5.1 PERFECTION

Equipped with a high-grade sleeved 105C-resistant 16AWG copper-core 12V-2x6 cable, the PQ850G provides up to 600W for modern GPUs.

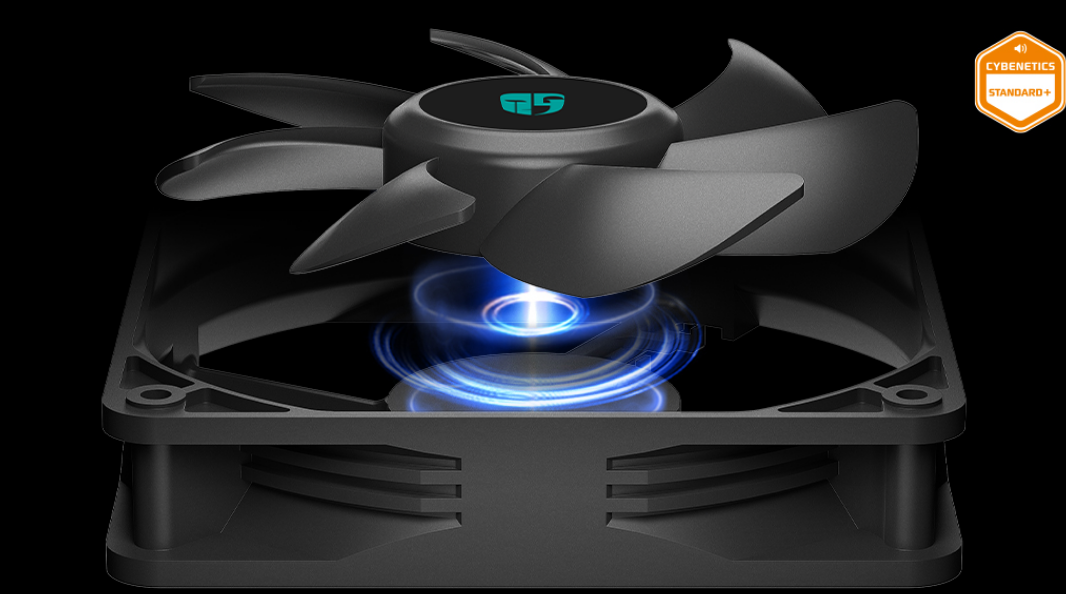

DYNAMIC FDB FAN

The PQ850G comes equipped with a dynamic 120mm FDB fan that will adjust its speed based on the cooling needs of the advanced internal circuitry.

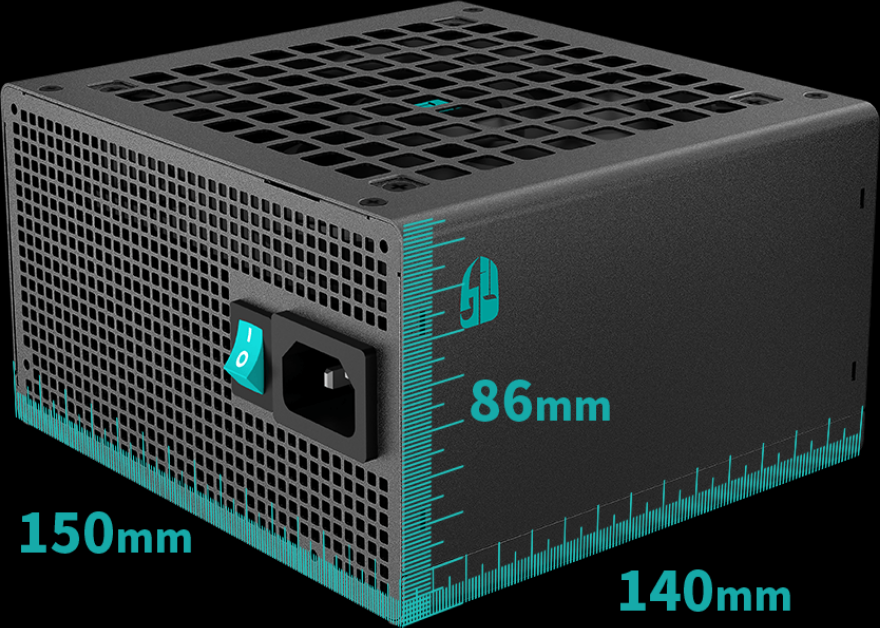

COMPACT DESIGN

Coming in at an agreeable 140x150x86mm, the PQ850G can easily fit into the vast majority of cases that support ATX-sized PSUs.

Захранване и ефективност

• Мощност: 850 W
• Стандарт: ATX 3.1
• PFC: Active PFC
• Сертификати: 80 Plus Gold, Cybenetics Platinum, CE
• Декларирана ефективност: до 92%

Производителност и надеждност

• Поддръжка на пикови натоварвания (ATX 3.1): 2.5x 12V CEM peak power
• Краткотраен пик през 12V-2x6: до 3x номиналната мощност на кабела за 0.1 ms
• Защити: OPP, OVP, SCP, OTP, OCP, UVP, NLO, SIP

Охлаждане и шум

• Охлаждане: 120 mm вентилатор

Окабеляване и съвместимост

• Тип окабеляване: напълно модулно
• PCIe Gen 5.1: 1 x 12V-2x6 (16-pin)
• 12V-2x6 кабел: висок клас, оплетен, 16AWG, медна сърцевина, устойчив до 105°C
• Захранване за модерни GPU: до 600W през 12V-2x6
• Конектори:
  • 1 x 20+4 pin ATX (24-pin)
  • 2 x 4+4 pin ATX/EPS (CPU)
  • 3 x PCI-Express 6+2 pin
  • 1 x PCIe 5.1 (12V-2x6)
  • 9 x SATA
  • 3 x Molex

Размери и тегло

• Размери (Д x Ш x В): 140 x 150 x 86 mm

JAR Computers може да предложи ремонт/смяна/монтаж в наш сервиз или при партньор.
