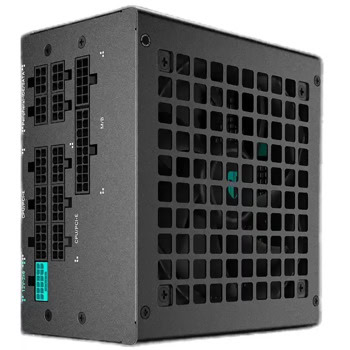

Name: Захранване DeepCool Gamer Storm, 1200W, Active PFC, 80 Plus Gold, 120mm вентилатор
Brand: DeepCool
SKU: PWRPCDEEPCOOLPQ1200G
Price: 125.19 EUR
Availability: InStock

Описание Характеристики Ревюта / Въпроси

DeepCool Gamer Storm

ENGINEERED
FOR MODERN COMPONENTS

With the ability to provide twice the total system power, 2.5 times the 12V CEM peak power, and three times the rated power of the 12V-2x6 cable for 0.1 ms, random power spikes will never be an issue. The PQ1200G will provide stable and consistent power for legacy and modern power-hungry PCs for the foreseeable future.

THE GOLD STANDARD

80 Plus Gold certified to meet a 92% high level of power efficiency under typical loads of 50%, while Cybenetics and PPLP also rates each PQ1200G unit as Gold as well.

TRUST-WORTHY STABILITY

Through the use of a premium full Japanese electrolytic capacitors, active PFC, half-bridge LLC, and a DC-to-DC topology, the PQ1200G can keep the hold-up time to ≥ 16 ms under a 100% full load—a higher standard than required to meet ATX3.1 compliance.

DYNAMIC FDB FAN

The PQ1200G comes equipped with a dynamic 120mm FDB fan that will adjust its speed based on the cooling needs of the advanced internal circuitry.

Захранване и ефективност

Мощност: 1200 W
Формат / стандарт: ATX 3.1
Сертификати: 80 Plus Gold, Cybenetics Gold Certified, CE
Ефективност: до 92%
PFC: Active PFC

Производителност и надеждност

Поддръжка на пикови натоварвания: 2.5 пъти 12V CEM peak power
Краткотрайни пикове през 12V-2x6: до 3 пъти номиналната мощност на 12V-2x6 кабела за 0.1 ms
Защити: OPP, OVP, SCP, OTP, OCP, UVP, NLO, SIP

Охлаждане и шум

Охлаждане: 120 mm вентилатор

Окабеляване и съвместимост

Тип окабеляване: напълно модулно
PCIe Gen 5.1: 1 x 12V-2x6 (16-pin)
12V-2x6 кабел: оплетен, 16AWG, медна сърцевина, устойчив до 105°C
Захранване за модерни GPU: до 600W през 12V-2x6
Конектори:
- 1 x 20+4 pin ATX (24-pin)
- 2 x 4+4 pin ATX/EPS (CPU)
- 4 x PCI-Express 6+2 pin
- 1 x PCIe 5.1 (12V-2x6)
- 9 x SATA
- 3 x Molex
