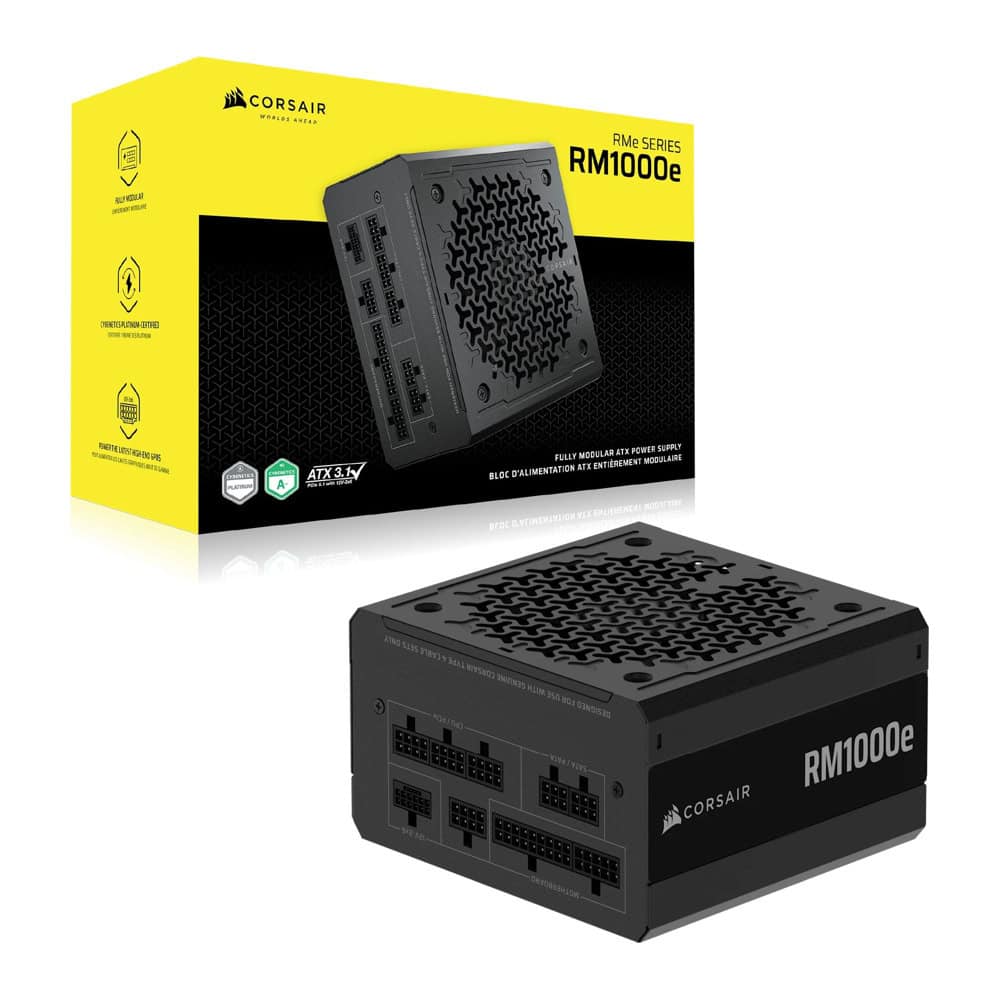

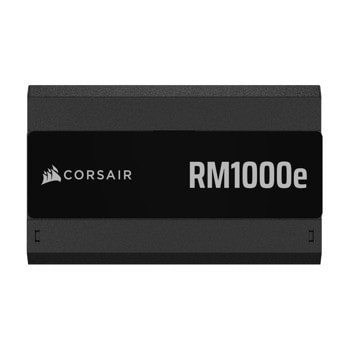

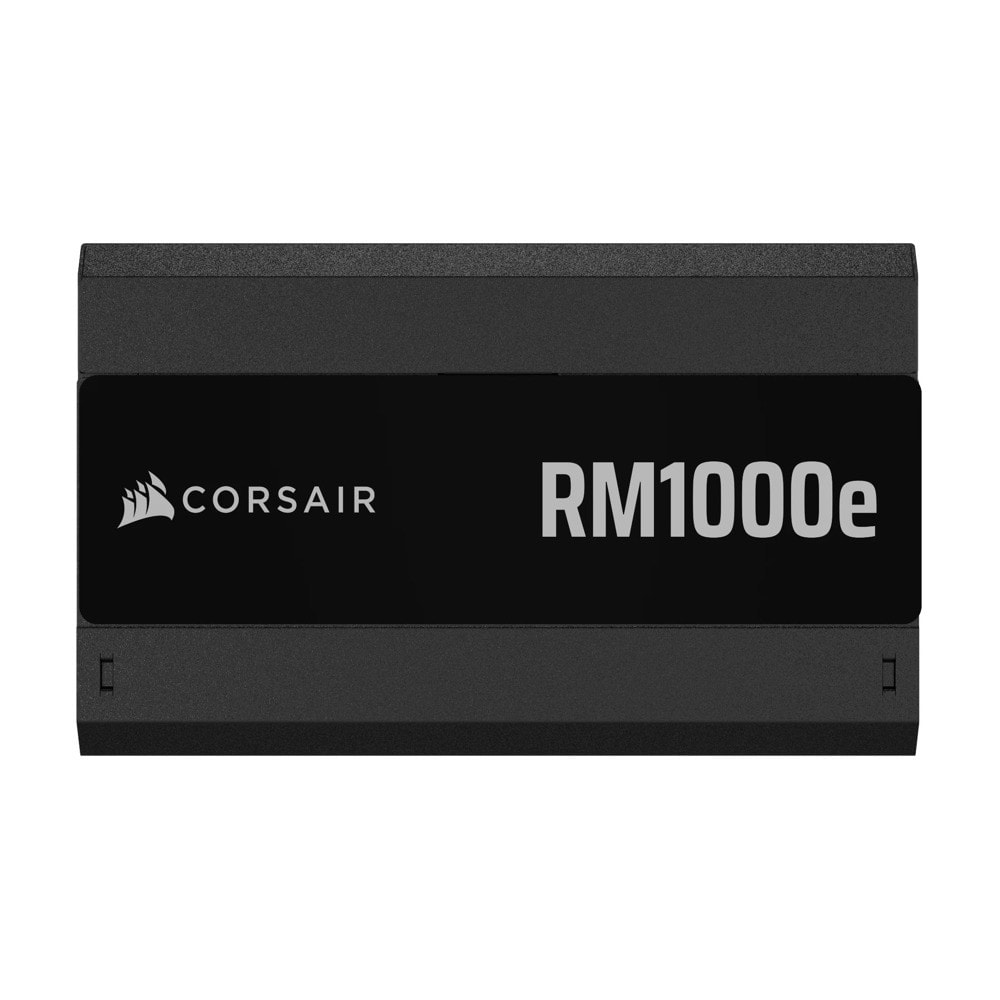

Захранване Corsair RM1000e (CP-9020297-EU), 1000W, Active PFC, 80 Plus Gold, 120mm вентилатор

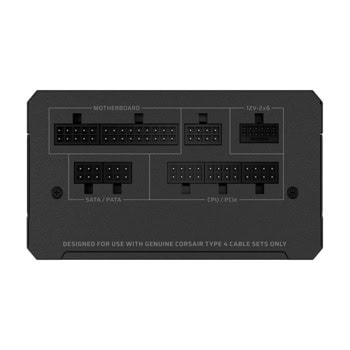

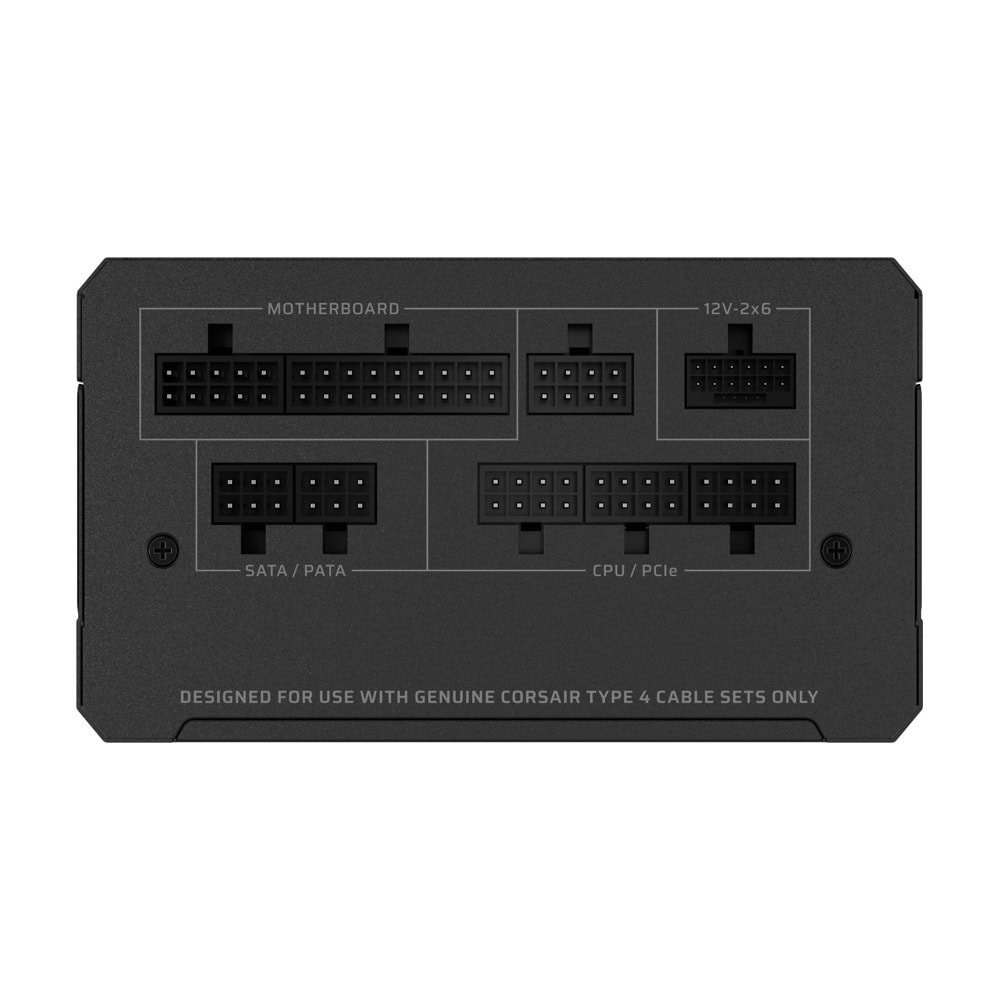

Fully modular
 cabling

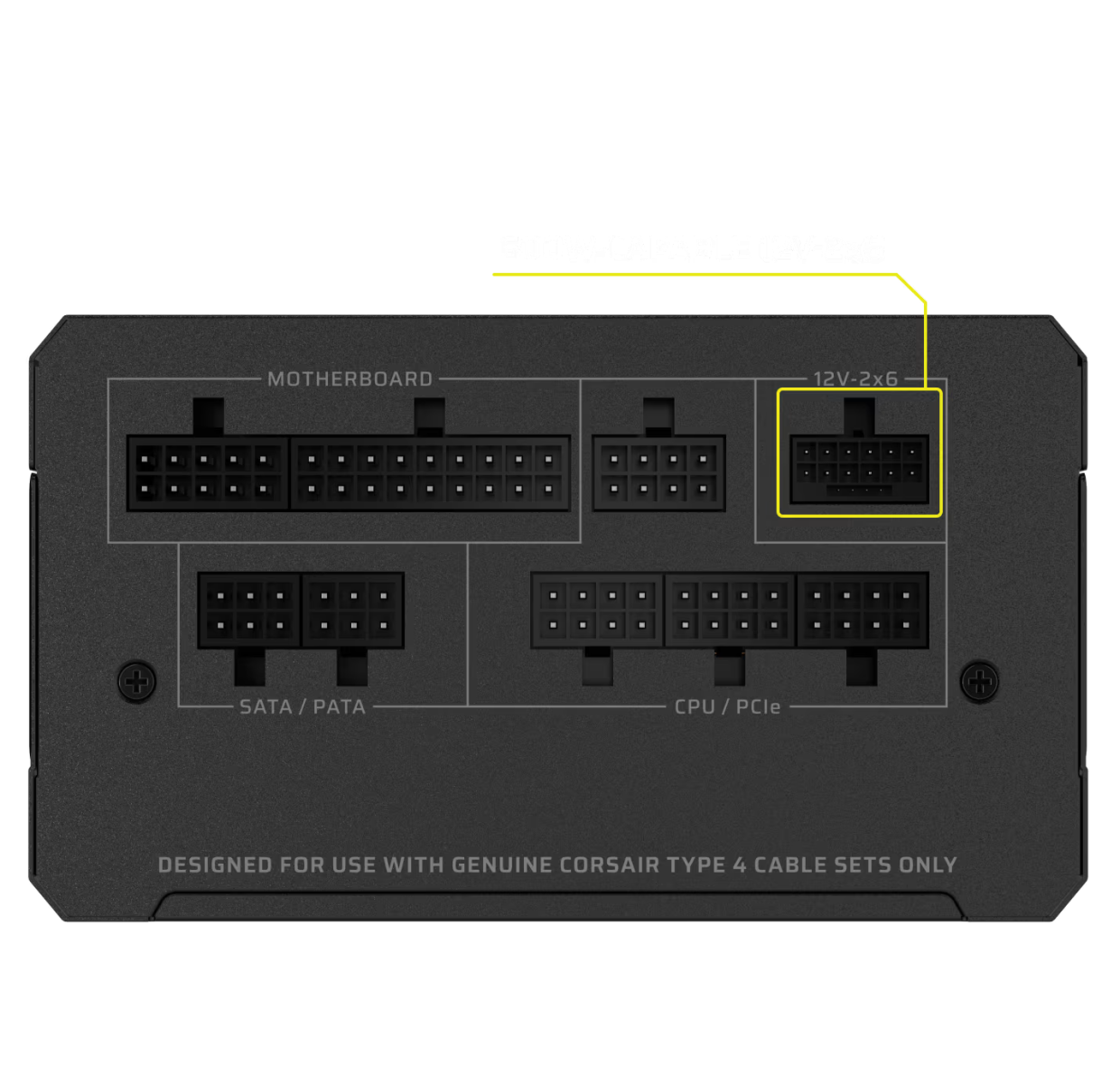

Keep cable clutter down by connecting only the cables your system needs. A native 600W 12V-2x6 GPU connector and multiple 8-pin PCIe connectors mean RMe power supplies more than meet the needs of modern and upcoming GPUs and CPUs.

ATX 3.1 certified

The ATX 3.1 standard demands a high level of reliability and power efficiency. While many CORSAIR PSUs meet these requirements, RMe Series PSUs are formally certified for ATX 3.1 compliance.

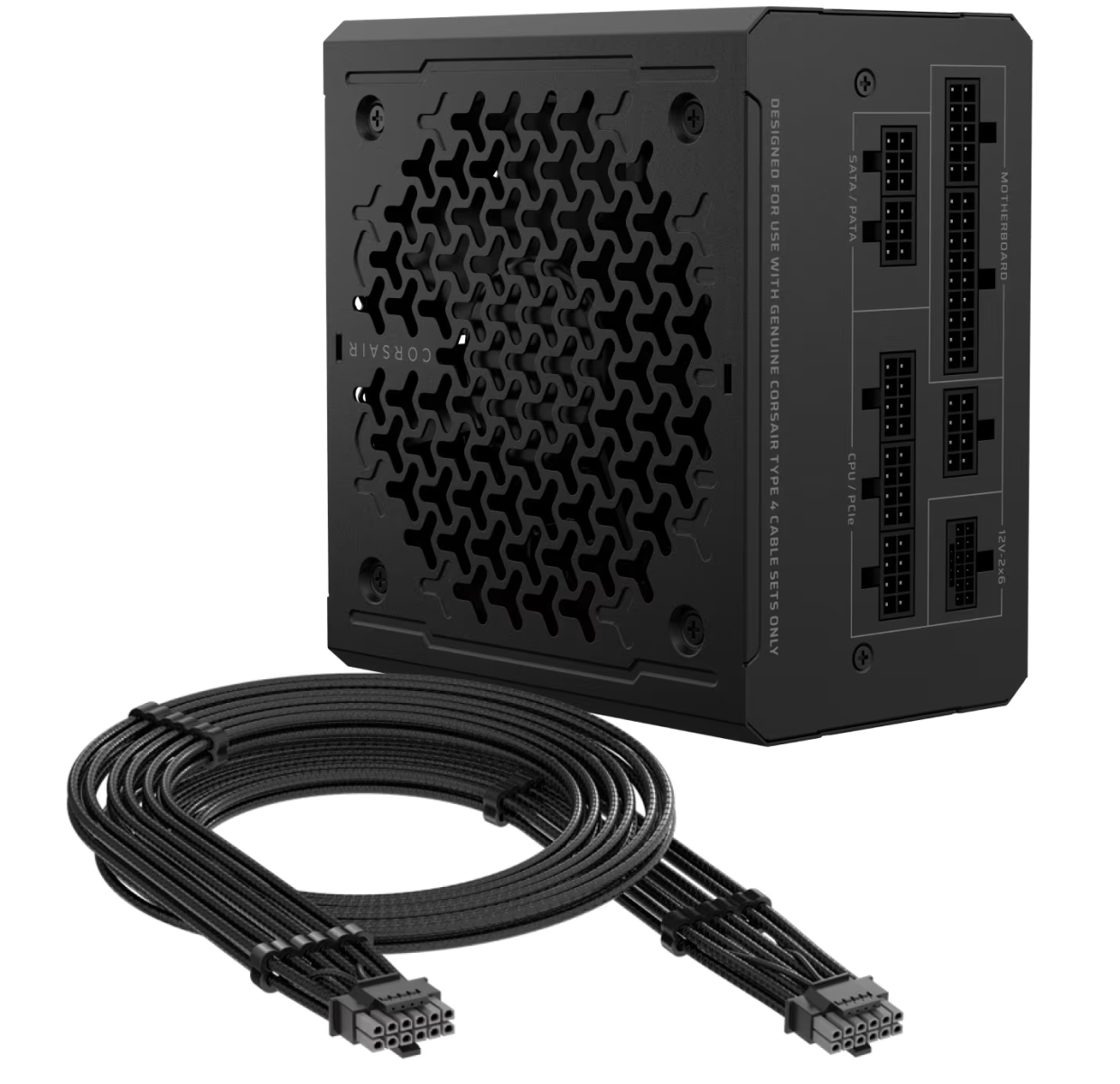

PCIe 5.1 12V-2x6 GPU cables included for use with modern and next-gen graphics cards.

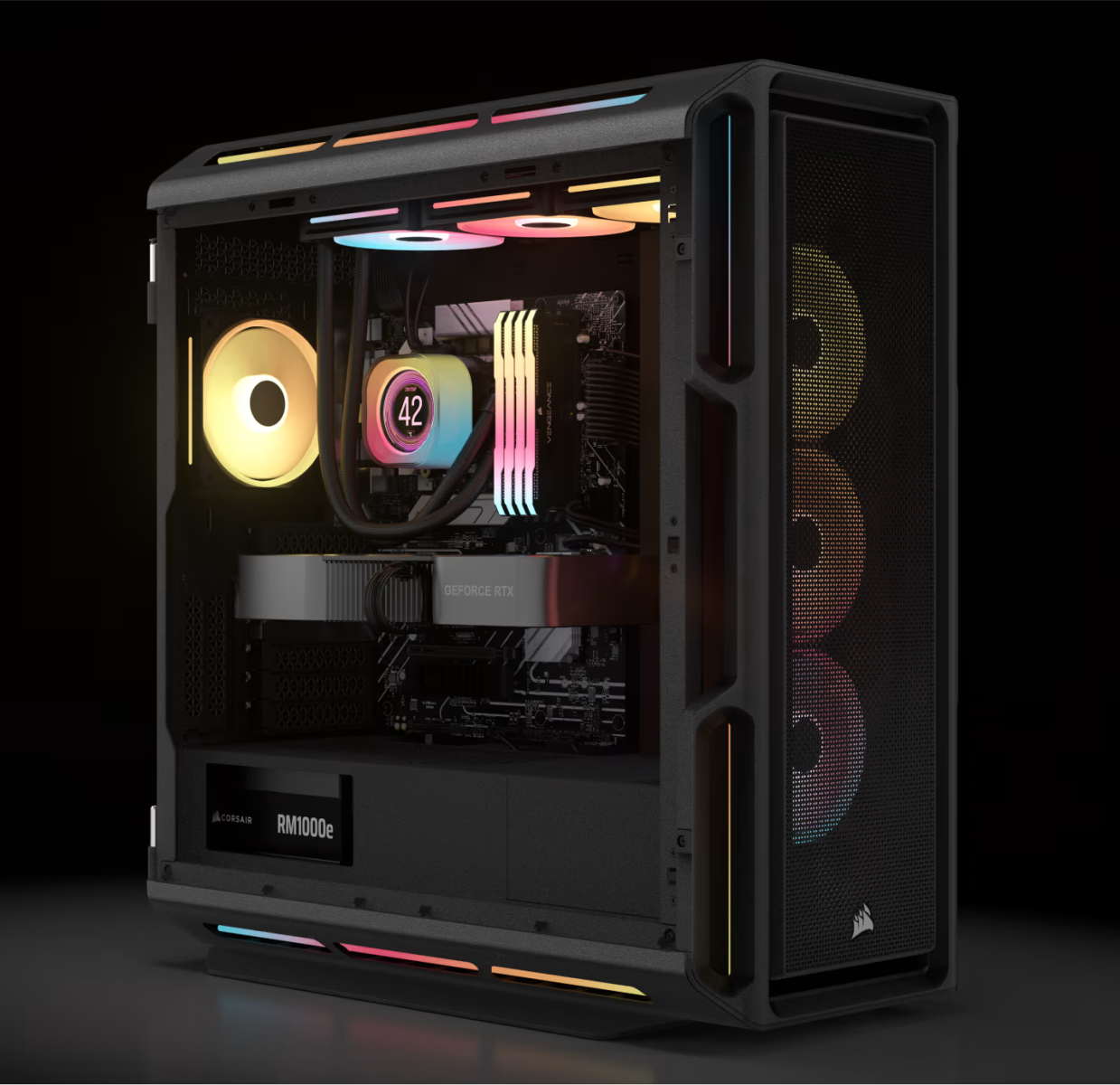

Low noise operation in a compact size

A compact 140mm-long casing ensures an easy fit in modern enthusiast PC cases.

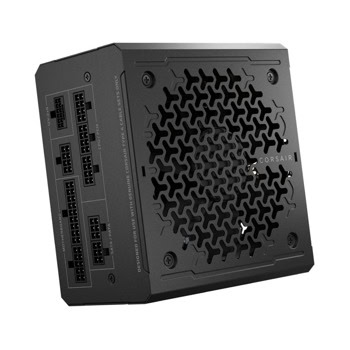

A 120mm rifle bearing fan with a specially calculated fan curve keeps fan noise down, even when operating at full load.

Technology and reliability

For consistent, reliable power and superb electrical performance, each RMe Series power supply features a robust resonant LLC topology with DC-DC conversion and 105° rated industrial-grade capacitors.

With precise timings, RMe supports Modern Standby, ensuring extremely fast wake-from-sleep times and better low-load efficiency.

QTY

CABLE

CONNECTOR SPACING

TOTAL CONNECTORS

CONNECTORS PER CABLE

TOTAL LENGTH

CABLE TYPE

1

Modular ATX 24-pin

-

1

1

610mm
(± 10mm)

Embossed

2

EPS / ATX 12V 8-pin (4+4)

-

1

2

750mm
(± 10mm)

Embossed

1

12V-2x6 (12+4) Pin

-

1

1

650mm
(± 10mm)

Embossed

1

12V-2x6 to Dual 8-Pin (6+2)

-

2

2

650mm
(± 10mm)

Embossed

2

PCIe 8-Pin (6+2)

-

1

2

650mm
(± 10mm)

Embossed

1

SATA (4 Straight SATA)

450mm, 100mm, 100mm, 100mm

4

4

750mm
(± 10mm)

Embossed

1

SATA / PATA (2 Straight SATA) (2 Straight PATA)

450mm, 100mm, 100mm, 100mm

4

4

750mm
(± 10mm)

Embossed
