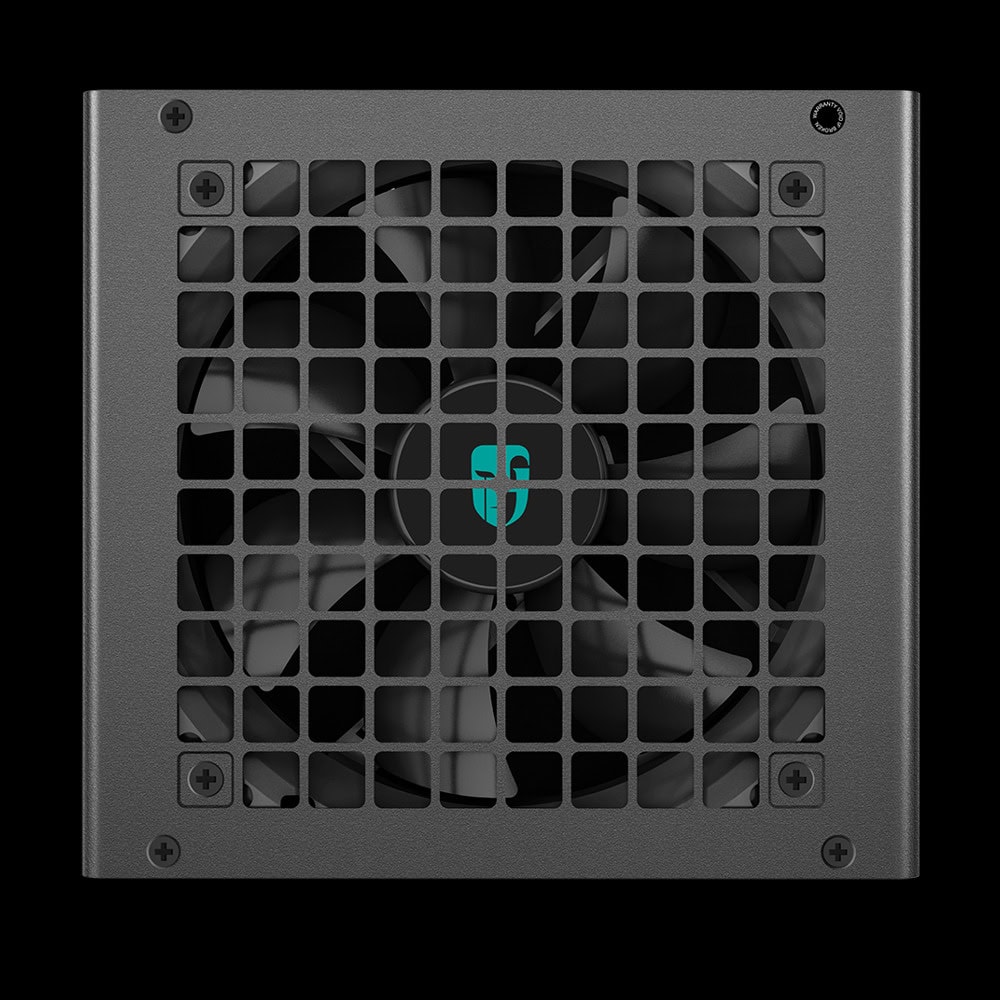

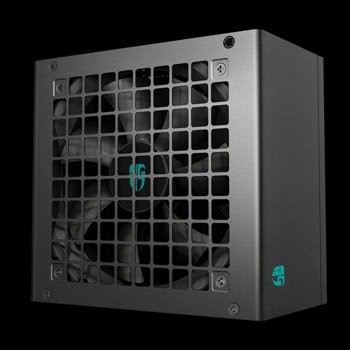

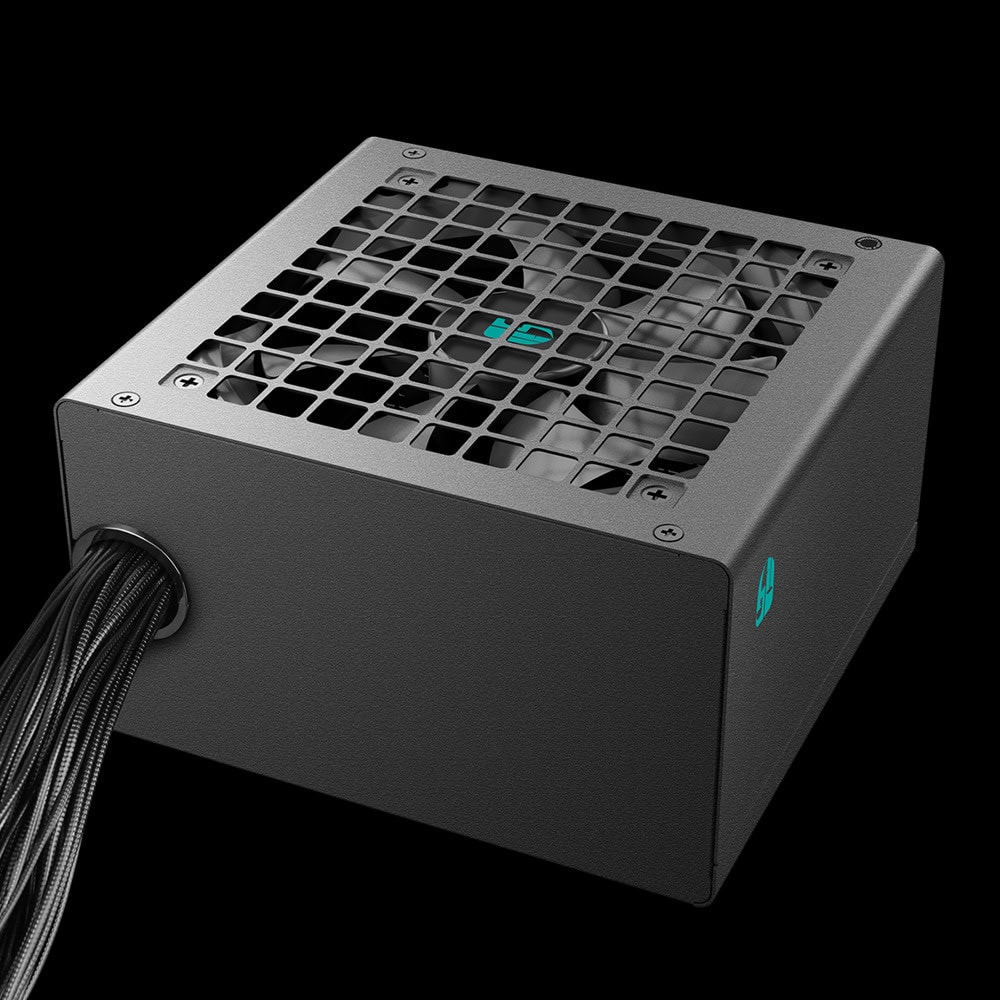

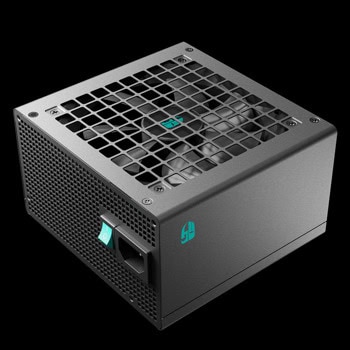

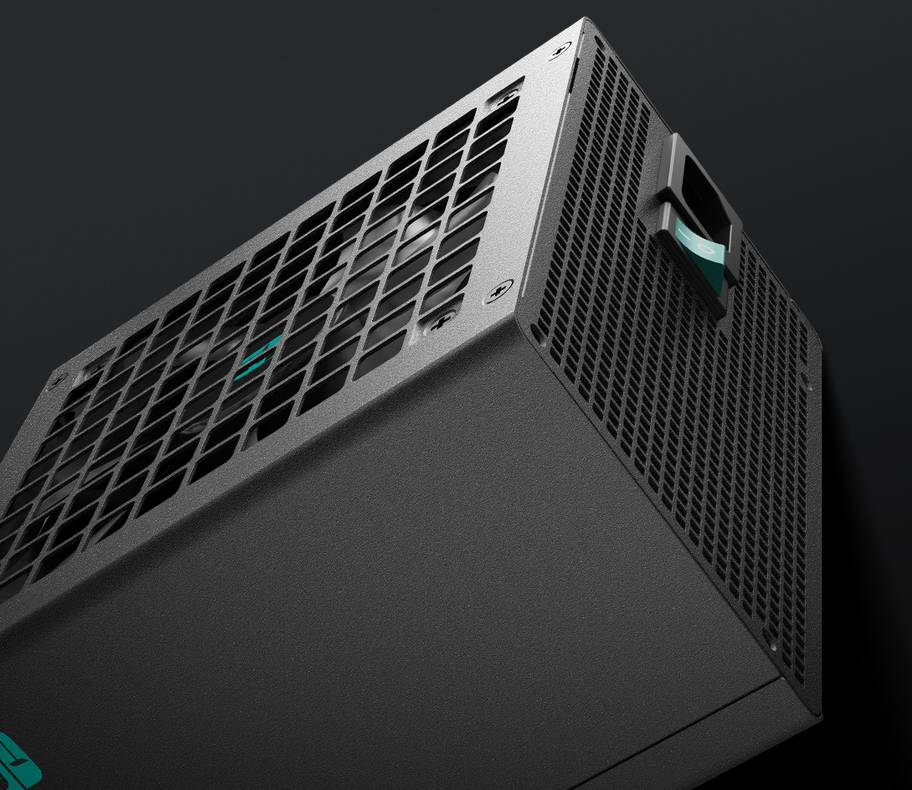

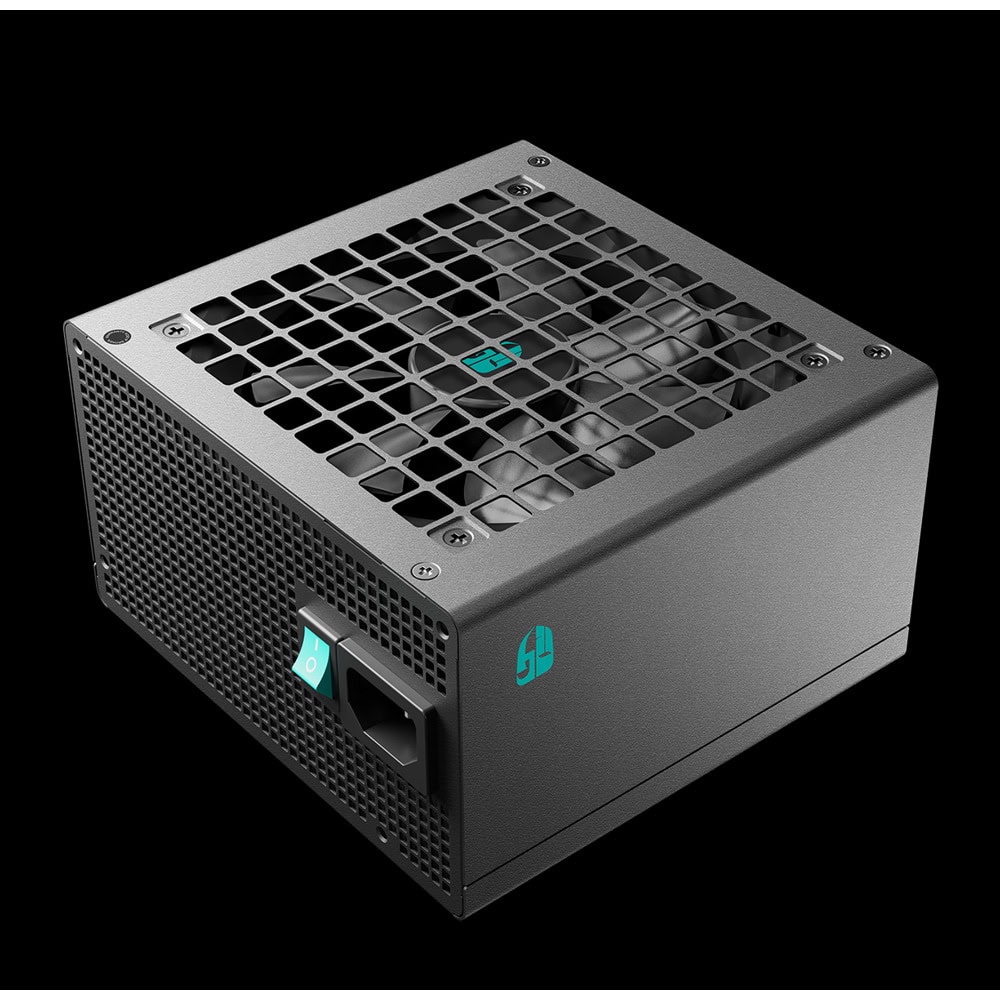

Захранване DeepCool Gamer Storm PF550X, 550W, Active PFC, 80 Plus Bronze, 120mm вентилатор

DeepCool Gamer Storm PF550X

TAIWANESE + JAPANESE PREMIUM CAPACITORS

By using the Taiwanese premium solid and electrolytic capacitors, the PF-X series can ensure a hold-up time ≥ 16ms under 75% load, which provides reliable protection for abnormal power outages.
The 5V Stand-By rail uses an electrolytic capacitor from two major Japanese brands, which have a four-fold life span compared with normal, ensuring stable standby throughout the day.

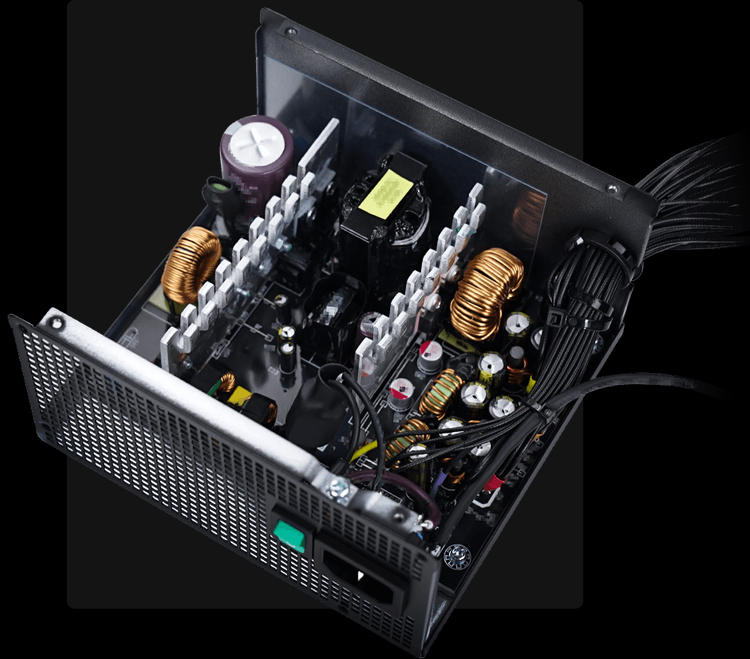

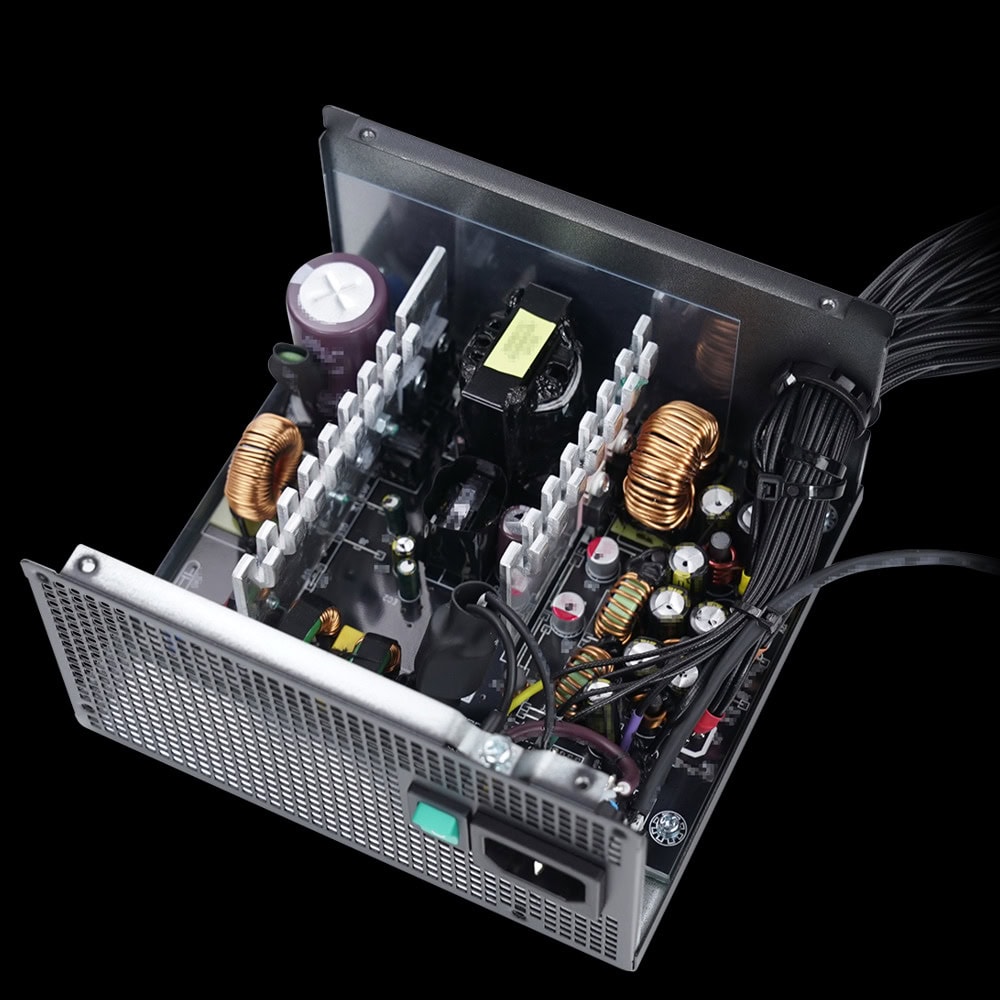

RELIABLE TOPOLOGY

To meet the Intel ATX 2.52 standard, using Active PFC + Double Forward + DC to DC, combined with a dual-stage EMI circuit. It significantly reduces ripple noise and voltage deviation, providing better electrical performance and compatibility.

WIDE VOLTAGE ADAPTATION

Supporting 180V-264V wide voltage operation and extreme full-load working conditions under room temperature at a 160V low-voltage grid were supported to avoid voltage instability shutdown.

Strict Safety Standard

Strictly following global safety standards, beyond competitors, including the 40℃ and 5000m safety levels, meets the requirements for high-temperature and high-altitude areas

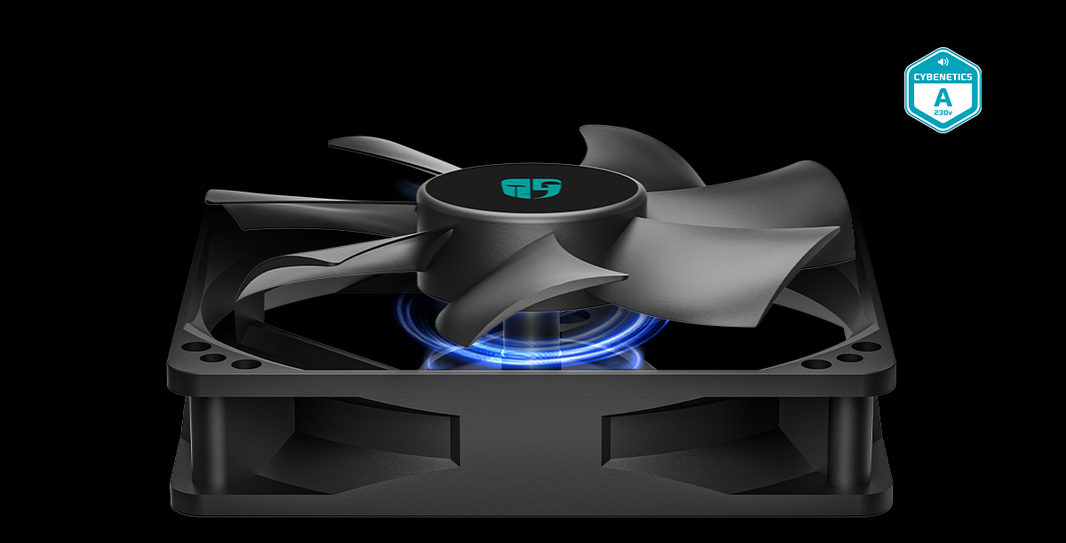

40K HRS MTBF LONG-LIFE FAN

A high-quality long-life bearing fan extends operational life by 30% compared to a normal fan and can continuously function for 7×24 hrs in a 40℃ environment. Meanwhile, the aerodynamic design based on PCB layout and flow resistance offers superior stability and quiet operation.

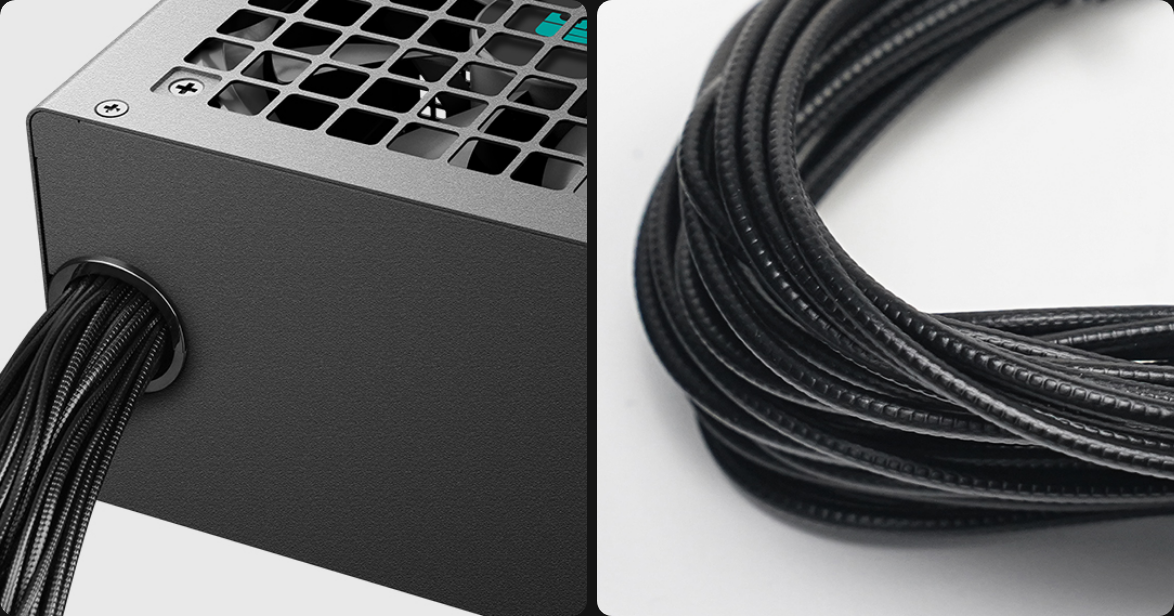

High-Grade Configurations

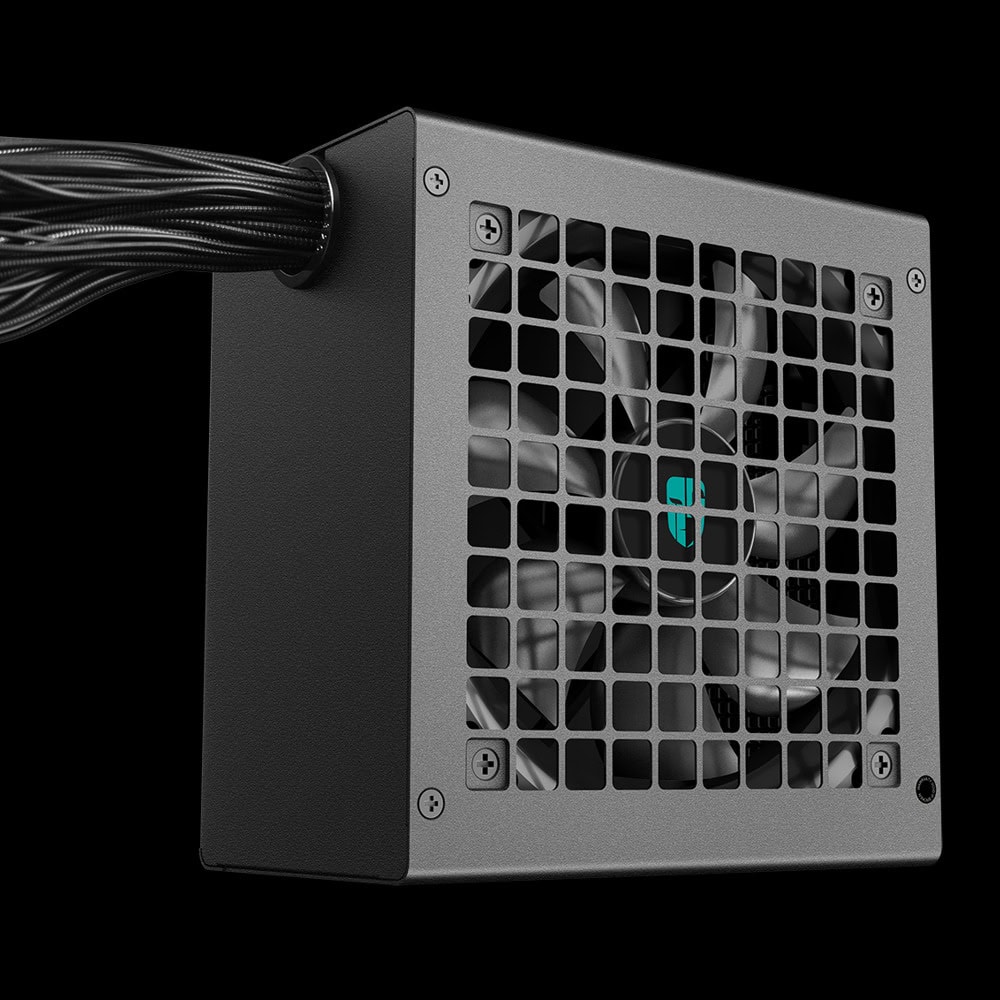

Equipped with GAMER STORM's custom-molded sleeved cables significantly enhances the installation and wiring experience.

Total Power Output: 550 W.

Form Factor: ATX12V V2.52.

Dimensions (W × L × H): 150 × 140 × 86 mm.

Efficiency Certifications: 80 PLUS 230V EU Bronze, Cybenetics 230V Bronze, PPLP 230V Bronze.

Efficiency: ≥88% at 50% load.

Cooling Fan: 120 mm.

Fan Bearing: Longlife HYB.

Topology: Active PFC + DC-to-DC.

Capacitors: Taiwanese and Japanese electrolytic capacitors.

Power Good Signal: 100–150 ms.

Hold-Up Time: ≥16 ms (at 75% load).

Protection Features: OPP, OVP, OCP, SCP, OTP, UVP, SIP, and NLO.

Operating Temperature: 0°C to 40°C.

Regulatory Certifications: CE, TÜV-RH, CCC, RCM, KC, and EAC.

Environmental Compliance: ErP 2014, WEEE, China RoHS, Triman, and EAC.

MTBF (Mean Time Between Failures): 40,000 hours.
