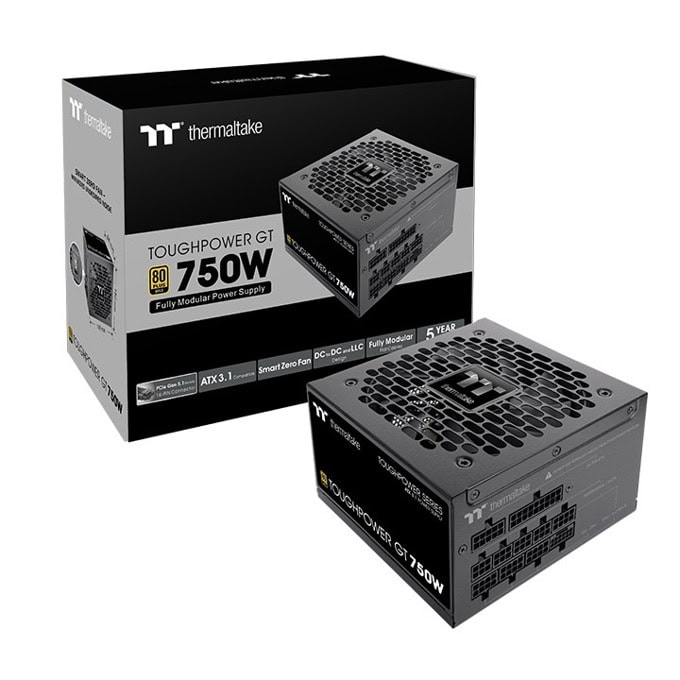

TOUGHPOWER GT 750W
80 PLUS Gold certified, fully modular PSU, compatible with ATX 3.1 specifications, and equipped with a native 12V-2x6 connector.

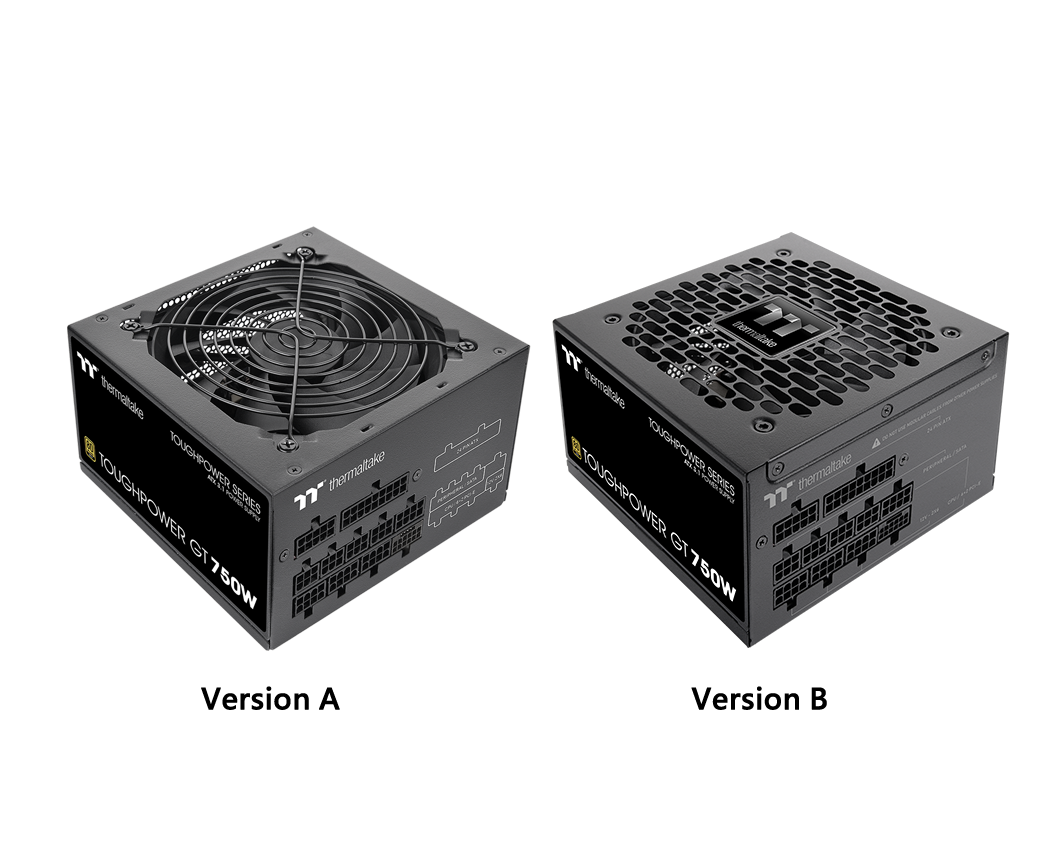

Please note that the Toughpower GT 750W comes in two authentic versions (Version A and Version B).
High Amperage Single +12V Rail & High-Class Technologies

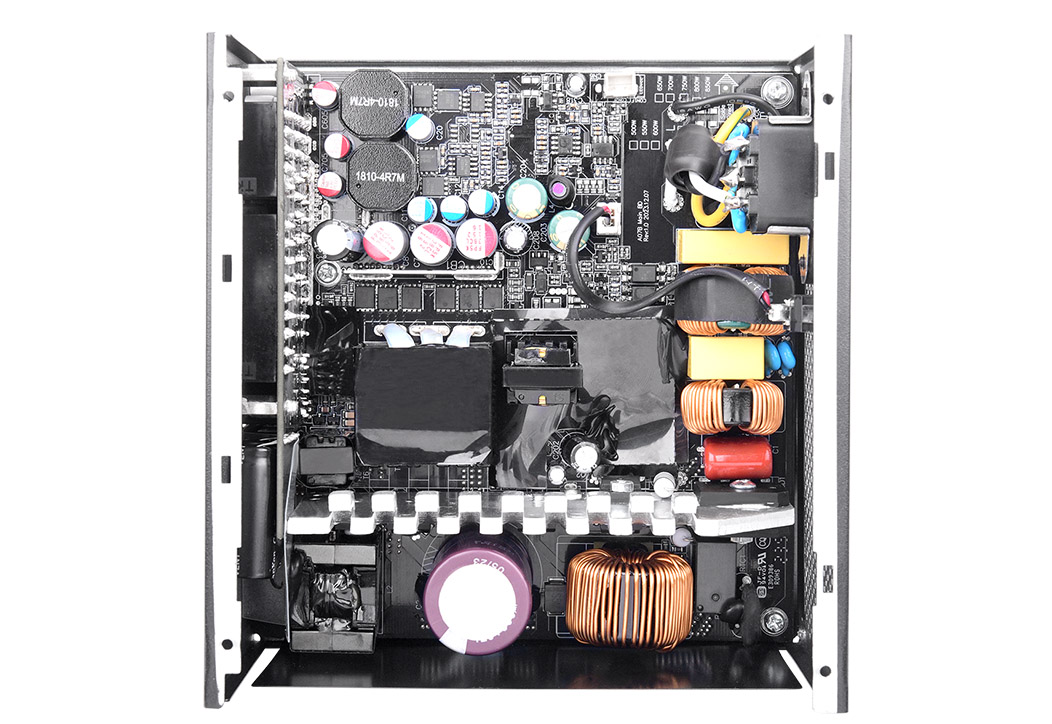

Powerful single +12V rail can properly deliver the power you need for the best compatibility. The use of LLC and DC to DC circuit design provides very stable operation and enhanced voltage regulation.
| AC INPUT | Input Voltage: 100 - 240V~ Input Current: 10A Max. Frequency: 50Hz-60Hz | ||||
| DC OUTPUT | +3.3V | +5V | +12V | -12V | +5VSB |
| Max Output Current | 20A | 20A | 62.5A | 0.3A | 3A |
| Max Output Power | 100W | 750W | 3.6W | 15W | |
| Total Power | 750W | ||||
| watts | 750W |
|---|---|
| Model | TPD-750AH2FXG-3 |
| Max. Output Capacity | 750W |
| Color | Black |
| Dimension ( W / H / D ) | 150mm(W)x86mm(H)x140mm(D) |
| PFC (Power Factor Correction) | Active PFC |
| Power Good Signal | 100-250 msec |
| Hold Up Time | > 17msec at 80% load |
| Input Current | 10A Max. |
| Input Frequency Range | 50Hz-60Hz |
| Input Voltage | 100-240V～ |
| OPERATING TEMPERATURE | 0°C to + 40°C |
| Operating Humidity | 5% to 85%,non-condensing |
| Storage Temperature | -40°C to + 70°C |
| Storage Humidity | 5% to 95%, non-condensing |
| COOLING SYSTEM | 12cm Hydraulic bearing fan |
| Efficiency | Meet 80 PLUS® Gold at 115Vac input. |
| MTBF | 100,000 hrs minimum |
| Safety Approval | CE/UKCA/ICES/TUV/LVD/RCM/CB/FCC/cTUVus/BSMI/CCC/BIS/S-MARK |
| PCI-E 6+2pin | 4 |
| PCIe 12+4pin | 1 |
| PROTECTION | OVP/UVP/OCP/OPP/OTP/SCP |
JAR Computers може да предложи ремонт/смяна/монтаж в наш сервиз или при партньор.
Виж още Захранвания Настолни компютри Thermaltake
Виж всички Захранвания Настолни компютри в категорията
Документация
Декларация за съответствие_Samsung SM-F956 GALAXY Z Fold 6.pdfТехнически характеристики
| Изходна мощност: | 750 W |
|---|---|
| Модулен блок: | Да |
| Форм фактор: | ATX |
