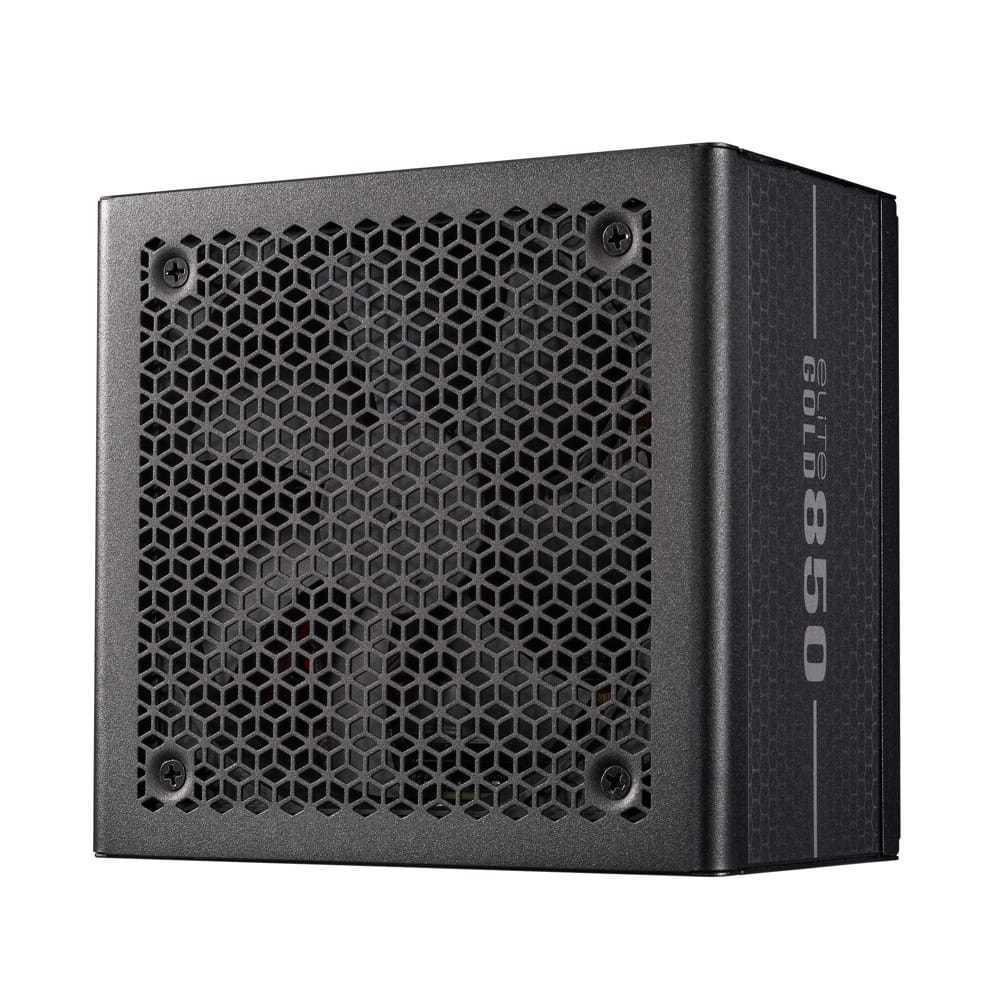

Захранване Cooler Master Elite Gold 850, 850W, Active PFC, 80 Plus Gold, 120mm вентилатор

Cooler Master Elite Gold 850

Supports ATX 3.1 and PCIe Gen 5.1 standards

Ideal for RTX 50 GPUs

Stable performance under high loads at up to 40°C

Quiet rifle bearing fan for efficient cooling and low noise

850W output with 80 Plus Gold-certified efficiency

Fully modular embossed cable design

ESSENTIAL GOLD POWER FOR EVERYDAY GAMING BUILDS

Cooler Master Elite Gold 850 is designed for reliable everyday gaming builds. With full ATX 3.1 and PCIe 5.1 support, it ensures stable performance and compatibility with the latest and upcoming mid-range GPUs. Offering 80 Plus Gold efficiency, dependable operation at up to 40°C, and a quiet rifle bearing fan, it delivers efficient and quiet power. A compact 140mm form factor makes installation easy across a wide range of cases, while fully modular embossed cables simplify cable management. Backed by a 5-year warranty, the Elite Gold 850 provides lasting confidence and stability for your system.

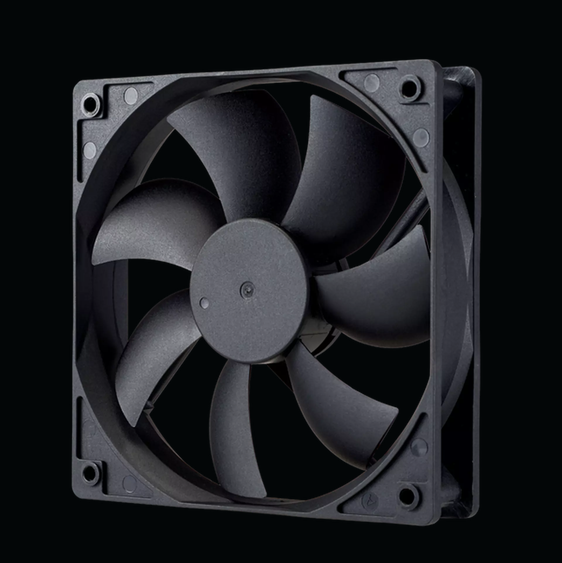

RIFLE BEARING FAN

The rifle bearing fan offers a longer lifespan while providing better noise reduction for consistent, reliable cooling.

All performance stats confirmed in 25°C ambient temperature testing.

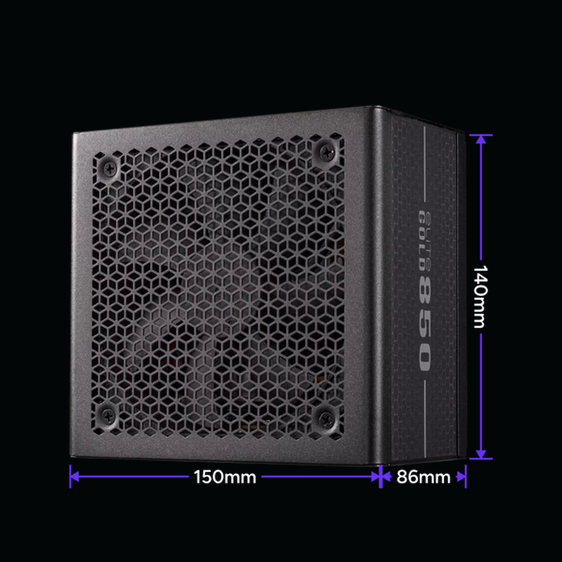

COMPACT FORM FACTOR

Unlike typical high-wattage PSUs that extend beyond 150mm, the Elite Gold’s compact design at 150mm or less ensures easy installation across a wide range of cases, making it ideal for space-conscious PC builds.​

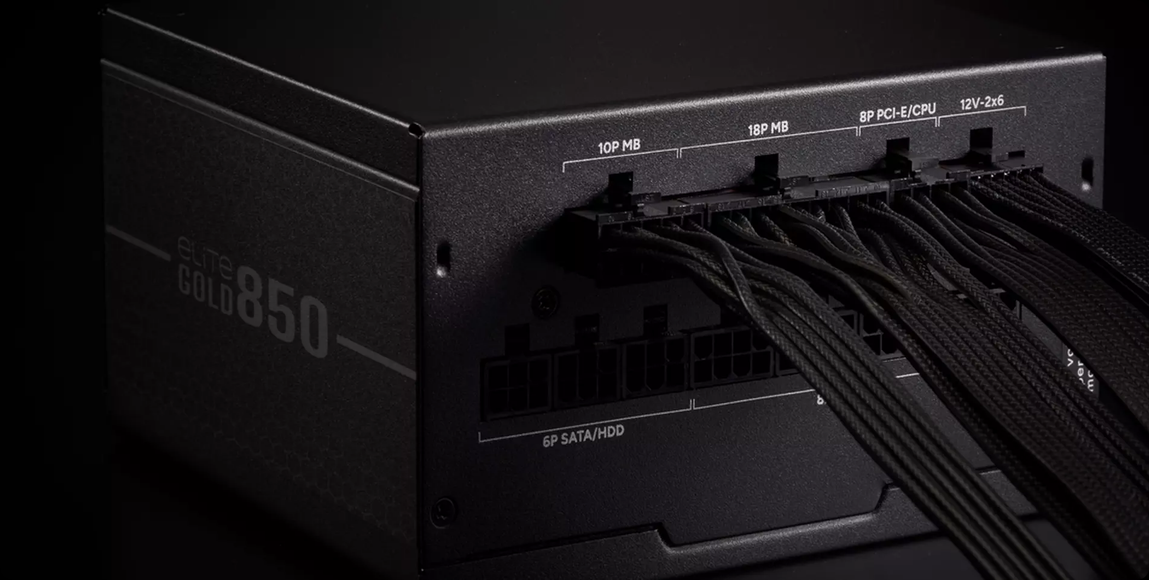

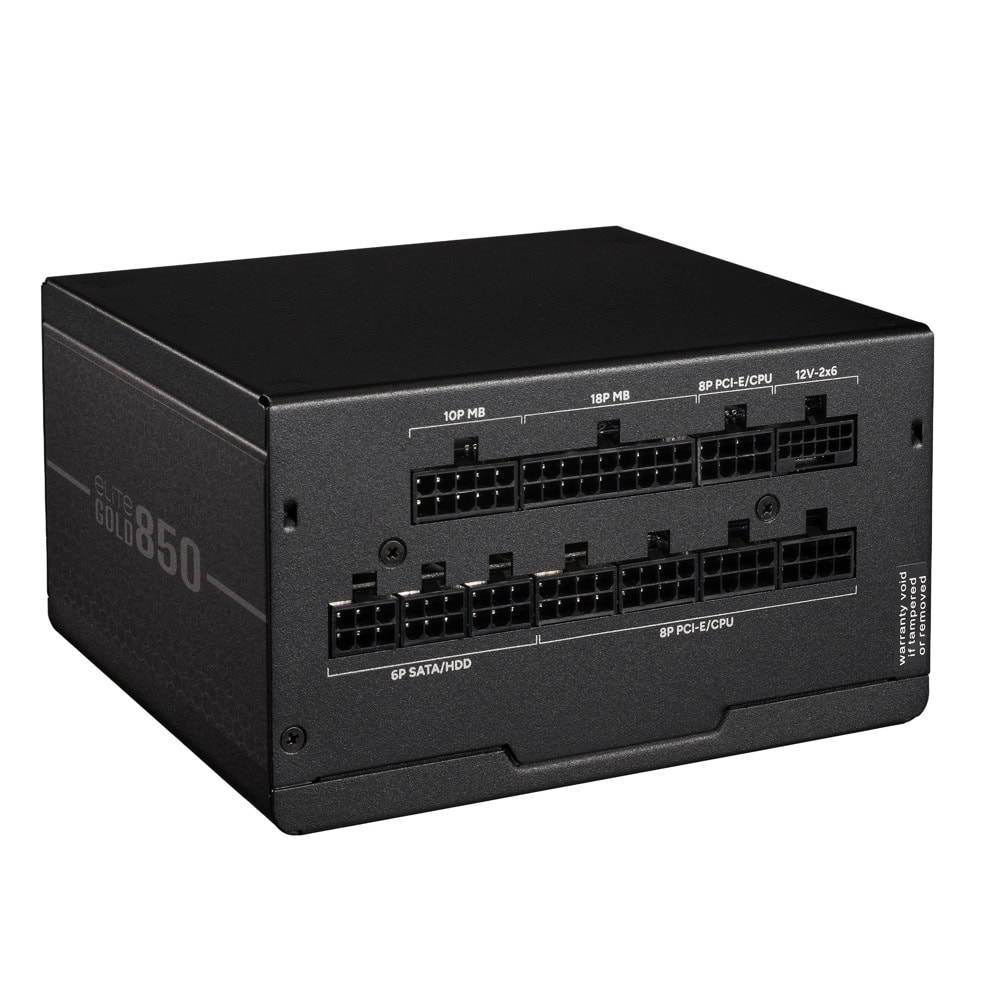

Fully Modular Embossed Cable Design

The fully modular design comes with flat black cables that can be tailored to each build, offering enhanced grip and a premium look for easier management and a cleaner overall setup.

Specifications

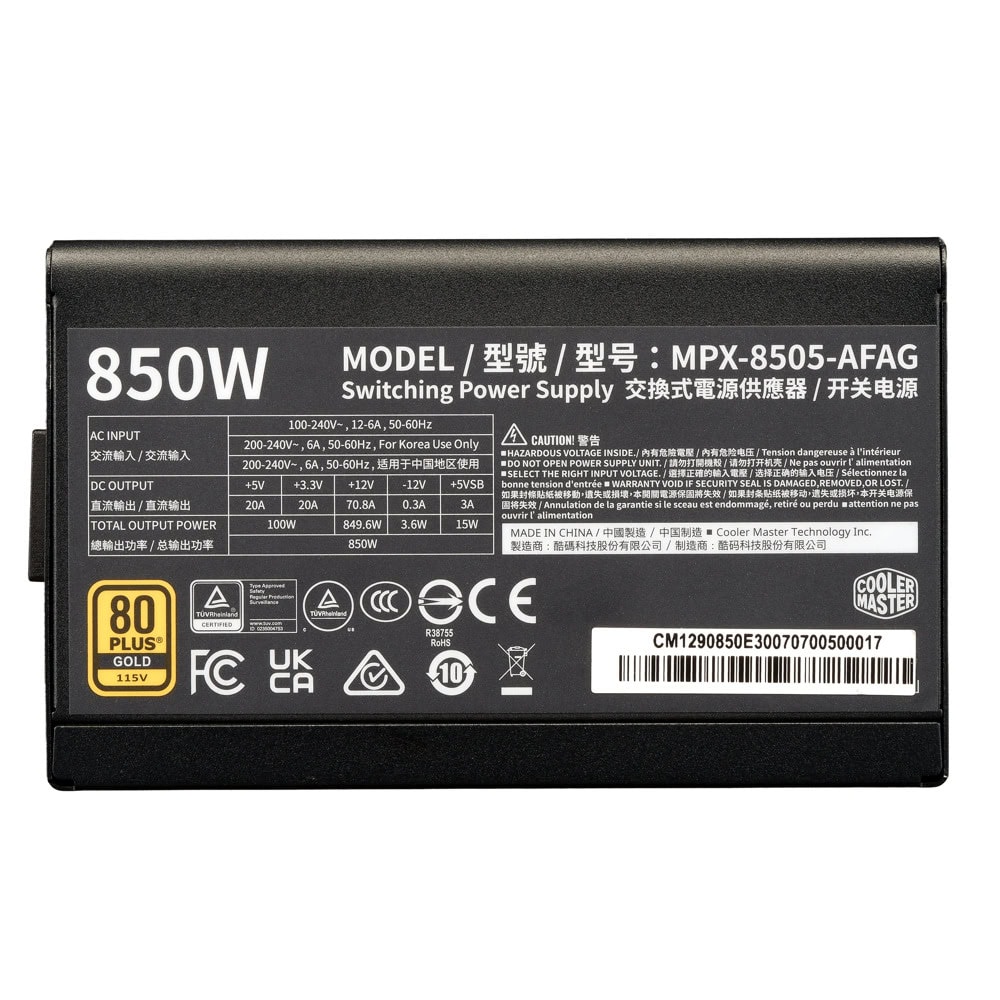

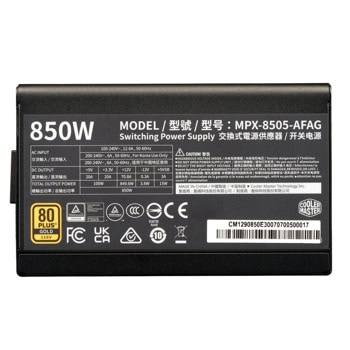

ATX Version ATX 12V Ver. 3.1

PFC Active PFC

Input Voltage 100-240V

Input Current 6 ~ 12A

Input Frequency 50-60Hz

Dimensions (L x W x H) 140 x 150 x 86 mm

Fan Size 120mm

Fan Bearing Rifle bearing

Efficiency ≥90% @ Typical Load

80 PLUS Rating 80 PLUS Gold

ErP 2014 Lot 3 Yes

Operating Temperature 0-40°C

Power Good Signal 100 - 150 ms

Hold Up Time ≥ 11ms @ 100% Load

MTBF >100,000 hours​ @ 25℃ ambient

Protections UVP / OVP / OPP / OTP / SCP

Regulatory cTUV us, CB, CE, FCC, BSMI, CCC, RCM, UKCA, BIS, RoHS2.0

ATX 24 Pin Connectors x1 = 1 (550mm)

EPS 4+4 Pin Connectors x1 = 1 (600mm)

EPS 8 Pin Connector x1 = 1 (600mm)

SATA & Peripheral 4 Pin Connectors X4(s) + x2(p) = 2 [400(s)+120(s)+120(p) mm]

PCI-e 6+2 Pin Connectors x3 = 1 (500+120mm), 1 (500mm)

12+4 Pin Connectors x1 = 1 (650mm)

Series Elite Series

Form Factor ATX

Watts 850W

Modular Fully Modular

80 Plus Efficiency Gold

JAR Computers може да предложи ремонт/смяна/монтаж в наш сервиз или при партньор.
