Захранване DeepCool Gamer Storm PS750G, 750W, Active PFC, 80 Plus Gold, 92mm вентилатор

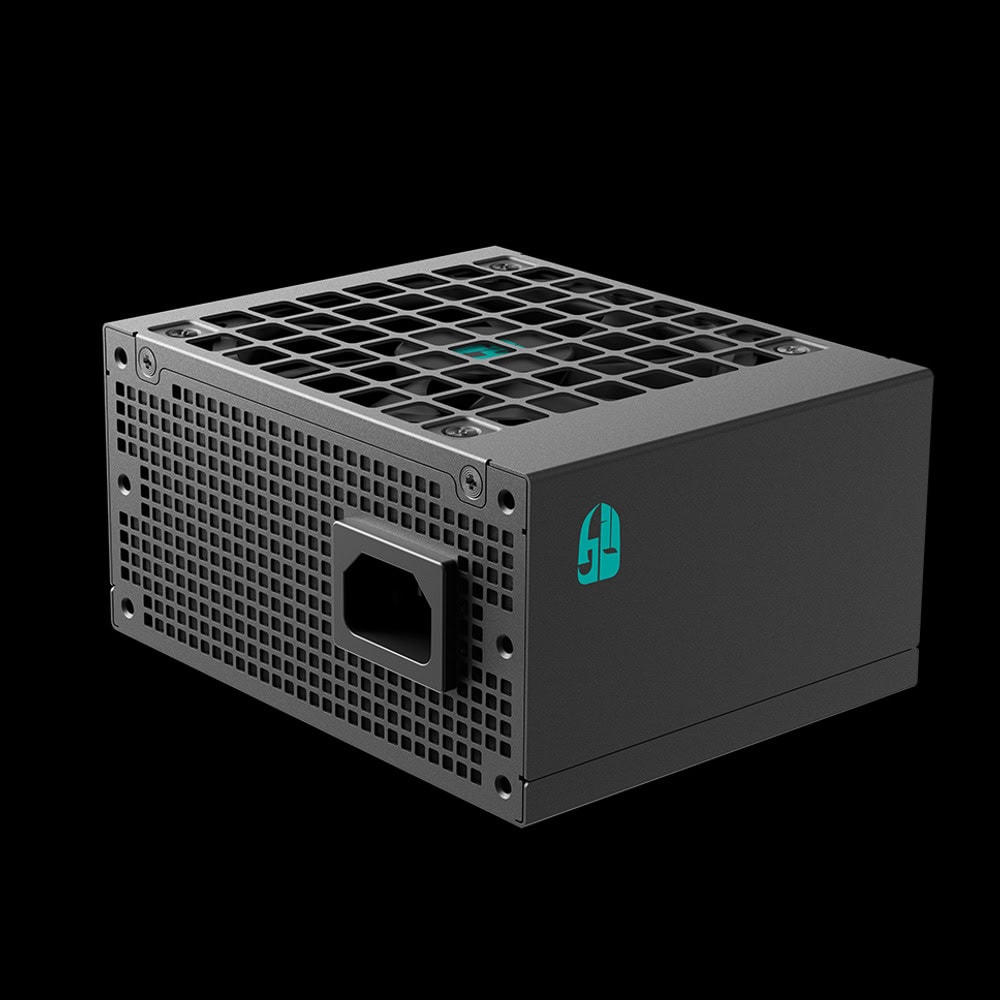

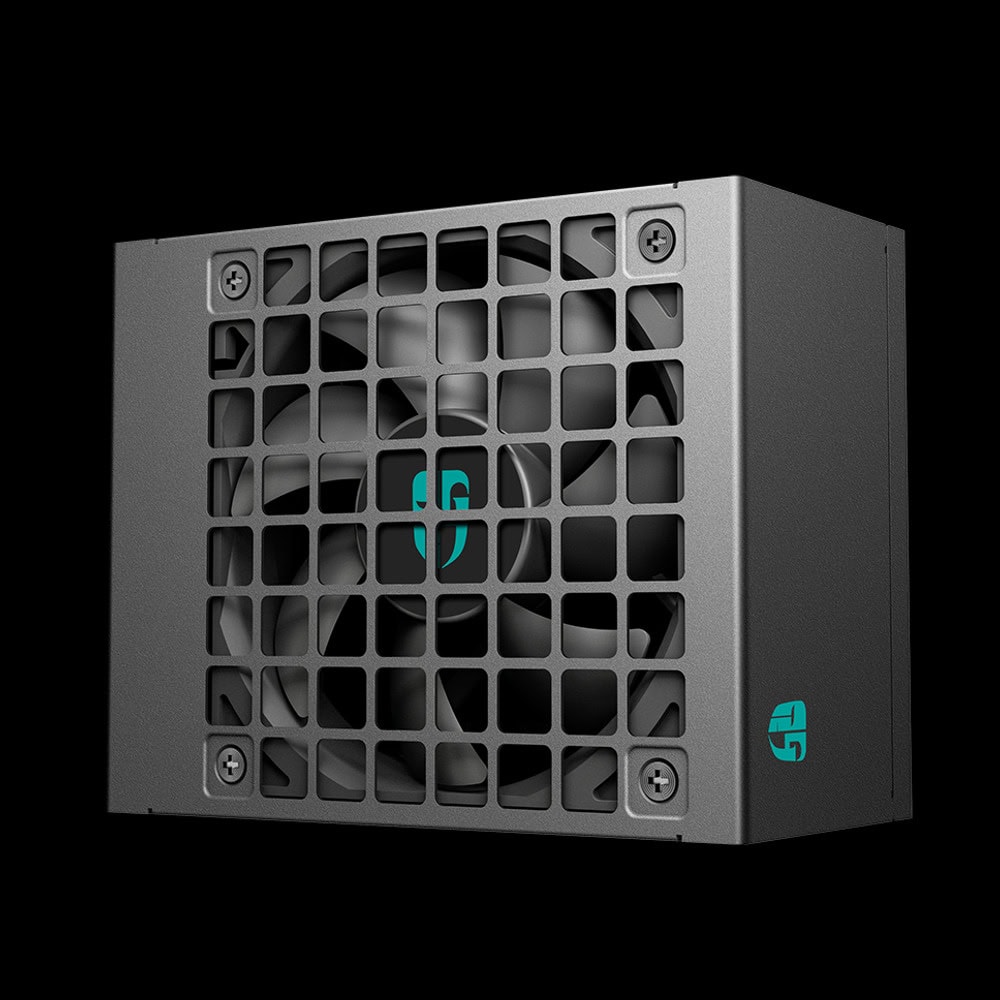

DeepCool Gamer Storm PS750G

SMALL BUT MIGHTY

The GAMER STORM PS-G is designed for small form factor PCs, fully compliant with the latest Intel ATX 3.1 and PCIe 5.1 standards, and delivers Gold-level power efficiency.

NATIVE ATX3.1 CERTIFIED

The PS-G Series are officially certified for ATX 3.1 compliance by Cybenetics and PPLP. It can supply up to 200% of the total system power and 300% of the rated power on the 12V-2x6 connector for 0.1 ms, following the requirements established by the Intel ATX 3.1 standard.

TRUST-WORTHY STABILITY

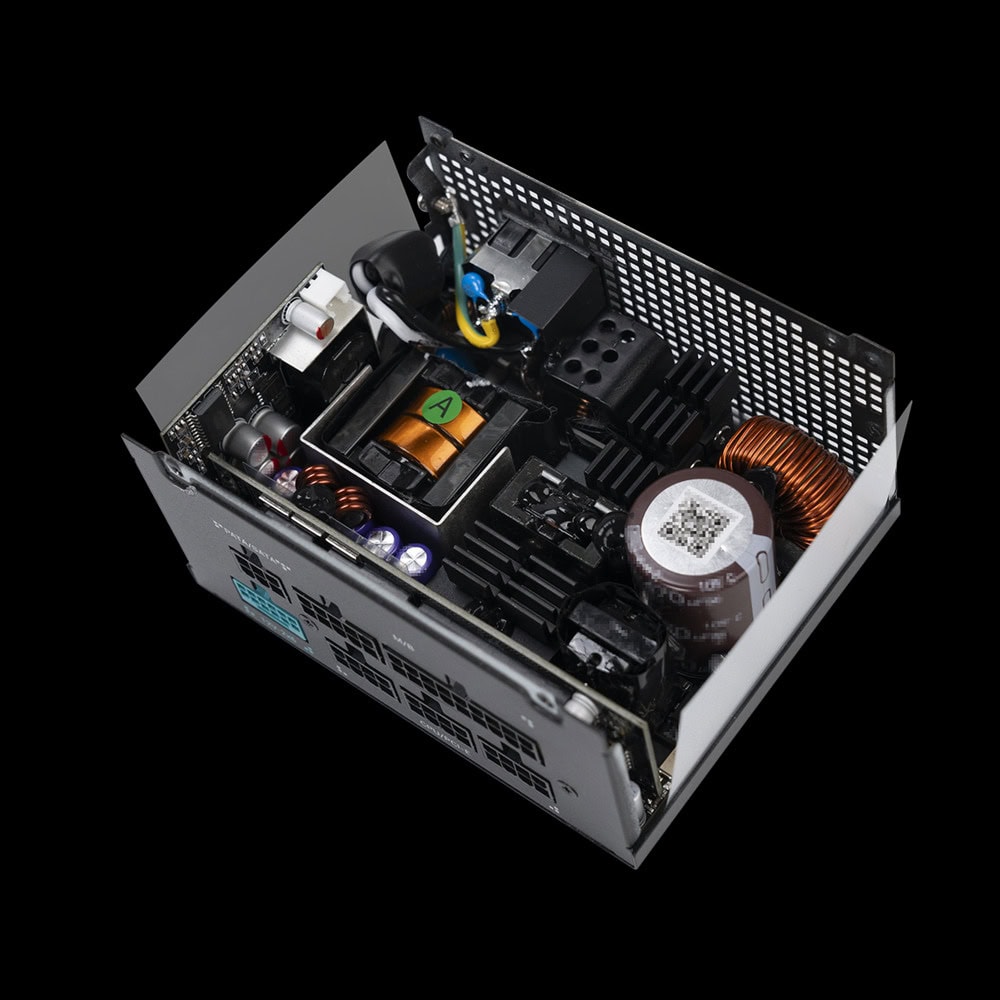

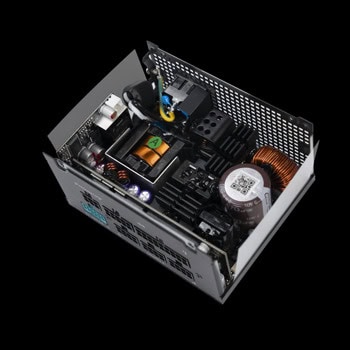

Utilizing full premium Japanese electrolytic capacitors, active PFC, a half-bridge LLC, and DC-to-DC topology, the PS-G maintains a hold-up time ≥ 16 ms under 80% load.

THE GOLD STANDARD

Certified Gold by Cybenetics and PPLP, it achieves a high power efficiency of 90% at typical 50% load conditions.

PERFECTION CABLE

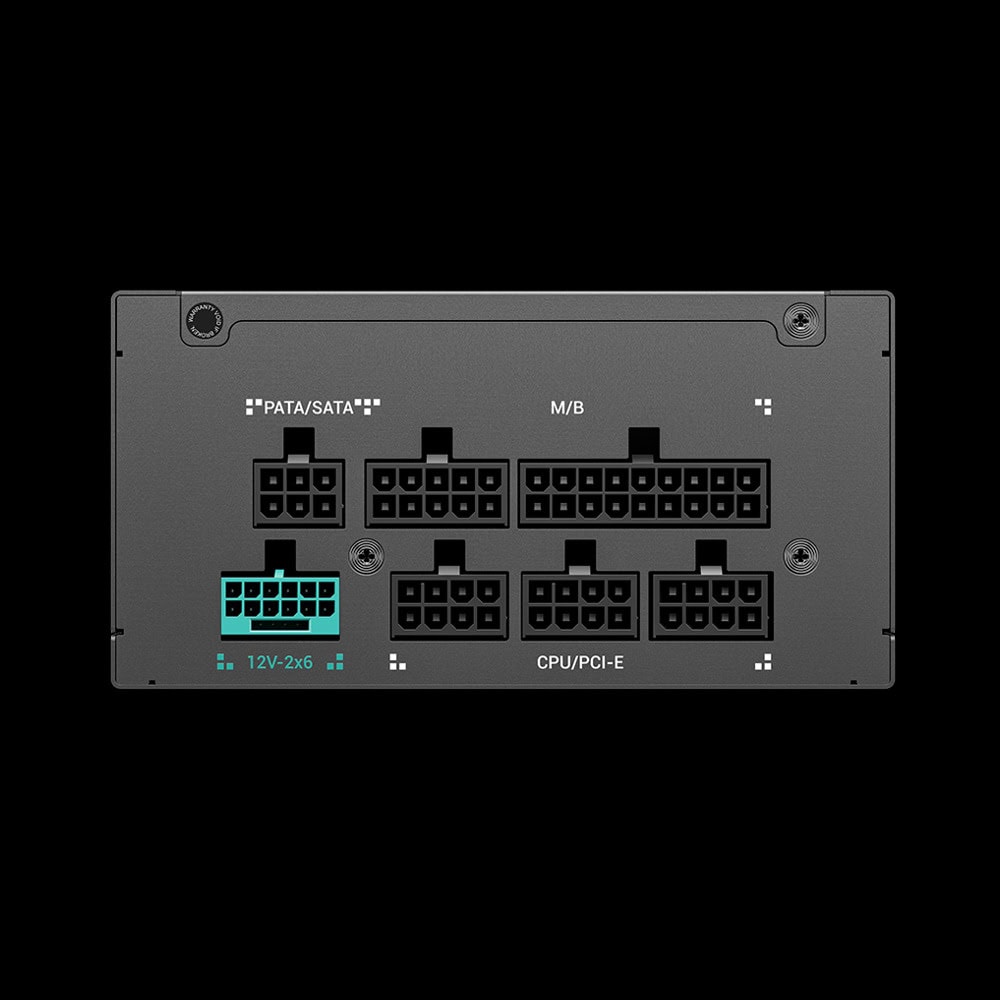

The PS-G features high-quality UL-certified copper-core conductors and custom-molded sleeved cables, providing excellent cable management while adhering to strict safety standards. And the dual-color 12V-2×6 sockets help users confirm proper installation.

DYNAMIC FDB FAN

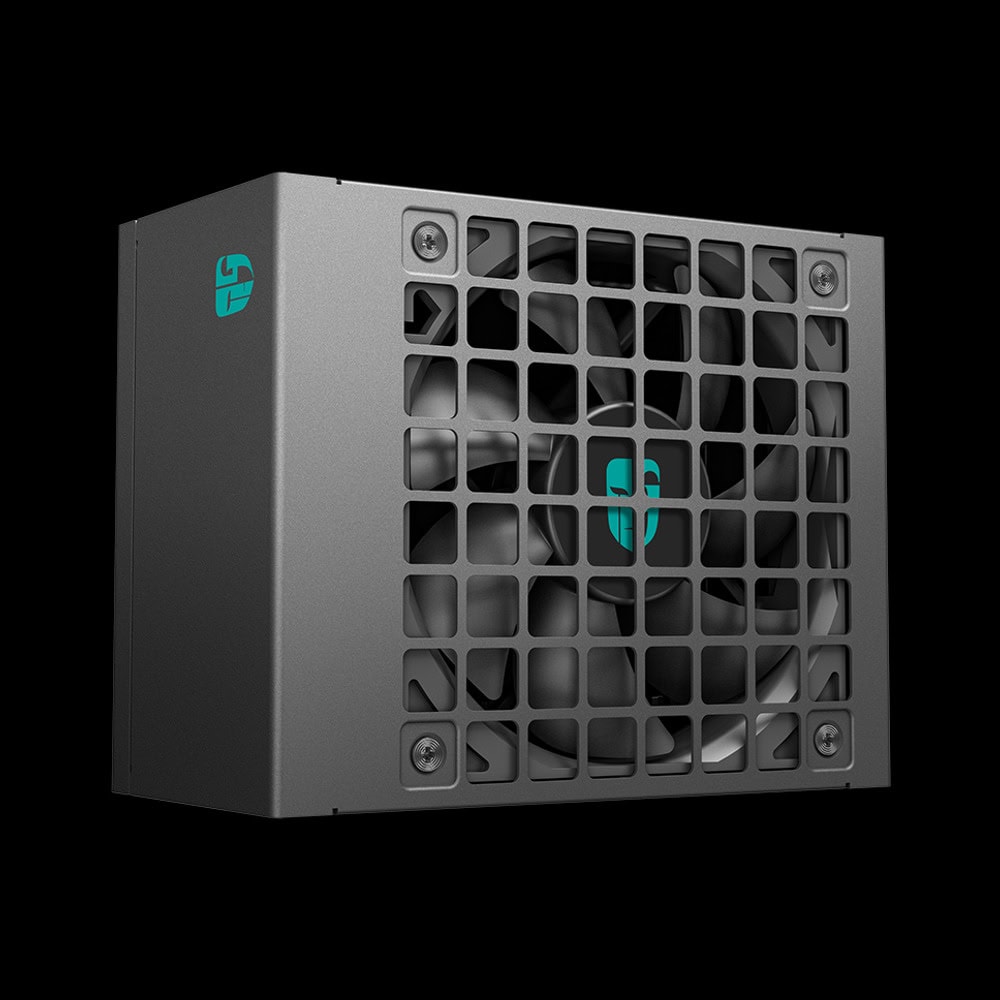

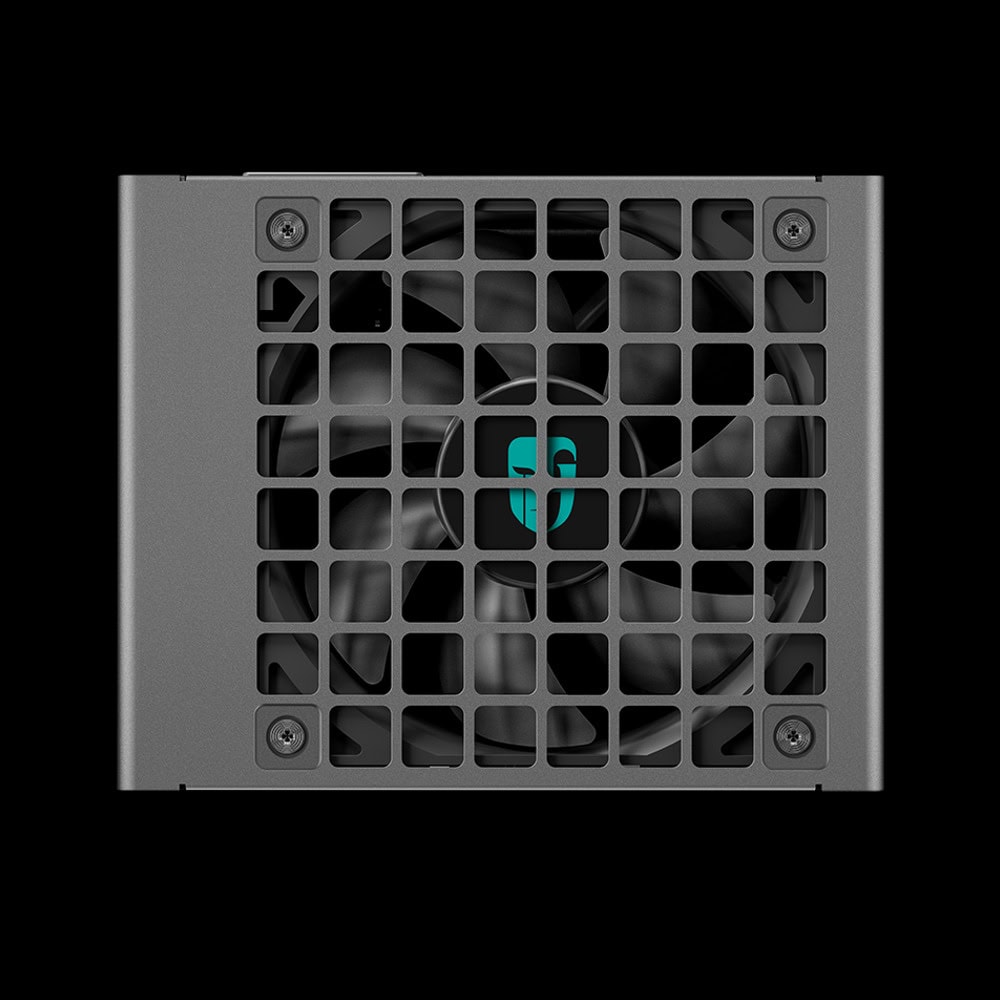

The 92×20mm customized thick Fluid Dynamic Bearing fan, combined with an aerodynamic design optimized through PCB layout and airflow resistance analysis, ensures outstanding operational stability and significantly lowers noise levels.

EXCEPTIONAL QUALITY

Fully complying with global safety standards and surpassing competitors, it meets the criteria for high-temperature and high-altitude environments, including conditions of 40℃ and 5000 meters above sea level.

Total Power Output: 750 W.

Form Factor: SFX12V V4.1 & ATX12V V3.1.

Dimensions (W × L × H): 125 × 100 × 63.5 mm.

Efficiency Certification: Cybenetics Platinum / PPLP Gold.

Efficiency: ≥90% at 50% load.

Cooling Fan: 92 × 92 × 20 mm.

Fan Bearing: Fluid Dynamic Bearing (FDB).

Topology: Active PFC + Half-Bridge SRC LLC + DC-to-DC.

Capacitors: 100% Japanese electrolytic capacitors.

Power Good Signal: 100–150 ms.

Hold-Up Time: ≥16 ms (at 80% load).

Protection Features: OPP, OVP, SCP, OTP, OCP, UVP, SIP, and NLO.

Operating Temperature: 0°C to 40°C.

Regulatory Certifications: CE, CCC, TÜV-RH, KC, RCM, CAN ICES(B)/NMB(B), and EAC.

Environmental Compliance: ErP 2014, WEEE, China RoHS, Triman, and EAC RoHS.

MTBF (Mean Time Between Failures): 100,000 hours.

JAR Computers може да предложи ремонт/смяна/монтаж в наш сервиз или при партньор.
