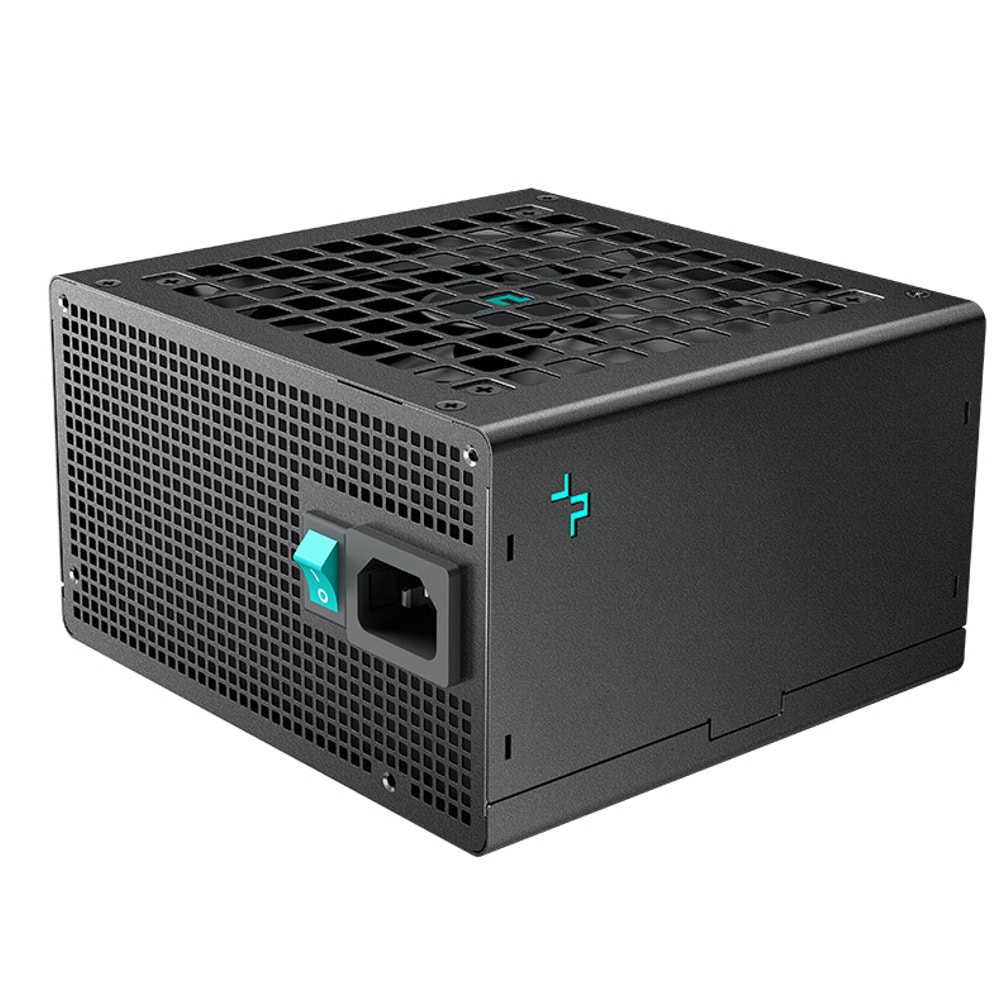

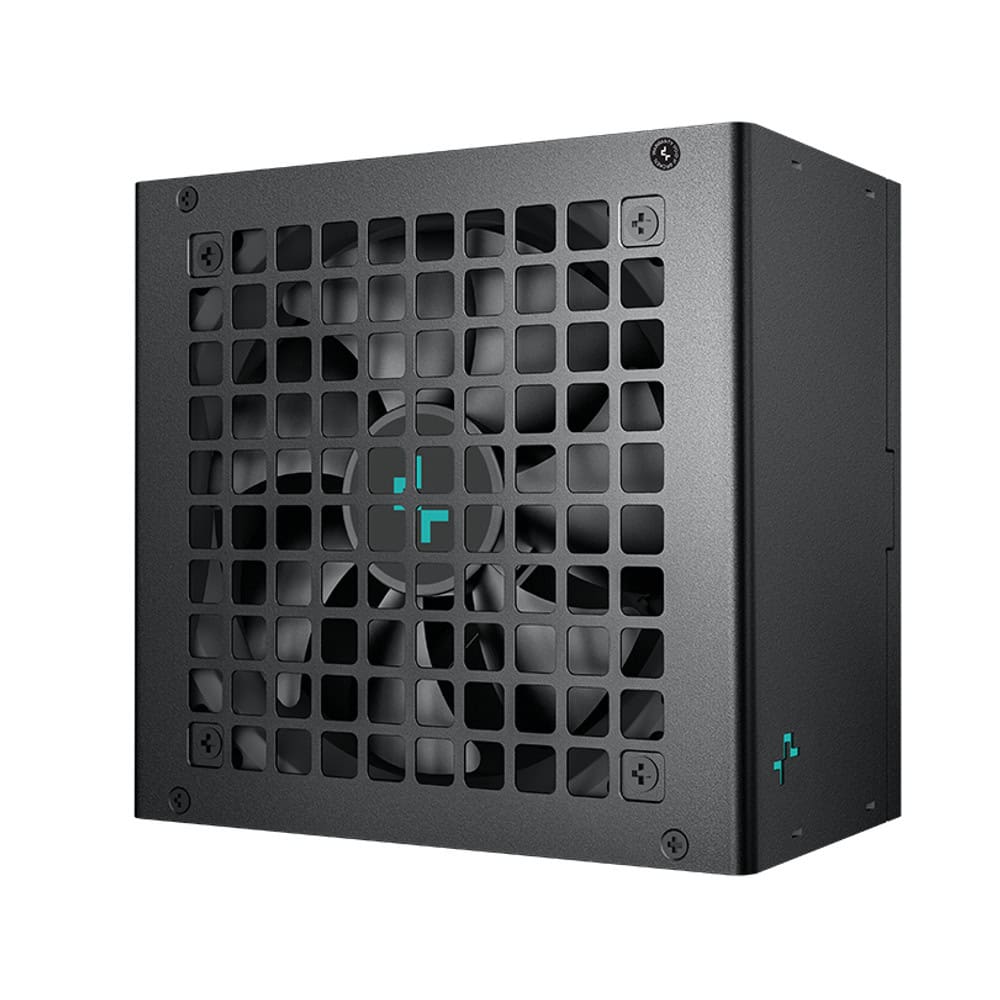

Захранване DeepCool PL650D WH, 650W, Active PFC, 80 Plus Bronze, 120mm вентилатор

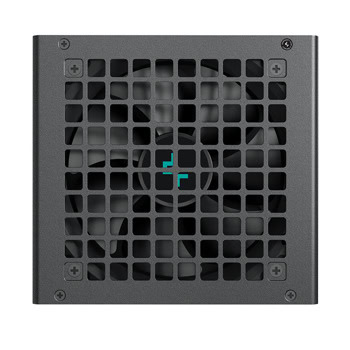

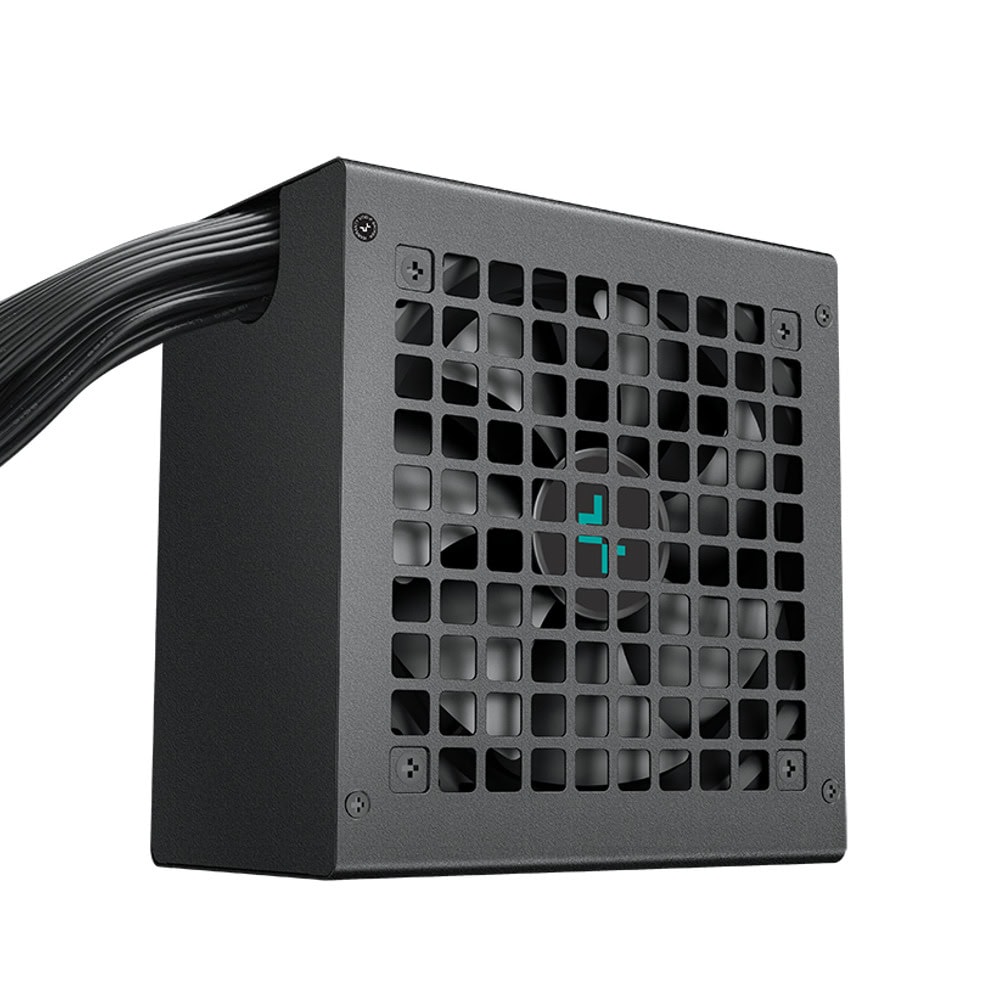

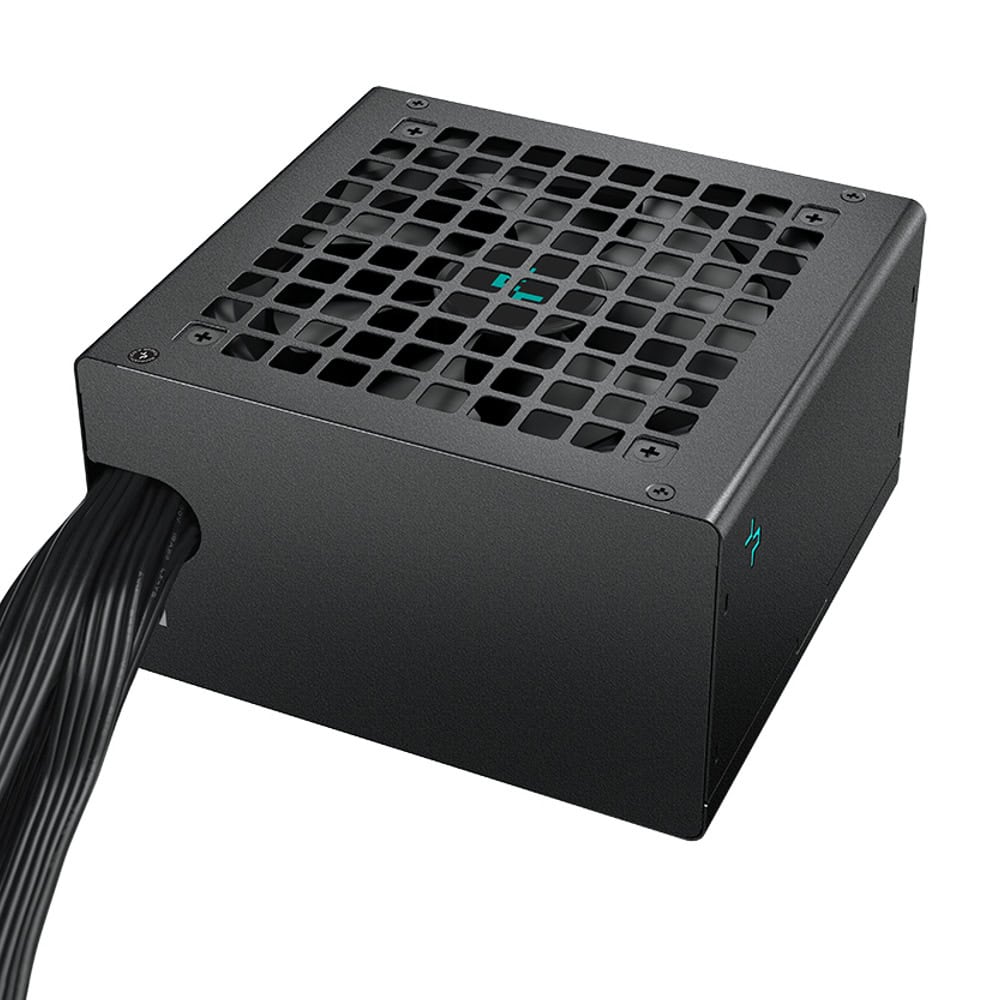

DeepCool PL650D WH

The PL650D updates DeepCool non-modular PSUs with a 12V-2x6 cable and brings them into compliance with INTEL's ATX3.1 standard. These units are 80 PLUS Bronze-verified, come with a 120mm hydro-bearing fan, and will provide stable power for years to come.

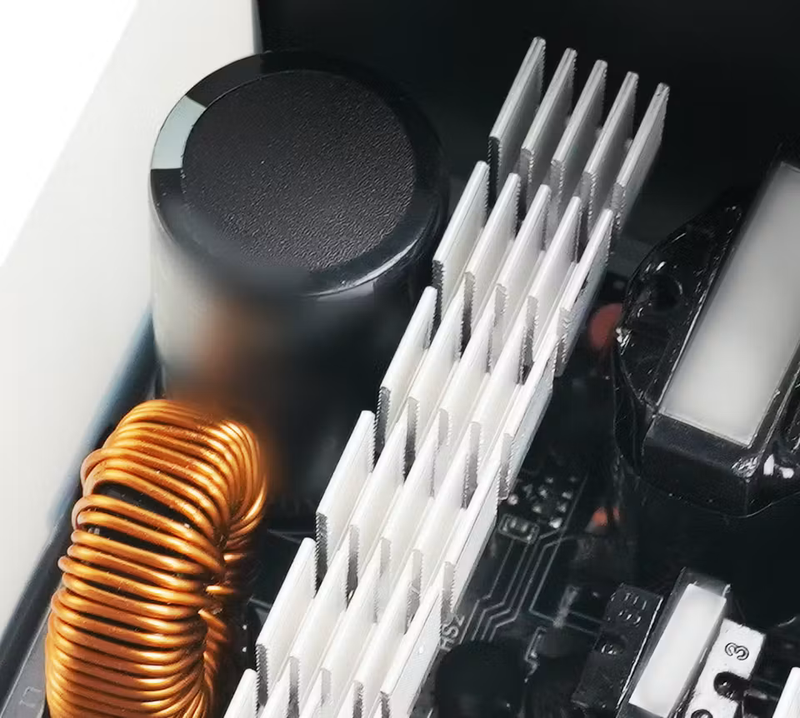

PREMIUM ELECTROLYTIC CAPACITORS

High-grade electrolytic capacitors allow the PL-D series of PSUs to keep the hold-up time to ≥ 16 ms under full load (100%), and they can easily handle power outages.

ROCK SOLID RELIABILITY

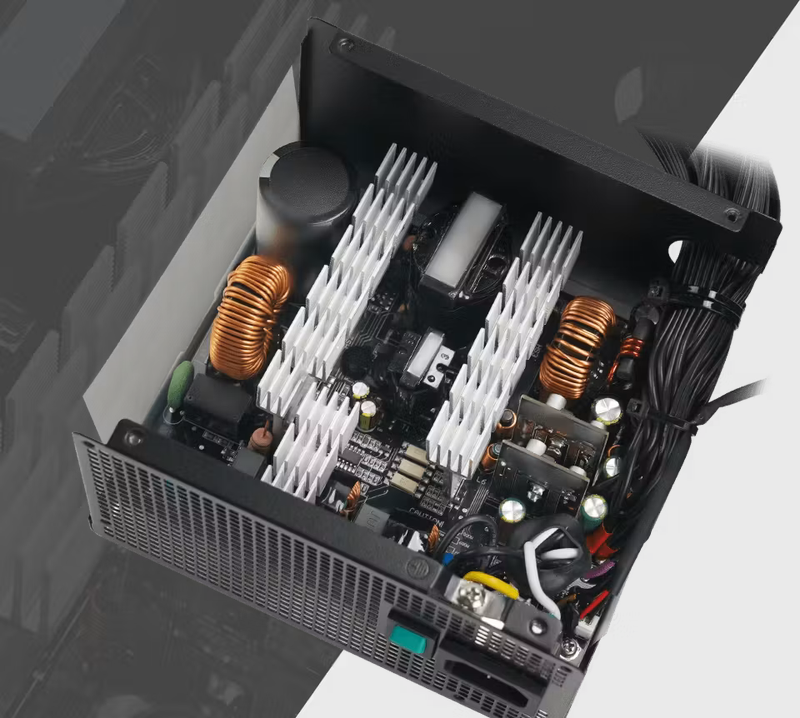

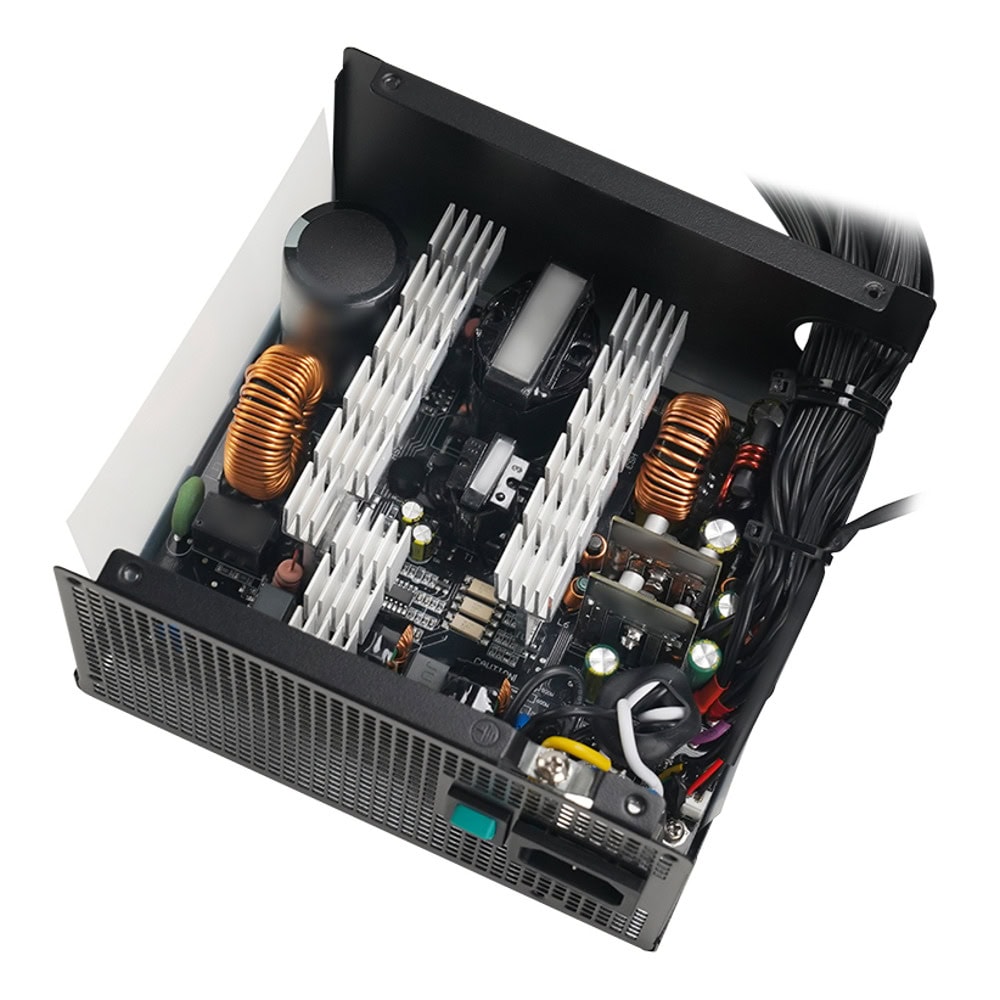

Provides reliable and stable power thanks to a well-designed dual-transistor forward topology. The PL-D utilizes active PFC and DC to DC conversion. The entire unit is made of high-quality parts and can operate at altitudes of up to 5,000 meters above sea level.

PAST, PRESENT, AND FUTURE

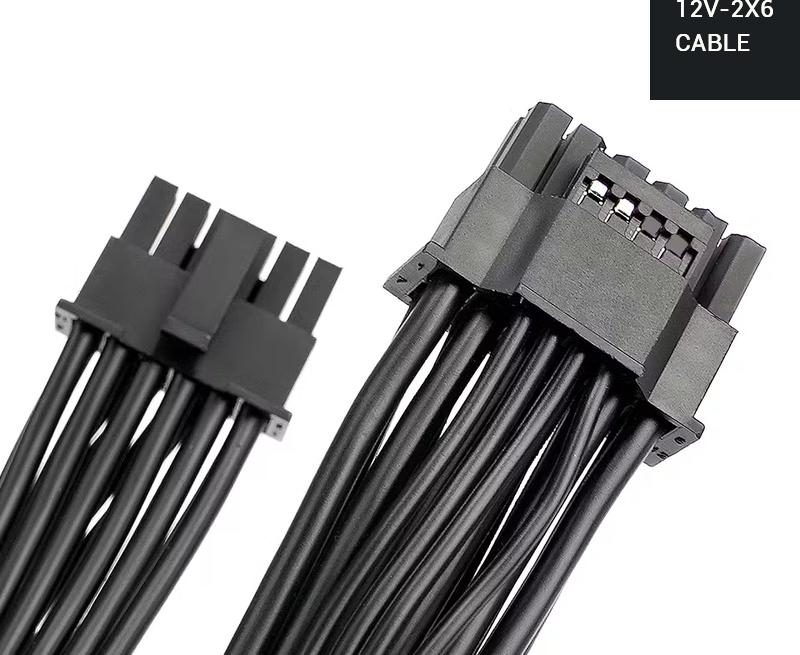

Equipped with three PCIe, two EPS, and a 16AWG 12V-2x6 cable, the PL-D PSUs provide stable and consistent power for legacy and next-generation PCs for the foreseeable future.

Specifications

General

Type: ATX12V V3.1

Product Dimensions (W × L × H): 150 × 140 × 86 mm

Efficiency Certification: 80Plus Bronze / Cybenetics Silver / PPLP Silver / CQC II

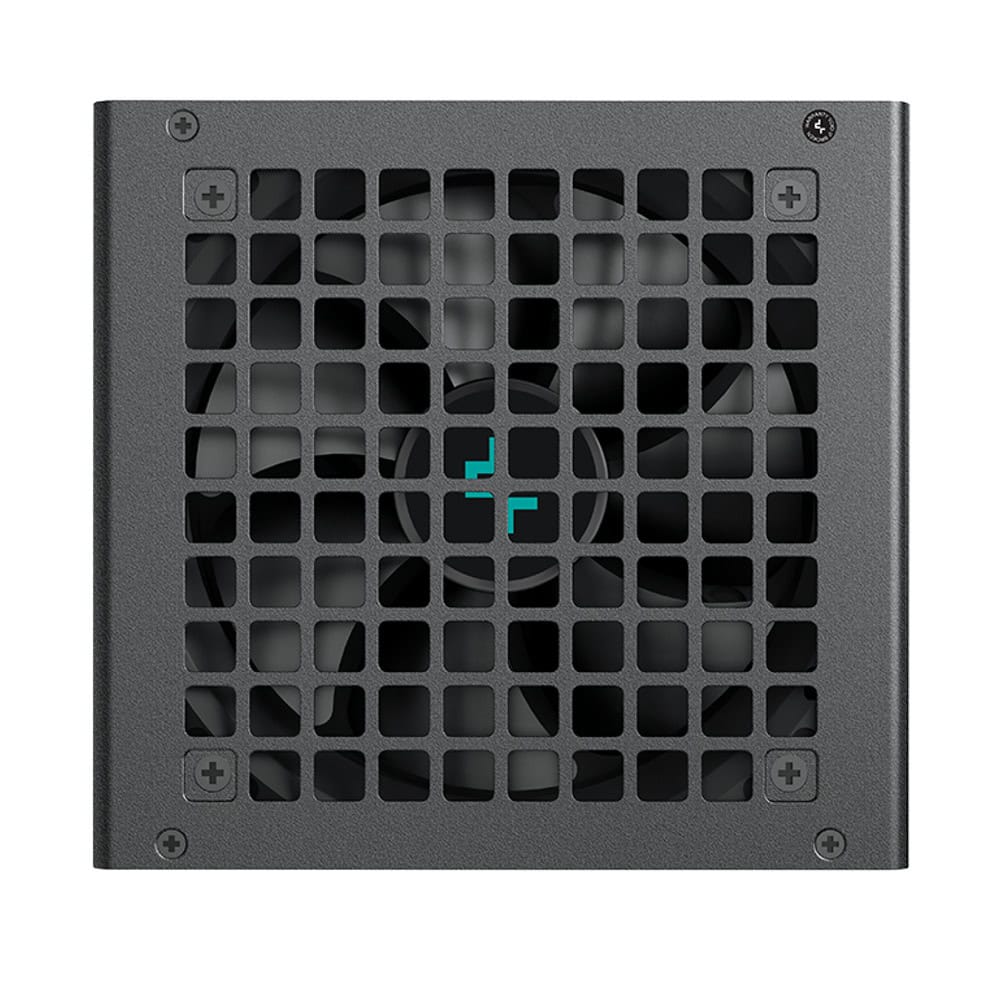

Fan Size: 120 mm

Fan Bearing: HYB (Hydro Bearing)

Topology: Active PFC + DC to DC

Capacitors: Chinese Electrolytic Capacitors

Power Good Signal: 100–150 ms

Hold Up Time: ≥16 ms

Performance & Protection

Efficiency: ≥85% Under Typical Load (50% Loading)

Protection: OPP / OVP / SCP / OTP / OCP / UVP / SIP / NLO

Operating Temperature: 0–40°C

MTBF: 100,000 Hours

Regulatory & Environmental

Regulatory: CE / FCC / CCC / RCM / EAC / BIS / CAN ICES-003(B) / NMB-003(B) / TUV-RH

ErP Regulation: ErP 2014

Environment Protection: WEEE / 中国 RoHS / Triman / P65
