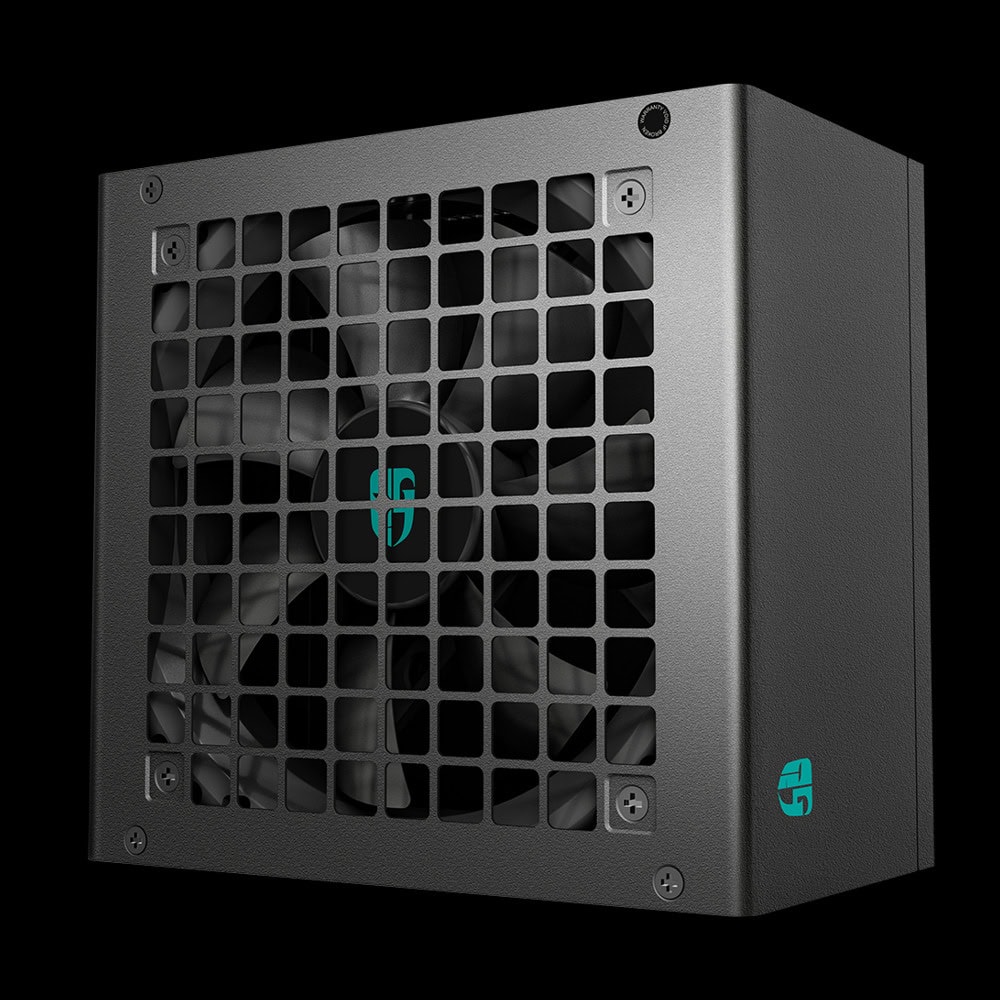

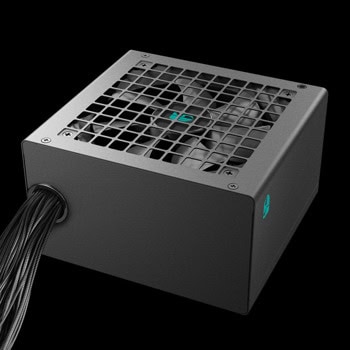

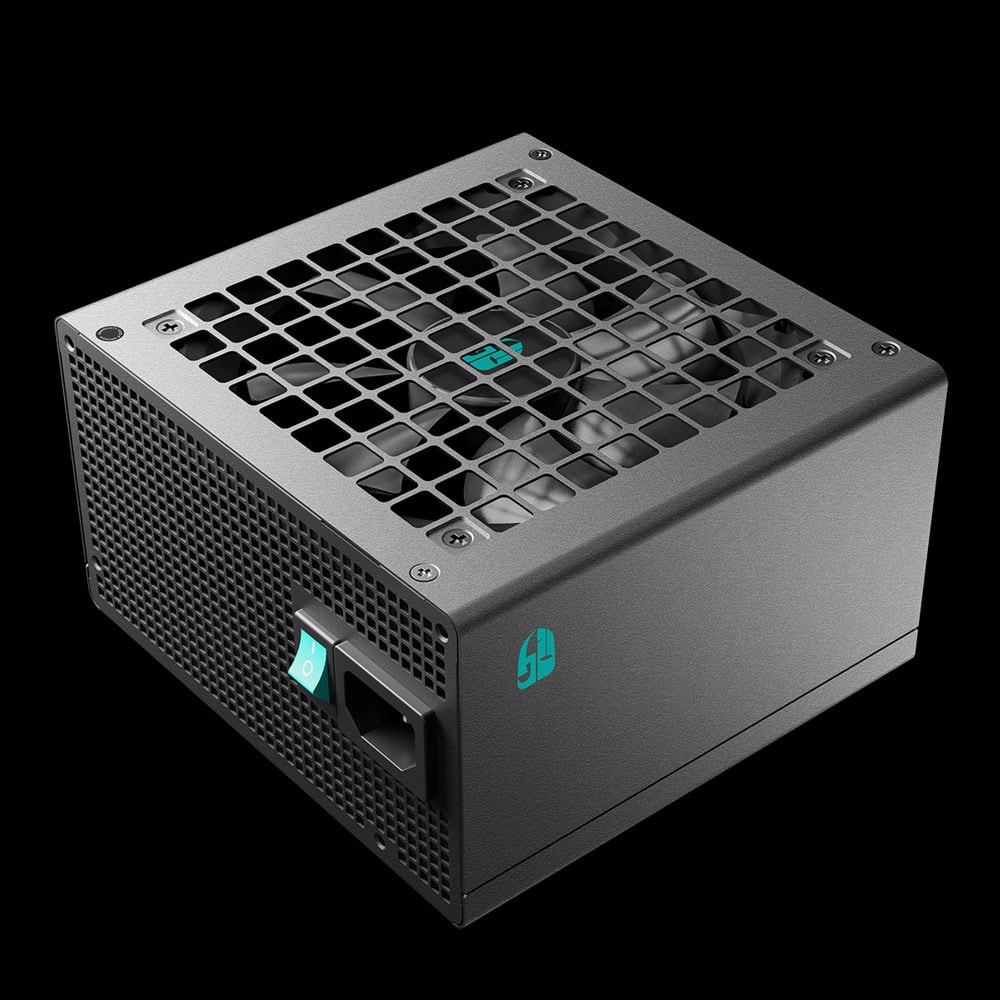

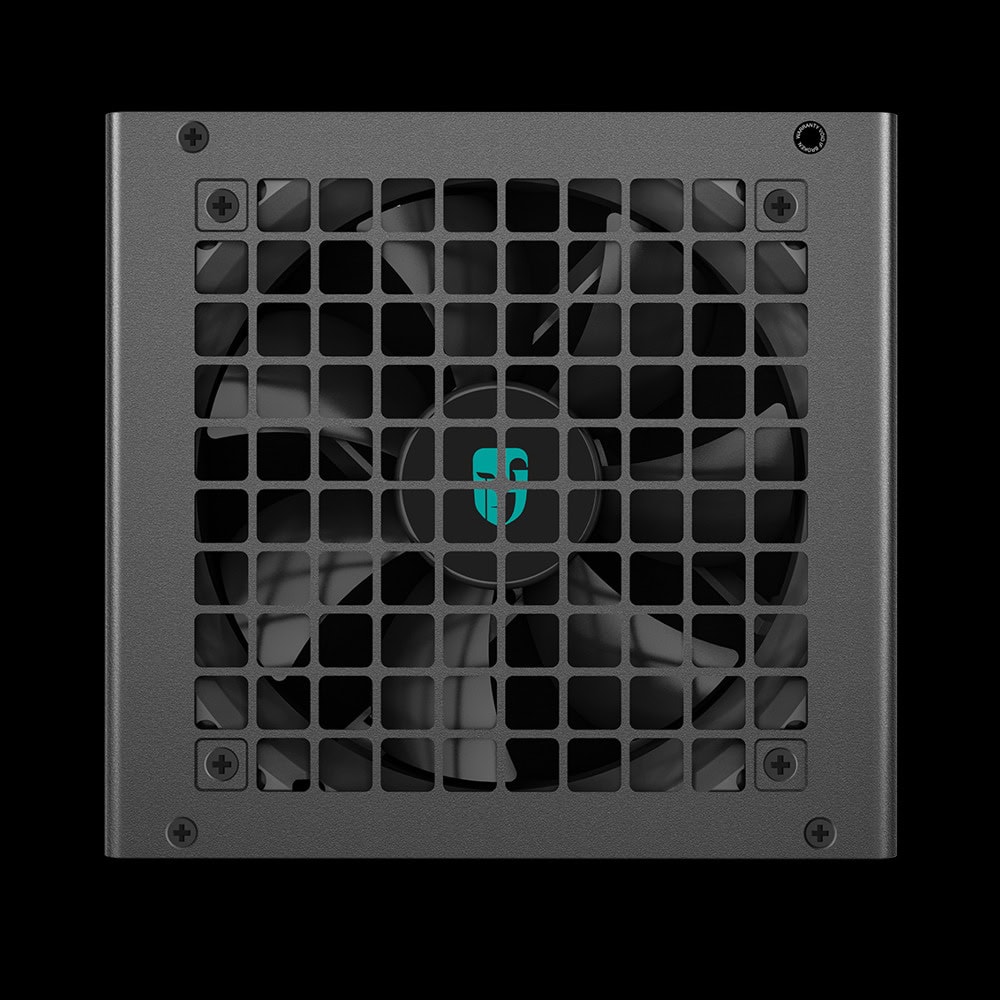

Захранване DeepCool PF500X, 500W, Active PFC, 80 Plus Bronze, 120mm вентилатор

DeepCool PF500X

MULTIPLE BRONZE EFFICIENCY CERTIFICATIONS

The *bronze efficiency obtained from 80 PLUS, Cybenetics, and PPLP, ensuring 88% efficiency under typical loads (50%), significantly reduced energy loss and heat generation while extending the service life of the PSU.

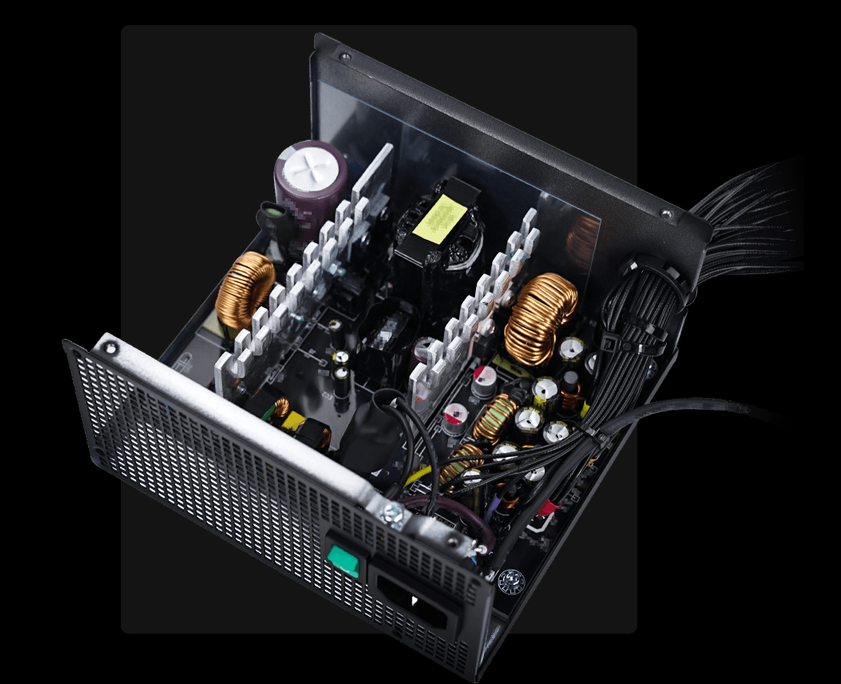

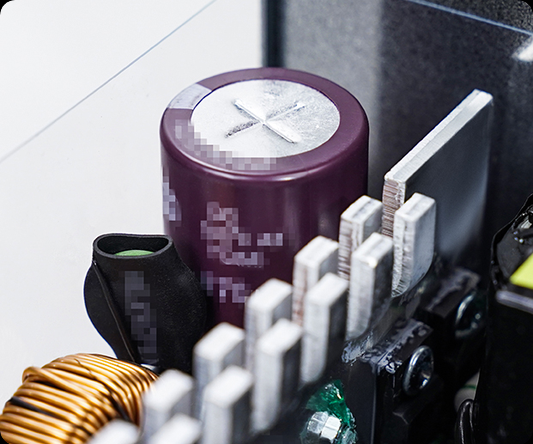

TAIWANESE + JAPANESE PREMIUM CAPACITORS

By using the Taiwanese premium solid and electrolytic capacitors, the PF-X series can ensure a hold-up time ≥ 16ms under 75% load, which provides reliable protection for abnormal power outages.
The 5V Stand-By rail uses an electrolytic capacitor from two major Japanese brands, which have a four-fold life span compared with normal, ensuring stable standby throughout the day.

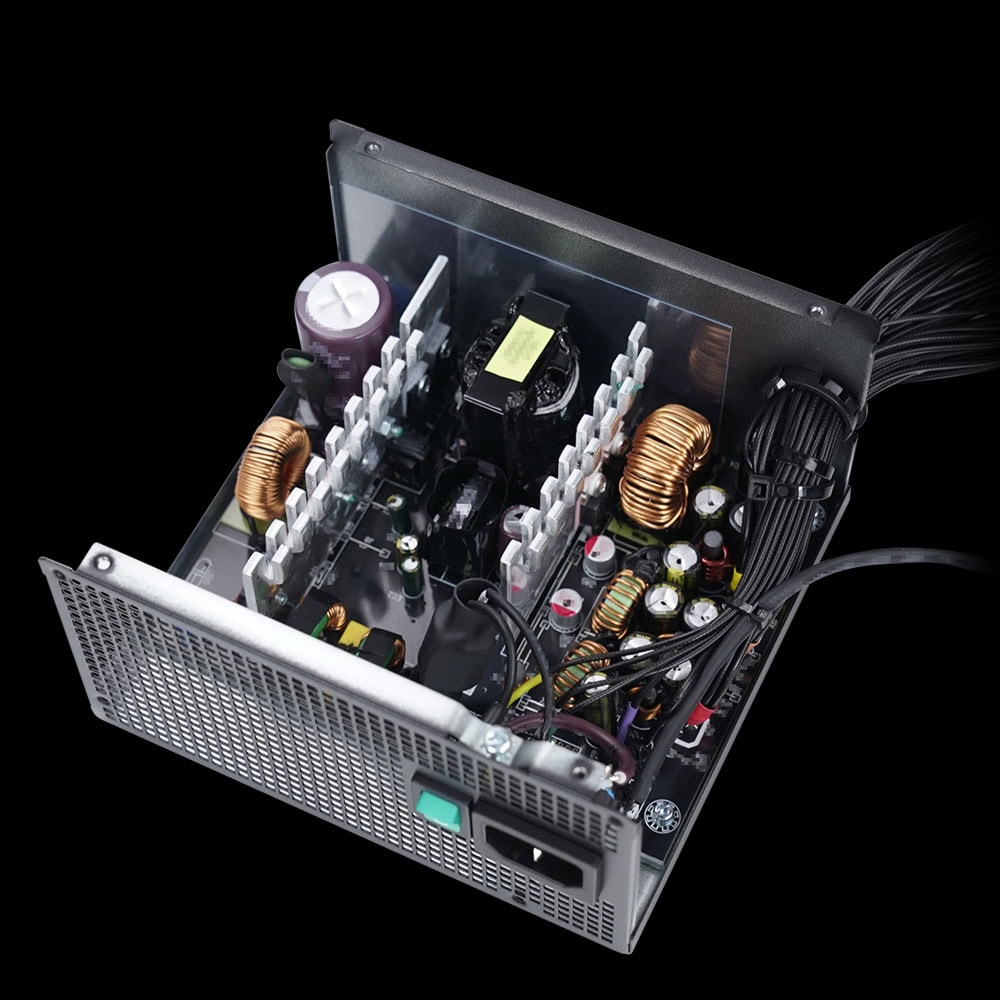

RELIABLE TOPOLOGY

To meet the Intel ATX 2.52 standard, using Active PFC + Double Forward + DC to DC, combined with a dual-stage EMI circuit. It significantly reduces ripple noise and voltage deviation, providing better electrical performance and compatibility.

WIDE VOLTAGE ADAPTATION

Supporting 180V-264V wide voltage operation and extreme full-load working conditions under room temperature at a 160V low-voltage grid were supported to avoid voltage instability shutdown.

Strict Safety Standard

Strictly following global safety standards, beyond competitors, including the 40℃ and 5000m safety levels, meets the requirements for high-temperature and high-altitude areas.

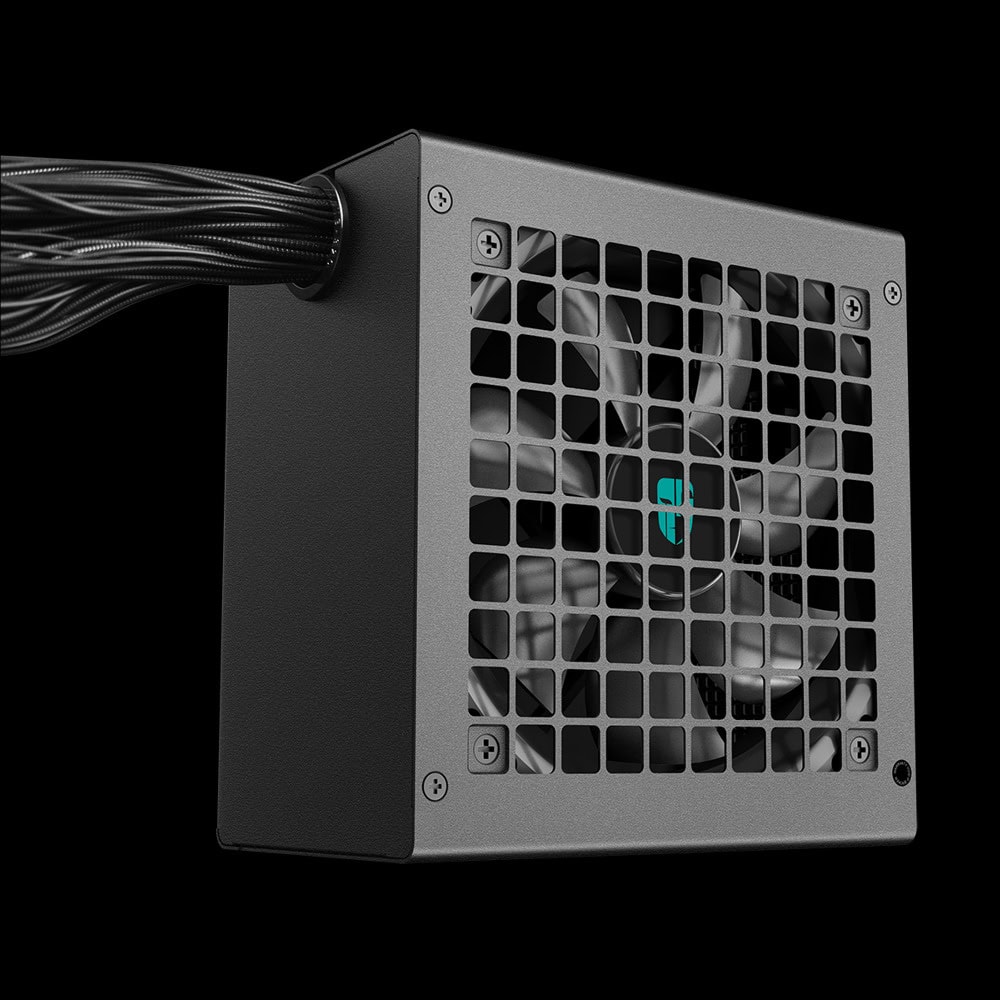

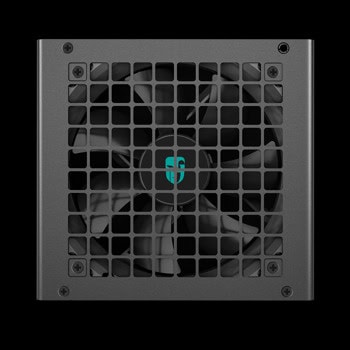

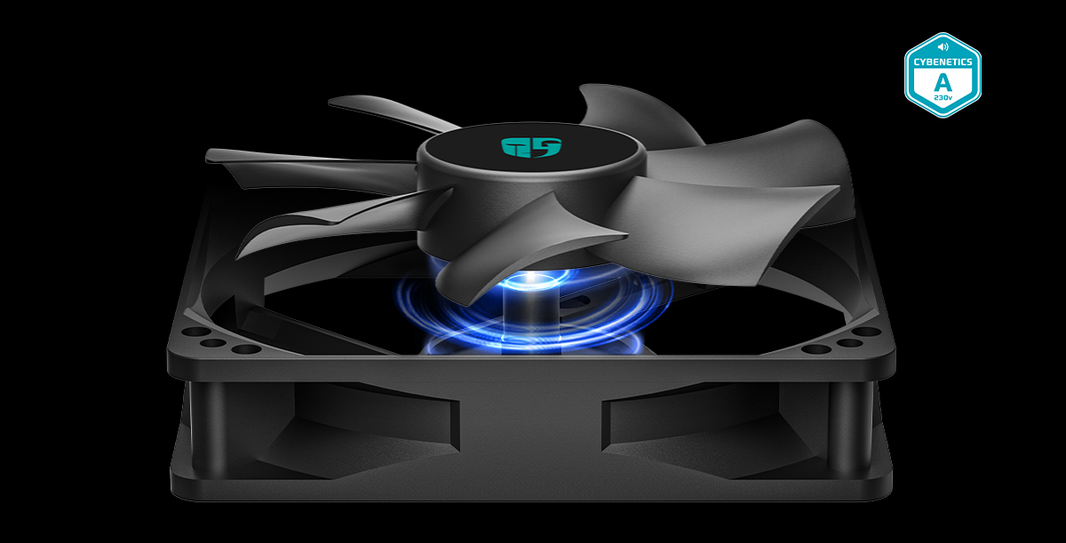

40K HRS MTBF LONG-LIFE FAN

A high-quality long-life bearing fan extends operational life by 30% compared to a normal fan and can continuously function for 7×24 hrs in a 40℃ environment. Meanwhile, the aerodynamic design based on PCB layout and flow resistance offers superior stability and quiet operation.
