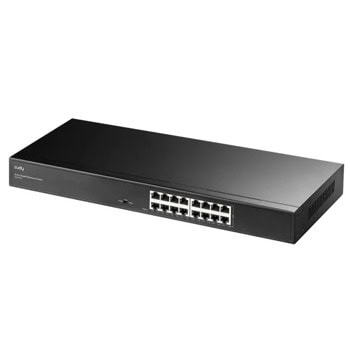

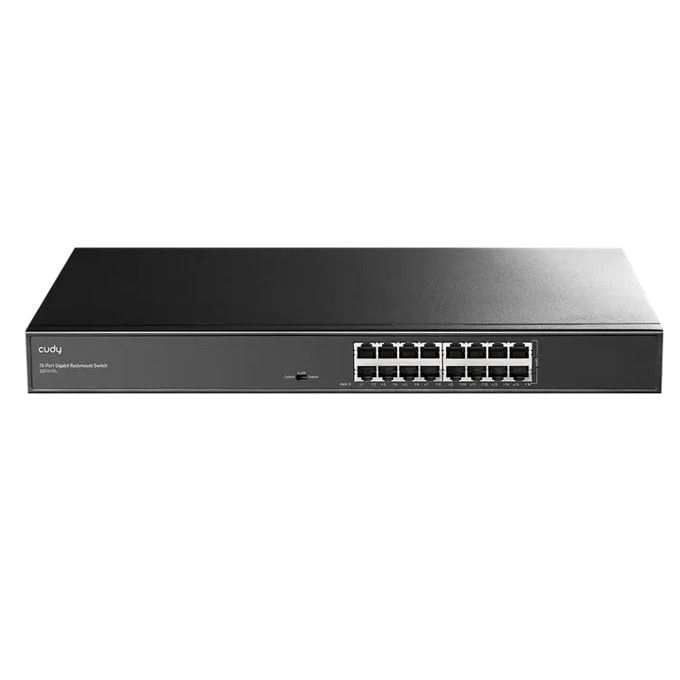

Cudy GS1016L
- 16× GbE
- Default/VLAN/Extend Modes
- Extend for 250 Meters Transmission
- VLAN for Clients Isolation
- Desktop, Rack-Mount


Category | Specification |
---|---|
Model Version | GS1016L 1.0 |
Interfaces | 16× Gigabit RJ45 Ports |
Shielded RJ45 Port: Yes | |
Extend Mode Ports: #1~#14 | |
VLAN Mode Ports: #1~#14 | |
LED Indicators: Power, Speed/Link/ACT per port | |
Power Input | AC Inlet |
Physical Buttons | VLAN/Default/Extend DIP Switch |
Performance | Copper Speed & Distance:• Cat. 3+: 100m @ 10 Mbps• Cat. 5+: 100m @ 100 Mbps• Cat. 5e+: 100m @ 1 Gbps• Cat. 5e+: 250m @ 10 Mbps (Extend Mode only) |
MAC Address Table: 8192 | |
Switching Capacity: 32 Gbps | |
Forwarding Rate: 23.808 Mpps | |
Jumbo Frame: 15 KB | |
Packet Buffer: 4 Mbit | |
Power | Basic Power Saving: Yes |
Power Method: AC (90–260V~, 50/60Hz) | |
Max Power Consumption: 7.8W | |
Idle Power Consumption: 4.5W | |
Switching Protocols | IEEE 802.3x, 802.3i, 802.3u, 802.3ab |
802.1 Protocols | IEEE 802.1p (Layer 2 QoS/CoS) |
L2 Features | IGMP Snooping, Loop Prevention, Loop Detection, DSCP QoS, 802.1p QoS |
Reliability | Grounding: Three-Prong Plug, Grounding Point |
EMS:• IEC/EN 61000-4-2 ESD: Contact 6kV, Air 8kV• IEC/EN 61000-4-5 Surge: Power DM 2kV, CM 4kV; RJ45 CM 4kV | |
Environmental | Operating Temp: 0–40 ℃ (32–104 ℉)Storage Temp: -40–70 ℃ (-40–158 ℉)Operating Humidity: 10–90% RHStorage Humidity: 5–90% RH |
Mechanical | Dimensions: 440×180×44 mm (17.32×7.09×1.73 in) |
Weight: 1597.9 g (56.36 oz.) | |
Casing: Metal | |
Installation: Desktop or Rackmount (brackets included) | |
Ordering Info | Package Dimensions: 487×267×84 mm (19.17×10.51×3.31 in) |
Package Weight (EU): 2278.4 g (80.37 oz.) |
