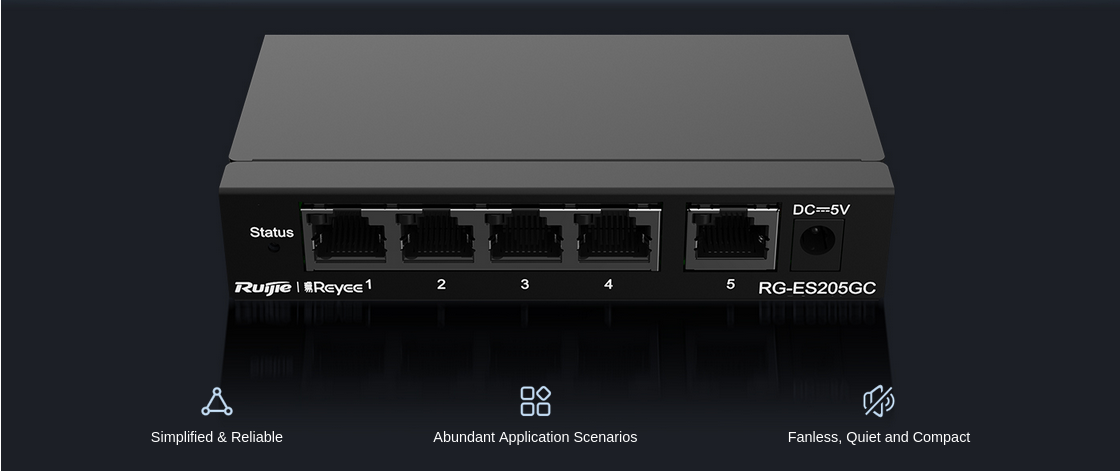

Ruijie RG-ES205GC

Highlight Features
- 5-Port gigabit cloud managed non-PoE switch
- Cost-Effective Smart Cloud Managed Switches
- IP Camera Recognition, Unique Value for CCTV Network
- Automatic Loop Prevention Ensures Service Continuity
- Lifetime management on Ruijie Cloud at anytime anywhere
Specifications:
Basic
10/100/1000Base-T ports
5
1000Base-X SFP ports
No
PoE/PoE+ ports
No
Max. PoE budget
No
Layer Type
Layer 2
Switching capacity
10 Gbps
Forwarding rate
7.44 Mpps
Packet Buffer
1 Mbit
MAC address table
2000
Maximum VLAN Support
16
Dimensions (W x D x H)
119 mm x 75 mm x 24 mm
MTBF
> 200,000
Software Features
10/100/1000M Auto/Full/Half Duplex Negotiation
Yes
Flow Control
Yes
Storm Suppression
Yes
Management IP
10.44.77.200
VLAN Range
1 - 4094
Port-based VLAN
Yes
STP / RSTP
No
QoS
No
ACL
No
DHCP Client
Yes
DHCP Snooping
Yes
Telnet
1 session
SSH
No
DNS Client
Yes
SNMP v1/v2/v3
No
Many-to-one Port Mirroring
Yes
Downlink Loop Protection
Yes
Loop Disabled Port
Yes
Disconnection Duration
2s
Flow Control
Yes
Cable Testing
Yes
Web-based Management
Yes
HTTP
Yes
Cloud Management
Yes
Hardware Features
Reset Button
Rear
Cable Hot-swappable
Yes
Power Supply Slot
Power adapter
Power Consumption
≤ 3W
Power Supplies
5V DC adapter, 1A
EEE
No
Fan
No
Fan Adaptive Speed Adjustment
No
Acoustic Noise
Noiseless
Operating Temperature
0°C to 40°C (32°F to 104°F)
Storage Temperature
-40°C to 70°C (-40°F to 158°F)
Operating Humidity
10% to 90% RH
Storage Humidity
5% to 95% RH
Port Surge
4 kV
Operating Altitude (meters)
-500 to 5000
Certificate
CE, RoHS
