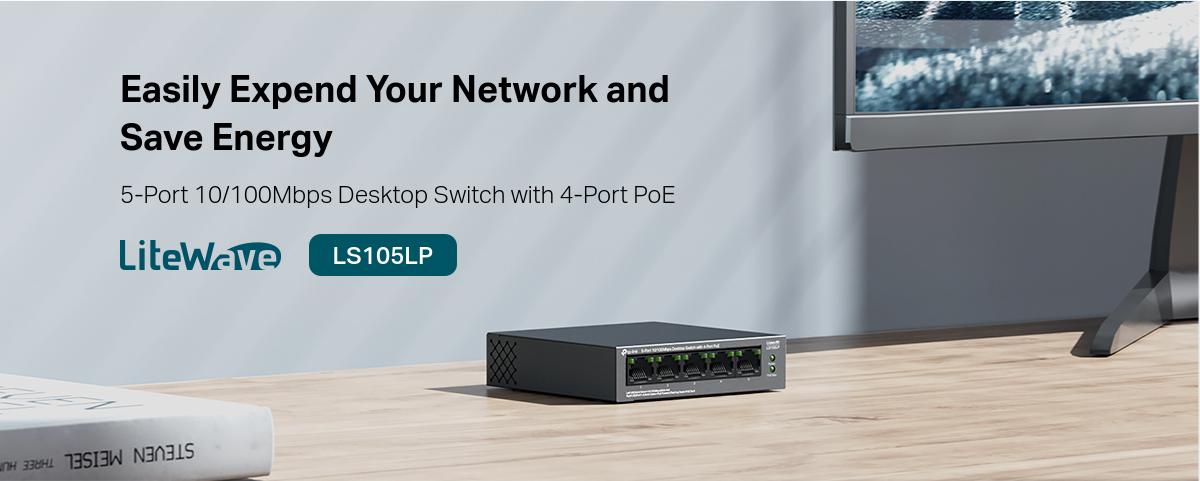

5-Port 10/100Mbps Desktop Switch with 4-Port PoE

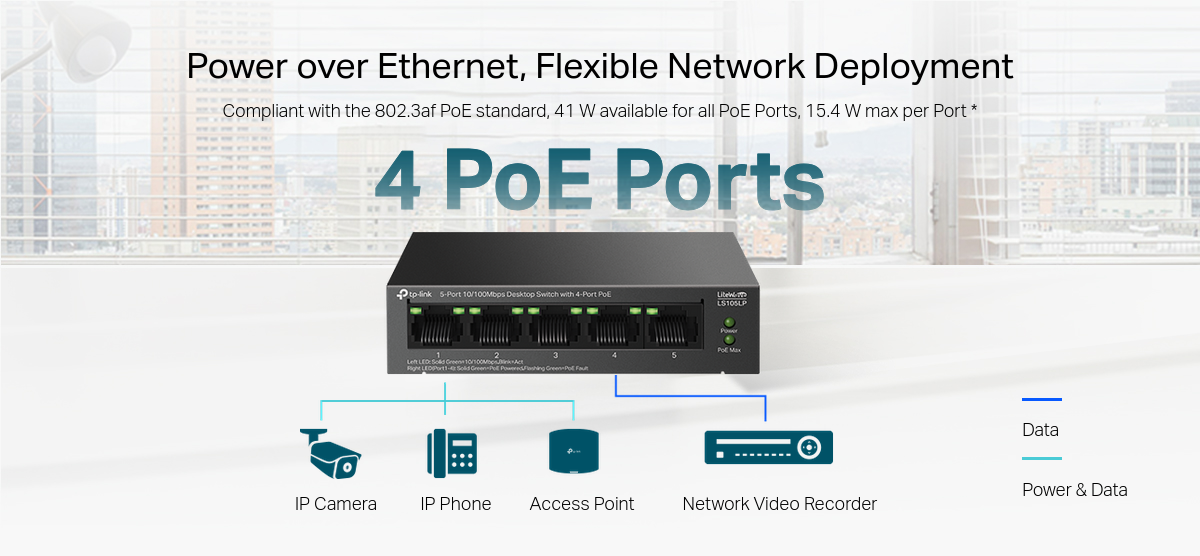

- 41 W PoE Budget: Four 10/100 Mbps 802.3af-compliant PoE ports easily connect and power fixed devices like IP cameras, access points, and IP phones via a single cable. Up to 15.4 W PoE output is supported by each PoE port.*

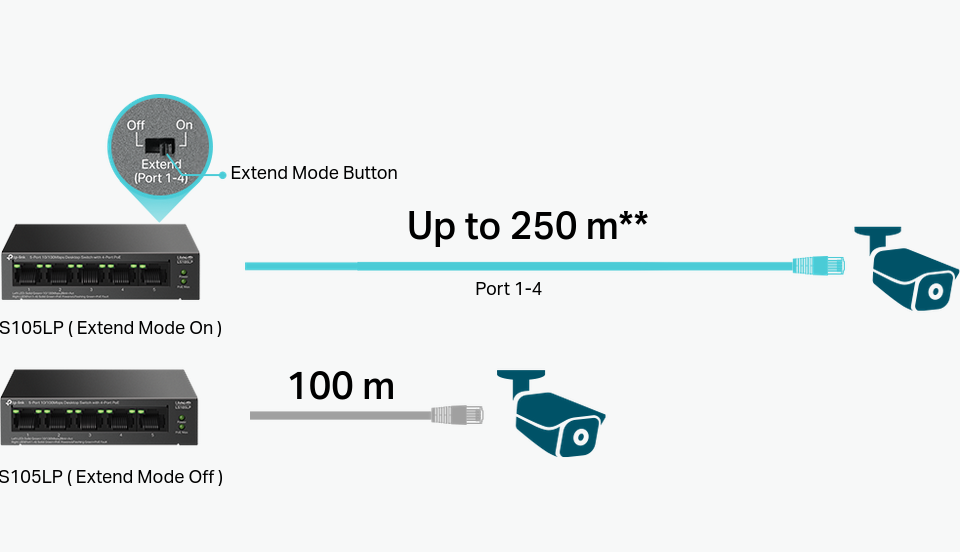

- Up to 250 m PoE Transmission: With Extend Mode, PoE transmission distance reaches up to 250m, perfect for surveillance camera deployment in large areas.**
- PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices.
- Plug and Play: Simply plug and play for instant connectivity with no configuration required.
- Silent Operation: Fanless design reduces power consumption and ensures silent operation, ideal for noise-sensitive homes or businesses.
- Reliable Hardware Design: Durable metal casing and desktop/wall-mounting design are well-suited for different environments.



Ideal for IP Surveillance
—Up to 250 m Transmissions

HARDWARE FEATURES | |
---|---|
Interface | • 5× 10/100 Mbps RJ45 Ports (4× 10/100 Mbps 802.3af PoE Ports) • AUTO Negotiation • AUTO MDI/MDIX |
Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m) |
Fan Quantity | Fanless |
Installation | • Desktop • Wall Mounting |
Power Supply | External Power Adapter (Output: 53.5VDC / 0.81A) |
PoE Ports (RJ45) | • Standard: 802.3 af compliant • PoE Ports: Ports 1–4, up to 15.4 W PoE output per port • Power Supply: 41 W |
LED Indicator | • Power • Link/Act • PoE Status • PoE MAX |
Dimensions ( W x D x H ) | 3.9×3.9×1.0 in (100×98×25 mm) |
Max Power Consumption | • 2.40 W (220 V/50 Hz no PD connected) • 46.45 W (220 V/50 Hz with 41 W PD connected) |
Max Heat Dissipation | • 8.15 BTU/h (220 V/50 Hz no PD connected) • 157.93 BTU/h (220 V/50 Hz with 41 W PD connected) |
PERFORMANCE | |
---|---|
Switching Capacity | 1 Gbps |
Packet Forwarding Rate | 0.744 Mpps |
MAC Address Table | 2K |
Jumbo Frame | 2 KB |
SOFTWARE FEATURES | |
---|---|
Advanced Features | • Extend Mode Button (Ports 1–4, Up to 250 m PoE power supply and data transmission) • PoE Auto Recovery Button (Ports 1-4) • Compatible With IEEE 802.3af Compliant PDs • Mac Address Auto-Learning and Auto-Aging • IEEE 802.3x Flow Control • Green Technology |
Transfer Method | Store and Forward |
OTHERS | |
---|---|
Certification | CE, FCC, RoHS |
Environment | • Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
Виж още Суич TP-Link
Виж всички продукти Суич в категорията
Документация
Технически характеристики
Брой портове: | 5 |
---|---|
Максимална скорост: | <1 Gbit/s |
Стандарт: | IEEE 802.3 at |
Управляем: | Не е указано |
