Суич Ruijie RG-ES209GC-P, 1000 Mbps, 9 порта, 8x PoE+, 9x 10/100/1000BASE-T

Ruijie RG-ES209GC-P

Highlight Features

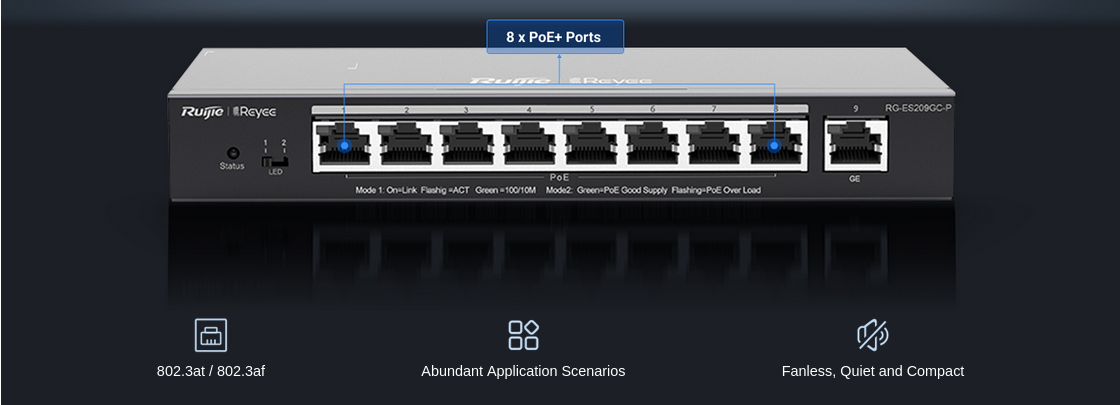

• 9-Port gigabit cloud managed switch with 8 PoE+ ports
• Cost-Effective Smart Cloud Managed Switches
• IP Camera Recognition, Unique Value for CCTV Network
• Automatic Loop Prevention Ensures Service Continuity
• Lifetime management on Ruijie Cloud at anytime anywhere

Specifications:

Basic

10/100/1000Base-T ports

9

1000Base-X SFP ports

No

PoE/PoE+ ports

8

Max. PoE budget

120W

Layer Type

Layer 2

Switching capacity

18 Gbps

Forwarding rate

13.39 Mpps

Packet Buffer

1.5 Mbit

MAC address table

4000

Maximum VLAN Support

16

Dimensions (W x D x H)

202 mm x 108 mm x 28 mm

MTBF

> 200,000

Software Features

10/100/1000M Auto/Full/Half Duplex Negotiation

Yes

Flow Control

Yes

Storm Suppression

Yes

Management IP

10.44.77.200

VLAN Range

1 - 4094

Port-based VLAN

Yes

STP / RSTP

No

QoS

No

ACL

No

DHCP Client

Yes

DHCP Snooping

Yes

Telnet

1 session

SSH

No

DNS Client

Yes

SNMP v1/v2/v3

No

Many-to-one Port Mirroring

Yes

Downlink Loop Protection

Yes

Loop Disabled Port

Yes

Disconnection Duration

2s

Flow Control

Yes

Cable Testing

Yes

Web-based Management

Yes

HTTP

Yes

Cloud Management

Yes

Hardware Features

Reset Button

Rear

Cable Hot-swappable

Yes

Power Supply Slot

Power adapter

Power Consumption

≤ 130W

Power Supplies

54V DC adapter, 2.4A

EEE

No

Fan

No

Fan Adaptive Speed Adjustment

No

Acoustic Noise

Noiseless

Operating Temperature

0°C to 40°C (32°F to 104°F)

Storage Temperature

-40°C to 70°C (-40°F to 158°F)

Operating Humidity

10% to 90% RH

Storage Humidity

5% to 95% RH

Port Surge

4 kV

Operating Altitude (meters)

-500 to 5000

Certificate

CE, RoHS
