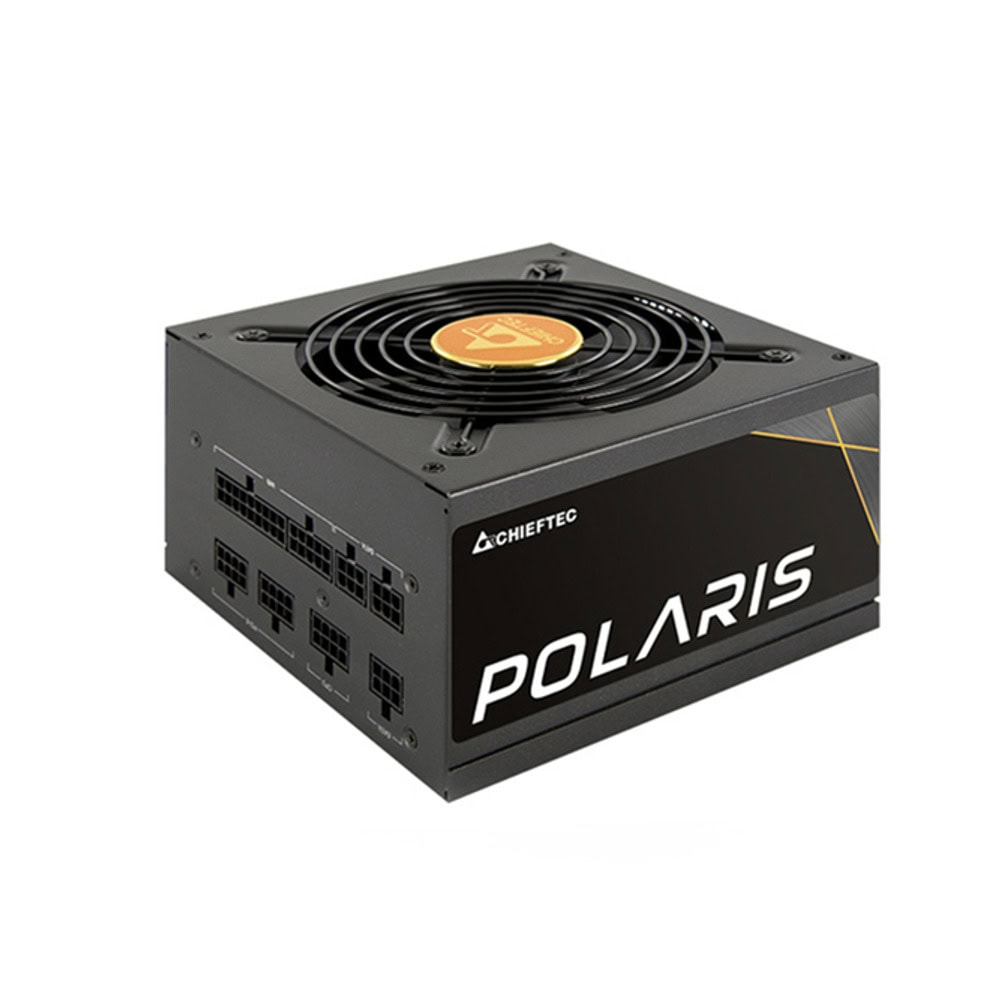

Name: Захранване Chieftec Polaris, 550W, Active PFC, 80 Plus Gold, 120mm вентилатор
Brand: Chieftec
SKU: PWRPCCHIEFTECPPS550FC
Price: 94.70 EUR
Availability: InStock

Описание Характеристики Ревюта / Въпроси Документация Вземи на изплащане

The Polaris Series brings CHIEFTEC’s trusted and proven experience with high quality, 80 PLUS Gold certified, fully modular power supplies back to the forefront of modern technology. Polaris Series PSU’s feature state-of-the-art technical design including LLC half-bridge converter with DC-to-DC technology, as well as high power-density to allow higher efficiency and power output with a more compact size.

With the size of only 140mm in length and fully modular cable management, the Polaris Series is easy to install in any system for standard ATX PSU. Cable lengths of 650mm ensure that these power-supplies can be used even in large builds. Whether a small PSU housing for compact system is needed or longer cables for large systems, the Polaris Series can be trusted to do the job with top performance and efficiency.

Specifications

AC Input	100-240V / 8.0A
Frequency	50 - 60Hz
+5V	20A
+3,3V	20A
+5V & +3,3V combined	105W
+12V1	45.8A
+12V2	-
+12V1, +12V2 combined	550W
P.F.	>0,9
-12V	0,3A / 3,6W
+5VSB	3.0A / 15W
Maximum Power	550W

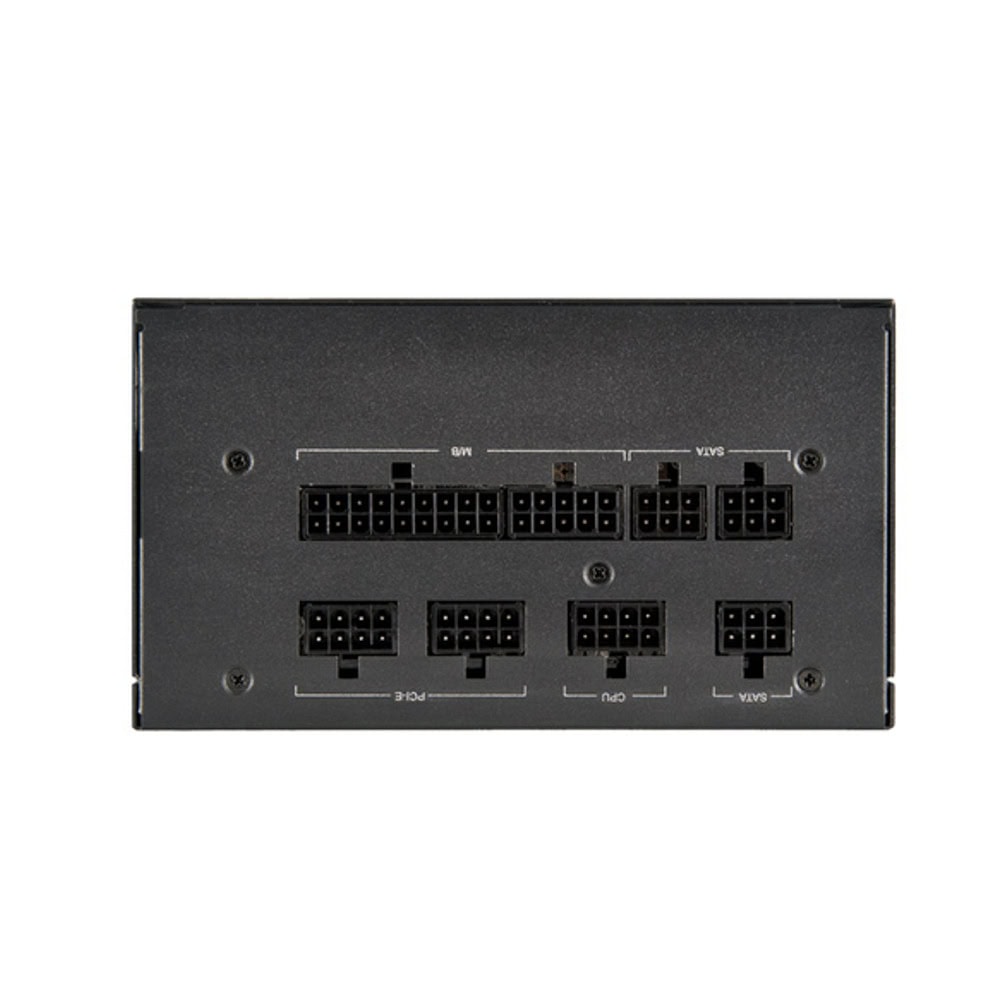

20+4 PIN ATX	1 (650mm)
8 PIN EPS (4+4)	2 (650/150mm)
8 PIN PCIe (6+2)	2 (500/150mm)
SATA	6 (2x 450/150/150mm)
MOLEX/FLOPPY	3/1 (450/150/150/150mm)

ATX12V Version	ATX 12V 2.4
Efficiency	80+Gold
Dimension (DxWxH)	140 mm x 150 mm x 87 mm
PFC	Active PFC
Fan	120mm silent fan
Security	AFC (Automatic Fan speed Control) OCP (Over Current Protection) OPP (Over Power Protection) OTP (Over Temperature Protection) OVP (Over Voltage Protection) SCP (Short Circuit Protection) SIP (Surge & Inrush Protection) UVP (Under Voltage Protection)
