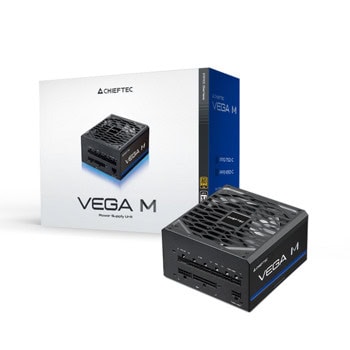

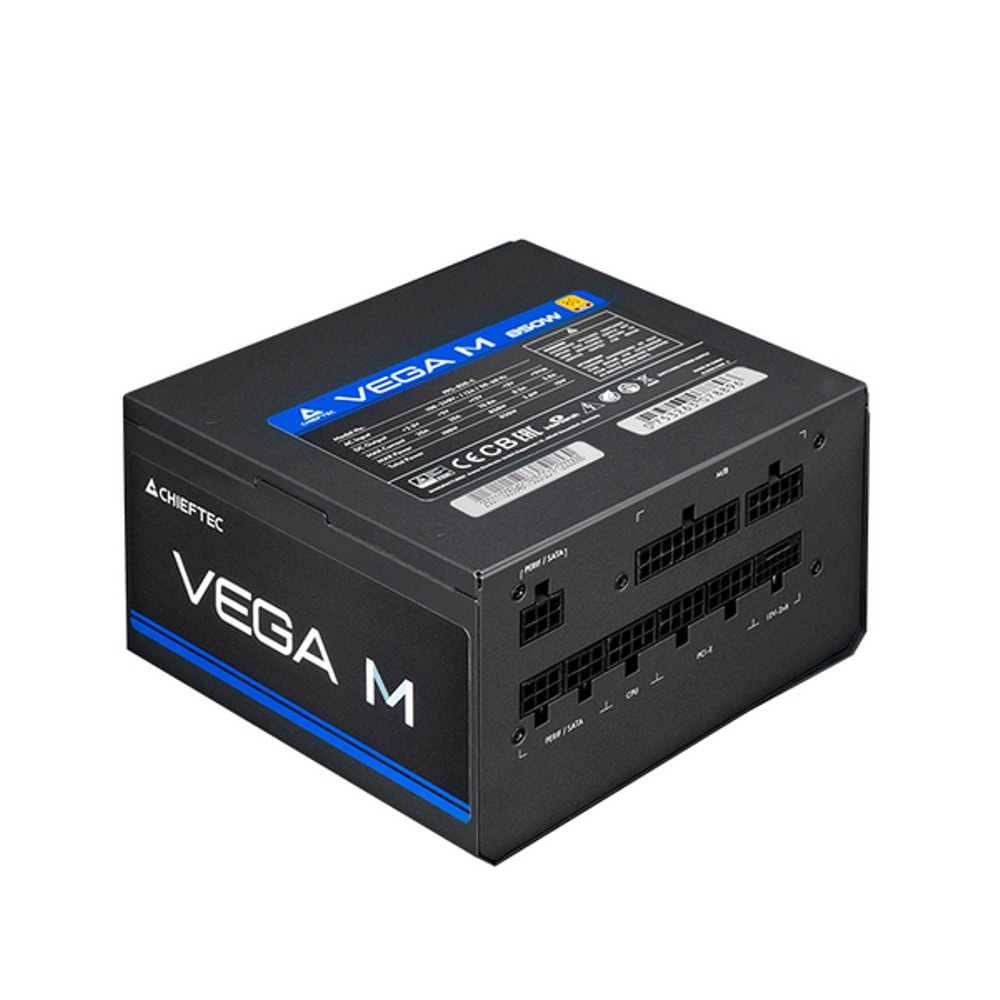

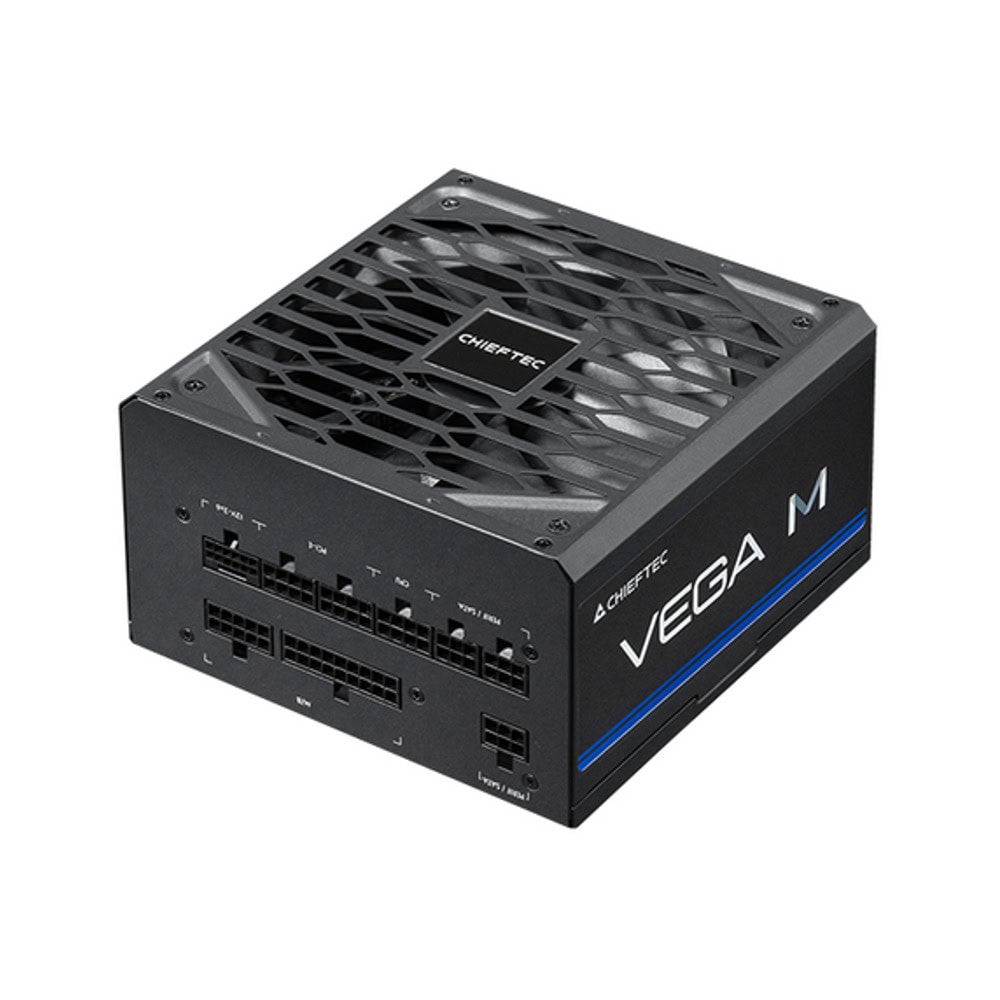

Chieftec Vega M 850W PPG-850-C
Икона нов продукт
НазадChieftec Vega M 850W PPG-850-CChieftec Vega M 850W PPG-850-CChieftec Vega M 850W PPG-850-CChieftec Vega M 850W PPG-850-CНапред

Захранване Chieftec Vega M, 850W, Active PFC, 80 Plus Gold, 135mm вентилатор

id 292127 Код: PWRPCCHIEFTECPPG850C
202.57 лв

Всички цени са с начислен ДДС

ОписаниеХарактеристикиРевюта / ВъпросиДокументацияВземи на изплащане

The CHIEFTEC Vega M Series power supply is built to Intel’s ATX 12V 3.1 standard and supports PCIe GEN5 with 80PLUS Gold certified efficiency. It prioritizes a competitive price-to-performance ratio up to 850W while maintaining the trusted Chieftec quality. The Vega M Series features LLC Half-Bridge converter with DC-to-DC technology to provide enhanced power efficiency and stability.

The full-modular design with extra- long black cables make it suitable for mainstream gamers to build their system, even in larger PC cases. Additionally, its 135mm fluid dynamic bearing (FDB) silent fan optimizes the balance between cooling performance and noise levels.

The Vega Series is your trusted reliable choice for all computing needs incorporating all necessary modern protection and safety features.





Technical data

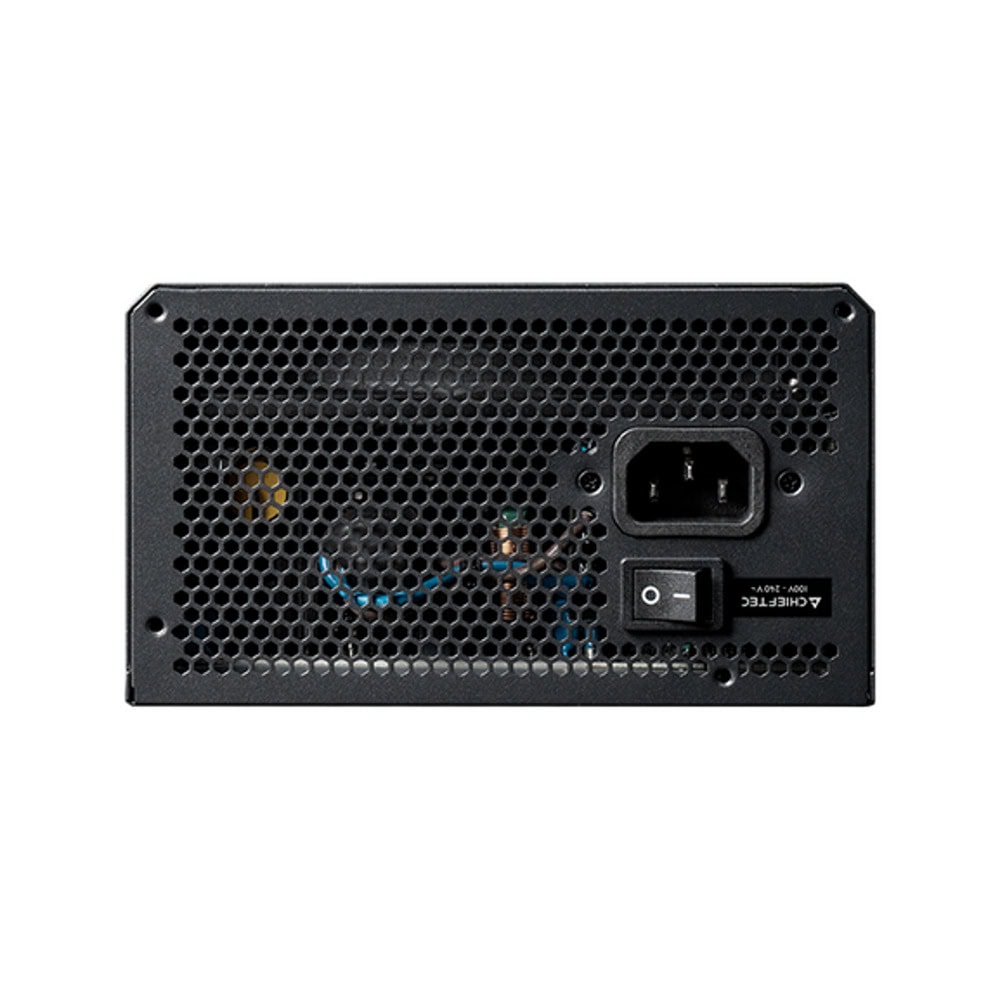

AC Input100-240V~ / 12-6A
Frequency50 - 60Hz
+5V20A
+3,3V20A
+5V & +3,3V combined100W
+12V170.8A
+12V2-
+12V1, +12V2 combined850W
P.F.>0.9
-12V0.3A / 3.6W
+5VSB3.0A / 15W
Maximum Power850W

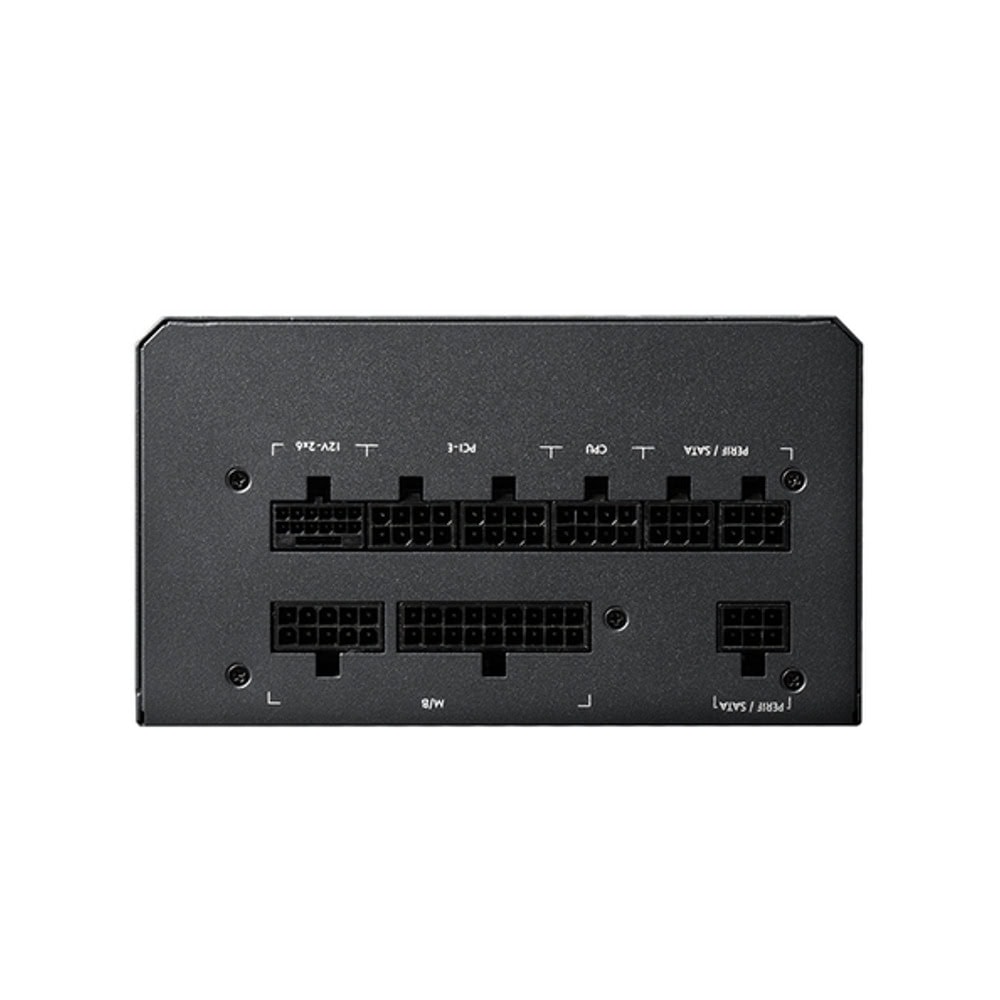

Connectors

20+4 PIN ATX1
8 PIN EPS (8/4+4)1/1
8 PIN PCIe (6+2)4
16 PIN 12V - 2 x 61
SATA6
MOLEX3

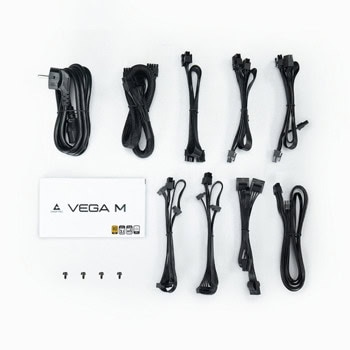

Cable length (mm)

20+4 PIN ATX600
8 PIN EPS (4+4)650/150
8 PIN PCIe (6+2)2 x 600/150
16 PIN 12V - 2 x 6600
SATA2 x 400/150/150
MOLEX400/150/150



Features

ATX12V VersionATX 12V 3.1
Efficiency80Plus Gold
Dimension (DxWxH)150 mm x 150 mm x 85 mm
PFCActive PFC (0.9)

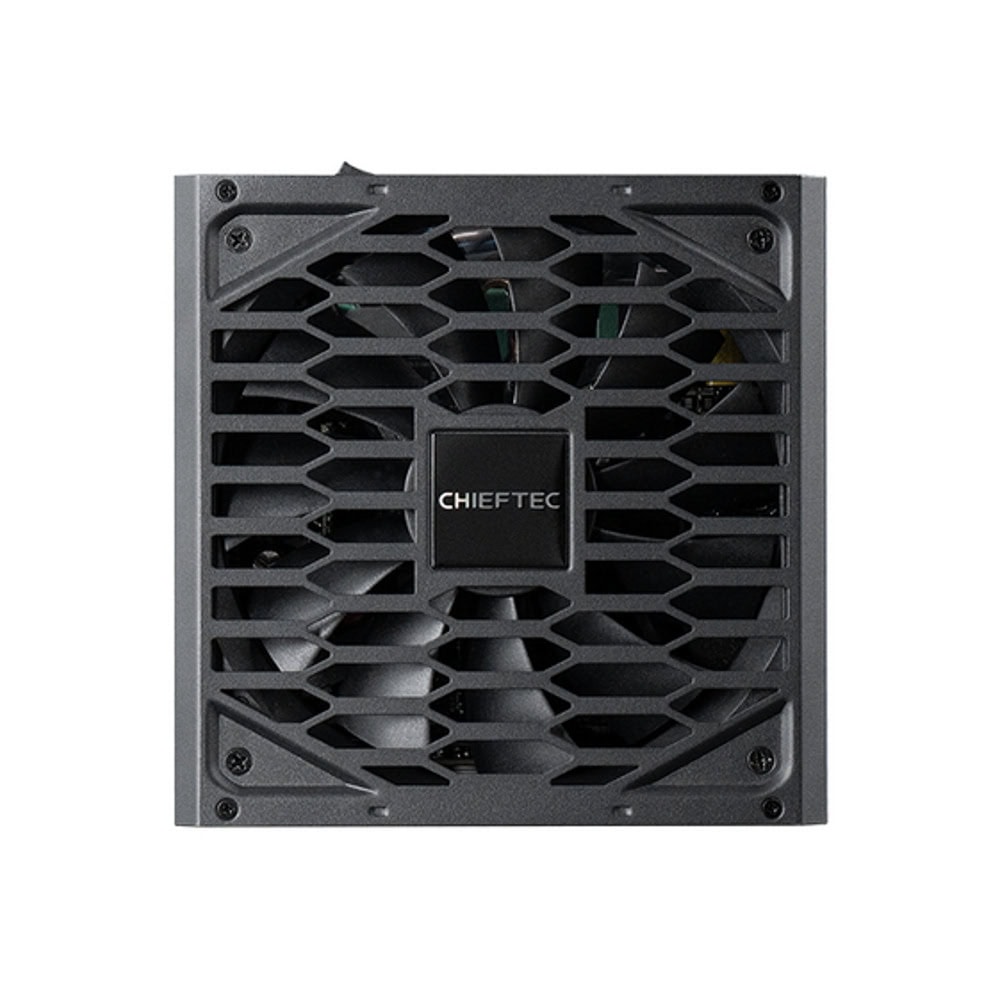

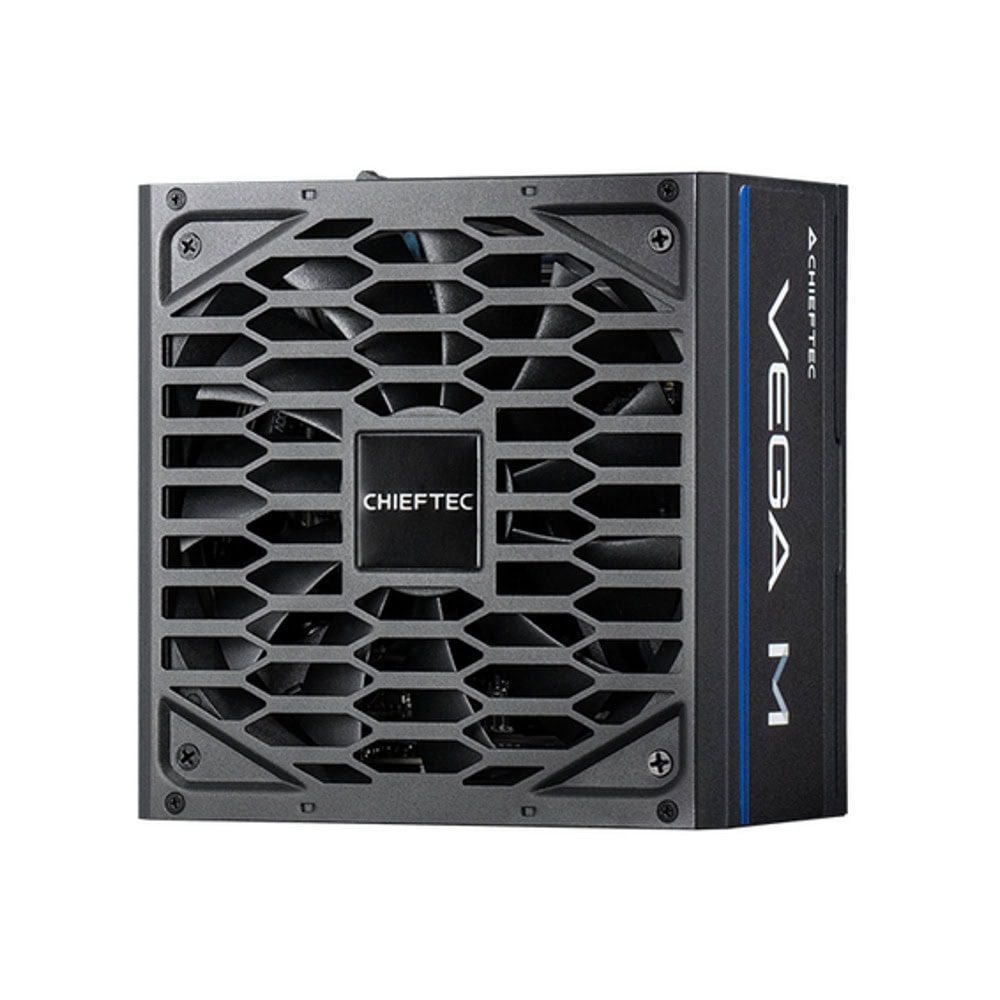

Fan135mm FDB fan
SecurityAFC (Automatic Fan Speed Control)
OPP (Overload Protection)
OTP (Over Temperature Protection)
OVP (Overvoltage Protection)
SCP (Short-Circuit Protection)
SIP (Surge & Inrush Protection)
UVP (Under Voltage Protection)
OCP (Over-Current Protection)


JAR Computers може да предложи ремонт/смяна/монтаж в наш сервиз или при партньор.



    Виж още Захранвания Настолни компютри Chieftec
    Виж всички Захранвания Настолни компютри в категорията
    Документация
    Технически характеристики
    Изходна мощност:  850 W
    Модулен блок:  Да
    Форм фактор:  ATX
