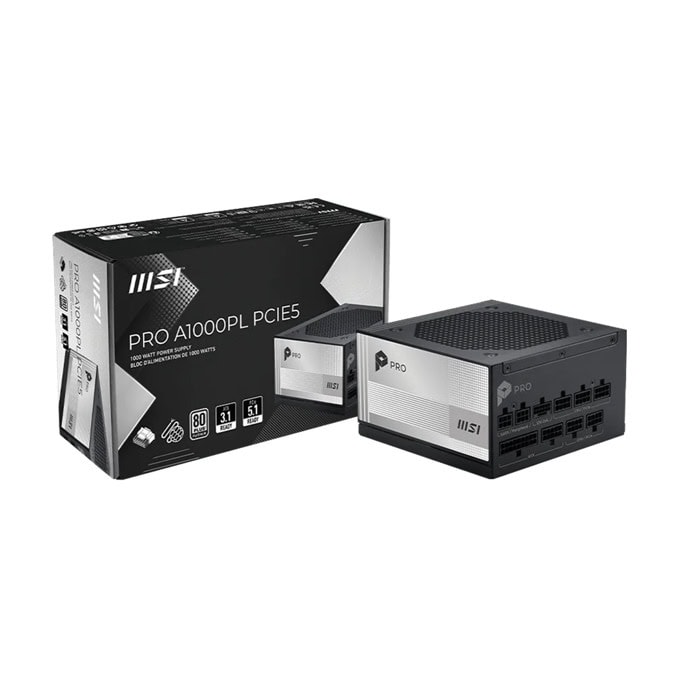

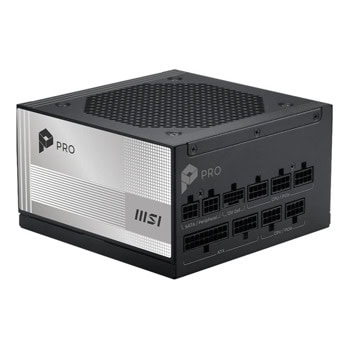

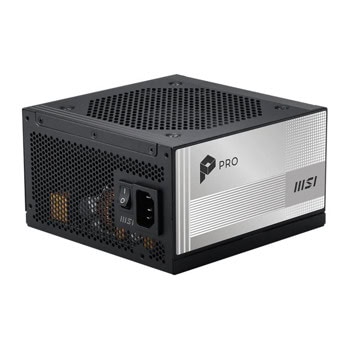

Захранване MSI Pro A1000PL PCIE5, 1000W, Active PFC, 80 Plus Platinum, 120mm вентилатор

MSI Pro A1000PL PCIE5

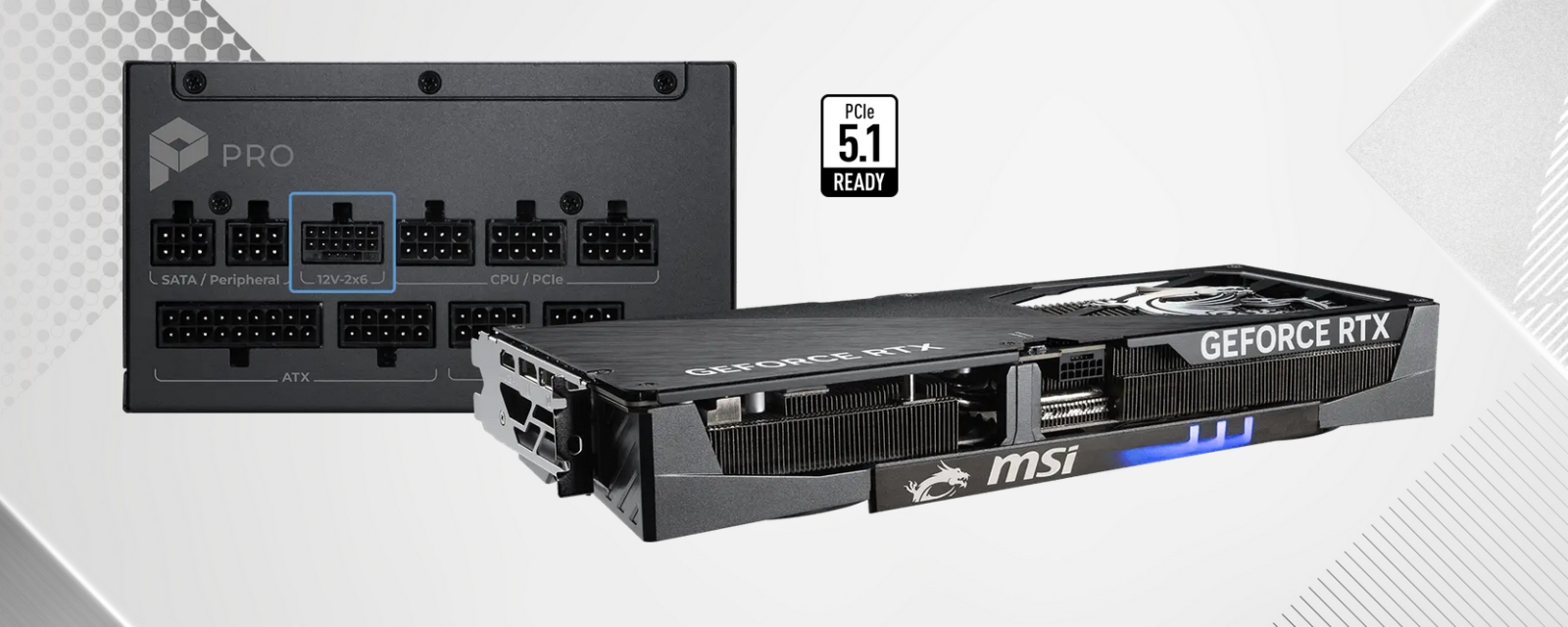

Reliable Connector Design

The power supply features the 12V-2x6 (H++) connector, design with an optimized structure that complies with the PCIe CEM 5.1standard. The ensures enhanced reliability and safety. It is capable of delivering up to 600W of power, making it suitable for even the most demanding high-end graphics cards.

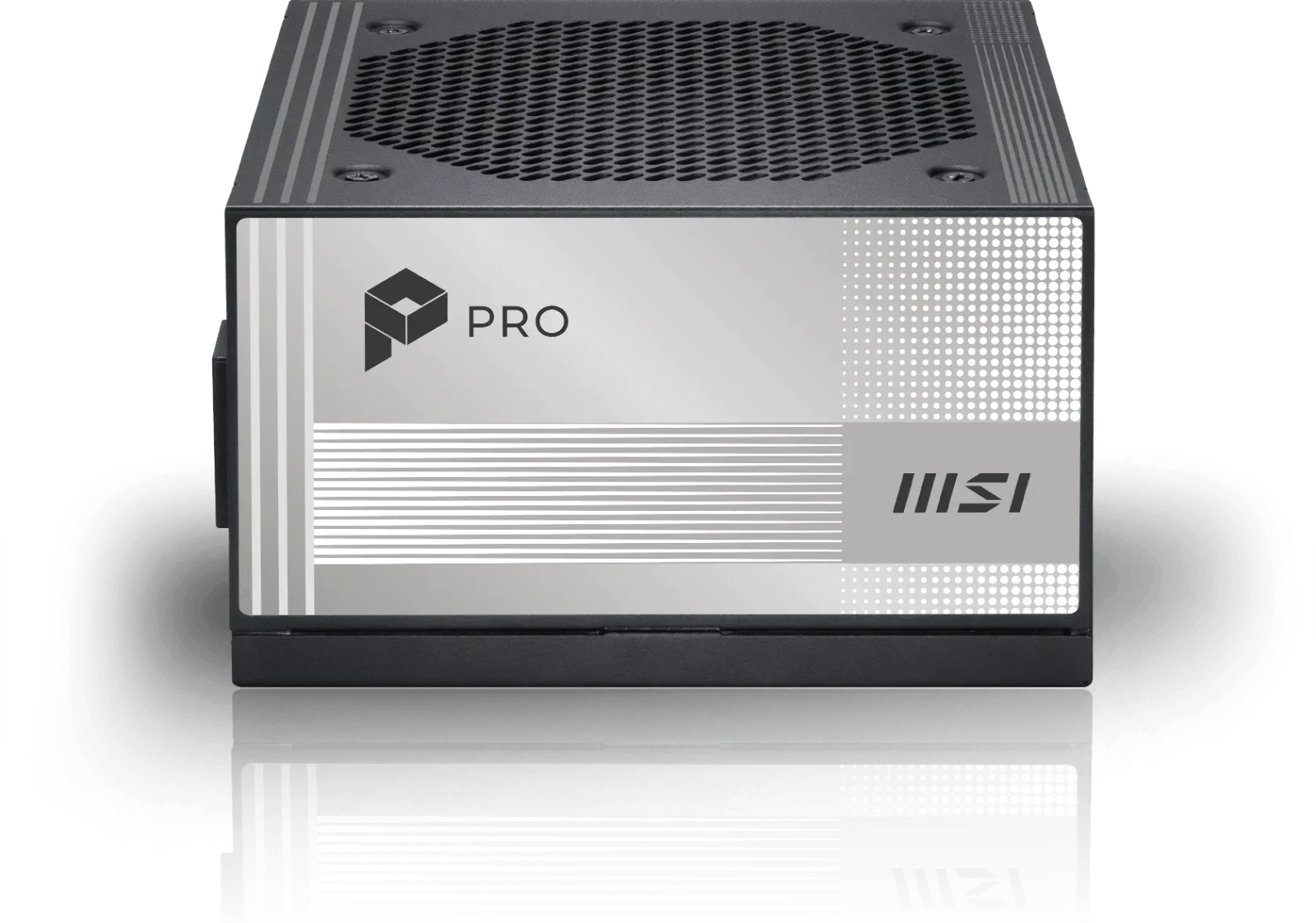

Platinum Efficiency Certification The efficiency of your power supply significantly impacts overall power consumption. The Platinum certification stands out as a reliable benchmark for energy efficiency, ensuring that your power supply delivers lower energy consumption and operates at higher efficiency levels.   105°C Main Capacitor Aiming for superior product quality and performance stability, this power supply features 105°C main capacitors for long-term use reliability.

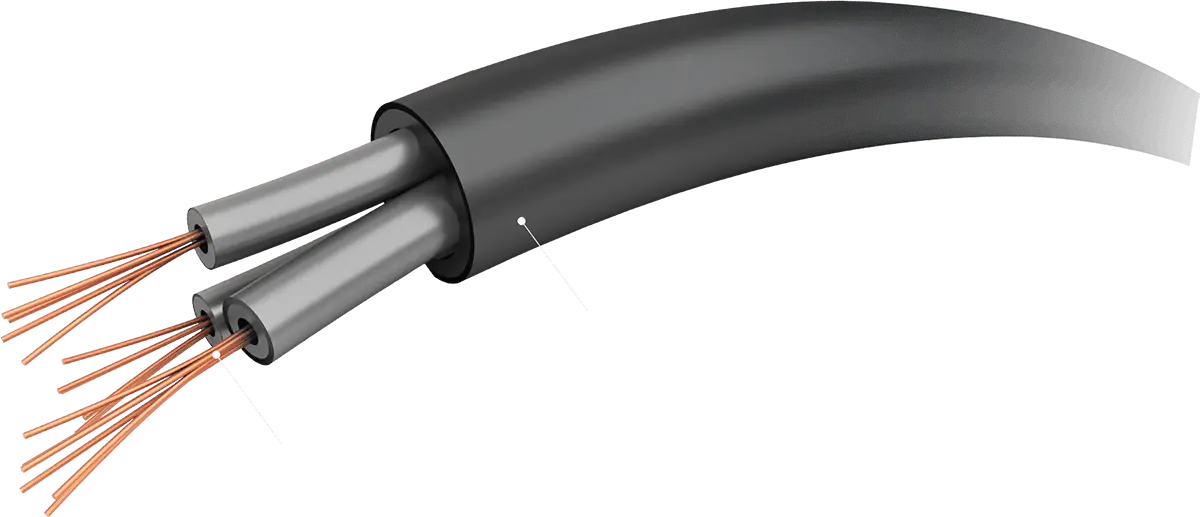

	Built for Maximum Safety The power supply's cables, from the internal copper wires to the external high-density braided cover, are fully UL certified, ensuring superior safety and durability.

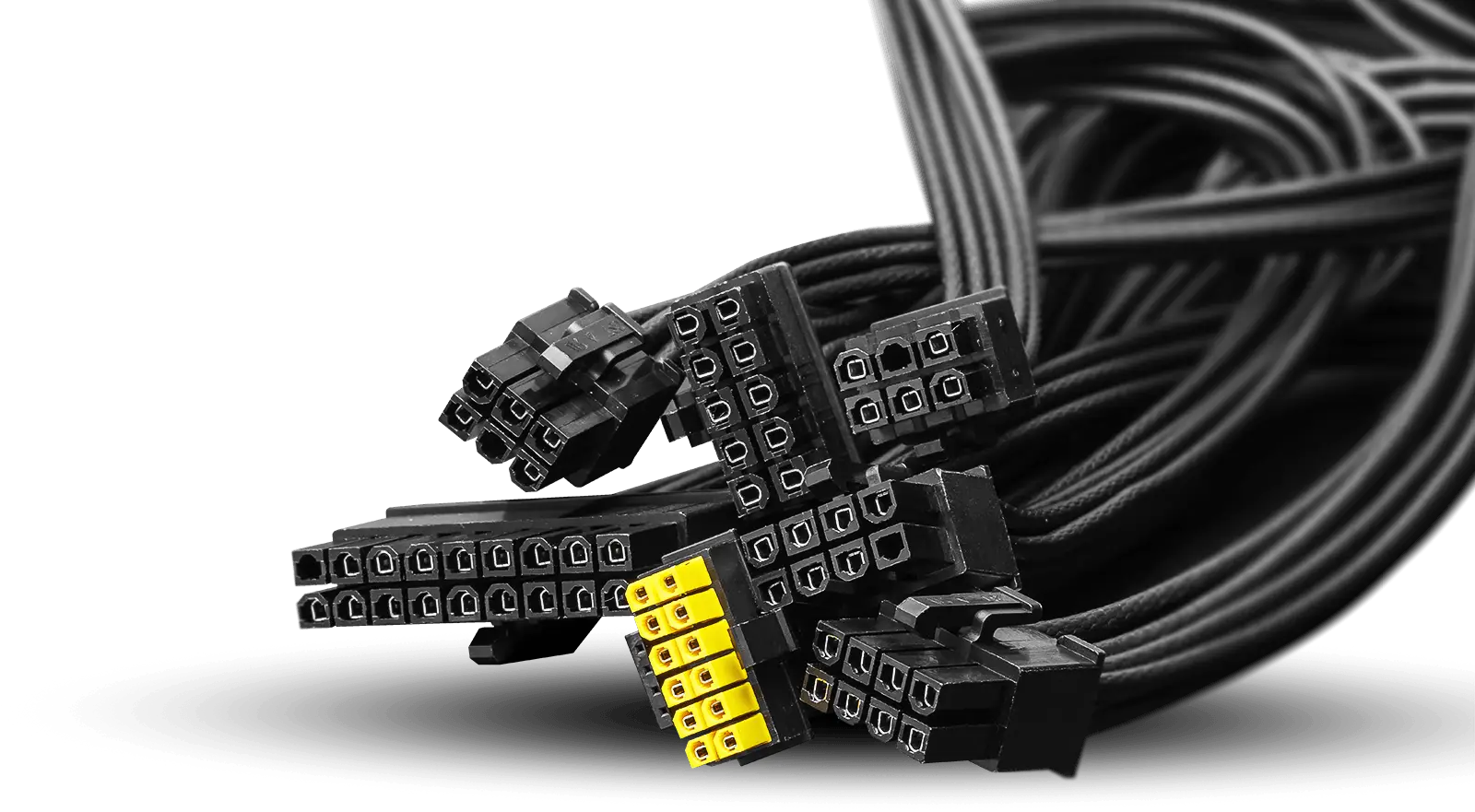

Alloy Copper Connector Terminals The cable connectors are made of nickel-plated copper alloy terminals, effectively prevents oxidation, maintaining the terminal's conductivity and durability when there is a higher surge in current.

Protection mechanisms

To make sure the entire system can operate safely and stably at all times, here comes with a number of protection mechanisms to give you the best peace of mind.

Specifications

Efficiency Rating

80 PLUS Platinum (up to 92%)

Modular

Fully Modular

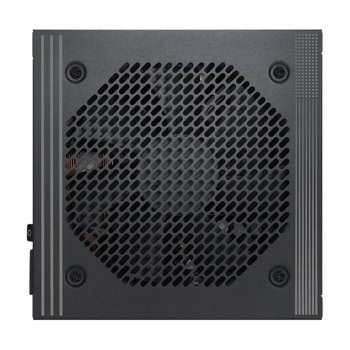

Fan Size

120 mm

Fan Bearing

Hydrualic Bearing

Dimensions (DxWxH)

150 x 150 x 86 mm / 5.9 x 5.9 x 3.38 inches

PFC Type

Active PFC

Input Voltage Range

100-240V~

Power Watt

1000W

Power Excursion

200%

Input Frequency Range

50-60Hz

Protection

OCP, OTP, OPP, SCP, OVP, UVP, SIP, NLO

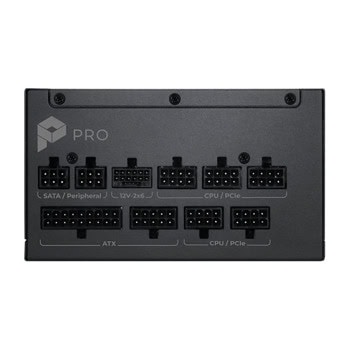

ATX (24 pin)

1

EPS (4+4 pin)

2

PCI-E 5.1 (16 pin)

1 (600W)

PCI-E (6+2 pin)

3

SATA (15 pin)

6

Peripheral (4 pin)

2

JAR Computers може да предложи ремонт/смяна/монтаж в наш сервиз или при партньор.
