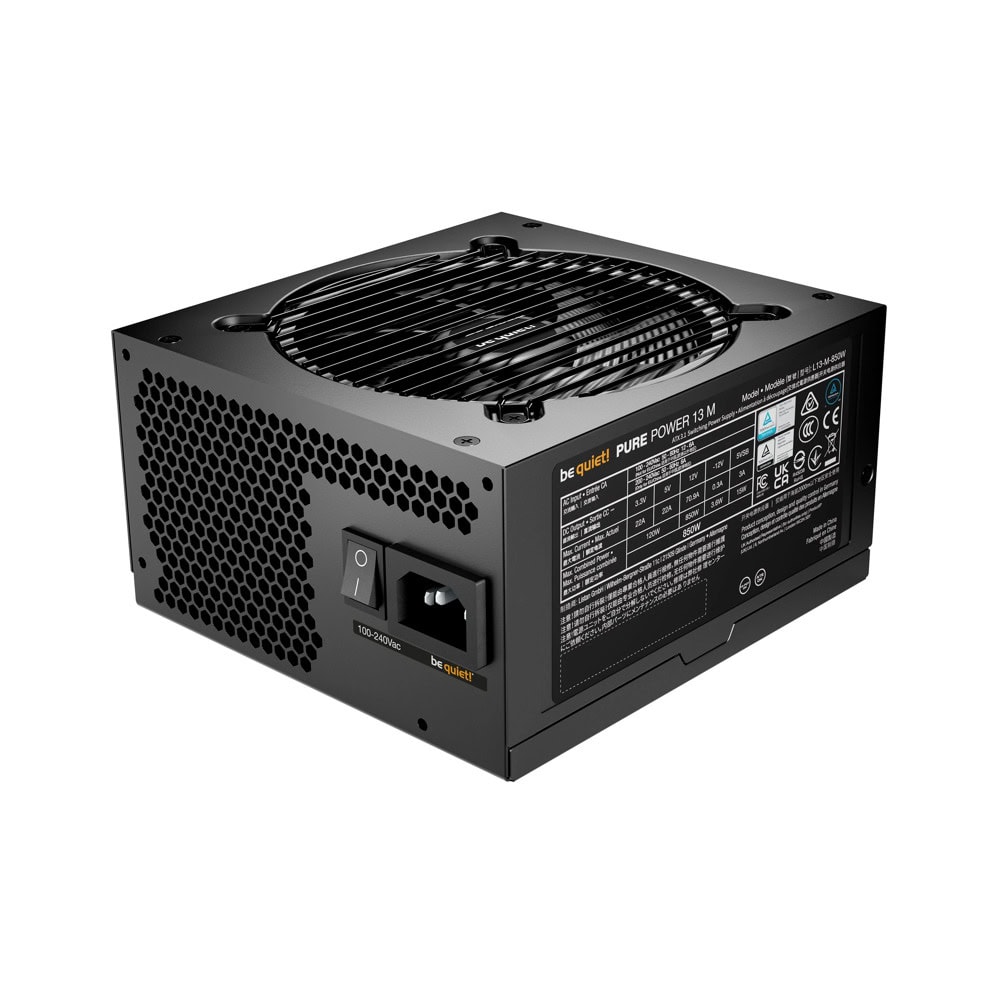

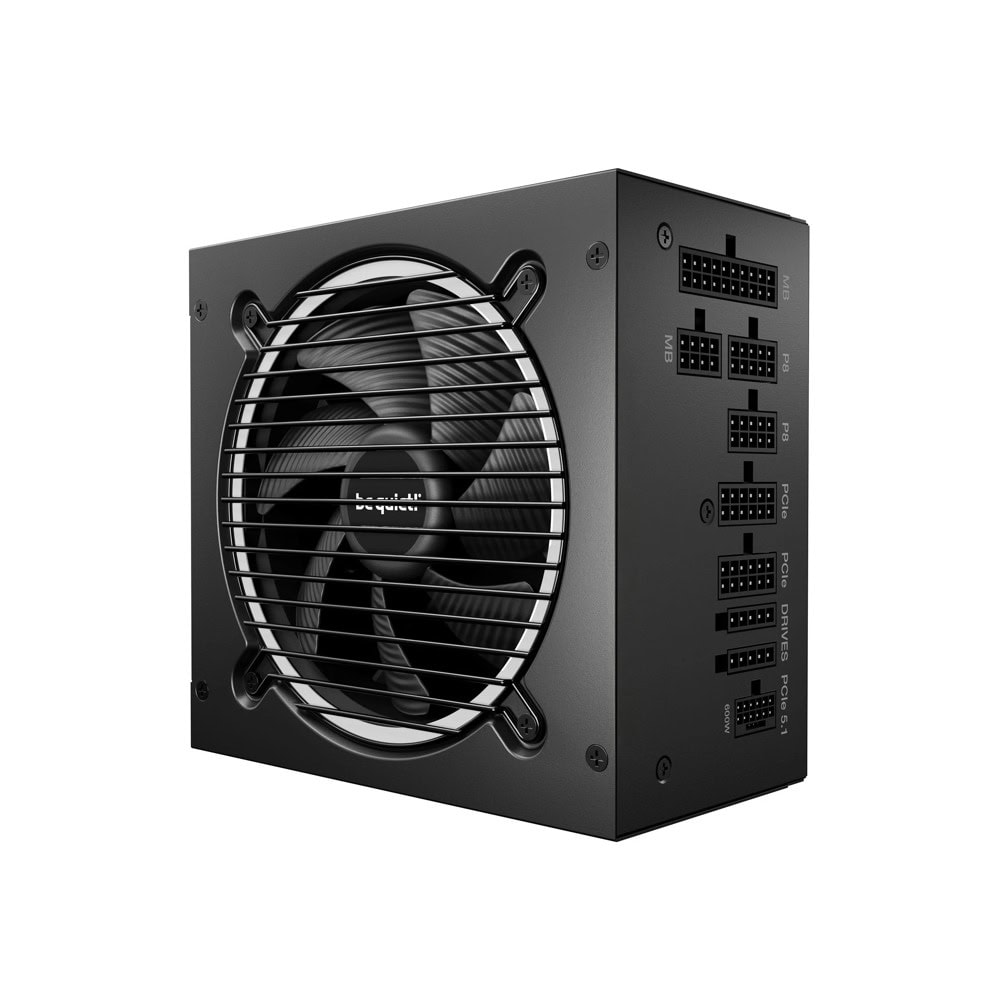

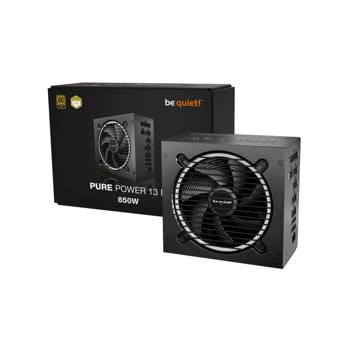

Захранване be quiet! Pure Power 13 M 850W
Икона нов продукт
Захранване be quiet! Pure Power 13 M 850WЗахранване be quiet! Pure Power 13 M 850WЗахранване be quiet! Pure Power 13 M 850WЗахранване be quiet! Pure Power 13 M 850W

Захранване be quiet! Pure Power 13 M, 850W, Active PFC, 80+ Gold, 120mm вентилатор

id 295111 Код: PWRPCBEQUIETBP027EU

279.36 лв.

/

142.83 €

Всички цени са с начислен ДДС

Печат

Изпрати на приятел

ОписаниеХарактеристикиРевюта / ВъпросиВземи на изплащане

PURE POWER 13 M

850W

Exceptional quiet, superior features

Pure Power 13 M 850W is an ATX 3.1 compliant and PCIe 5.1 compatible power supply with semi-passive cooling. It offers peerless dependability with best-in-class features. Pure Power 13 M 850W offers the best combination of features with outstanding compatibility.

  • 80 PLUS® Gold efficiency (up to 94.4%)
  • ATX 3.1 PSU with full support for PCIe 5.1 GPUs and GPUs with 6+2 pin connectors

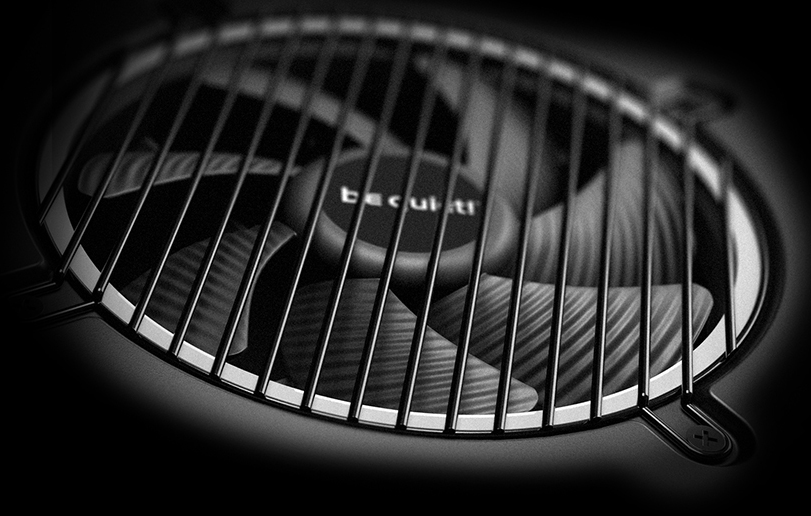

  • Exceptionally silent semi-passive 120mm be quiet! fan
  • Semi-passive construction for quiet and energy-saving operation
  • LLC technology for advanced stability and voltage regulation
  • One massive high-performance 12V-rail
  • One PCIe 5.1 12V-2x6 600W and 4 PCIe 6+2 connectors for overclocked high-end GPUs

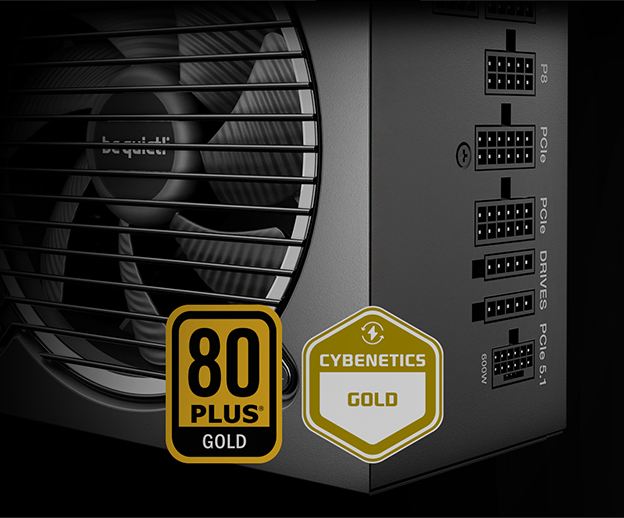

80 PLUS® GOLD CERTIFIED

Very high operating efficiency

Pure Power 13 M 850W is certified 80 PLUS Gold with an outstanding efficiency rating of up to 94.4%.  The most compelling benefit: lower power consumption, consequently lower costs, and above all a cooler as well as quieter operation. Pure Power 13 M 850W is always the correct choice for quiet systems and gaming PCs!

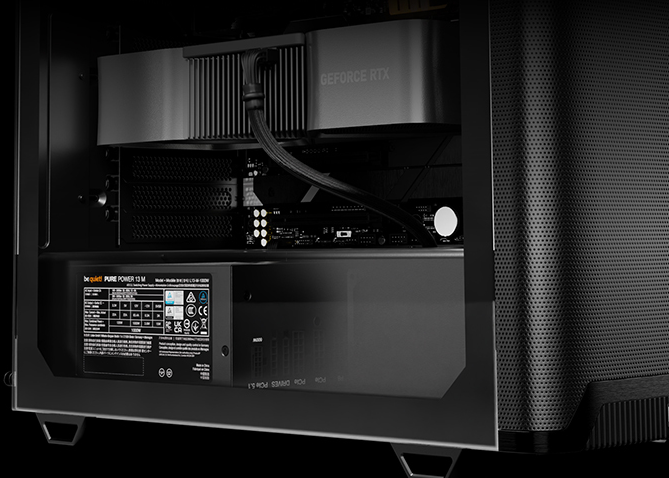

FUTURE-PROOF YOUR SYSTEM

Fulfills all ATX 3.1 specifications

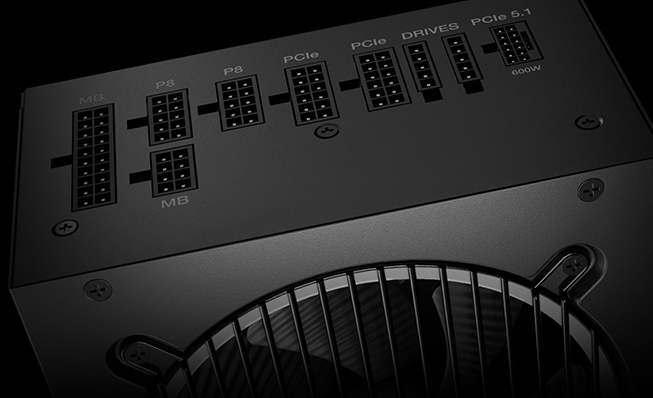

Pure Power 13 M 850W is an ATX 3.1 PSU and comes with both native integration of the 12V-2x6 connector for next-generation PCIe 5.1 graphics cards, and 4 PCIe 6+2-pin connectors for support of current-gen GPUs. This makes the PSU extremely versatile and the perfect choice for powerful systems of today and the ones to come.

THE NEW STANDARD OF POWER

For massive transient loads

Pure Power 13 M offers 850W of continuous power with one massive 12V rail. Even if the graphics card demands excessive power for a short time: Pure Power 13 M 850W handles power excursions up to double its rated power with ease. This ensures reliable operation with the next generation of processors and graphics cards

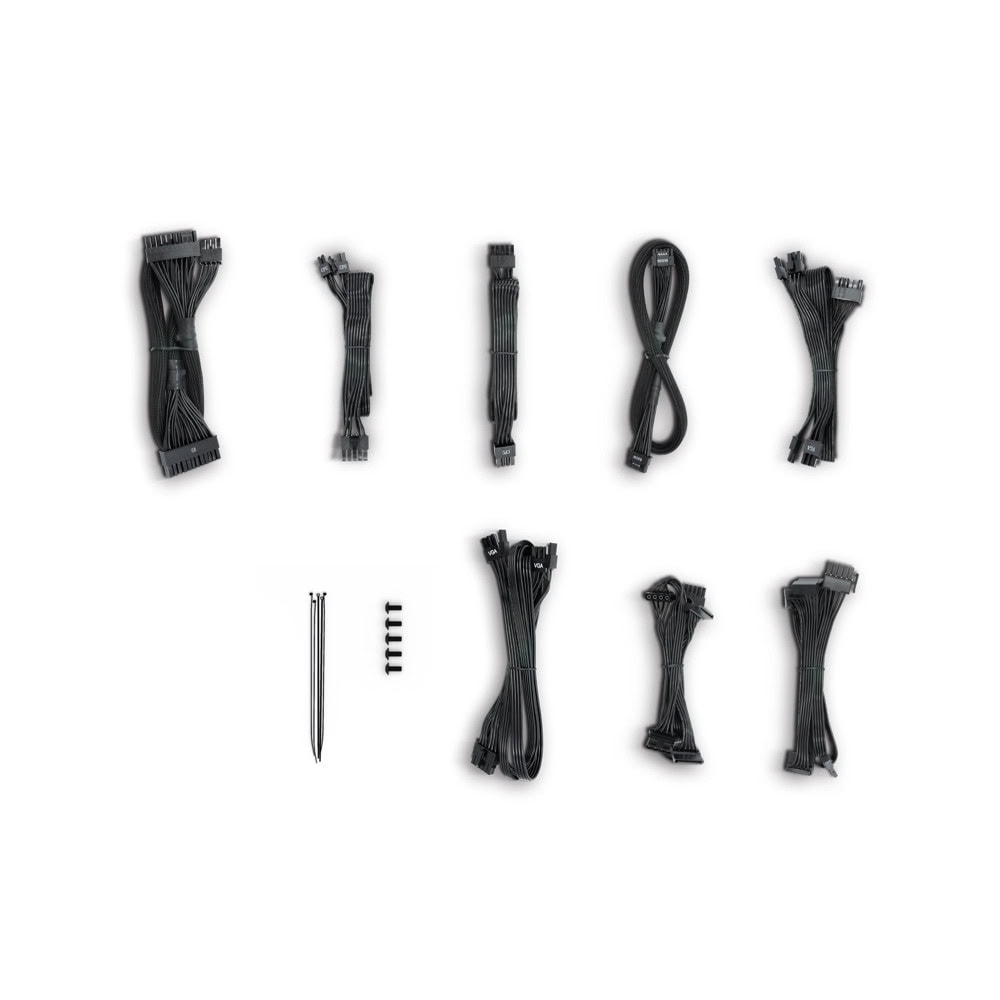

MODULAR CABLES

Utmost convenience and compatibility

Thanks to their modularity, all unnecessary cables in the system are left out. Pure Power 13 M 850W simplifies cable management and routing for a tidy-looking system. A smoother airflow results from the uncluttered layout of the system, which means lower noise and temperatures inside the case.

CategorySpecification
ModelPure Power 13 M
Continuous Power (W)850
Peak Power (W)900
Form FactorVersion 3.1
Form Factor EPS 12VVersion 2.92
TopologyLLC + SR + DC/DC
Digitally Controlled-
Voltage (Vac)100 - 240
Frequency (Hz)50 - 60
Input Current (A)12 / 6
Power Factor at 100% Load>0.98
Modern Standby✓
Power Consumption in Standby (W)<0.1
Average Life Time (h @ 25°C)>100,000
Operating Temperature Max (°C)40
80 PLUS CertificationGold
Efficiency @ 230V, 2% Load (%)70.5
Efficiency @ 230V, 10% Load (%)90.0
Efficiency @ 230V, 20% Load (%)93.2
Efficiency @ 230V, 50% Load (%)94.4
Efficiency @ 230V, 100% Load (%)92.8
FanSilence-optimized be quiet! fan
Fan Size (mm)120
Bearing TechnologyRifle
Motor Technology4-pole fan motor
Max Fan Speed (RPM)2000
Noise @ 20% Load (dB)12.9
Noise @ 50% Load (dB)13.2
Noise @ 100% Load (dB)30.2
12V Single Rail Operation✓
+3.3V (A)22
+5V (A)22
+12V1 (A)70.9
-12V (A)0.3
+5Vsb (A)3
Max Combined Power 12V (W)850
Max Combined Power 12V-2x6 (W)600
Max Combined Power 3.3V + 5V (W)120
Hold-Up Time @ 100% Load (ms)25.09
Hold-Up Time @ 80% Load (ms)33.38
Power Good Signal (ms)100 - 150
Modular Cables✓
Sleeved Cables✓
Flat Cables✓
Max Cable Length (cm)95
Cable Length to Motherboard (cm)55
Total Cables8
Connectors:
- ATX-Motherboard (20+4-pin)1
- P4+4 (CPU)1
- P8 (CPU)1
- 12V-2x61
- PCIe 6+2 (GPU)4
- SATA6
- PATA2
ProtectionsOTP, OCP, OPP, SCP, OVP, UVP, SIP
CertificationsBSMI, CB, CCC, CE, cTUVus, CU, FCC, RCM, TÜV, UKCA
Environmental ComplianceEnergy Star 8.0, ErP, WEEE, RoHS
AccessoriesScrews, Cable Ties
User Manual LanguagesCN, DE, EN, ES, FR, JP, PL, RU, TW
Dimensions (L x W x H mm)160 x 150 x 86
Weight (kg)2.62
ColorBlack
Warranty (Years)10
International Hotline✓ (DE, FR)
Package Dimensions (mm)320 x 210 x 133
Package Gross Weight (kg)3.4
Units per Pack6
Shipping Box Dimensions (mm)580 x 325 x 233
Shipping Gross Weight (kg)22.7


JAR Computers може да предложи ремонт/смяна/монтаж в наш сервиз или при партньор.



    Виж още Захранвания Настолни компютри be quiet!
    Виж всички Захранвания Настолни компютри в категорията
    Технически характеристики
    Изходна мощност:  850 W
    Модулен блок:  Да
    Форм фактор:  ATX
