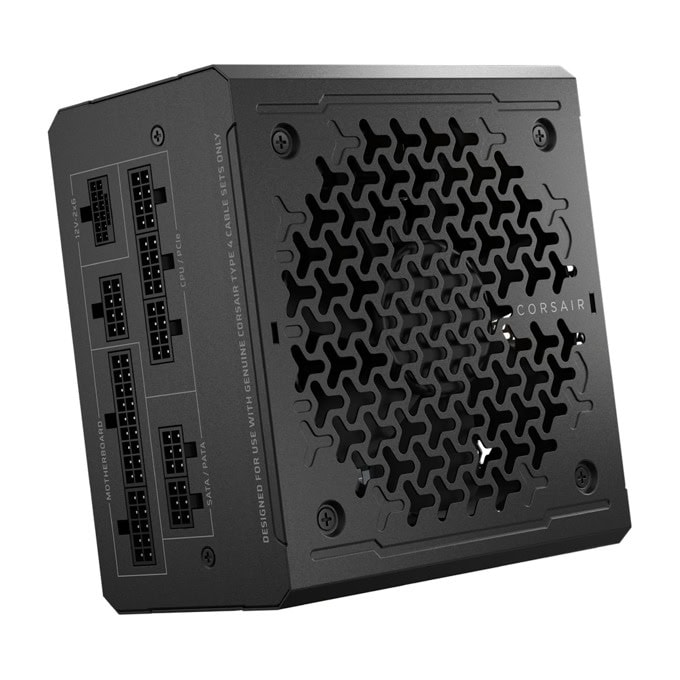

Захранване Corsair RM650e (CP-9020302-EU), 650W, Active PFC, 80 Plus Gold, 120mm вентилатор

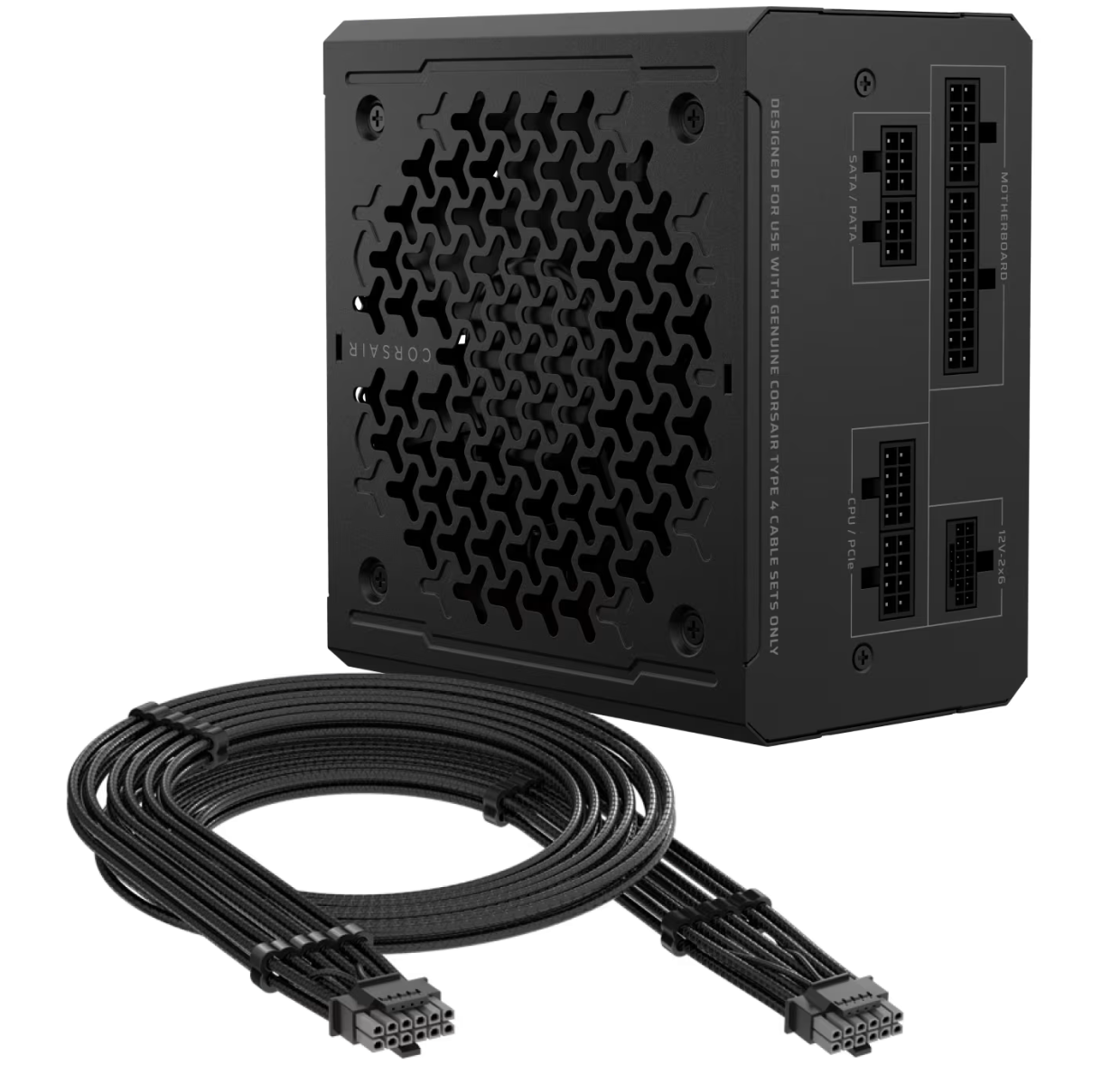

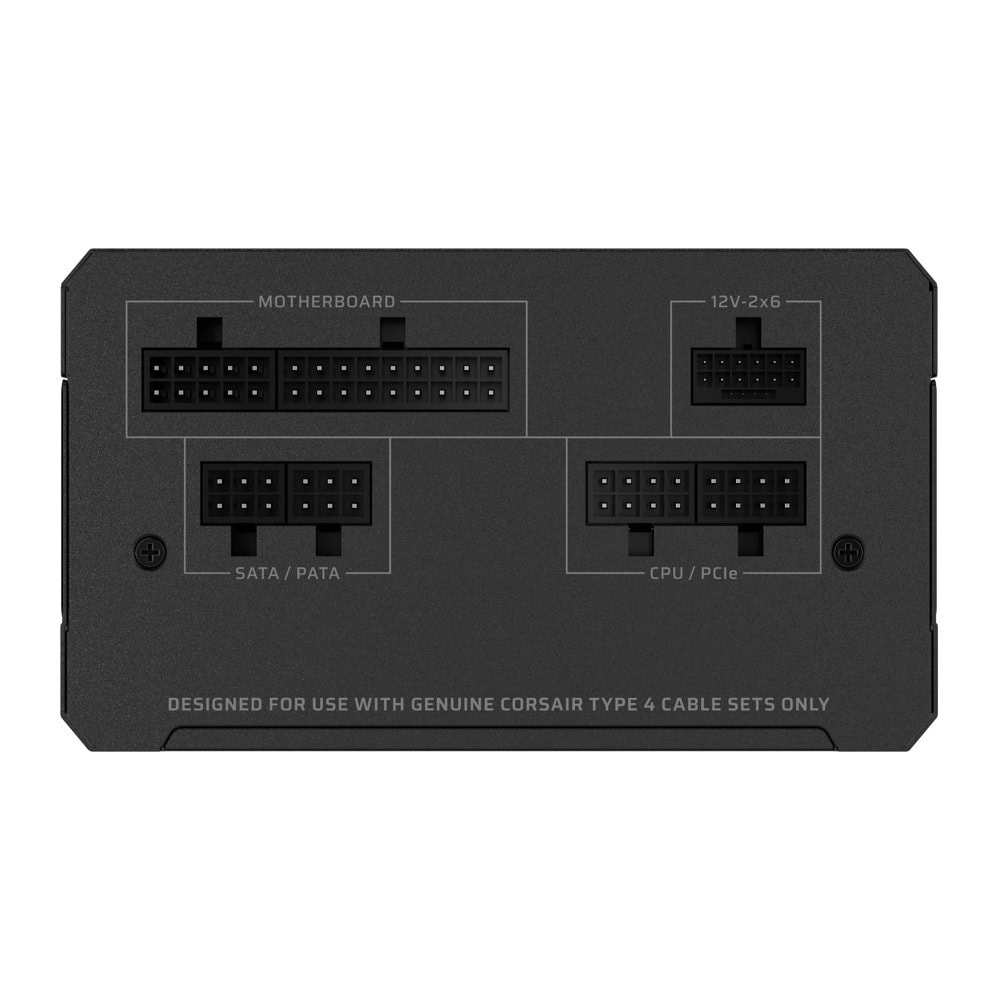

FULLY MODULAR
CABLING

Keep cable clutter down by connecting only the cables your system needs. A native 12V-2x6 GPU connector and multiple 8-pin PCIe connectors mean RMe power supplies more than meet the needs of modern and upcoming GPUs and CPUs.

ATX 3.1 CERTIFIED

The ATX 3.1 standard demands a high level of reliability and power efficiency. While many CORSAIR PSUs meet these requirements, RMe Series PSUs are formally certified for ATX 3.1 compliance.

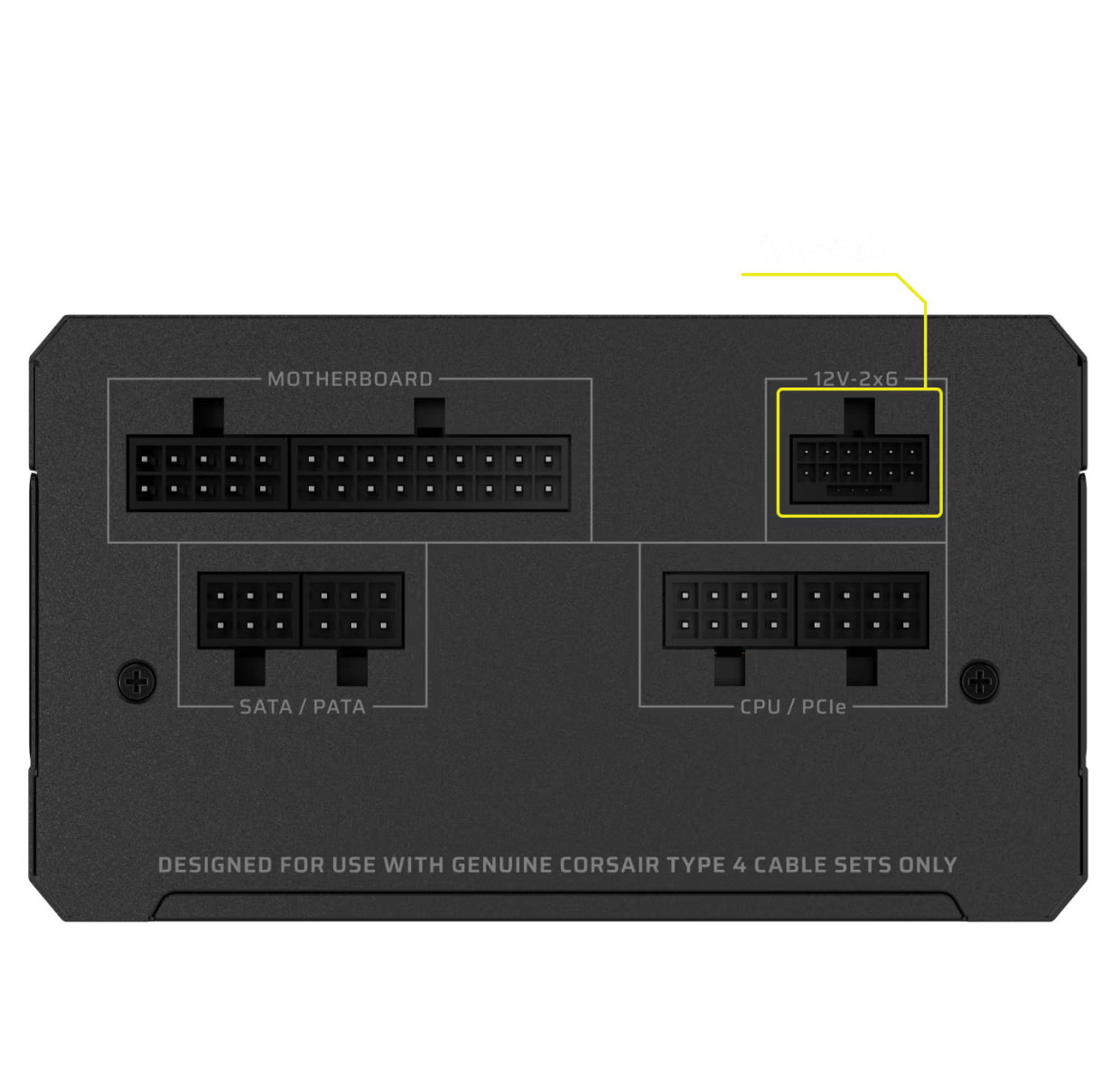

PCIe 5.1 12V-2x6 GPU cables included for use with modern and next-gen graphics cards.

TECHNOLOGY AND RELIABILITY

For consistent, reliable power and superb electrical performance, each RMe Series power supply features a robust resonant LLC topology with DC-DC conversion and 105° rated industrial-grade capacitors.

With precise timings, RMe supports Modern Standby, ensuring extremely fast wake-from-sleep times and better low-load efficiency.

QTY

CABLE

CONNECTORS PER CABLE

TOTAL CONNECTORS

CONNECTOR SPACING

TOTAL LENGTH

CABLE TYPE

1

Modular ATX 24-pin

1

1

-

610mm
(± 10mm)

Embossed

1

EPS / ATX 12V 8-pin (4+4)

2

2

750mm,
100mm

850mm
(± 10mm)

Embossed

1

12V-2x6 (12+4) Pin

1

1

-

650mm
(± 10mm)

Embossed

1

12V-2x6 to Dual 8-Pin (6+2)

2

2

-

650mm
(± 10mm)

Embossed

1

PCIe 8-Pin (6+2)

1

1

-

650mm
(± 10mm)

Embossed

1

SATA (4 Straight SATA)

4

4

450mm, 100mm, 100mm, 100mm

750mm
(± 10mm)

Embossed

1

SATA / PATA (2 Straight SATA) (2 Straight PATA)

4

4

450mm, 100mm, 100mm, 100mm

750mm
(± 10mm)

Embossed
