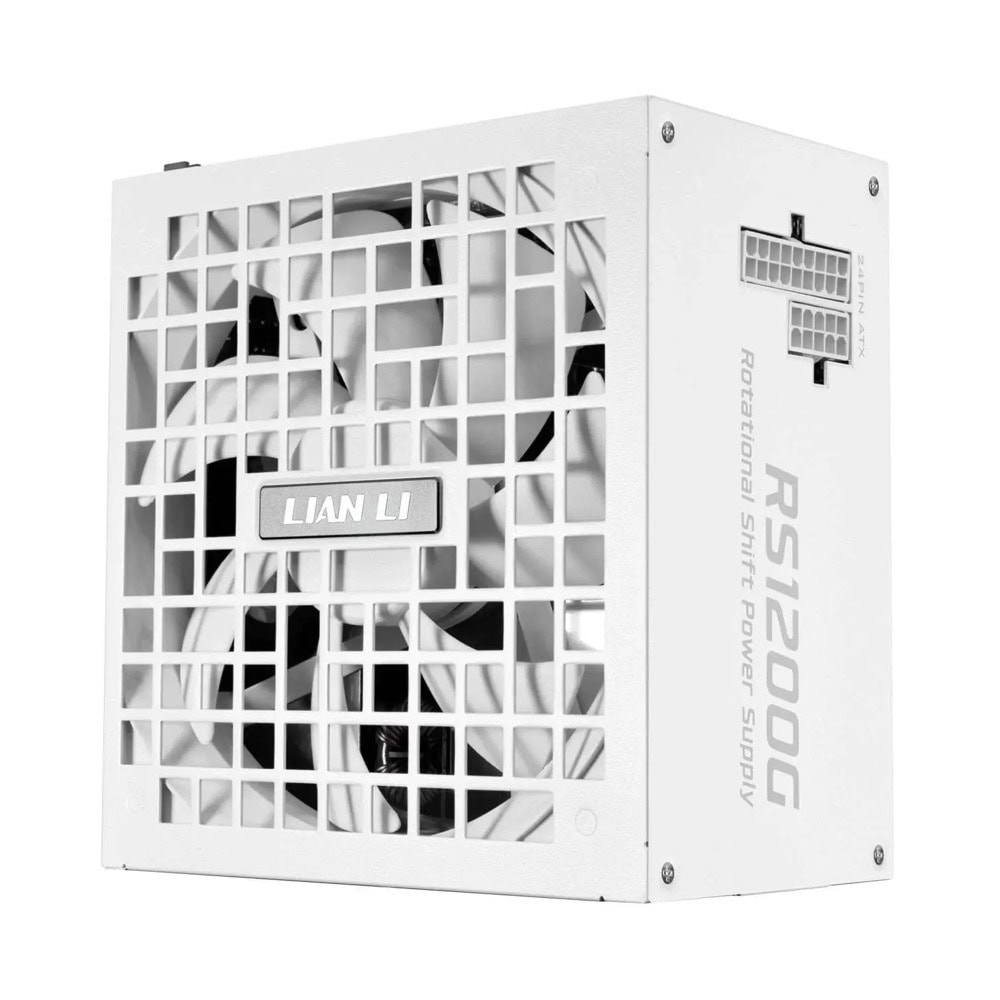

Захранване Lian Li RS, 1200W, Active PFC, 80 Plus Gold, 135mm вентилатор

Lian Li RS

Multiple certifications

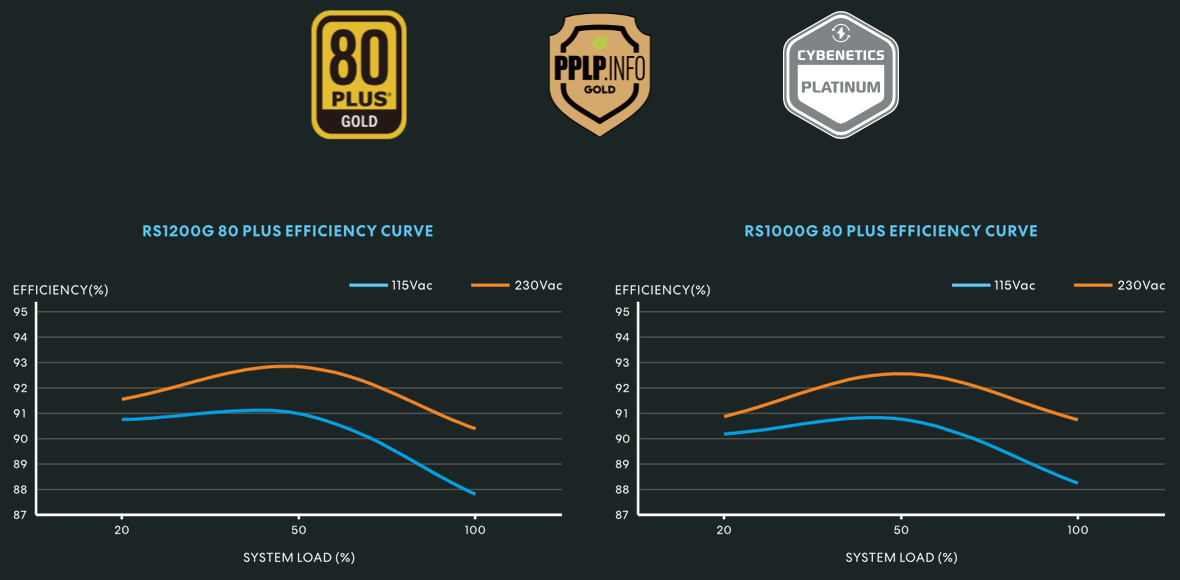

Built as a Gold-standard power supply, the RS Series surpasses expectations.
During Cybenetics testing, its real-world efficiency exceeded the Gold range and earned a Platinum rating, proving its exceptional performance and power savings in demanding workloads.

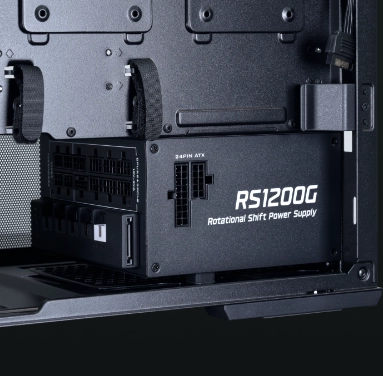

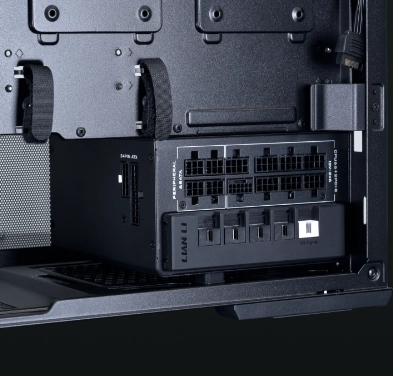

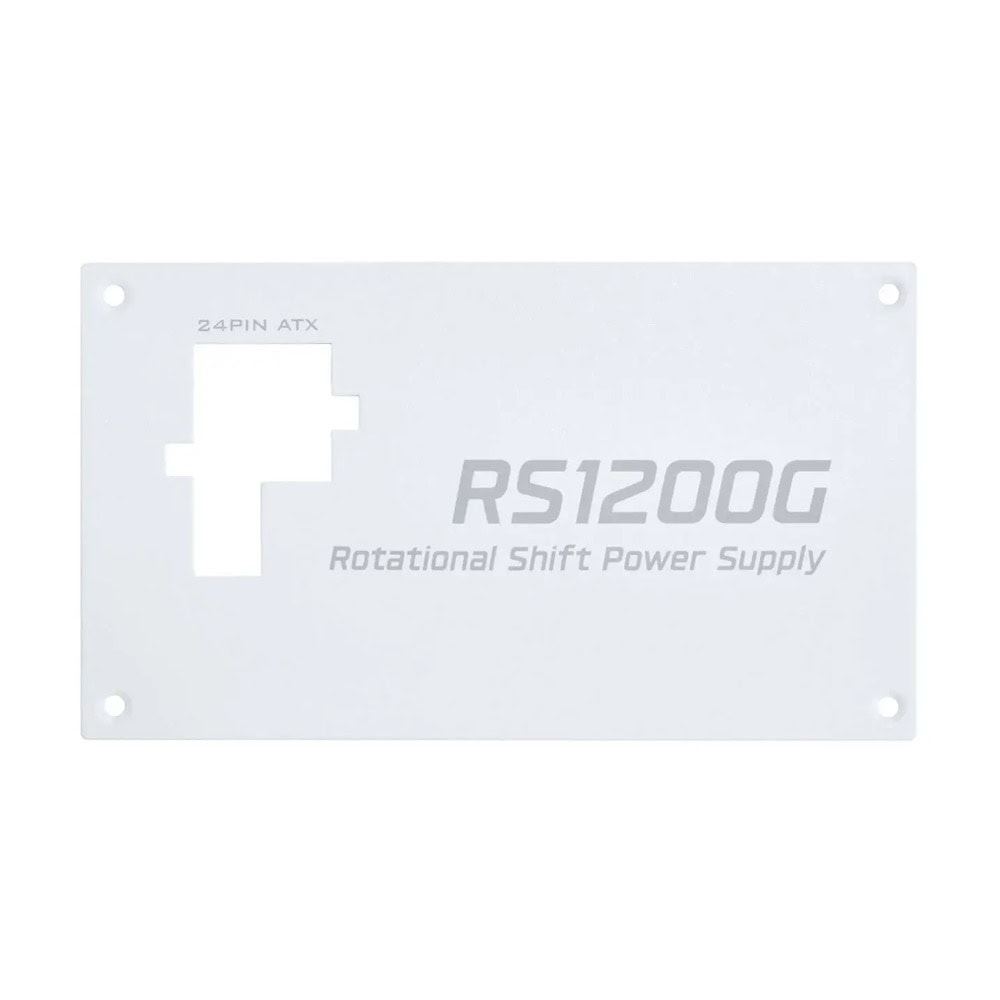

Two installation options for greater flexibility

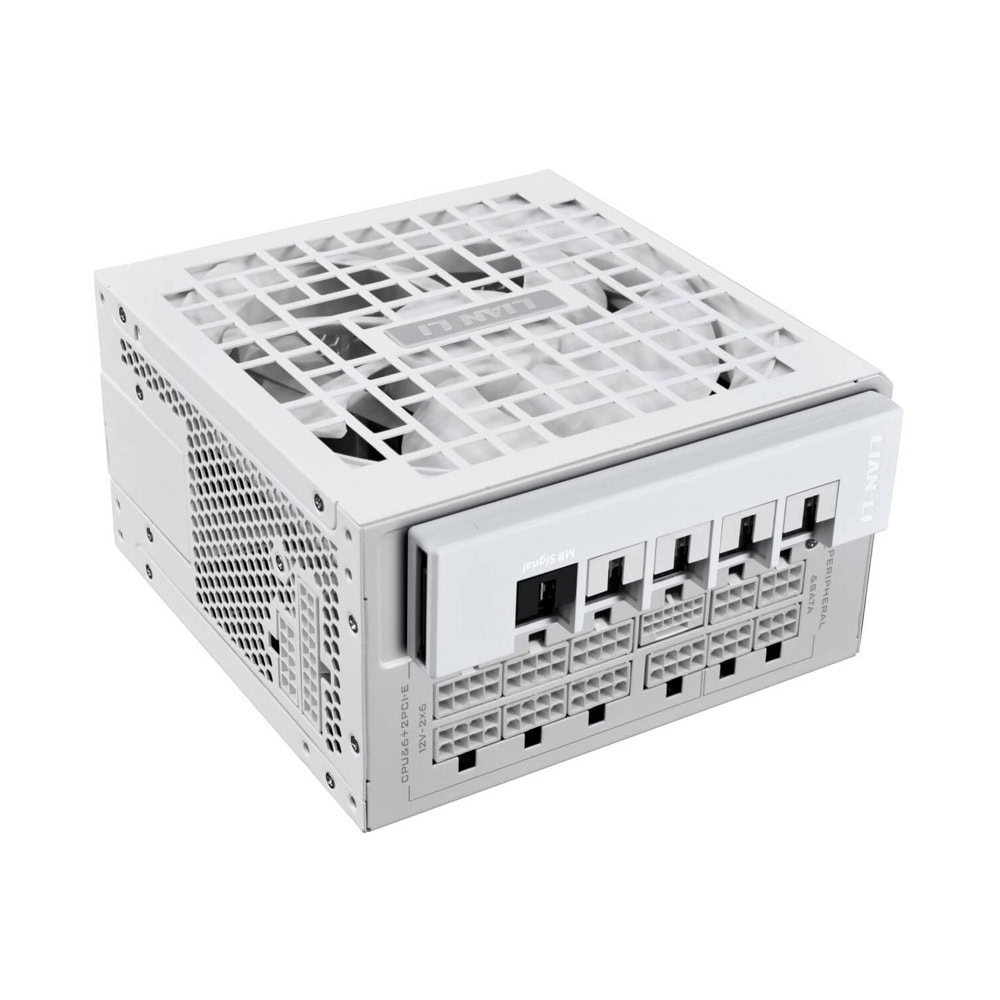

The RS Series offers both standard and side installation options, giving users greater flexibility to match different case layouts and achieve cleaner cable management.

Standard

Side

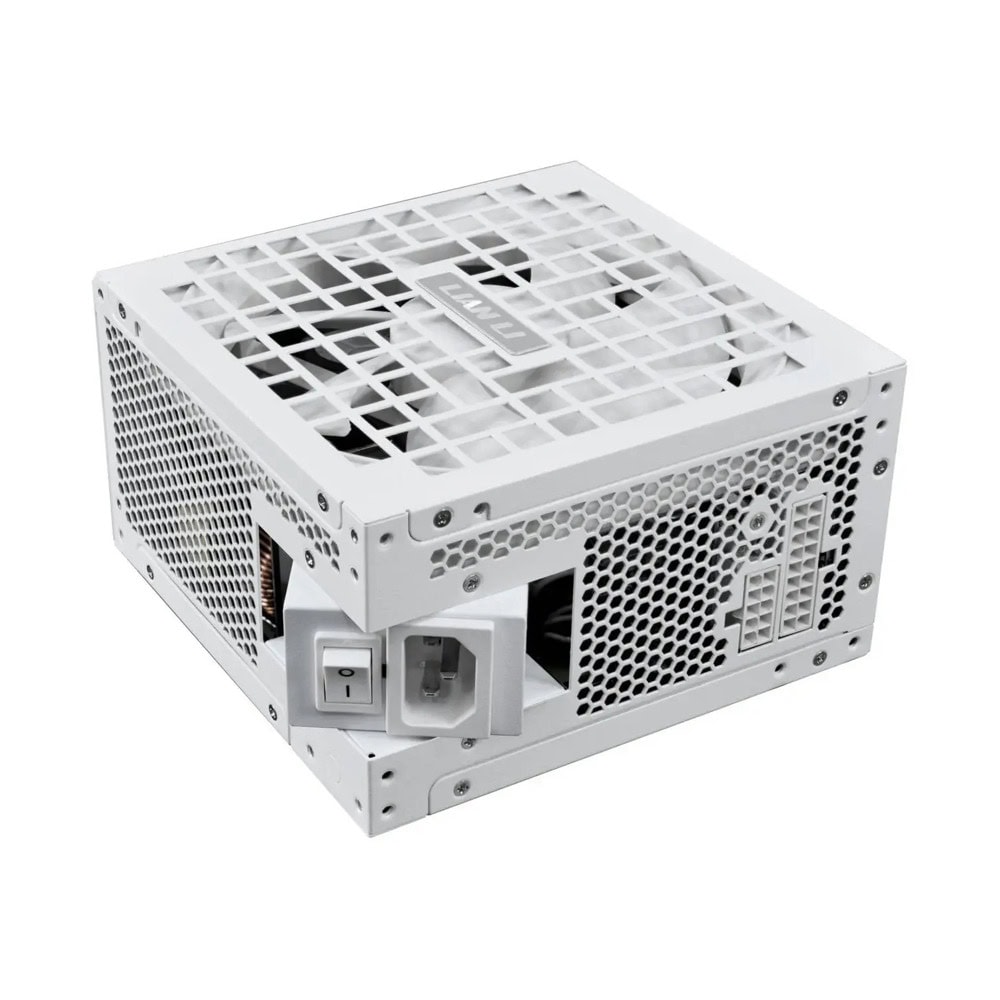

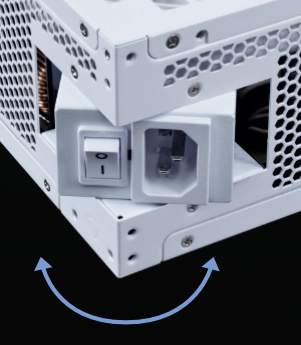

	Rotatable AC inlet Innovative rotatable AC inlet rotates 90°, providing unmatched flexibility to accommodate both standard and vertical installations.

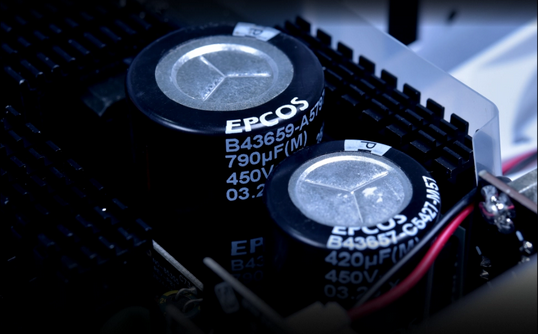

	Premium industrial-grade capacitors for unmatched reliability Equipped with German EPCOS capacitors, the RS Series delivers long-lasting stability and trusted performance you can rely on.

Compact size, powerful cooling

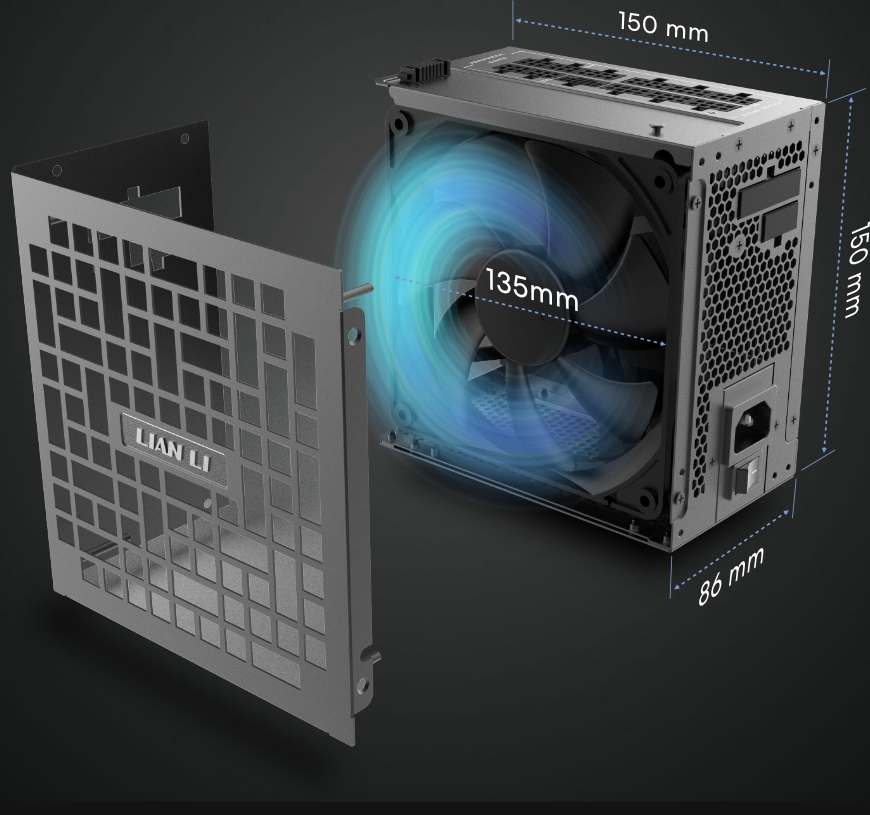

With a 150 × 86 × 150 mm form factor and a built-in 135 mm fan, the RS Series delivers efficient airflow and excellent dual-chamber case compatibility. Rated SSS by PPLP.info, it ensures ultra-low noise across all load levels for a consistently quiet experience.

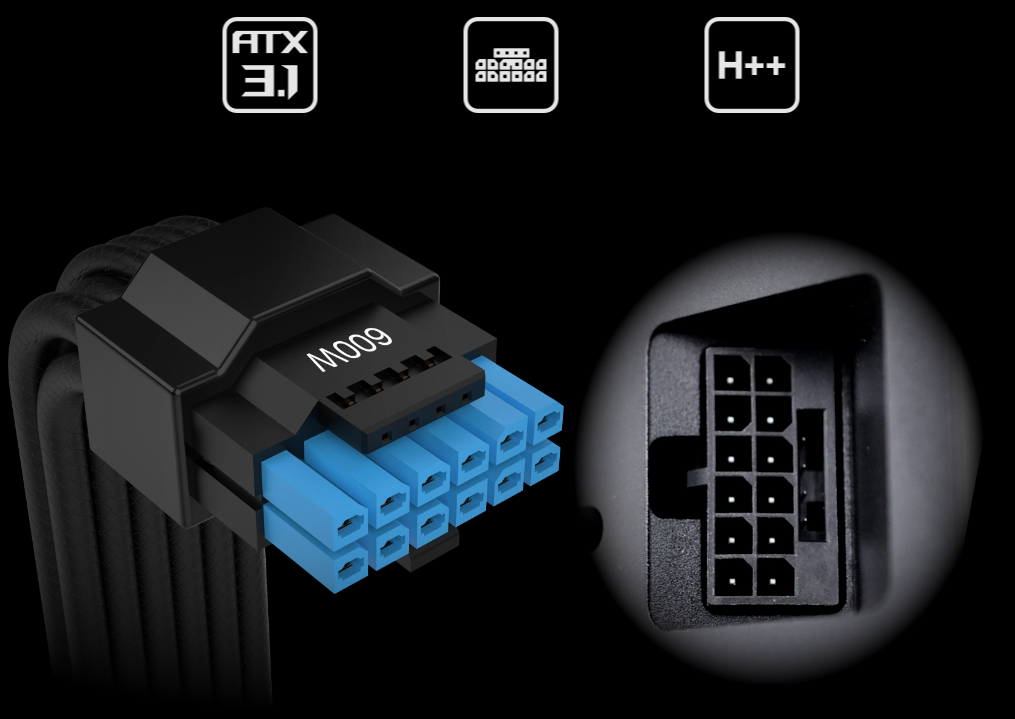

LIAN LI Exclusive Dual-Color 12V-2×6 Cable

Specially designed for next-gen GPUs, LIAN LI’s exclusive dual-color 12V-2×6 cable ensures safer and more reliable power delivery. The dual-color housing makes connections clearer at a glance, while the reinforced structure provides long-lasting durability and stability for every build.

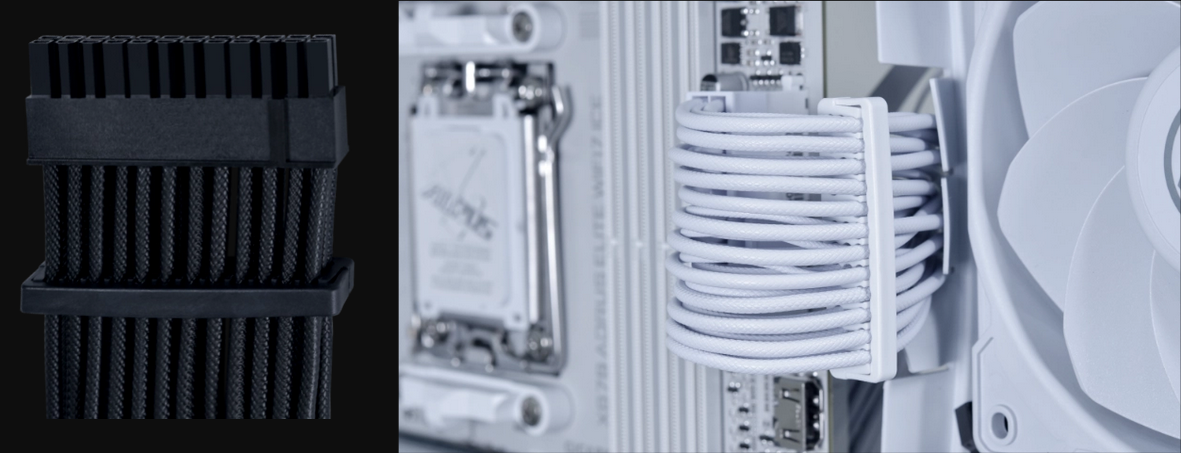

Braided-Textured Cable for Aesthetic Appeal

The main 20+4-pin motherboard cable features a braided texture design with an included cable comb, offering durability and a refined look that enhances the overall build aesthetics.

1x Motherboard (1x24/20-Pin 620mm)

1x CPU/ATX 12V (1x8Pin CPU 700mm)

1x CPU/ATX 12V (1x4+4Pin CPU 700mm)

3x PCI-E (1x8/6+2Pin 650mm)

1x PCI-E (2x8/6+2Pin 650+100mm)

1x 12V-2x6-8pin (1x12V-2x6 650mm)

1x SATA (4xSATA 300-15-15-15mm)

1x SATA (4xY type SATA 375-150mm*2)

1x SATA (4xSATA 400-150-150-150mm)

1x Peripheral (4x4Pin 500-150-150-150mm)

1x USB (USB*9pin-USB*9pin 470mm)

1x USB (USB*9pin-Type-A 550mm)

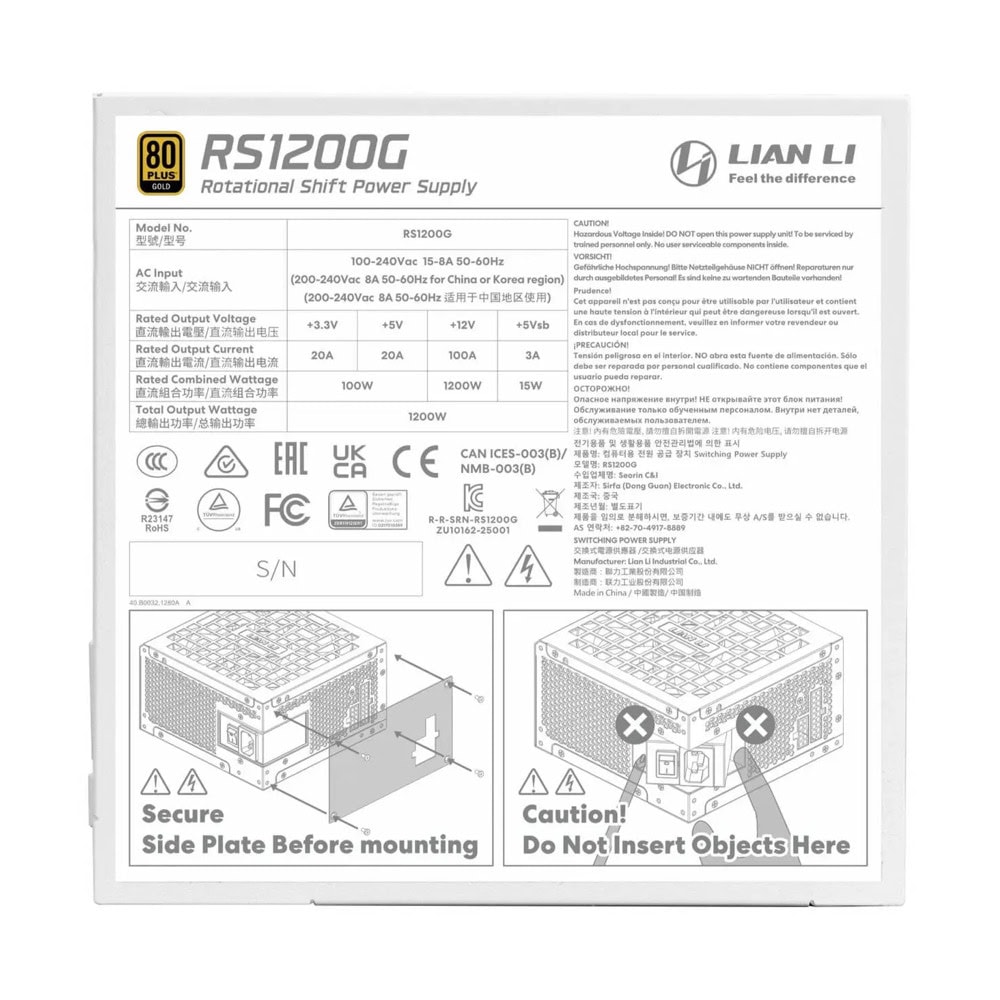

Specifications

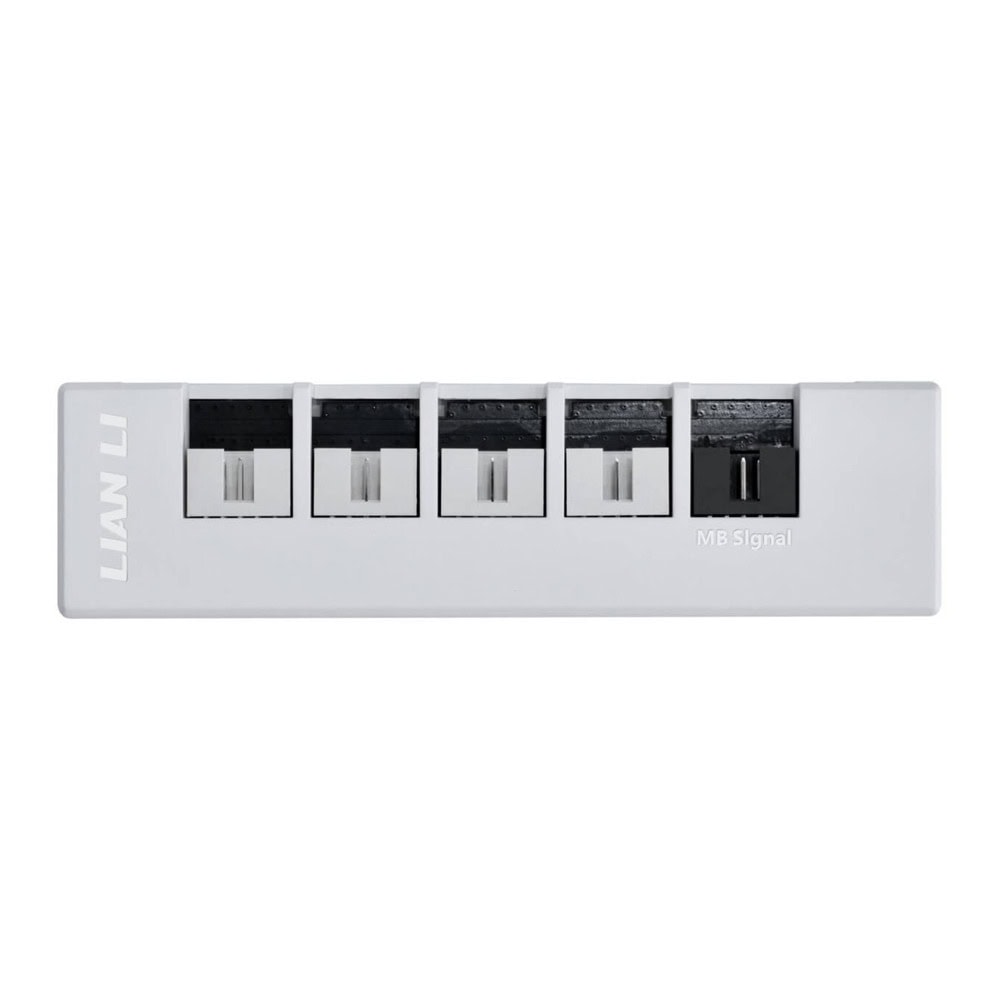

With Hub: Yes
ATX12V version: ATX 3.1
Efficiency: 80 PLUS Gold / Cybenetics Platinum / PPLP Gold
DC output cable: Full-Modular
Dimensions: (D)150 mm X (W)86 mm X (H)150 mm
Material: SECC
PFC: Active PFC, PF > 0.90 under full load @ 115Vac, 60Hz
Input rating: 100-240Vac 15-8A, 50-60Hz
Max. DC output: 1200W
Combined +12V: 1200W
Combined +3.3V & +5V: 100W
Fan SPEC: 135mm FDB Fan
Fan RPM: 2400rpm
Fanless mode: YES
Noise level: 36.27dBA @ 30℃, 100cm away from micphone to PSU
MTBF: 100,000 hrs minimum 25℃/75% Load
Protection: OCP, OVP, OTP, OPP, SCP, UVP, NLP, SIP
Working temperature: 0-40℃
