Name: Захранване Chieftec Vega M, 750W, Active PFC, 80 Plus Gold, 135mm вентилатор
Brand: Chieftec
SKU: PWRPCCHIEFTECPPG750C
Price: 188.33 BGN
Availability: InStock

Описание Характеристики Ревюта / Въпроси Документация Вземи на изплащане

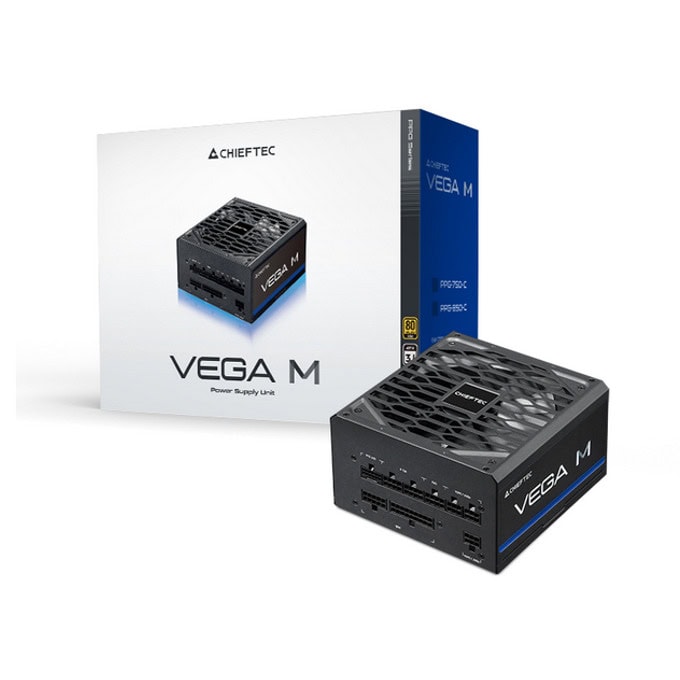

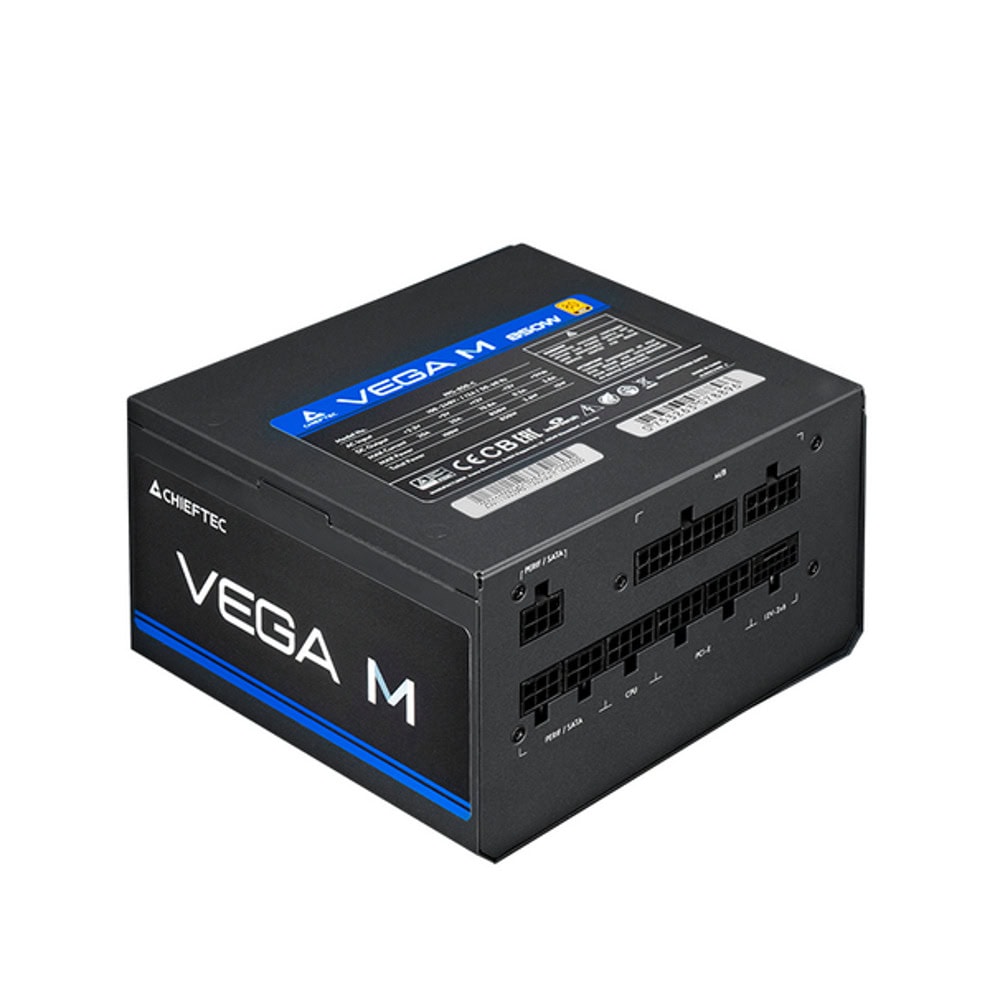

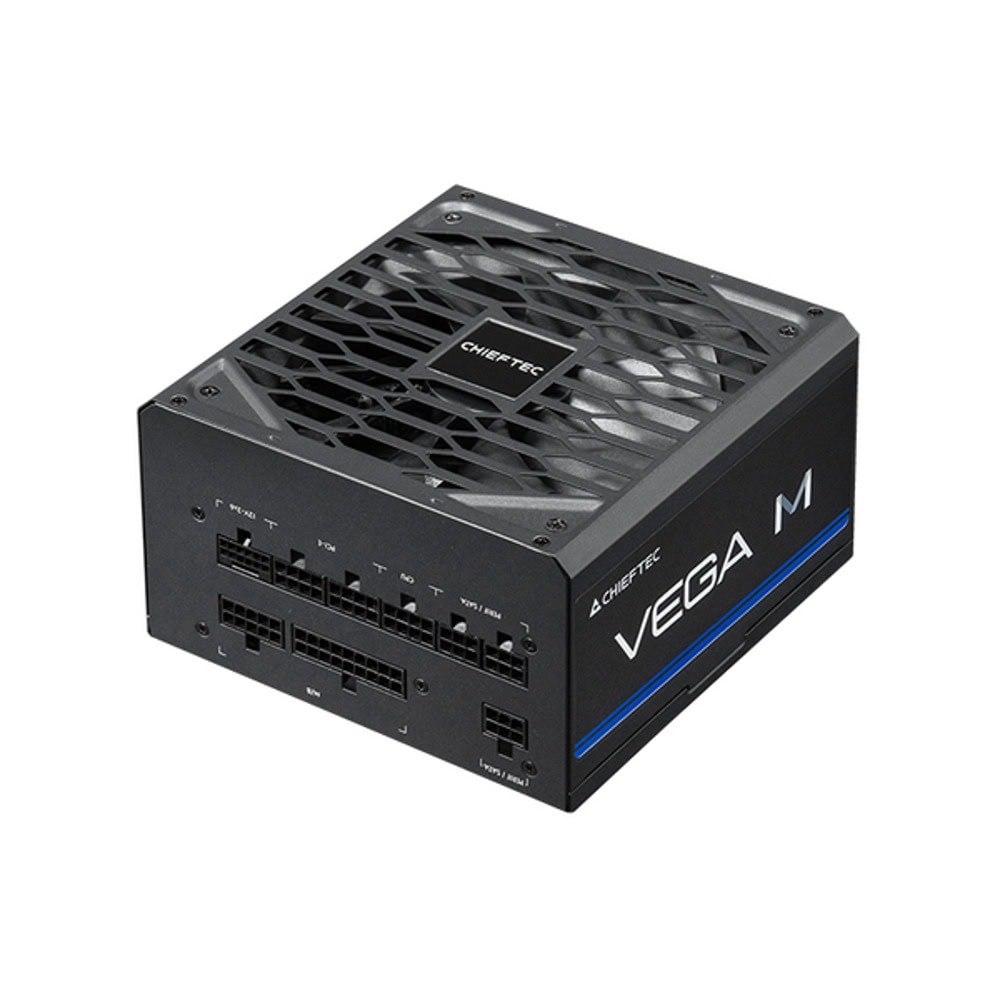

The CHIEFTEC Vega M Series power supply is built to Intel’s ATX 12V 3.1 standard and supports PCIe GEN5 with 80PLUS Gold certified efficiency. It prioritizes a competitive price-to-performance ratio up to 850W while maintaining the trusted Chieftec quality. The Vega M Series features LLC Half-Bridge converter with DC-to-DC technology to provide enhanced power efficiency and stability.

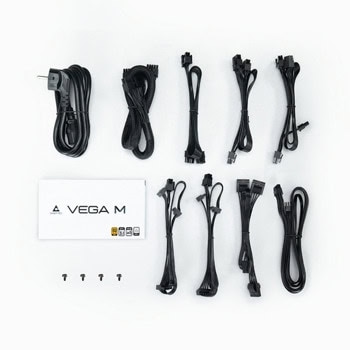

The full-modular design with extra- long black cables make it suitable for mainstream gamers to build their system, even in larger PC cases. Additionally, its 135mm fluid dynamic bearing (FDB) silent fan optimizes the balance between cooling performance and noise levels.

The Vega Series is your trusted reliable choice for all computing needs incorporating all necessary modern protection and safety features.

Technical data

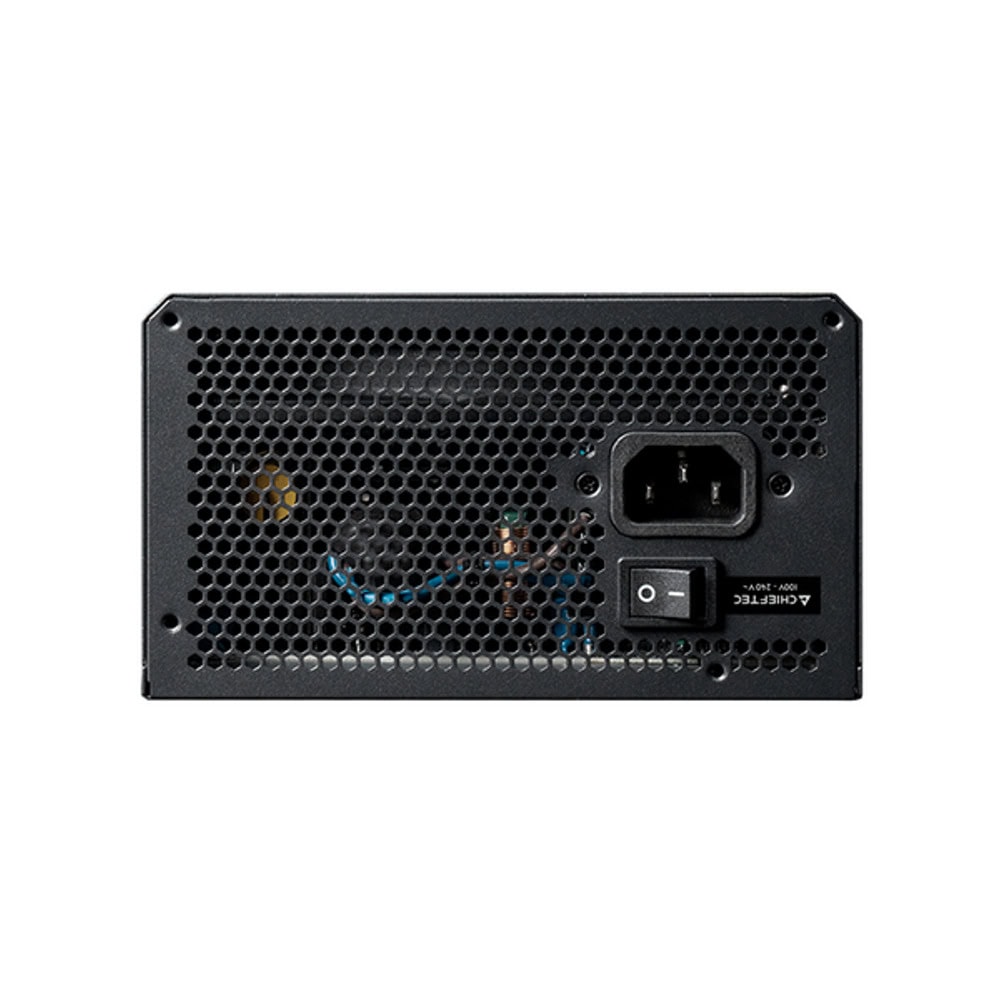

AC Input	100 - 240V~ / 10 - 5A
Frequency	50 - 60Hz
+5V	20A
+3,3V	20A
+5V & +3,3V combined	100W
+12V1	62.5A
+12V2	-
+12V1, +12V2 combined	750W
P.F.	>0.9
-12V	0.3A / 3.6W
+5VSB	3.0A / 15W
Maximum Power	750W

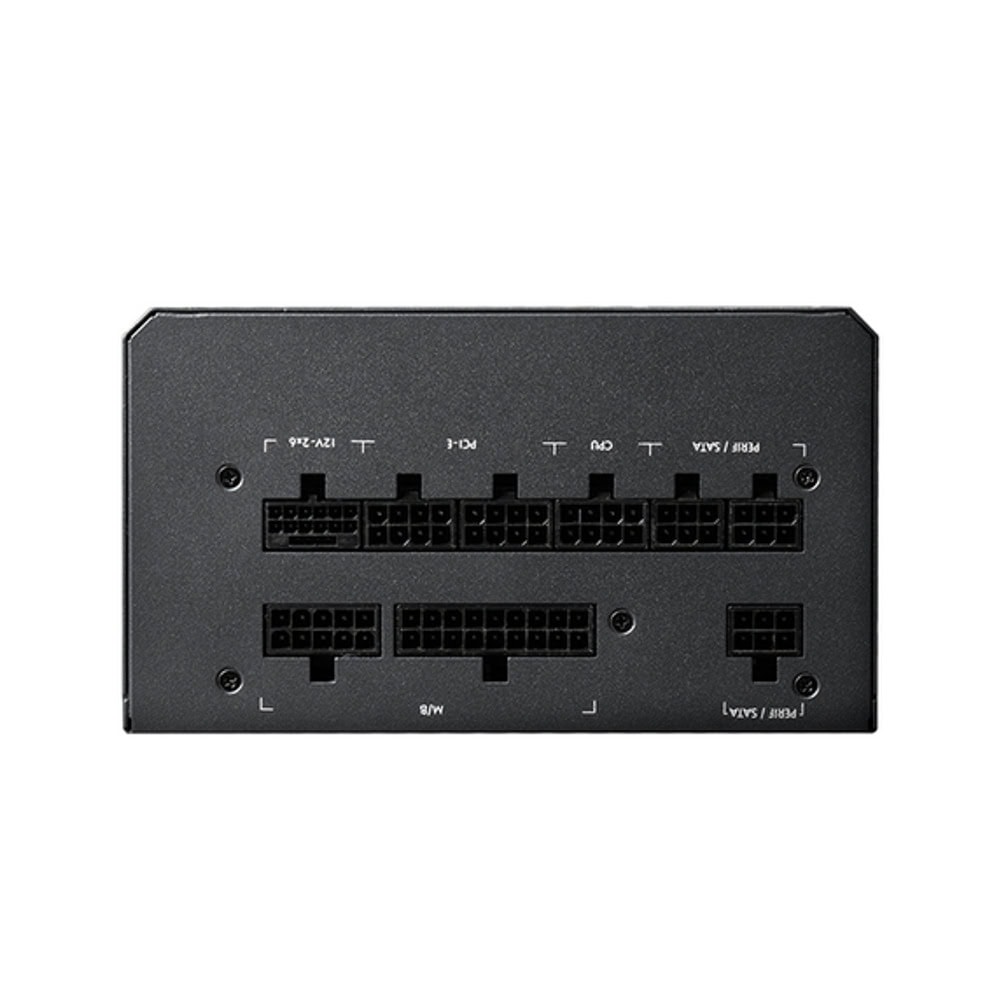

Connectors

20+4 PIN ATX	1
8 PIN EPS (8/4+4)	1/1
8 PIN PCIe (6+2)	4
16 PIN 12V - 2 x 6	1
SATA	6
MOLEX	3

Cable length (mm)

20+4 PIN ATX	600
8 PIN EPS (4+4)	650/150
8 PIN PCIe (6+2)	2 x 600/150
16 PIN 12V - 2 x 6	600
SATA	2 x 400/150/150
MOLEX	400/150/150

Features

ATX12V Version	ATX 12V 3.1
Efficiency	80Plus Gold
Dimension (DxWxH)	150 mm x 150 mm x 85 mm
PFC	Active PFC (0.9)

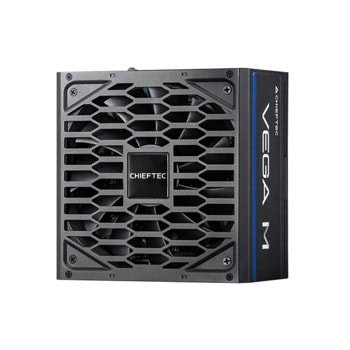

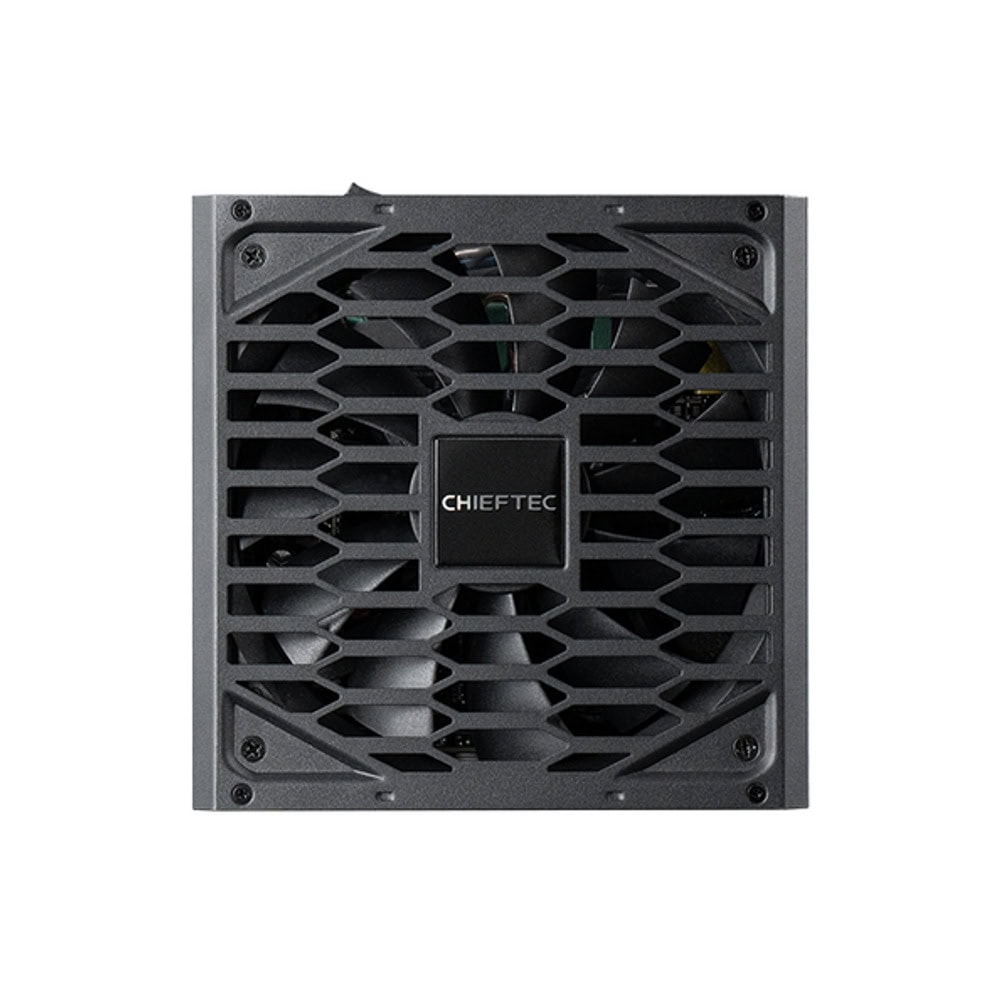

Fan	135mm FDB fan
Security	AFC (Automatic Fan Speed Control) OPP (Overload Protection) OTP (Over Temperature Protection) OVP (Overvoltage Protection) SCP (Short-Circuit Protection) SIP (Surge & Inrush Protection) UVP (Under Voltage Protection) OCP (Over-Current Protection)
