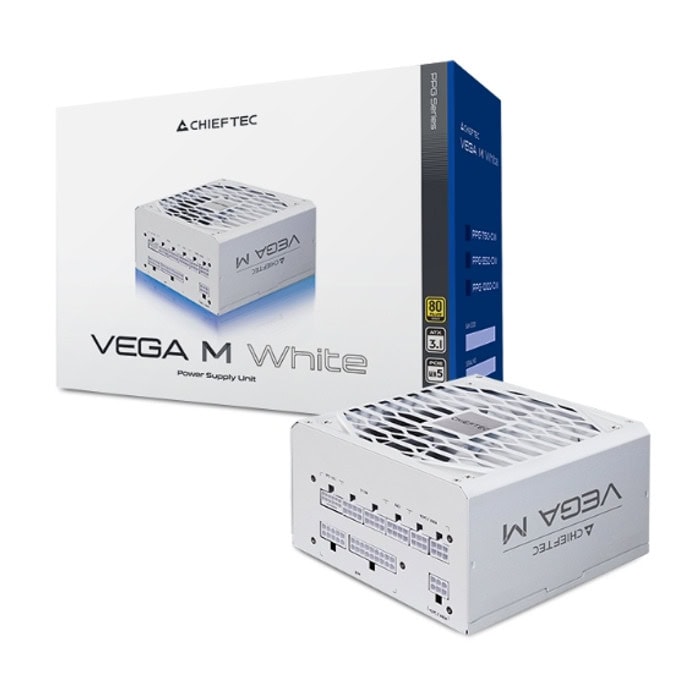

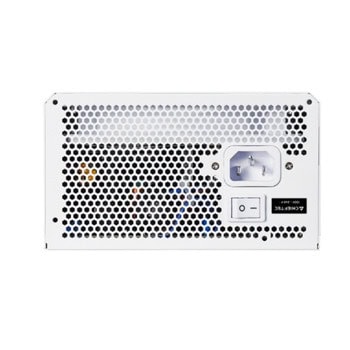

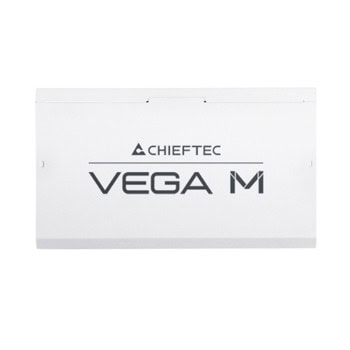

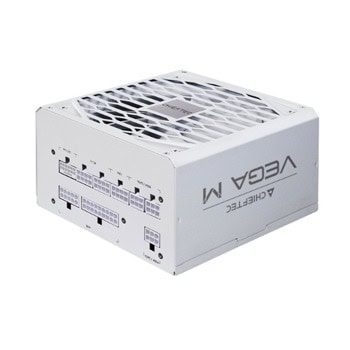

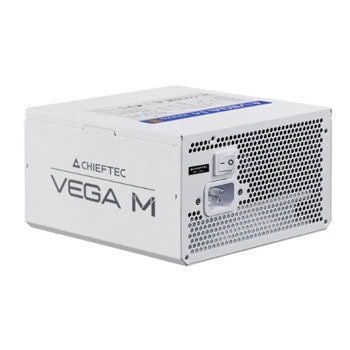

Захранване Chieftec Vega M White, 850W, Active PFC, 80 Plus Gold, 135mm вентилатор

The CHIEFTEC Vega M Series power supply is built to Intel’s ATX 12V 3.1 standard and supports PCIe GEN5 with 80PLUS Gold certified efficiency. It prioritizes a competitive price-to-performance ratio of up to 1000W while maintaining the trusted Chieftec quality.
The Vega M Series features LLC Half-Bridge converter with DC-to-DC technology to provide enhanced power efficiency and stability. The fully modular design with extra long White cables makes it suitable for mainstream gamers to build their system, even in larger PC cases.

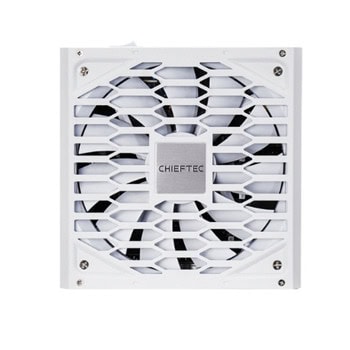

Additionally, its 135mm fluid dynamic bearing (FDB) silent fan optimizes the balance between cooling performance and noise levels. The Vega M Series is your trusted and reliable choice for all computing needs incorporating all necessary modern protection and safety features.


Specifications

Technical data:
AC Input
100-240V~ / 12-6A

Frequency
50 - 60Hz

+5V
20A

+3,3V
20A

+5V & +3,3V combined
100W

+12V1
70.8A

+12V2
-

+12V1, +12V2 combined
850W

P.F.
>0.9

-12V
0.3A / 3.6W

+5VSB
3.0A / 15W

Maximum Power
850W


Connectors:
20+4 PIN ATX
1

8 PIN EPS (8/4+4)
1/1

8 PIN PCIe (6+2)
4

16 PIN 12V - 2 x 6
1

SATA
6

MOLEX
3


Cable length (mm):
20+4 PIN ATX
600

8 PIN EPS (4+4)
650/150

8 PIN PCIe (6+2)
2 x 600/150

16 PIN 12V - 2 x 6
600

SATA
2 x 400/150/150

MOLEX
400/150/150


Features ATX12V Version
ATX 12V 3.1

Efficiency
80 Plus Gold

Dimension (DxWxH)
150 mm x 150 mm x 85 mm

PFC
Active PFC (0.9)

Fan
135mm FDB fan

Security
AFC (Automatic Fan Speed Control)
OPP (Overload Protection)
OTP (Over Temperature Protection)
OVP (Overvoltage Protection)
SCP (Short-Circuit Protection)
SIP (Surge & Inrush Protection)
UVP (Under Voltage Protection)
OCP (Over-Current Protection)
